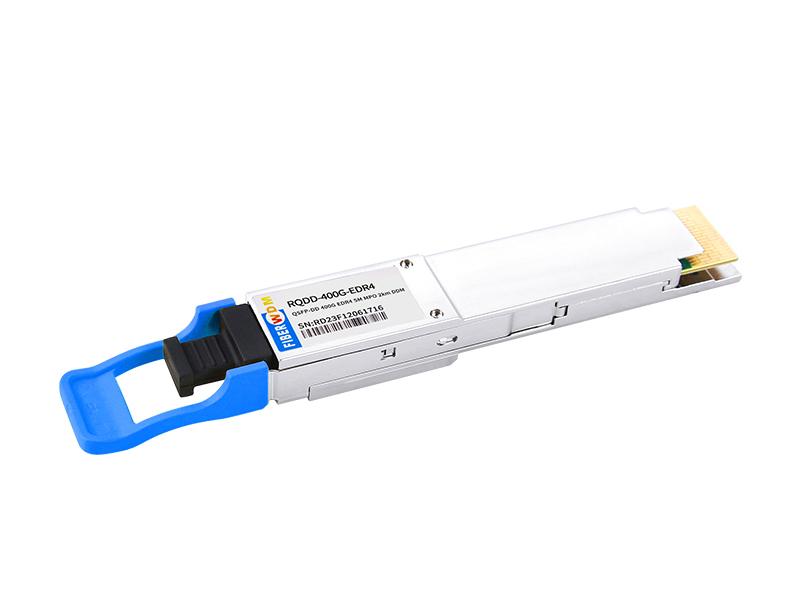

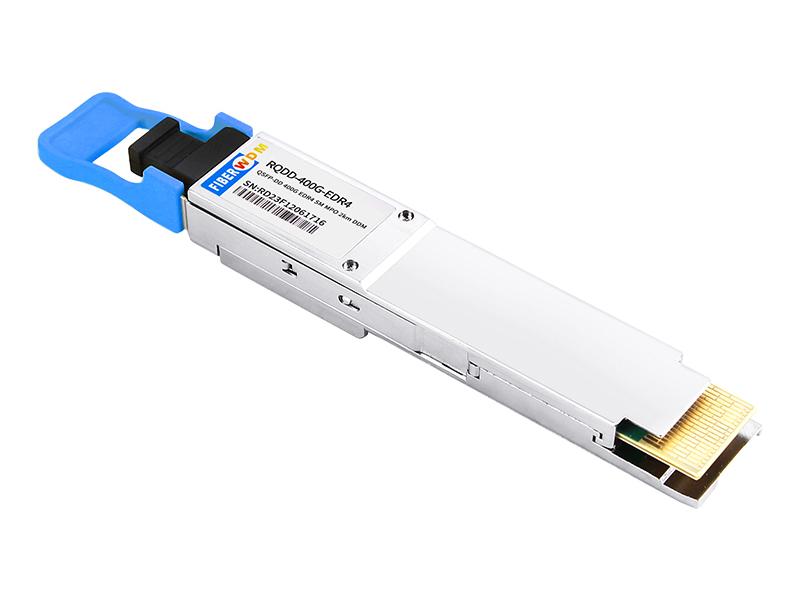

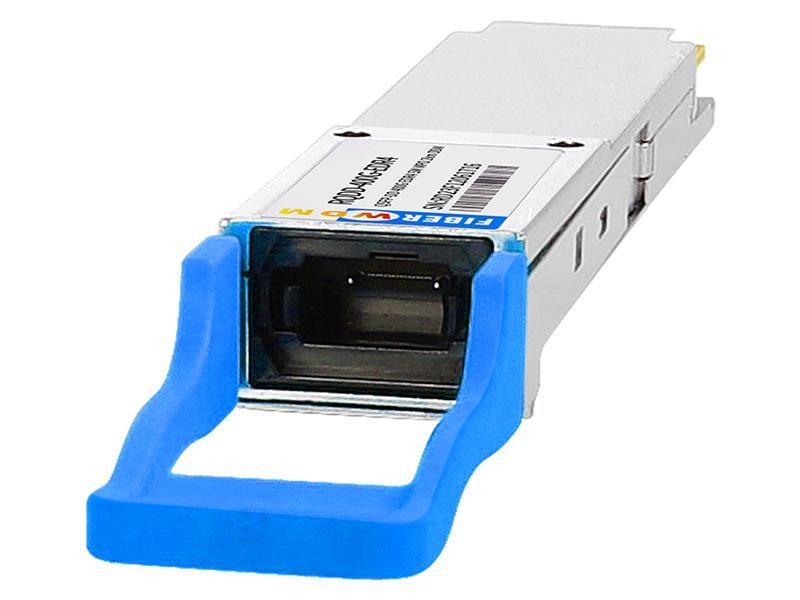

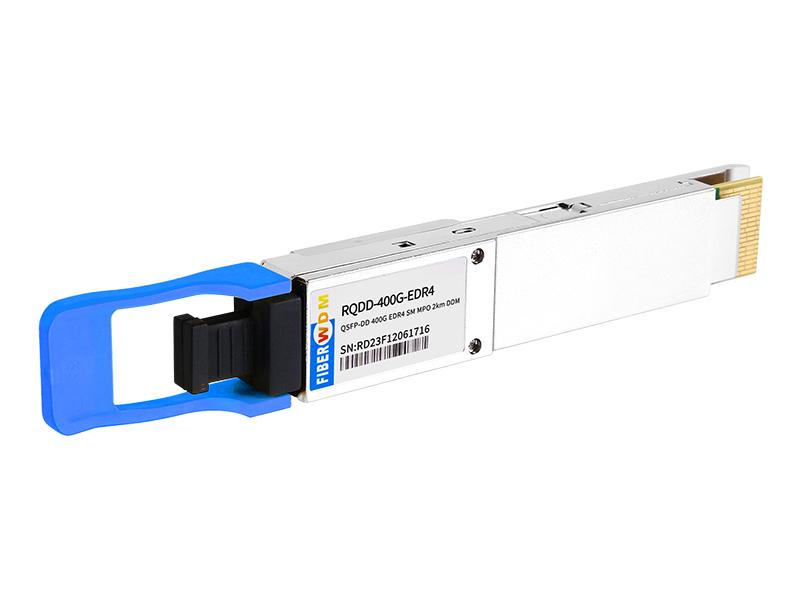

400G QSFP-DD EDR4 SM MPO12 2km Optical Transceiver

RQDD-400G-EDR4

400Gbps QSFP-DD EDR4 2KM EML MPO transceiver

General description

RQD-400G-EDR4 is a 400 Gbps Quad Small Form Factor Pluggable-Double Density (QSFP-DD) optical transceiver designed for 2km optical communication applications.

Functional description

ModSelL is an input pin. When held low by the host, this product responds to 2-wire serial communication commands. ResetL is a signal that allows the host to reset the module. A low level on the ResetL signal for longer than the minimum pulse length initiates a complete modulele  reset, returning all all  user  module setting Sule settings tos  to their default state. LPMode/TxDis is an input signal from the host operating with active high logic. If this pin is “high”, the module enters a low-power state. ModPrsL is used to indicate whether the module is plugged in on the connector, ModPrsL is pulled low when inserted and released to high when it is physically absent from the host connector. IntL/RxLOSL pin is used as interruption. When “Low”, it indicates a possible module operational fault, such as alarm and warning.

Digital diagnostic functions

The following digital diagnostic characteristics are defined over the normal operating conditions unless otherwise specified.

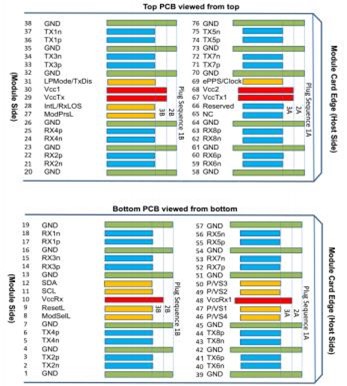

Edge connector and pinout description

The electrical pinout of the QSFP-DD module is shown in Figure 1 below.

MSA compliant connector.

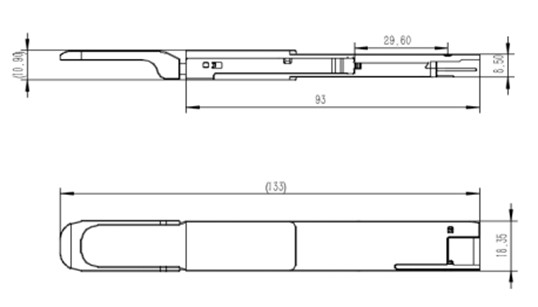

Mechanical dimensions

Mechanical outline

Ordering information
