China M1x2 Magnet Fiber Optical Switch
China M1x2 Magnet Fiber Optical Switch China M1x2 Magnet Fiber Optical Switch China M1x2 Magnet Fiber Optical Switch China M1x2 Magnet Fiber Optical Switch China M1x2 Magnet Fiber Optical Switch

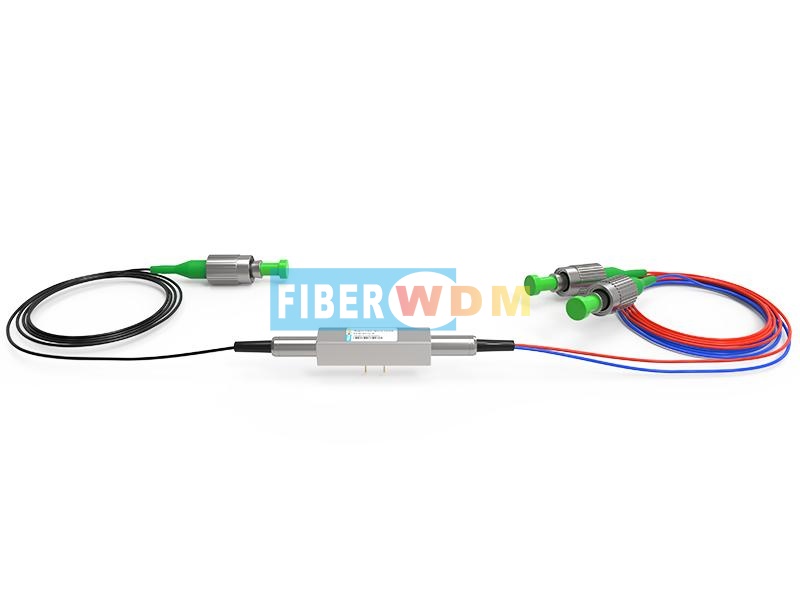

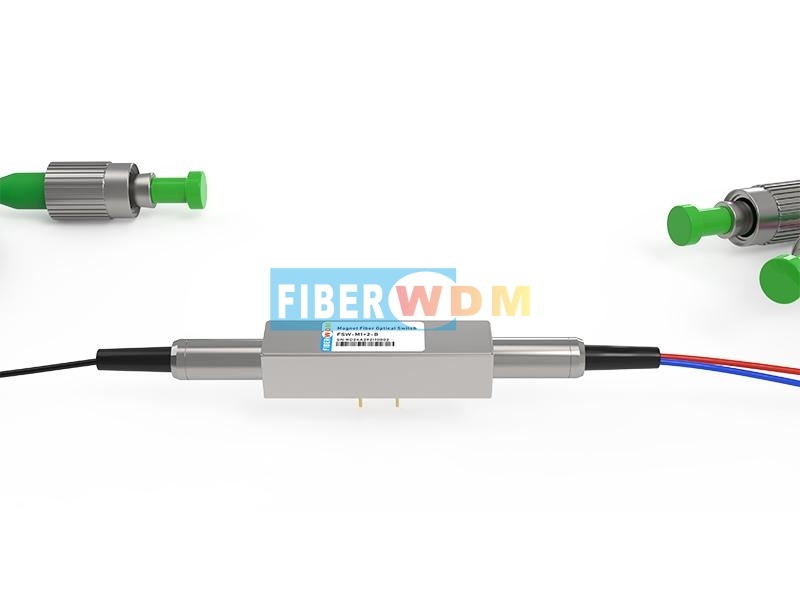

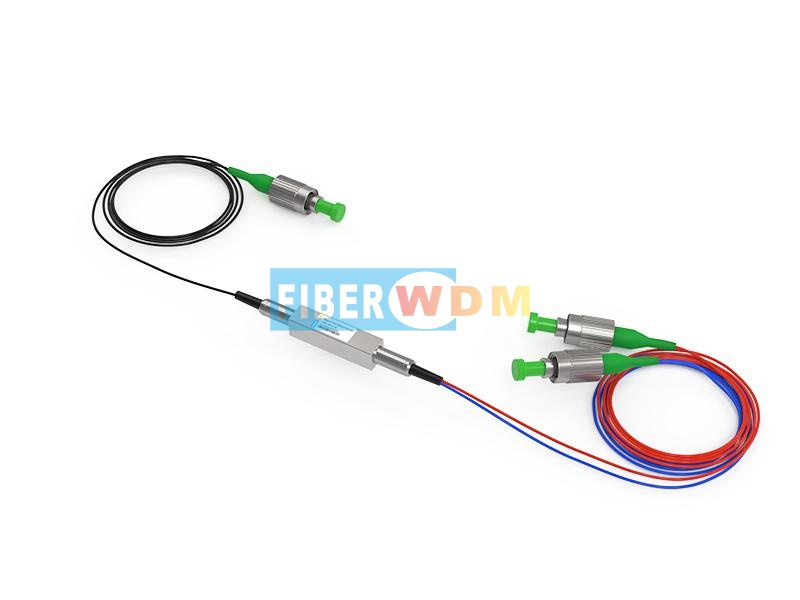

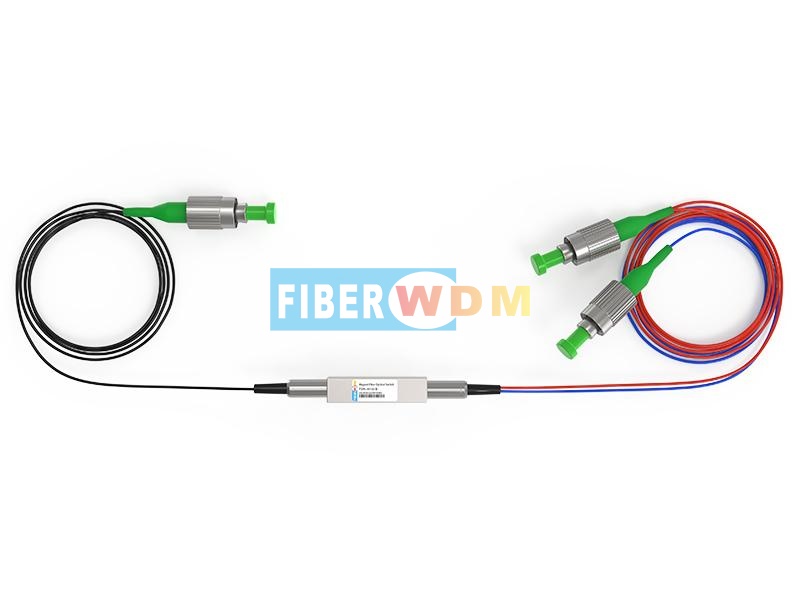

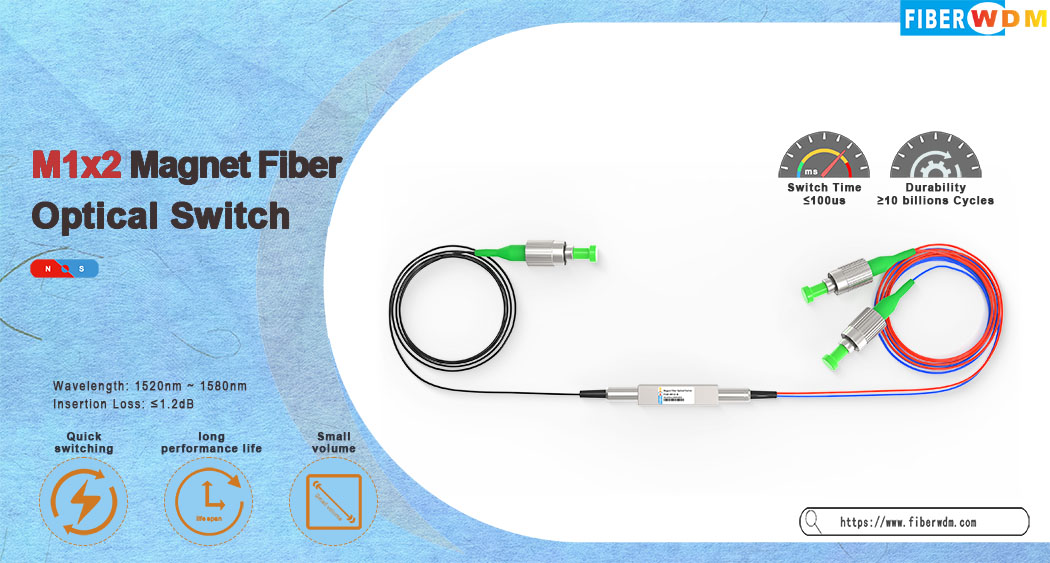

M1x2 Magnet Fiber Optical Switch

Features

  • Solid-state high speed
  • High Stability, High Reliability
  • Epoxy-free on Optical Path
  • Fail-safe latching


Applications

  • Aerospace equipment
  • Configurable Add/Drop
  • System monitoring
  • Sensing system
Inquire now Download
  • Product Detail

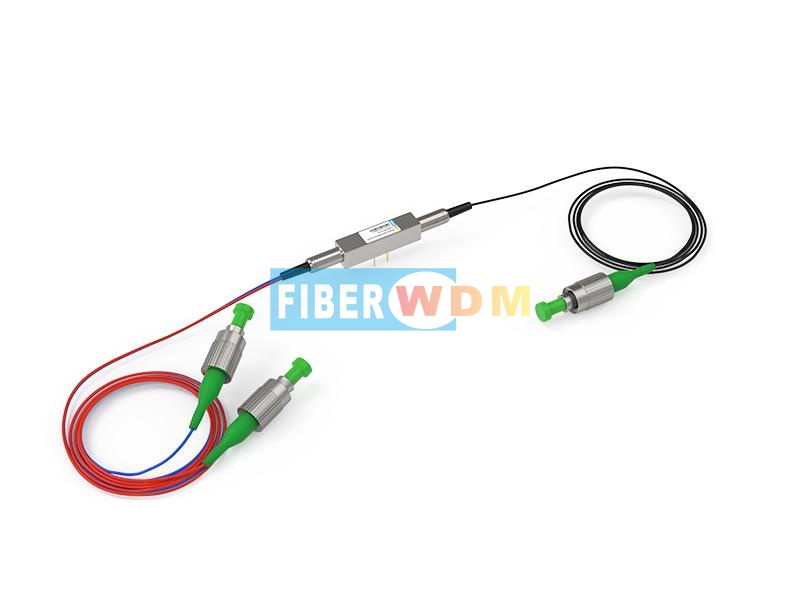

M1x2 Magnet Fiber Optical Switch



The M1x2 optical switch is connected to the optical path by connecting or blocking the optical signal. the switch has non-mechanical configurations and activated via an electrical control signal. the switch also has build-in circulator and isolator functions. Products are widely used in aerospace and military equipment.


1x2 Magnet Fiber Optical Switch


Performance Specifications


Parameters

Unit

Specifications

Wavelength Range

nm

1520 ~ 1580

Test Wavelength

nm

1550

Insertion Loss1, 2

dB

≤ 1.2

TDL

dB

≤ 0.30

PDL

dB

≤ 0.20

Return Loss

dB

≥ 50

Crosstalk

dB

Bidirectional ≥ 20

Unidirectional ≥ 40

Repeatability

dB

≤ ±0.01

Switching Time

us

≤ 100

Pulse Duration

us

≥ 200

Durability

Cycles

≥10 Bllions

Switch Type

NA

Latching

Operating Current

mA

≤ 200

Maximum Optical Power

mW

≤ 500

Operating Temperature

℃

-5 ~ +70

Storage Temperature

℃

-40 ~ +85

Dimension

mm

(L)30.0×(W)7.5×(H)7.5 ±0.2

Note:  1 Test at room temperature and SOP.

          2 Excluding connectors, 0.2dB for one pair connectors.

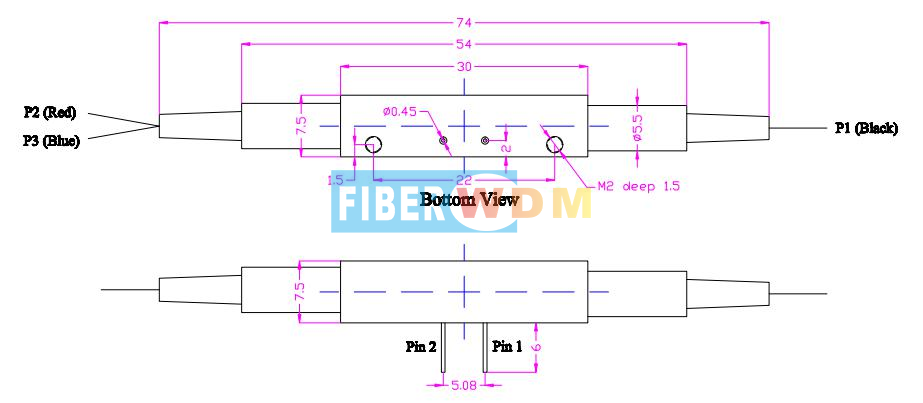

Mechanical Dimensions (Unit:mm)





Electrical Drive


Type

Status

Optical Route

Electric Drive

M1x2

Pin 1

Pin 2

Bidirectional

Ⅰ

P1—— P2

GND

V+

Ⅱ

P1—— P3

V+

GND

Unidirectional

Ⅰ

P1 → P2


P1 ← P3

GND

V+

Ⅱ

P1 → P3


P1 ← P2

V+

GND

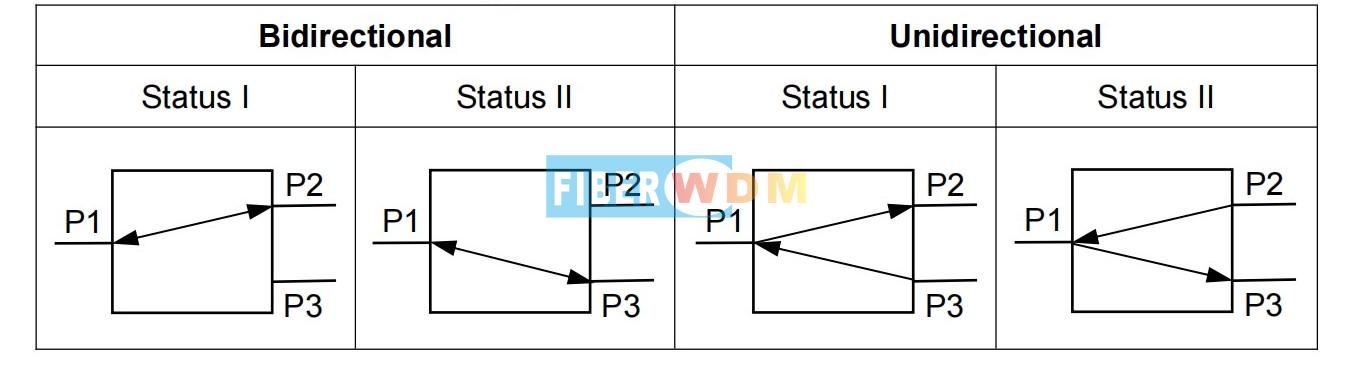

Functional Diagram





Ordering Information

FSW-M1x2-□-□-□-□-□-□-□


—□

—□

—□

—□

—□

—□

—□

Switch Type

Fiber Type

Voltage

Wavelength

Tube Type

FiberLength

Connector

B：

Bidirectional

U：

Unidirectional

SM：

SM，9/125

X：

Others

2.5：

2.5V

X：

Others

1550：

1550nm

X：

Others

250：

250um

900：

900um

X：

Others

05：

0.5m±5cm

10：

1.0m±5cm

X：

Others

OO：None

FC：FC/PC

FA：FC/APC

SC：SC/PC

SA：SC/APC

LC：LC/PC

X：Others




Want to know about this product?

SEND A MESSAGE
Leave A Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

Related Products

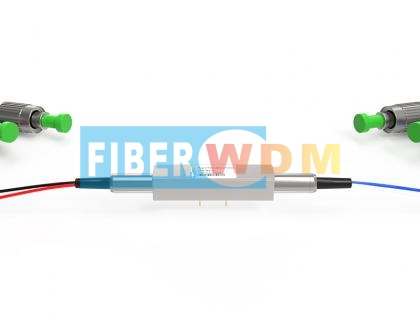

China M1x1 Magnet Fiber Optical Switch M1x1 Magnet Fiber Optical Switch
