Polarization Maintaining DWDM Components



FIBERWDM can support 100Ghz Or 200Ghz there port Polarization Maintaining DWDM (PM DWDM) Components in ITU Grid C-band, the PM DWDM Components are characterized with low IL, high return loss, high extinction ratio and excellent environmental stability and reliability, so great used in polarization maintaining fiber amplifiers, DWDM network, and high speed communication system and instrumentation .


Specifications



Parameters

Unit

Values

Channel Space

Ghz

100

200

Center Wavelength

nm

ITU Grid

Center Wavelength Accuracy

nm

±0.05

±0. 1

Channel Pass band  (@-0.5dB)

nm

0.22

0.5

Max. Insertion Loss of Transmission Channel

dB

1.0

0.9

Max. Insertion Loss of Reflection Channel

dB

0.4

0.4

Min. Transmission Isolation @Reflection Wavelength

dB

30

30

Min. Reflection Isolation @Transmission Wavelength

dB

10

10

Max. Channel Flatness

dB

0.3

Min. Extinction Ratio at 23℃

dB

18

Max. Wavelength Thermal Stability

nm/℃

0.003

Max. Insertion Loss Thermal Stability

dB/℃

0.005

Min. Return Loss

dB

50

Max. Power Handling (CW)

mW

500

Fiber Type

-

PM Panda fiber

Operating Temperature

℃

0~+70

Storage Temperature

℃

-40~+85

1. Above specifications are for device without connector, and the PM WDM device is both axis working. All parameters are tested at room temperature.

2. For devices with connectors, IL will be 0.3dB higher, RL will be 5dB lower and ER will be 2dB lower. Power transmits through the connector less than 2W.The default connector key is aligned to slow axis.

3. For >10W high power applications, we will use heat sink package, contact FIBERWDM for details.

4. If there is pulse application, please be sure to inform us of pulse energy and peak power.

5. 1XN PM DWDM module is also available, please contact FIBERWDM.



Package Information

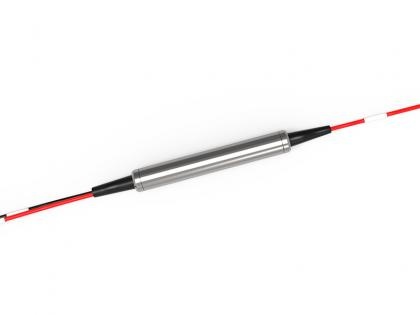

PM DWDM Component



Order Information



PMD

Channel Spacing

Channel

Package

Connector

Pigtails Diameter

Fiber Length

Working Axis



1: 100Ghz

C21

S: steel tube

01U/A: LC/UPC or LC/APC

25:250μm bare fiber

05:0.5m

B：Both axis working



2: 200Ghz

C22

X: others

02U/A: SC/UPC or SC/APC

90:900μm Loose Tube

10:1.0m







C23



03U/A: FC/UPC or FC/APC

XX: Others

15:1.5m







Others



04U/A: others



XX: Others



When you inquire, please provide the correct P/N number according to our ordering information, and attach the appropriate description would be better. If need any connector, we do not recommend choosing a 250μm bare fiber pigtail.



Part Number Example: PMD-1-S-01A-90-10

Description: 100GHz Polarization Maintaining DWDM, C21(1560.61nm), LC/APC all ports, 0.9mm 1.0m fiber, Steel tube,Both axis working.



If you need to customize other specifications, please provide detailed description for your requirement, and contact us by email: sales@fiberwdm.com
