Features

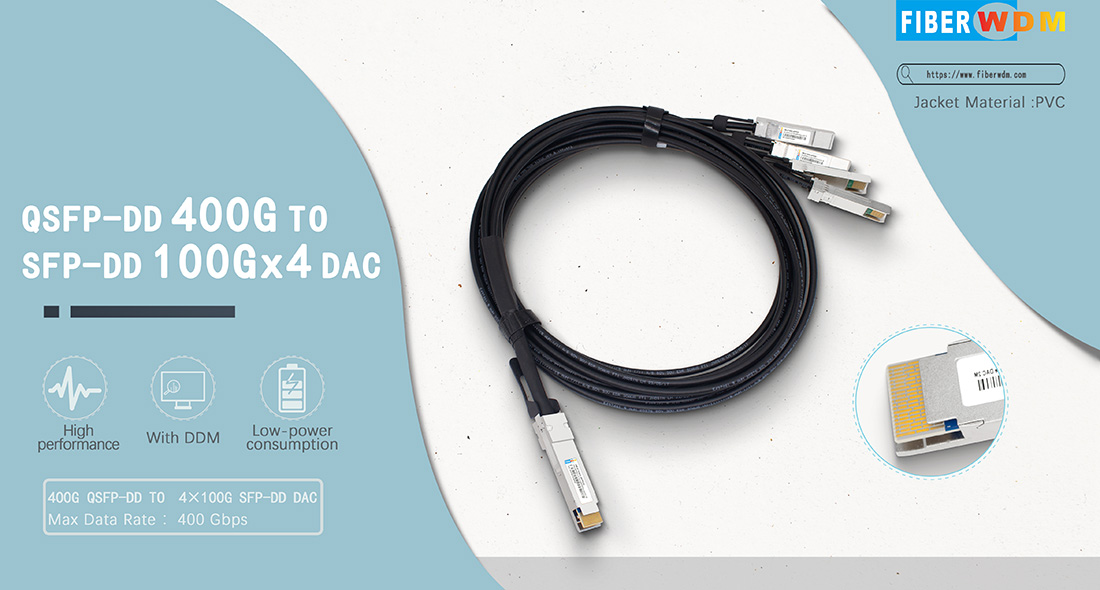

400G QSFP-DD Breakout to 4xSFP-DD Direct Attached Cable
Absolute Maximum Ratings
|
Parameter |
Symbol |
Min |
Typical |
Max |
Unit |
|
Supply Voltage |
Vcc |
3. 13 |
3.3 |
3.47 |
V |
|
Storage temperature |
Ts |
-40 |
|
85 |
ºC |
|
Operating Case temperature |
Tc |
0 |
|
70 |
ºC |
|
Humidity |
Rh |
5 |
|
85 |
% |
|
Data Rate |
|
|
400 |
|
Gbps |
Physical Characteristics
|
Parameter |
Symbol |
Min |
Typical |
Max |
Unit |
|
Length |
L |
0.5 |
|
3.0 |
M |
|
AWG |
|
30 |
|
27 |
AWG |
|
Jacket material |
|
PVC, Black (or Customization) |
|||
Pin Description
Mechanical Dimensions
|
QSFP-DD |
SFP-DD |
||||||
|
GAUGE |
OD |
BEND RADIUS”R” |
MIN.BEND RADIUS”L” |
GAUGE |
OD |
BEND RADIUS”R” |
MIN.BEND RADIUS”L” |
|
30AWG |
12MM |
60MM |
126MM |
30AWG |
6MM |
30MM |
48MM |
|
27AWG |
14.4MM |
72MM |
150MM |
27AWG |
7.2MM |
36MM |
75MM |
Ordering Information
|
Model Number |
Description |
|
QD-400G-SD-4X100G-005 |
400GQSFP-DDto4xSFP-DD DAC, 30AWG, 0.5m, PVC, BLACK. |
|
QD-400G-SD-4X100G-010 |
400GQSFP-DDto4xSFP-DD DAC, 30AWG, 1.0m, PVC, BLACK. |
|
QD-400G-SD-4X100G-015 |
400GQSFP-DDto4xSFP-DD DAC, 30AWG, 1.5m, PVC, BLACK. |
|
QD-400G-SD-4X100G-020 |
400GQSFP-DDto4xSFP-DD DAC, 30AWG, 2.0m, PVC, BLACK. |
|
QD-400G-SD-4X100G-025 |
400GQSFP-DDto4xSFP-DD DAC, 27AWG, 2.5m, PVC, BLACK. |
|
QD-400G-SD-4X100G-030 |
400GQSFP-DDto4xSFP-DD DAC, 27AWG, 3.0m, PVC, BLACK. |
References
1. QSFP-DD MSA Rev6.01
2. IEEE802.3cd
3. SFP-DD MSA
