Passive Optical Network (PON) is the core technology for fiber-optic broadband. Leveraging the advantages of "passivity" (no power supply required for the Optical Distribution Network/ODN), low cost, high reliability, and wide coverage (up to 20 km), it has become the mainstream of broadband networks. GPON, XG-PON, and XGS-PON represent three key phases in the evolution of PON technology, with core differences centered on bandwidth capability and symmetry—factors that directly define their technical positioning. This article examines the core distinctions among the three from the perspectives of technological evolution, core parameters.

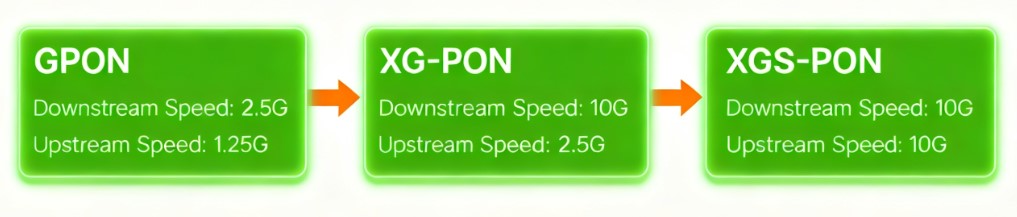

I. Technological Evolution: The Iteration Logic from "Basic Gigabit" to "Symmetric 10G"
The evolution of these three technologies is essentially a process of "bandwidth expansion" and "symmetry optimization". All comply with standards set by the ITU-T (International Telecommunication Union-Telecommunication Standardization Sector), with gradually improved compatibility:
- GPON: Launched in the 2000s as the "first-generation gigabit PON," it addressed the transition from "100-Mbps broadband" to "gigabit access" and served as the primary technology for early Fiber-to-the-Home (FTTH) deployments.
- XG-PON: Introduced in the 2010s as the "second-generation PON," it targeted download-intensive needs (e.g., high-definition videos, cloud gaming) by increasing downstream bandwidth to 10G, driving the popularization of "gigabit home access."
- XGS-PON: Commercialized in the 2018s as the "third-generation PON," it addressed XG-PON’s upstream bandwidth limitations by enabling "symmetric 10G upstream/downstream," making it suitable for scenarios requiring high bidirectional bandwidth.
II. Comparison of Core Parameters: A Clear Overview of Differences
|
Comparison Dimension
|
GPON (Gigabit PON)
|
XG-PON (10G PON) |
XGS-PON (Symmetric 10G PON) |
| Standards Basis |
ITU-T G.984 Series |
ITU-T G.987 Series |
ITU-T G.9807 Series |
|
Upstream/Downstream Bandwidth
|
Symmetric 1.25 Gbps |
Asymmetric (10 Gbps downstream, 2.5 Gbps upstream) |
Symmetric 10 Gbps (upstream/downstream) |
| Typical User Speed |
Mostly 100-Mbps class (50-100 Mbps), with some gigabit speeds |
1-Gbps class downstream (500 Mbps-1 Gbps), 100-Mbps class upstream |
Symmetric 1-Gbps class (500 Mbps-1 Gbps) |
| Bandwidth Symmetry |
Symmetric |
Asymmetric |
Symmetric |
| Maximum Splitting Ratio |
1:64 (supports 64 user splits) |
1:128 |
1:128 |
| Core Technical Features |
Mature and stable, low cost; supports triple-play (voice, data, video) |
Significantly enhanced downstream bandwidth; suitable for download-intensive scenarios |
Balanced upstream/downstream bandwidth; supports high bidirectional bandwidth scenarios |
III. Demand-Driven Technological Iteration
From GPON to XG-PON and then to XGS-PON, this evolution is not a case of "new technologies completely replacing old ones," but rather a typical example of "demand-driven advancement":
- GPON has laid the foundation for Fiber-to-the-Home (FTTH). With its mature technology and low cost, it addresses the "from scratch" need for broadband access, and still serves scenarios with low bandwidth requirements today.
- XG-PON has broken through downstream bandwidth bottlenecks. Its asymmetric design matches users' "download-prioritized" needs, making it the mainstream technology for current home gigabit broadband.
- XGS-PON achieves balanced bidirectional bandwidth. Equipped with symmetric 10G capability, it adapts to new scenarios such as 5G and cloud storage, and represents the core evolutionary direction of optical networks in the next 5-10 years.
The core logic of these three technologies has always been "matching current and short-term bandwidth needs at a reasonable cost," and together they form a complete technical system for optical networks, covering everything from basic services to future upgrades.
