FIBERWDM regards the product quality as the foundation of enterprise survival and development, we adheres to quality policy as below: “ Quality first, Customer first!” “Full participation, Continuous improvement!”. “ No defect input, No defect manufacturing, No defect outflow.” Management indicators 1> Market Defect Rate：<0.1% 2> IQC pass rate: >95%; pass times/ total inspection times*100% IPQC pass rate:>98%; pass times/ total inspection times*100% OQC pass rate:>98%; pass times/ total inspection times*100% Four key points 1> Create Standarization: All operations will strictly follow standard instructions 2> Comply With Standards: 100% comply with standards 3> Constant Confirmation: Confirm the status and results ( Problems, Causes, Countermeasures) 4> Continuous improvement: Improve towards a higher lever Supply Complete system review and risk control during supplier introduction; regular on-site inspections and coaching of suppliers; fair and reasonable trading principles. Warehousing Sampling inspection of incoming materials; implementation of RoHs environmental protection monitoring; standard storage classification and environmental management and control; safe inventory management principles. Produce Defective products are processed in a timely manner; statistical methods are used to control the product defect rate; the first batch of output and quality are analyzed to identify and evaluate quality trends; irregular inspections of the production line are made to achieve continuous improvement and maintain quality; Ship Sampling the finished product to ensure that the product quality meets the specifications; reviewing the product quality according to the production flow chart; and saving data for all produced products. Quality Reliability inspection is performed according to different product quality standards and customer requirements; the inspection process includes: test insertion loss, test return loss, ferrule end face, interchangeability, vibration, tension, high and low temperature cycles; internal test reports in standard format are provided. Surroundings Neat workshop environment and scientific production management: 6S safety and health management is thorough; Kanban management / target management implementation; all issues are made visible and quickly handled; stable and high-quality employees; turnover rate is below 5%. Services 1> Afer-sales service FIBERWDM offers qualitys warranty. If the items you bought from FIBERWDM have quality problem during the guarantee period, We will, at its sole option, repair/replace the product or refund the original purchase price. 2> Technical Support FIBERWDM set up specialized team for technical support team which will solve your problems about products operation, application or technical issues. Our Main Test Instruments
FIBRWDM, strive to become the world's leading manufacturer of optoelectronic devices and optical network systems.
Product Features： u Supports DWDM transmission and wavelength conversion. u Single board supports 4 channels of 100G bidirectional service access. u Line side supports 2*200G CFP2 DCO coherent optical modules. u Customer side supports various module interface types: 100GBASE-SR4/CWDM4/LR4/PSM4. u Supports ALS (Automatic Laser Shutdown) functionality. u Supports DDM (Digital Diagnostic Monitoring) signal monitoring. u Supports SD-FEC and SC-FEC functionalities. u Compatible with SNMP-based unified network management platform, with management interfaces including CLI (Telnet and console), Web, and NetView (graphical interface).

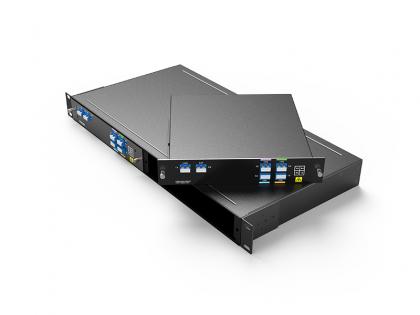

Product Features Flexible networking with a compact footprint and strong scalability. Supports hot-swappable CWDM/DWDM/EDFA/OLPS/OTAP service cards. Supports access to various services such as SDH, SONET, Ethernet, SAN, OTN, and Video. Supports maximum single-channel rates of 100G, 200G, 400G. Supports various networking configurations, including point-to-point, point-to-multipoint, and ring topologies, with options for single-fiber or dual-fiber bidirectional transmission. Supports interoperability with client devices from different vendors, including single-mode (1310nm/1550nm), multimode (850nm/1310nm), and Ethernet ports (RJ45), enabling optical add-drop multiplexing (OADM) functionality and wavelength conversion at intermediate nodes. Supports SNMP-based unified network management platform with management options including CLI (telnet and console), web interface, and NetView(graphical interface). Supports 1+1 hot-swappable redundant power backup with options for both AC and DC power sources.
Features It supports comprehensive access to wireless fronthaul and other services, taking into account wireless fronthaul, private line, and home broadband services, and maximizes the value of fronthaul networks； Maximize optical fiber saving, one fiber can carry 9 channels of 4G & 5G fronthaul CPRI/eCPRI services； The local side is active and the remote end is passive, and WDM technology is used to extend the physical channel of pure transparent transmission, without delay and jitter introduction； It supports the monitoring function of the luminous power of each channel, which is easy to maintain and locate faults； It supports 1:1 protection at the optical layer, and the protection switching time is less than 20 ms, improving network reliability； The optical-layer protection function card can be selected according to the application scenario, and supports hot-swap and power-off/power-on-hold functions to ensure that the device does not affect service operation in the event of a power-off； It supports SNMP, Web and other graphical interface network management； Local end equipment active supports AC 220V, DC -48V power supply optional, and 1+1 power input protection； The installation method is flexible, the central office equipment supports rack-mounted installation and wall-mounted installation, and the remote equipment supports rack-mounted, pole-mounted and wall-mounted installation, which is easy to install and plug-and-play； The remote outdoor device meets the requirements of the IP67 standard and supports pole and wall mounting.
Product Features: Max support 16x100G for client side, 8x200G or 4x400G for line side in transmission. Total max is 1.6Tbps(3.2Tbps on bidirectional) in 1U device. Achieve higher transfer capacity through device stacking. Maximum up to 19.2Tbps (200G*96ch@50GHz) or 25.6Tbps (400G*64 75GHz or 400G*48 100GHz) 1U chassis modular design, single board adopts hot-swappable design, supports smooth upgrade, and can flexibly expand or delete services according to needs. Dual power supply, compatible with AC or DC power supply DC-48V. Complete network management protocol: supports WEB, SNMP, CLI, TLI and other network management interfaces. Support dual network management cards, 1+1 network function.
Product Features The single board supports 4*100G to 1*400G coherent transmission, which can realize single-channel 400G line-side transmission. The wavelength is adjustable, supporting up to 400G 75GHz * 64 waves or 400G*100Ghz 48 waves, 200G 50GHz * 96 waves. With flexible coherent modulation technology: DP-16QAM, DP-8QAM, DP-QPSK. Multiple FEC error correction technologies: oFEC, CFEC, SCFEC, SDFEC. Support flexible service access functions: 100GE, 100GE KR4, OTU4 and 100G FlexE. Support perfect performance monitoring and statistical functions. Supports Ethernet RMON performance statistics, LLDP monitoring, constellation diagram monitoring, DM delay and PRBS detection functions, OTN PM and SM performance statistics and other functions. Supports real-time monitoring of high-precision board temperature, voltage, current and power consumption. The client side supports multiple module interface types: 100GSR4/CWDM4/LR4/PSM4. Support unified network management platform, network management methods SNMP, CLI, Web, NMS (graphical interface).
Product Features: Hot-swap and software and hardware watchdog functions: to ensure the reliability, controllability and credibility of the network management. Support online upgrade: online upgrade can be realized locally or remotely without affecting the functions of service boards. Complete network management platform: supports multiple network management platforms, and the network management methods include SNMP, CLI, Web, NMS (graphical interface) . Abundant network management interfaces: provide 2*SFP and 2*RJ45 management interfaces and a local interface (TYPE-C port). Provide powerful multi-level network topology management functions to realize rapid and automatic discovery of network topology and generate intuitive and vivid display graphics. Following the TMN specification, it realizes functions such as device management, monitoring and deployment, software upgrade management, configuration file management, alarm and performance management, and realizes all-round network management from the device level to the network level.
Product Features The board supports two channels of 2*100G to 200G coherent transmission, enabling dual 200G line-side transmission. It has adjustable wavelengths and supports a maximum of two channels of 200G with 75GHz * 64 waves or 200G with 100GHz * 48 waves. It features flexible coherent modulation technologies: DP-16QAM, DP-8QAM, DP-QPSK. It incorporates various FEC error correction technologies: oFEC, CFEC, SCFEC, SDFEC. It supports flexible service access functions: 100GE, 100GE KR4, OTU4, and 100G FlexE. It provides comprehensive performance monitoring and statistical functions. It supports Ethernet RMON performance statistics, DM delay and PRBS detection functions, and OTN PM and SM performance statistics. It supports high-precision real-time monitoring of board temperature, voltage, current, and power consumption. On the client side, it supports various module interface types: 100GSR4/CWDM4/LR4/PSM4. It supports a unified network management platform with SNMP, CLI, Web, NMS (graphical interface), and Netconf Yang model interfaces.
Product Features Supports applications such as single-mode to multi-mode conversion and optical power amplification. Supports unidirectional or bidirectional relay amplification. Supports amplification at various wavelengths, including 850nm, 1310nm, CWDM or DWDM. Supports the access of 4-channel bidirectional or 8-channel unidirectional business protocols with arbitrary rates ranging from 1.25Gbit/s to 25.78Gbit/s. Transparent transmission of business data. Hot-swappable capability. Supports FEC functionality, optimizing output, monitoring DDM signals, and enabling link detection (no light emission when no receiving signal is present). Supports SNMP-based unified network management platform with management options including CLI (telnet and console), Web, and NetView (graphical interface).

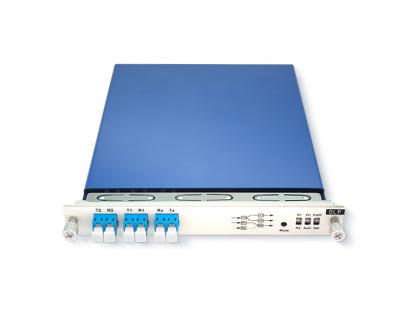

Product Features Supports optical line protection for both single-mode and multimode fiber Supports dual-fiber bidirectional and single-fiber bidirectional protection modes. Supports 1+1 (dual-transmitter dual-receiver) and 1:1 (transmitter selection receiver selection) protection modes. Wide optical power monitoring range: -50dBm to +25dBm. Short optical path protection switching time: <20ms. Supports local and remote control. Supports SNMP-based unified network management platform.Include CLI (telnet and console), Web, and NetView (graphical interface).
Product Features Supports smooth upgrade of CWDM system to 18-channel customization. Supports smooth upgrade of DWDM system to 96-channel customization. Completely passive, no power supply or adjustment required, transparent transmission. Supports online capacity expansion and upgrade, simple maintenance, easy operation. Supports CWDM and DWDM (100GHz/75GHz/50GHz) applications. Supports various application scenarios such as single fiber unidirectional, single fiber bidirectional, and dual fiber bidirectional. Low insertion loss, high channel isolation, high reliability and stability, compliant with GR-1221 standard.

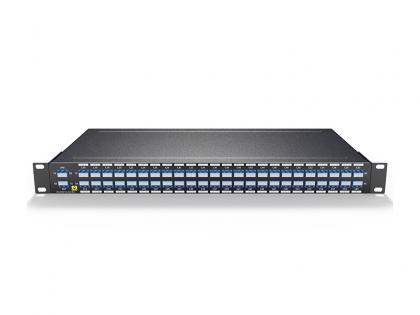

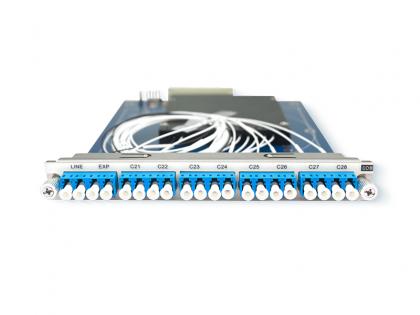

The 40ch 50Ghz DWDM MUX DEMUX is designed by FIBERWDM, wavelength from C21 to C60(1560.61nm~1529.55nnm), in accordance with the ITU-T G.694.1 100GHZ grid, it maximizes the capacity of the C-band range. And we also provide EXP port to expand H14~H61 in the future. The 48ch DWDM is totally passive DWDM device, and support low insertion loss( wavelength ports＜7.0dB). And it conjunct with The DWDM amplifiers and DCM device, the 40ch DWDM transfer system can support a long distance transmission.
Wide bandwidth Low insertion loss High channel isolation Exceptional reliability and stability
This 32-channel FWDM module integrates CATV 1550nm transmission with PON 1310/1490nm and XGS-PON 1270/1577nm reception for FTTH/FTTX networks. Using TFF technology, it features low insertion loss (≤0.8dB), high isolation (≥30dB), and stable performance in harsh environments (-40°C to 85°C). The 1U rack design with LC/UPC connectors supports hybrid signal transmission. Two models offer reflection isolation of ≥15dB (A) or 20dB (B), suitable for CATV, optical amplifiers, and fiber access systems.
Features： Wide bandwidth Low insertion loss High channel isolation Exceptional reliability and stability
Triple Play Integration, 16-channel FWDM Low Loss, High Isolation, Wide Temperature Stability Supports Multi-Services for CATV/PON/XGS-PON 1U Rack-Mountable, High-Density Integration
Efficient Transmission: It supports 4 channels of 100G signals with dual - fiber transmission, offering a large capacity and a transmission distance of up to 10 km. Scalable: Equipped with an expansion port, it can increase network capacity without the need for new optical fibers. Easy Installation: The plug - in LGX box is designed to fit into a 2 - slot 1U rack. Excellent Performance: With a wavelength range of 1270 - 1330nm, it has multiple good - performing indicators and can adapt to a wide temperature range. Wide Application: It is suitable for multiple industries, especially in areas with scarce optical fiber resources. Customization - friendly: Customized designs are available. You can contact us via email for more details.

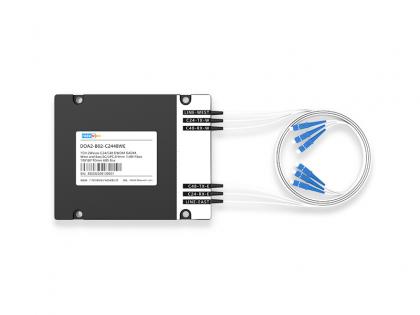

Single-fiber bidirectional transmission：Supports 2-channel Drop/Add services over a single fiber, optimizing scarce fiber resources. Low insertion loss：≤1.5dB for wave-to-line, ≤2.4dB for west-east/east-west transmission, ensuring efficient signal propagation. High isolation：≥30dB adjacent channel isolation and ≥45dB non-adjacent isolation, minimizing crosstalk. Wide temperature tolerance：Operates/stores between -40°C to 85°C, suitable for extreme environmental conditions. Modular deployment：FMU plug-in module compatible with 2-slot 1U rack or LGX BOX for flexible installation.
Single-fiber Bidirectional Transmission: Enables 4-channel (8-wavelength) bidirectional transmission over one fiber, supporting 8 types of services. Dual-direction Wavelength Separation: Independent A/B side wavelength ranges (1470–1530nm/1550–1610nm) eliminate interference. Passive Design: No power supply required, ensuring low power consumption and easy maintenance. Flexible Deployment: Plug-in LGX box with 2-slot 1U rack for space-saving and 便捷 installation. High Reliability: Low insertion loss (≤2.4dB), high return loss (≥45dB), and wide operating temperature range (-40°C to 85°C). Multi-service Adaptability: Supports 1G/10G Ethernet, SDH/SONET, etc., suitable for broadcast, finance, cloud, and other industries. Intelligent Monitoring: MON port enables online link monitoring without disrupting traffic.
6ch /12ch CWDM are used in 4G/5G fronthaul system Features Low Insertion Loss High Isolation Low PDL Compact Design Good channel-to-channel uniformity Wide Operating Wavelength: 1270nm to 1620nm Wide Operating Temperature: -20 to 70°C
Single-line dual-access - product features: Easy to install and concealed： Single-line dual-access is a passive device with a low failure rate; Small in size and can be used in a variety of ways fast installation in complex environment, strong concealment. Low insertion loss：The insertion loss of single-line dual-access devices is < 1.6dB, and the line margin is within the range after going online.
Three-port optical passive device Meets Telcordia GR-1221-CORE requirements High stability and reliability
Features Low insertion loss. High wavelength accuracy Temperature range: -40 to 85℃ Excellent thermal stability Extremely small size Applications CWDM Systems Telecom networks Metro Area Networks Broadband Networks PON Networks
Features Low insertion loss. High wavelength accuracy Extended temperature range Excellent thermal stability Extremely small size Applications DWDM Systems Telecom networks Metro Area Networks Broadband Networks PON Networks
Single channel 3 port 50GHZ DWDM filter, DWDM C-Band. Low insertion loss High channel isolation Low polarization dependent loss Exceptional reliability and stability
Single channel 3 port 100GHZ DWDM filter, DWDM C-Band. Low insertion loss High channel isolation Low polarization dependent loss Exceptional reliability and stability
DWDM R B Filter, DWDM C-Band. Low insertion loss High channel isolation Low polarization dependent loss Exceptional reliability and stability
Single channel 3 port 200GHZ DWDM filter, DWDM C-Band. Low insertion loss High channel isolation Low polarization dependent loss Exceptional reliability and stability
Single channel 3 port CWDM filter, 1270nm~1610nm waves. Low insertion loss High channel isolation Low polarization dependent loss Exceptional reliability and stability
Single channel 3 port FWDM filter, works in FTTH/FTTx optical network Low insertion loss High channel isolation Low polarization dependent loss Exceptional reliability and stability
Single channel 3 port 1625nm OTDR filter, works in OTDR system Low insertion loss High channel isolation Low polarization dependent loss Exceptional reliability and stability

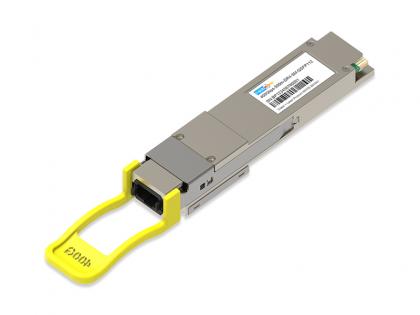

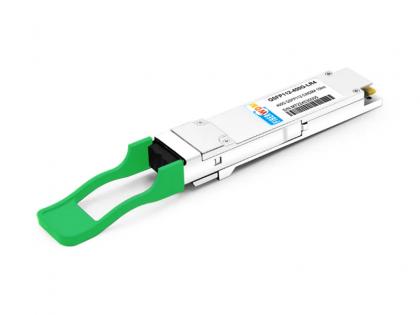

The QSFP112 400GBASE LR4 transceiver module is designed for 400G Ethernet links over 10km of single-mode fiber. The module contains 4 parallel channels at a center wavelength of CWDM, each operating at 106.25G. On the receiver path, 4 photodiodes and a 4-channel TIA array are used, along with PAM4 re-timers.

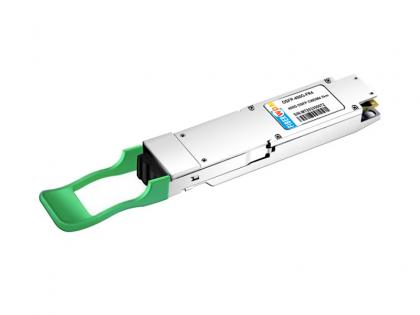

Product Features OSFP MSA compliant 4 CWDM lanes MUX/DEMUX design 100G Lambda MSA 400G-FR4 Specification compliant Up to 2km transmission on single mode fiber (SMF) with FEC Operating case temperature: 0 to 70oC 8x53.125Gb/s electrical interface (400GAUI-8) Data Rate 106.25Gbps (PAM4) per channel. Maximum power consumption 12W Duplex LC connector RoHS compliant

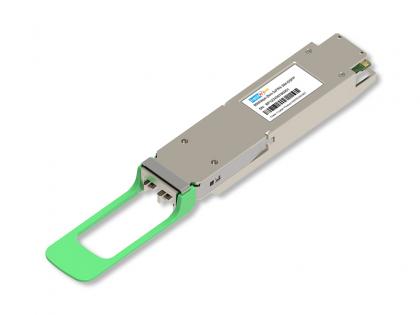

400G QSFP112 DR4 transceiver modules are designed for use in 400 Gigabit Ethernet links on up to 500m of single mode fiber. They are compliant with the QSFP112 MSA, IEEE 802.3bs and and 100G Lambda MSA.The optical transceiver is RoHS compliant.
400G QSFP112 FR4 transceiver modules are designed for use in 400 Gigabit Ethernet links on up to 2km of single mode fiber. They are compliant with the QSFP112 MSA, IEEE 802.3cu and and 100G Lambda MSA.The optical transceiver is RoHS compliant.
400G QSFP112 SR4 transceiver modules are designed for use in 400 Gigabit Ethernet links on up to 100m of OM4 multi mode fiber. They are compliant with the QSFP112 MSA and IEEE 802.3db.The optical transceiver is RoHS compliant.
Product Features Supports up to 25.78Gbps bit rates Hot-pluggable SFP+ footprint Up to 40km for SMF transmission Compliant with SFP+ MSA and SFF-8472 with duplex LC receptacle Compatible with RoHS Single +3.3V power supply2 Real Time Digital Diagnostic Monitoring Operating case temperature: Standard: 0 to +70°C

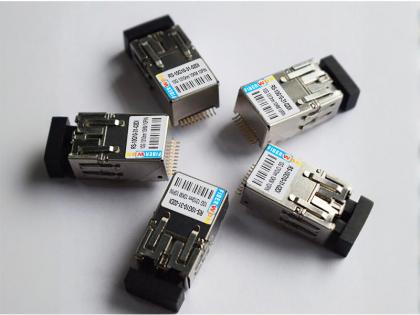

Feature Description More compact structural design – module height only 12mm Surface-mount I/O pins optimized for high-speed signal integrity Full metal casing Military-grade temperature range with anti-vibration design Equipped with received data signal detection function Operates solely on +3.3V single power supply LC interface type Pin and mounting dimensions fully compatible with STRATOS products
QSFP-DD transceiver modules are designed for N*400G DWDM transmission system. They are compliant with OpenZR+ standard and QSFP-DD MSA QSFP-DD Hardware Specification.
QSFP-DD transceiver modules are designed for N*400G DWDM transmission system. They are compliant with OpenZR+ standard and QSFP-DD MSA QSFP-DD Hardware Specification.
Feature Description More compact structural design: module height only 12mm Surface-mount I/O pins optimized for high-speed signal integrity Full metal casing Wide temperature range with anti-vibration design Equipped with received data signal detection function Operates solely on +3.3V single power supply LC interface type Pin and mounting dimensions fully compatible with STRATOS products
Features High Pulse Energy: 300uJ Pulse Width:100~800ns(Tunable) Pulse Parameters Built-in, One-touch Startup High Integration, Small Size, Lightweight
Features Highly Integrated (UNL, AOM, EDFA, Detector) Working Temperature: -15~55℃ High Reliability and Stability Flexible Control Mode Single / Dual Channel
Features Built-in DAQ: output temperature directly Sensing Distance：25km(SM), 15km(MM), 5km(High Accuracy) Shorten customer R&D cycle
Distributed fiber Acoustic Sensing（DAS），based on the principle of phase OTDR, using a single ordinary optical fiber as a transmission, the Rayleigh scattered light inside the fiber to detect, obtain phase and frequency information, to achieve the detection of sound, vibration and other signals, widely used in oil, gas pipelines, perimeter security, high-speed rail transit and other fields. For the field of distributed fiber optic acoustic sensing, FIBERWDM has launched DAS integrated module, which integrates self-developed ultra-narrow linewidth laser, linewidth <3KHz, 80M_AOM, pulse amplifier, balanced photodetector. The module is highly integrated, with small size and high reliability.
Features Highly Integrated (UNL, AOM, EDFA, BPD，RAMAN) Working Temperature: -10~50℃ High Reliability and Stability Flexible Control Mode Single / Dual Channel
The pulse modulation module developed by FiberWDM. is a narrow-pulse modulation module using a semiconductor electro-optic modulator as the core conversion device. It is externally triggered and modulated through an SMA interface for the input modulation signal. The internal modulation drive circuit modulates the electro-optic switch. The module features fast rise time, high pulse extinction ratio, good stability, and ease of use, making it an ideal alternative to traditional electro-optic and acousto-optic modulators in various fiber-optic sensing applications.
Feature： Polarization - insensitive High stability and reliability High pump - efficiency Wide bandwidth covering C and L bands (1525 - 1565nm) Low noise figure (4 - 6dB) Low insertion loss
Feature： High brightness and wide spectrum Stable output power Spectral flatness High power and adjustability Miniaturization and convenience
High output power up to23dBm Flexible control mode High stability and reliability Operating temp. -20~60°C Customizable output power and configuration
Low noise figure：typical 5.0dB High flatness: typical 1dB Cover whole C-Band: carrie 40 or 80 chs Redundancy hot swap power module: 110/220VAC and 48VDC can plug Mix Perfect Network Interface：standard RJ45 industrial standard interface and SNMP. Provide upper computer software, query and set up optical amplifier equipment, use Ethernet network or serial port access.
Features Proven MEMS durability and reliability Compact Form Factor Fast switching time Qualified to Telcordia GR-1073-CORE and RoHS UART/TTL or UART/RS232 control interface
Product Features Low insertion loss, wide wavelength range Low channel crosstalk, high stability, and high reliability Maintains optical path when power is off Internal circuit design with self-diagnostic fault detection Simple control method, compact size, easy to integrate into systems
Product Features Low insertion loss, wide wavelength range Low channel crosstalk, high stability, and high reliability Maintains optical path when power is off Internal circuit design with self-diagnostic fault detection Simple control method, compact size, easy to integrate into systems
Applications Optical signal routing Optical link protection Automated testing Multiple device testing High performance computing Network monitoring and automatic fault location
Product Features: u The 1U chassis can access 48 cores and support 24 dual-core services. u Services and detections can be accessed simultaneously without affecting each other. u The normal communication of services will not be affected even when the device is powered off (or malfunctions). u Real-time Monitoring and Status Analysis -Optical Fiber Status Monitoring: Monitor the line loss status of the optical fiber link in real time. -Fault Early Warning: Automatically identify potential problems in the optical fiber link and issue alarms in a timely manner to help maintenance personnel respond quickly.
The rack-mounted optical switch consists of 24 1X2 optical switches, enabling control over the switching of 24 1X2 optical fiber channels. The device is equipped with an Ethernet RJ45 and TYPE-C communication interface, allowing for control via commands or keys. It plays a crucial role in various optical communication applications including multi-channel optical monitoring in optical transmission systems, LAN multi-light source/detector automatic switching, and dynamic monitoring systems for optical sensors. Additionally, it is utilized in the testing of optical fibers, devices, networks, field engineering cables as well as the installation and adjustment of optical devices.

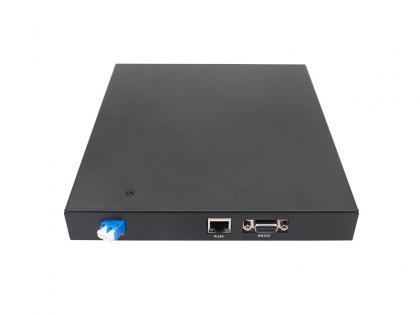

Features Low insertion loss, Fast switching. Ethernet RJ45 Management RS232 Control Management Independently controls each optical switch optical path
Features Proven MEMS durability and reliability Compact Form Factor Fast switching time Qualified to Telcordia GR-1073-CORE and RoHS Applications Opticalsignal switching androuting Optical network protection and restoration Optical path monitoring (Workingwith OTDR or OCM) Instrumentation resource sharing
Features Proven MEMS durability and reliability Compact Form Factor TTL UART interface Qualified to Telcordia GR-1073-CORE and RoHS Applications Optical path selection AsAutomatic optical distribution rack
Optical transmission system LAN light source/detector auto exchange and optical sensor monitoring system Optic fiber, Optical passive components, Optical network and cable testing
Functional characteristics 10/100/1000 Mbps adaptive RJ45 port One upper port is a 1000Mbps SFP fiber port Automatic port flipping (Auto MDI/MDIX) Flow control mode: full duplex adopts IEEE 802.3x standard, half duplex adopts Back pressure standard complies with IEEE 802.310Base-T and IEEE 802.3u 100/1000Base-TX standards The store-and-forward switching mechanism is adopted Line speeds are available in the range of 64 to 9000 frame lengths
Functional characteristics 10/100/1000 Mbps adaptive RJ45 port One upper port is a 1000Mbps SFP fiber port Automatic port flipping (Auto MDI/MDIX) Flow control mode: full duplex adopts IEEE 802.3x standard, half duplex adopts Back pressure standard complies with IEEE 802.310Base-T and IEEE 802.3u 100/1000Base-TX standards The store-and-forward switching mechanism is adopted Line speeds are available in the range of 64 to 9000 frame lengths

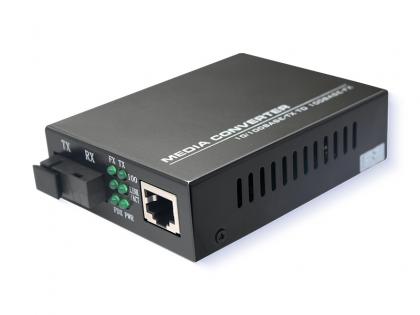

Functional characteristics 10/100 Mbps adaptive RJ45 port One upper port is a 100Mbps SFP fiber port Automatic port flipping (Auto MDI/MDIX) Flow control mode: full duplex adopts IEEE 802.3x standard, half duplex adopts Back pressure standard complies with IEEE 802.310Base-T and IEEE 802.3u 100/1000Base-TX standards The store-and-forward switching mechanism is adopted
S6750-32CQB-AC 32×40/100GE QSFP28 2×hot-swapped fans 1+1 power redundancy Models:
S6750-48HX8CQB-AC 48×25GE SFP28 8×40/100GE QSFP28 2×hot-swapped fans 1+1 power redundancy Models:
S6750-48X8CQB-AC 48×1/10GE SFP+ 8×40/100GE QSFP28 2×hot-swapped fans 1+1 power redundancy Models:
S6750-48X6QB-AC 48×1/10GE SFP+ 6×10/40GE QSFP+ 2×hot-swapped fans 1+1 power redundancy Models:
Product Features 1.Performance Ports: 48 x10/25GE, 8 x 40/100GE 2/3 layer wire speed forwarding 40G/100G port: Supports 4x10G/4x25G mode 2. Data center optimization design Each port supports a virtual output queue Hot swappable power supply with 1+1 redundancy design 4+1 redundantly designed hot-swappable fan modules Easy to install 3. High performance controller x86 architecture COM-e modules Supports 16GB DDR4 memory with ECC Support 256GB SSD solid state drives, M.2 interface (SATA bus) Support for BMC, through which peripherals can be monitored and managed 4. The system supports the monitoring and recording functions of various events Voltage monitoring, support board level voltage monitoring Temperature monitoring Restart reason log
Product Features 1.Performance Ports: 48 x10/25GE, 8 x 40/100GE 2/3 layer wire speed forwarding 40G/100G port: Supports 4x10G/4x25G mode 2. Data center optimization design Each port supports a virtual output queue Hot swappable power supply with 1+1 redundancy design 4+1 redundantly designed hot-swappable fan modules Easy to install 3. High performance controller x86 architecture COM-e modules Supports 16GB DDR4 memory with ECC Support 256GB SSD solid state drives, M.2 interface (SATA bus) Support for BMC, through which peripherals can be monitored and managed 4. The system supports the monitoring and recording functions of various events Voltage monitoring, support board level voltage monitoring Temperature monitoring Restart reason log
Products Description ES554X-PWR is a Layer-3 managed PoE switch. To meet the demand of high-performance access, the switch provides 48×Gigabit PoE+ Ports with total 780W Power Budget and 6x10G SFP+ Slots. With an innovative hardware structure and software platform, it features a powerful processing capacity and complete security protection mechanism, making management and maintenance easy and simple, fully meeting the demands of high-density user access and high-performance aggregation, ideal for the aggregation layer or access layer of such medium to large networks as enterprises and campuses.
Features OSFP Serial Optical Interface 4x100G PAM4 retimed 400GAUI-4 electrical interface Active Optical cable 4 channel VCSEL arrays and 4 channels PIN photo detector arrays Maximum link length of 60m on OM3 or 100m on OM4 OSFP MSA Compliant Hot Pluggable OSFP form factor Compliant to OSFP Module Specification Rev 5.0 Compliant with CMIS 5.2 Support Protocol Compliant with IEEE 802.3db Compliant to IEEE 802.3ck Low Power Consumption Less than 8W in temperature range of 0 to 70℃ Applications 400GBASE-AOC 400G Ethernet Data center InfiniBand
Features OSFP Serial Optical Interface 8x100G PAM4 retimed 800GAUI-8 electrical interface Active Optical cable 8 channel VCSEL arrays and 8 channels PIN photo detector arrays Maximum link length of 60m on OM3 or 100m on OM4 OSFP MSA Compliant Hot Pluggable OSFP form factor Compliant to OSFP Module Specification Rev 5.0 Compliant with CMIS 5.2 Support Protocol Compliant with IEEE 802.3db Compliant to IEEE 802.3ck Low Power Consumption Less than 14W in temperature range of 0 to 70℃ Applications 800GBASE-AOC 800G Ethernet Data center InfiniBand
Features Up to 50Gbps data rate per channel by PAM4 modulation Support 200GAUI-4 electrical interface Integrated 850nm VCSEL array and PD array Single +3.3V power supply Case temperature range: 0 ~ +70℃ Hot-pluggable QSFP form factor RoHS complaint Applications Data centers and Cloud Networks Standards IEEE 802.3cd SFF 8679 CMIS4.0 or SFF8636
Features Active optical cable with breakout from QSFP56 200G to two QSFP28 100G Up to 53.125Gbps data rate per channel PAM4 modulation Integrated 850nm VCSEL array and PD array DDM function implemented Hot-pluggable Low power dissipation, <4W on 200G end, <3W on 100G end Commercial operating case temperature range: 0℃ to 70 ℃ Compliant with ROHS2.0 Applications Data centers and Cloud Networks 200G InfiniBand HDR systems Standards IEEE 802.3cd InfiniBand 4xHDR SFF 8679 CMIS4.0 or SFF8636
Features QSFP-DD Module compliant to QSFP-DD MSA SFP-DD Module compliant to SFP-DD MSA Transmission data rate up to 53. 125Gbps per channel Enable 400Gb/s to 4x100Gb/s Transmission Link length up to 3m Built-in EEPROM functions Operating case temperature 0°C to +70°C RoHS2.0 compliant
FEATURES Transmission data rate up to 56Gbps per channel Enable 100Gb/s Transmission Maximum link length up to 3m Built-in EEPROM functions Operating case temperature 0°C to 70°C RoHS2.0 compliant
Features 4 channels full-duplex transceiver modules Transmission data rate up to 28Gbps per channel Support 40GE and 56G FDR data rate 4 channels 850nm VCSEL array 4 channels PIN photo detector array Internal CDR circuits on both receiver and transmitter channels Support CDR bypass Low power consumption: QSFP28- 100G < 2.5W and QSFP28-50G
Up to 27.952Gbps Data rate per channel Max link up to 100M on OM3 cable, and 150m on OM4 cable. High reliability 850nm VCSEL technology Electrically hot-pluggable Low power consumption Low EMI design
Up to 4X10Gbps Data rate Max link up to 100M on OM3 cable, and 150m on OM4 cable. High reliability 850nm VCSEL technology Electrically hot-pluggable Low power consumption Low EMI design
SFP+ 10G data, SFP28 25G data High reliability 850nm VCSEL technology Electrically hot-pluggable Low power consumption Low EMI design
