1550nm SOA Optical Pulse Modulation Module

1550nm SOA Optical Pulse Modulation Module

The pulse modulation module developed by FiberWDM. is a narrow-pulse modulation module using a semiconductor electro-optic modulator as the core conversion device. It is externally triggered and modulated through an SMA interface for the input modulation signal. The internal modulation drive circuit modulates the electro-optic switch. The module features fast rise time, high pulse extinction ratio, good stability, and ease of use, making it an ideal alternative to traditional electro-optic and acousto-optic modulators in various fiber-optic sensing applications.

Inquire now Download

Categories

Hot Products

Product Detail

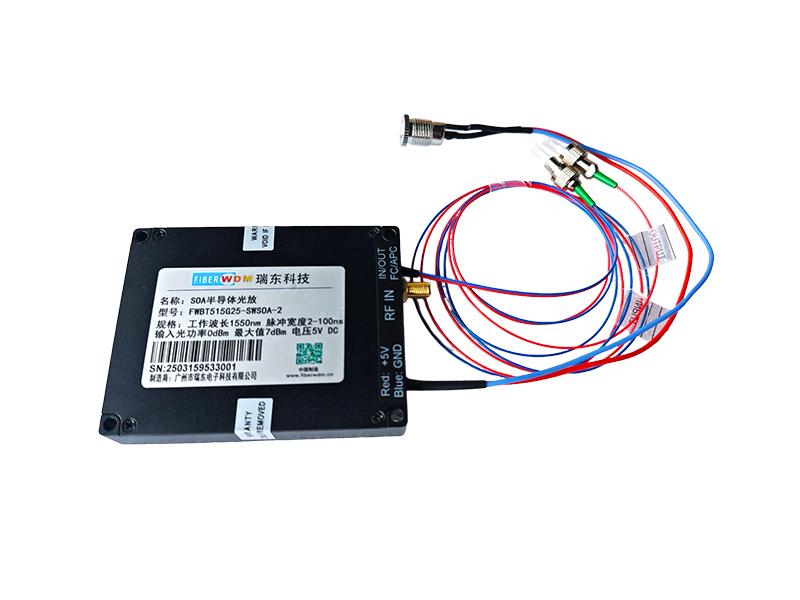

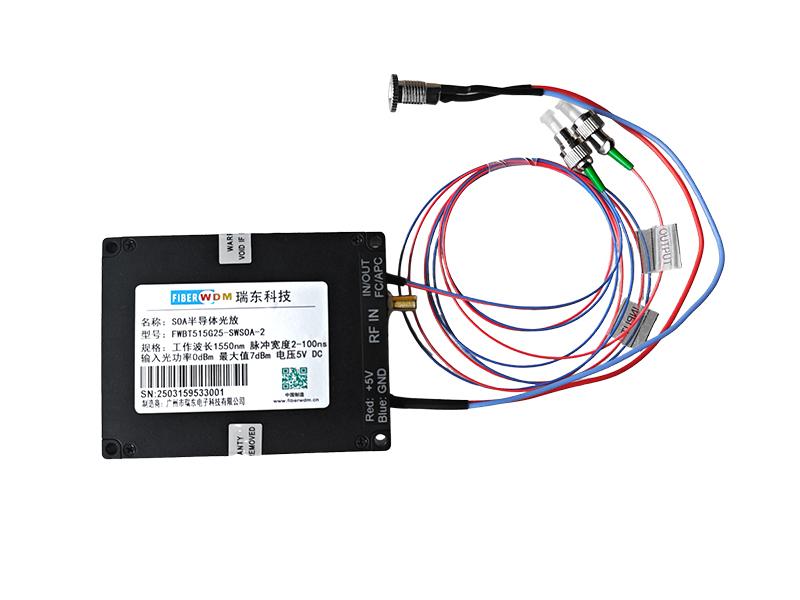

1550nm SOA Optical Pulse Modulation Module Pulse Width: 2～100ns, Input Power: -30~5dBm, Output Power: -5~10dBm，5V，FC/APC, 0.9MM 0.5M, Module Size: 90x38.5x15mm

FWBT515G25-SWSOA-2

Product Features

u Pulse width and repetition rate are adjustable

u Compact structure

u High extinction ratio

Applications

u Fiber-optic communication

u Fiber-optic sensing.

u LiDAR

Product Specifications

Parameter	Unit	Minimum	type	Max
Operating Wavelength	nm	-	1550	-
Input Optical Power	dBm	-30	0	5
Output Optical Power	dBm	-5	-	10
Pulse Width	ns	2	-	100
Input Pulse Current @1	mA	0	-	350
Modulation Frequency	KHz	0.1	-	1000
Output Peak Power	mW	-	10	30
Rise/Fall Time	ns	-	3	6
Modulation Extinction Ratio (High/Low Level)	dB	60	-	-
Optical Shut-off Extinction Ratio	dB	-	55	-
Operating Temperature Range	°C	-5	-	55
Storage Temperature Range	°C	-40	-	85
Fiber Type	-	SM or PM	-	-
Supply Voltage	VDC	5
Input Modulation Signal	-	TTL Pulse Signal
Dimensions	mm	90x38.5x15
Communication Protocol	-	RS485
Operating Mode	-	External Trigger

Note 1: The maximum input pulse current should not exceed 350mA, otherwise the device may be damaged.

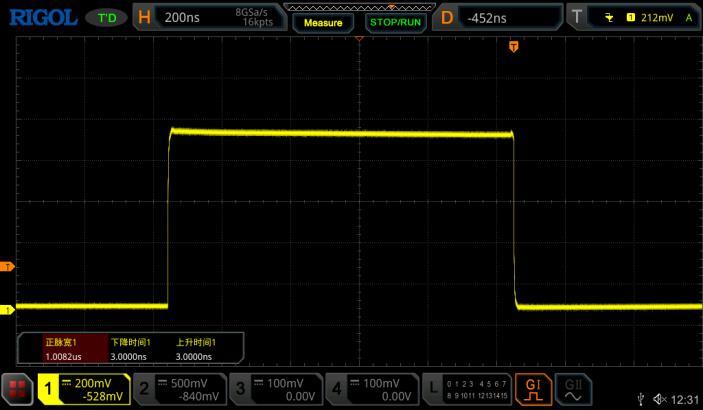

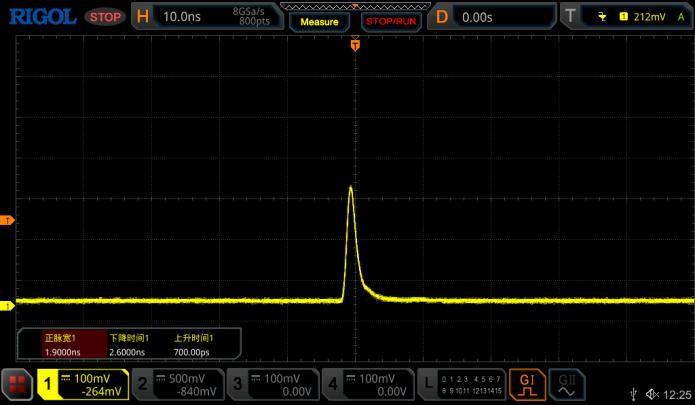

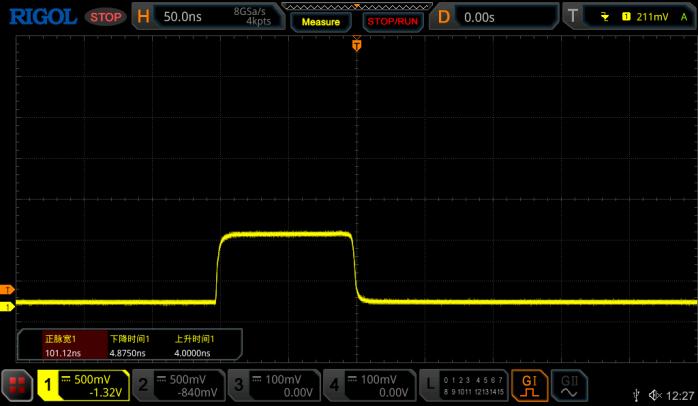

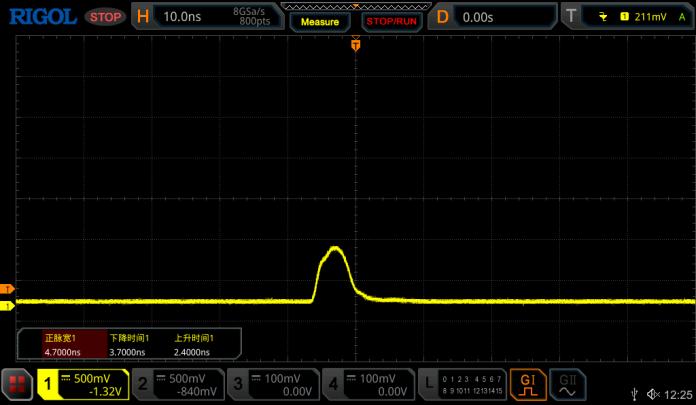

Pulse Waveform

Ordering Information

PN	Description
FWBT515G25-SWSOA-2	1550nm SOA Optical Pulse Modulation Module with pulse width of 2～100ns, input power range of -30~5dBm, output power range of -5~10dBm, 5V voltage, FC/APC connector, 0.9mm, 0.5m fiber, and module size of 90x38.5x15mm
