The 6CH 12(Waves) C-band + 4CH 8(Waves) O-band DWDM MUX/ DEMUX is used in pairs, designed by FIBERWDM.
In side A, the C-band waves are: RX C21 to C26(1560.61nm~1556.55nm), TX C27 to C32(1555.75nm~1551.72nm),the O-band waves are RX:1295.56/1296.68/1297.80/1298.93nm, TX:1300.05/1301.18/1302.31/1303.45nm;
And in side B, the waves are: RX C27 to C32(1555.75nm~1551.72nm), TX C21 to C26(1560.61nm~1556.55nm),the O-band waves are RX:1300.05/1301.18/1302.31/1303.45nm, TX:1295.56/1296.68/1297.80/1298.93nm;
Single Fiber 6CH 12 Waves C-band + 4CH 8 Waves O-band DWDM MUX/ DEMUX,
LC/UPC, 1U Rack
The 6CH 12(Waves) C-band + 4CH 8(Waves) O-band DWDM MUX/ DEMUX is used in pairs, designed by FIBERWDM.
In side A, the C-band waves are: RX C21 to C26(1560.61nm~1556.55nm), TX C27 to C32(1555.75nm~1551.72nm),the O-band waves are RX:1295.56/1296.68/1297.80/1298.93nm, TX:1300.05/1301.18/1302.31/1303.45nm;
And in side B, the waves are: RX C27 to C32(1555.75nm~1551.72nm), TX C21 to C26(1560.61nm~1556.55nm),the O-band waves are RX:1300.05/1301.18/1302.31/1303.45nm, TX:1295.56/1296.68/1297.80/1298.93nm;

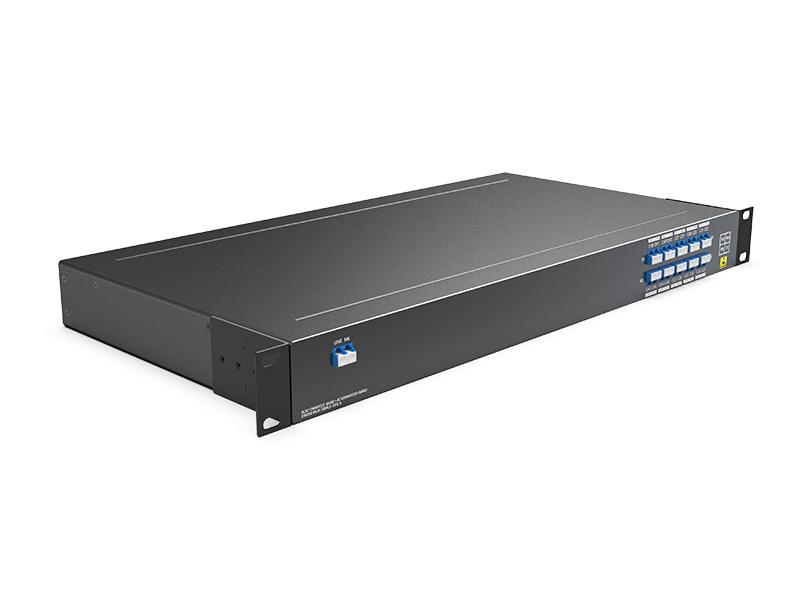

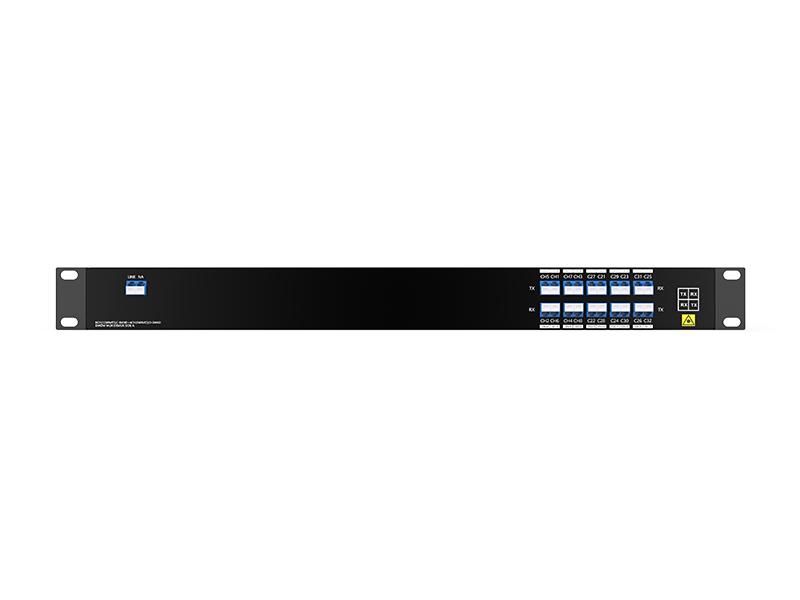

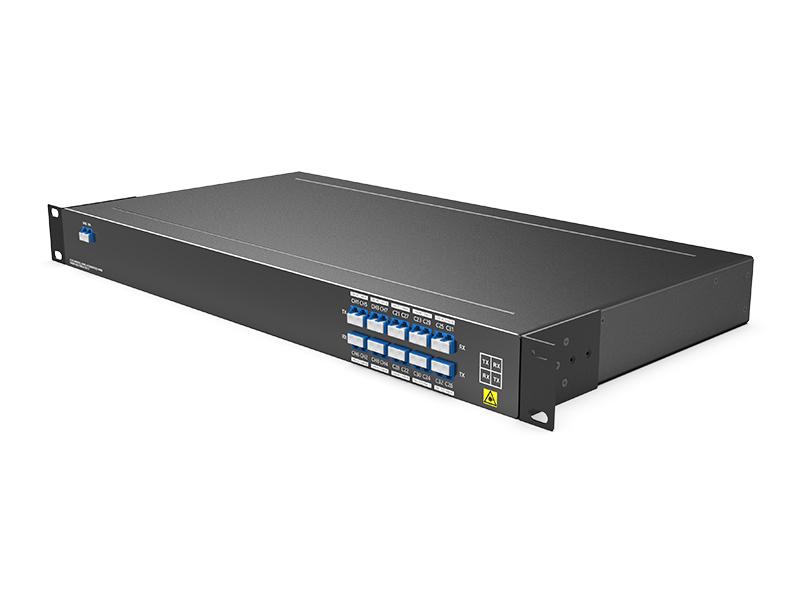

Product Panel

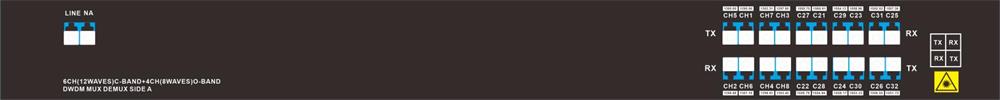

6CH 12Waves C-band + 4CH 8Waves O-band DWDM MUX/ DEMUX Single Fiber Side A

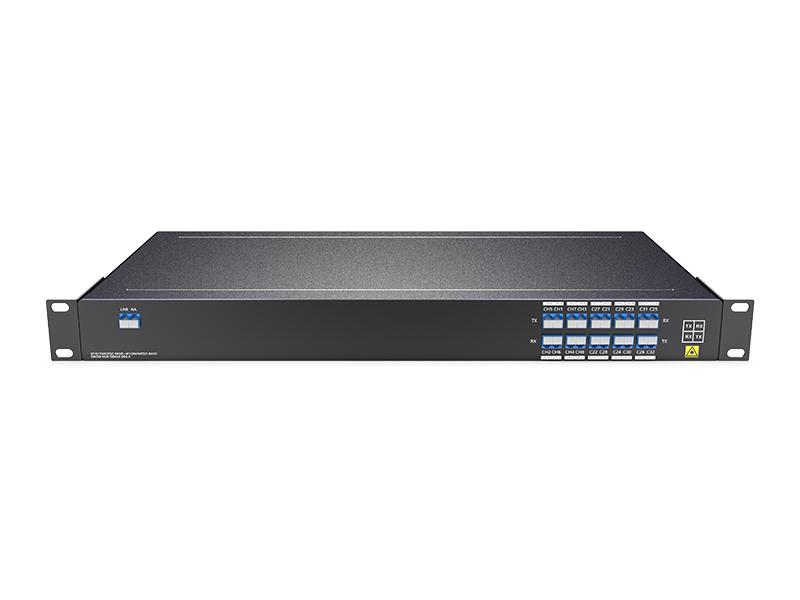

6CH 12Waves C-band + 4CH 8Waves O-band DWDM MUX/ DEMUX Single Fiber Side B
Line Link

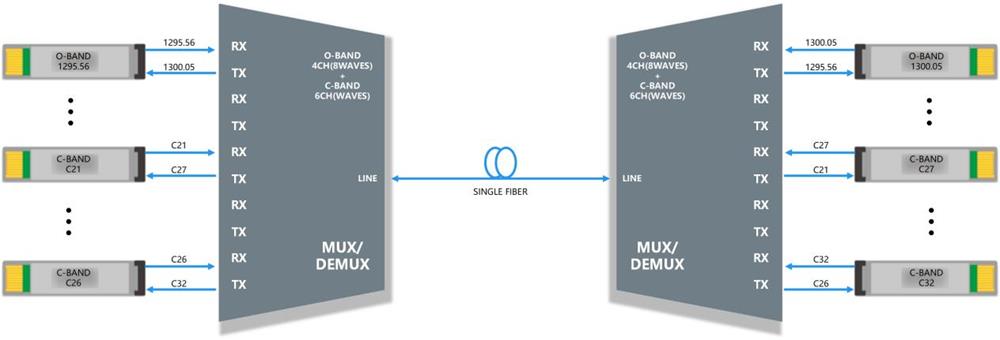

6CH (12Waves) C-band + 4CH(8Waves) O-band DWDM MUX DEMUX Single fiber transmission
6CH (12Waves) C-band + 4CH(8Waves) O-band DWDM MUX DEMUX, supports 10 channels difference business in one optical fiber for point-to-point transmission.
It works in Broadcast and TV, IDC, finance, government, cloud, massive data and other industries.
Product Specification
| Work Wavelength |
C-BAND: C21~C26,C27~C32 O-BAND: 1295.56/1296.68/1297.80/1298.93nm/1300.05/1301.18/1302.31/1303.45nm |
Channel Spacing |
C-BAND: 100GHz(0.8nm) O-BAND: 200GHz(1.12nm) |
| Channel Passband | ±0.11nm | Technology | TFF (Thin Film Filter) |
| Insertion Loss |
≤ 4.5dB@C-BAND ≤ 3.0dB@C-BAND |
Insertion Loss Temperature Sensitivity | ≤ 0.5dB |
| Return Loss | ≥ 45dB | Directivity | ≥ 45dB |
|
Polarization Mode Dispersion |
≤ 0.2ps | Polarization Dependent Loss | ≤ 0.3dB |
| Channel Isolation | Adjacent ≥25dB Non-adjacent ≥ 35dB |
Temperature |
Operating -40 to 85°C Storage -40 to 85°C |

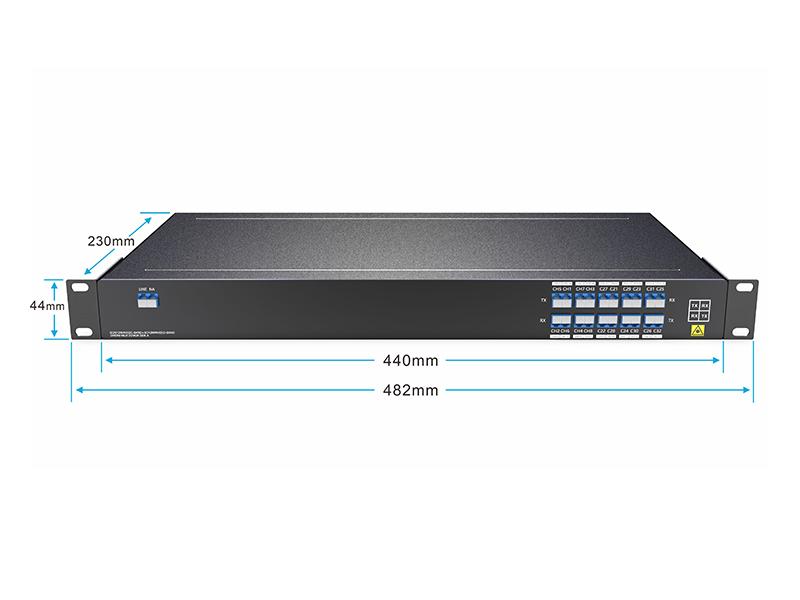

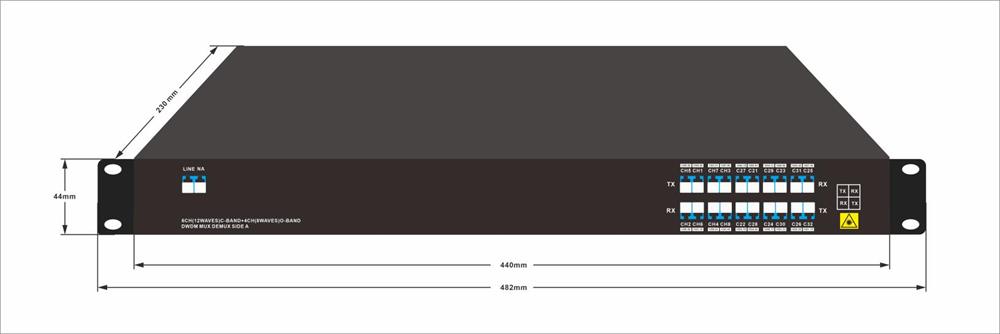

| Net Weight | 3.5KG | Dimensions (HxWxD) | 44*440*230mm |
Note: Specified with connectors.
Package Information
19” Inch 1U Rack
Order Information
| Product No. | Product description |
|
DMD20-1U01-C2132 +O-BAND A |
DWDM MUX/DEMUX C-BAND 6CH(12waves) RX C21-C26/ TX C27-C32, O-BAND 4CH(8waves)RX1295.56/1296.68/1297.80/1298.93nm,TX1300.05/1301.18/1302.31/1303.45nm, LC/UPC,Single fber, 1UChassis,Side A |
|
DMD20-1U01-C2132 +O-BAND B |
DWDM MUXDEMUX C-BAND 6CH(12waves) RX C27-C32/ TX C21-C26, O-BAND 4CH(8waves)RX1300.05/1301.18/1302.31/1303.45nm,TX1295.56/1296.68/1297.80/1298.93nm,, LC/UPC,Single fiber, 1UChassis,Side B |
Note: We Support Customized Design, please contact us by email.
