Dual Fiber 8CH C53-C60 DWDM MUX DEMUX LGX BOX

  • IL<2.4dB , 100GHZ DWDM MUX DEMUX
  • Monitor Port for Troubleshooting, 1310nm Port for Legacy Traffic
  • Multiplexing of 8 Channels over a Dark Fiber Network
  • Fully Compatible with All ITU-T 1G/10G/25G/40G/100G DWDM Optics
  • Passive devices, No Power No Cooling Required
  • Support Metro, Regional and Long Haul DWDM Networks
  • Product Detail

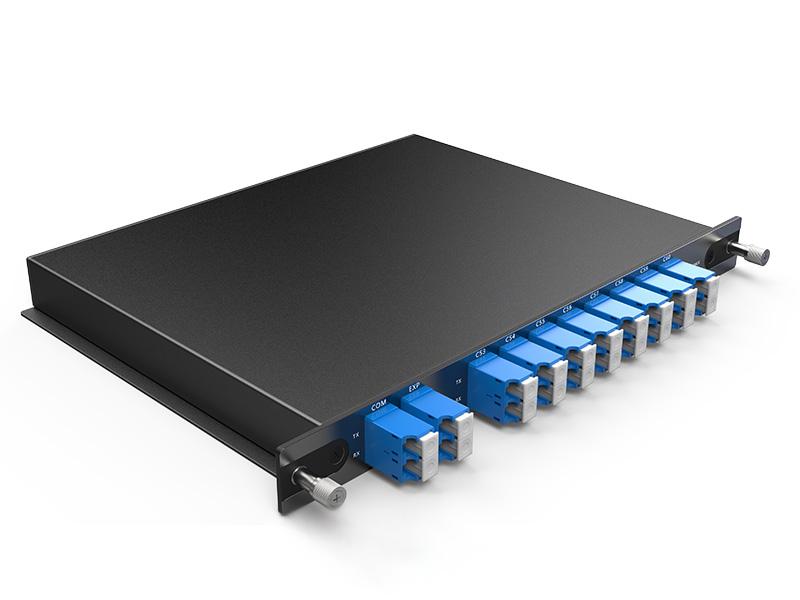

Dual Fiber8CH C53-C60 DWDM MUX DEMUX, EXP Port, LC/UPC,LGX Box, and 4 Slots 1U Rack



The 8ch DWDM MUX DEMUX is designed by FIBERWDM, wavelength from C53 to C60(1535.04nm~1529.55nm), (By the way, we can support customize other waves); in accordance with the ITU-T G.694.1 100GHZ grid, it maximizes the capacity of the C-band range.

The 8ch DWDM MUX DEMUX is totally passive and LGX box module device, it can plug in the 4-slot 1U rack; the product insertion loss is:( wavelength ports<2.4dB;Line loss<3.2dB).And it conjunct with The DWDM amplifiers and DCM device, the 8ch DWDM transfer system can support a long distance transmission.

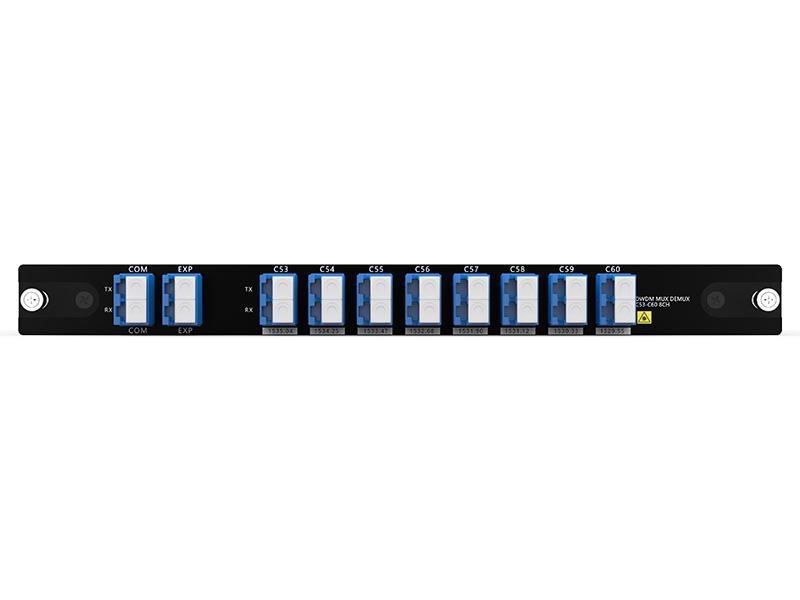

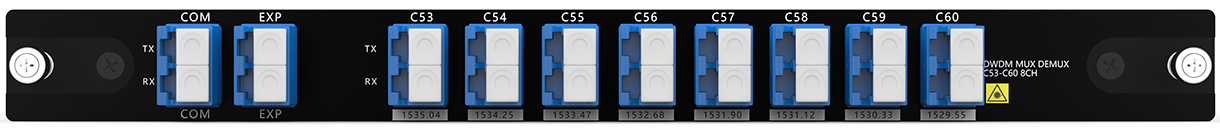

Product Panel

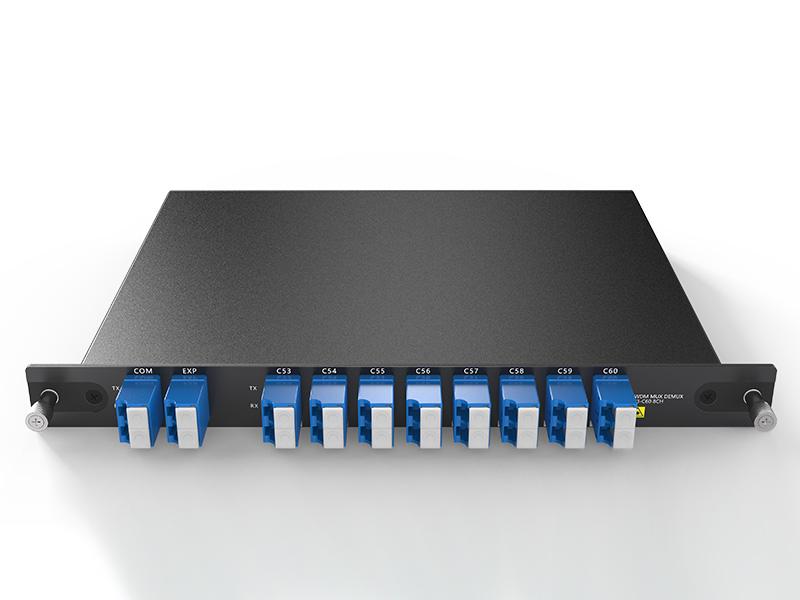

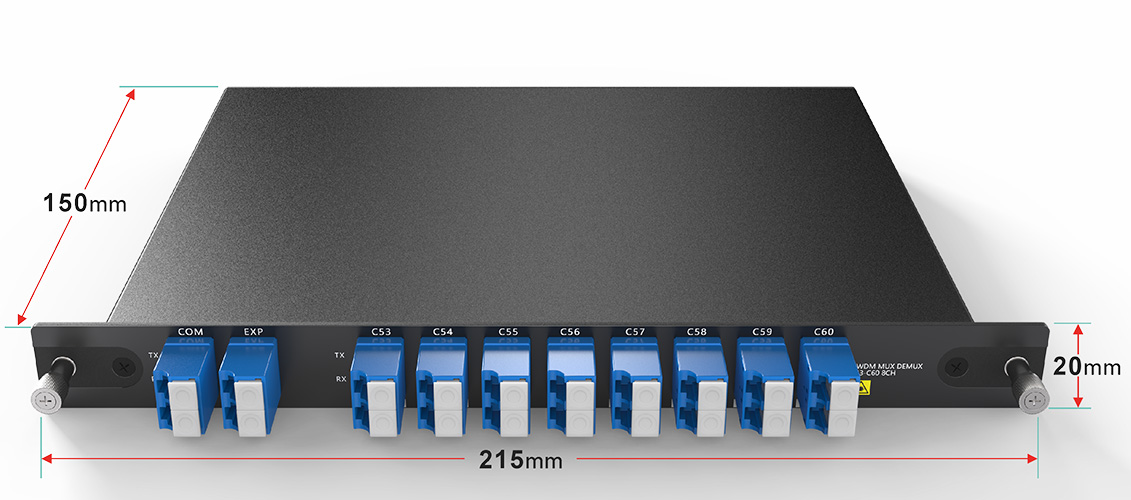

8CH DWDM MUX DEMUX Dual Fiber

8CH DWDM MUX DEMUX Dual Fiber



Expansion Port for Future Bandwidth Increasing, makes it possible to increase the network capacity by connecting it to the line port of another DWDM MUX/DEMUX supporting different wavelengths, without the need of installing or leasing additional fibers.



Line Link

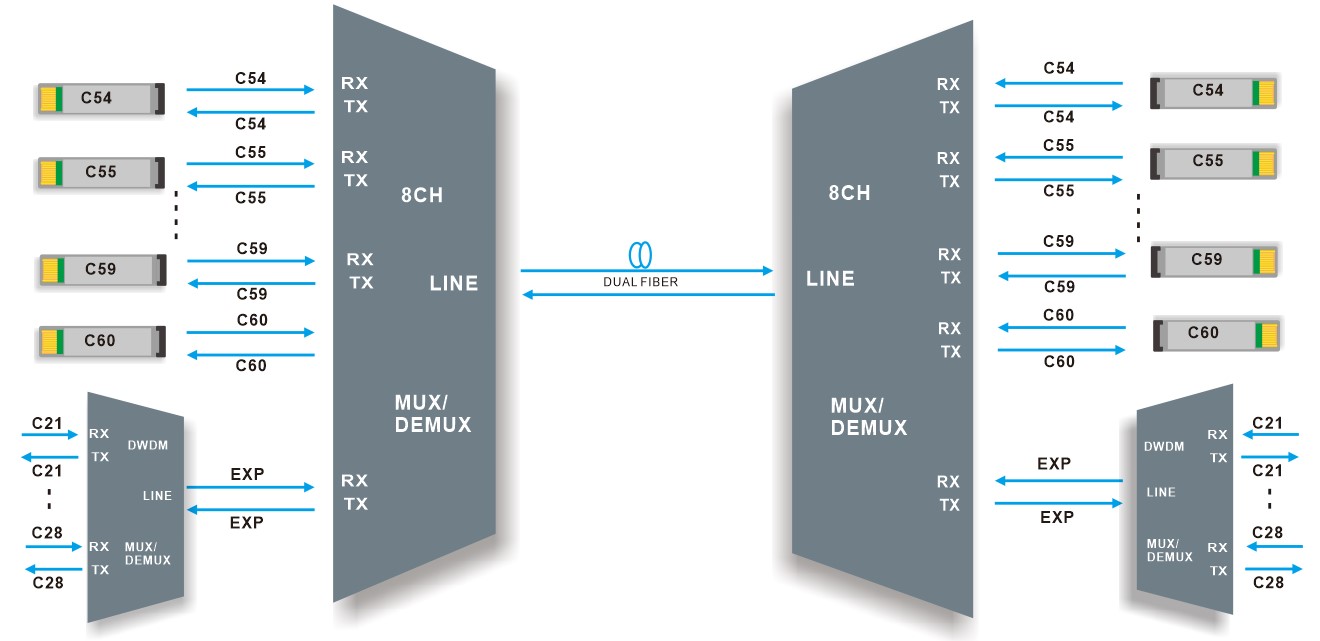

 8CH DWDM MUX DEMUX Dual fiber transmission

8CH DWDM MUX DEMUX Dual fiber transmission



  8 Channels DWDM MUX DEMUX, supports8 channels difference business in two optical fiber for point-to-point transmission.

  It works in Broadcast and TV, IDC, finance, government, cloud, massive data and other industries.




MUX DEMUX

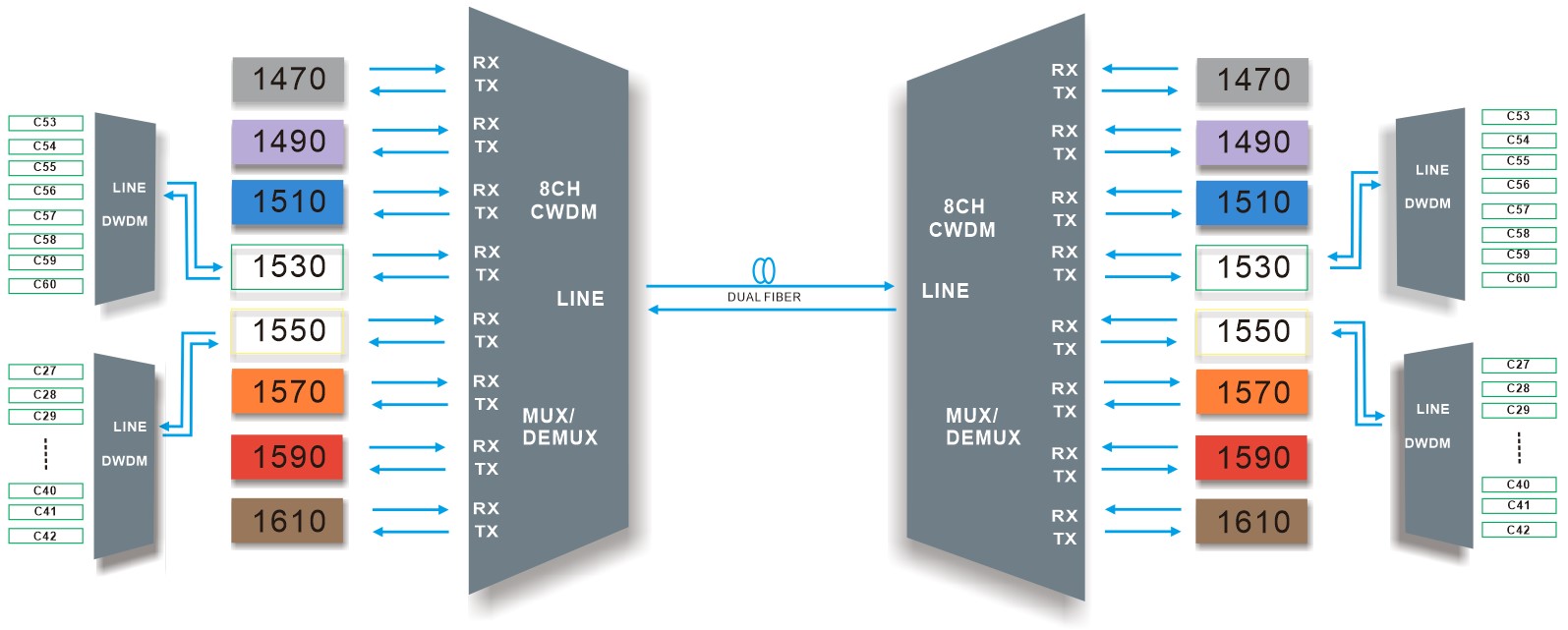

Hybrid DWDM over CWDM Network


CWDM wavelengths range from 1260-1625nm, channel spacing is 20nm, which actually cover all the range of DWDM wavelengths (1470-1625nm). And DWDM wavelengths have much smaller channel spaces (0.8nm). Therefore, the CWDM wavelengths near DWDM wavelengths can be used to transmit the DWDM wavelengths.



Product Specification



Wavelength

8channels C53-C60(or other waves)

Channel Spacing

100GHz (0.8nm)

Channel Passband

±0.11nm

Technology

TFF (Thin Film Filter)

Insertion Loss

≤2.4dB

Link Loss

≤3.2dB

Insertion Loss @

1310 port

≤0.8dB

Insertion Loss @ 1% Mon

≤ 26dB

Return Loss

≥ 45dB

Directivity

≥ 45dB

Polarization Mode Dispersion

≤ 0.1ps

Polarization Dependent Loss

≤ 0.3dB

Channel Isolation

Adjacent ≥30dB
Non-adjacent ≥45dB

Temperature

Operating -40 to 85°C

Storage -40 to 85°C

Net Weight

LGX Box:  0.5KG

2slot 1U Rack: 1.5KG

Dimensions

LGX Box:190*150*20mm

1U Rack :440*160*44mm

Note: Specified with connectors.



Package Information

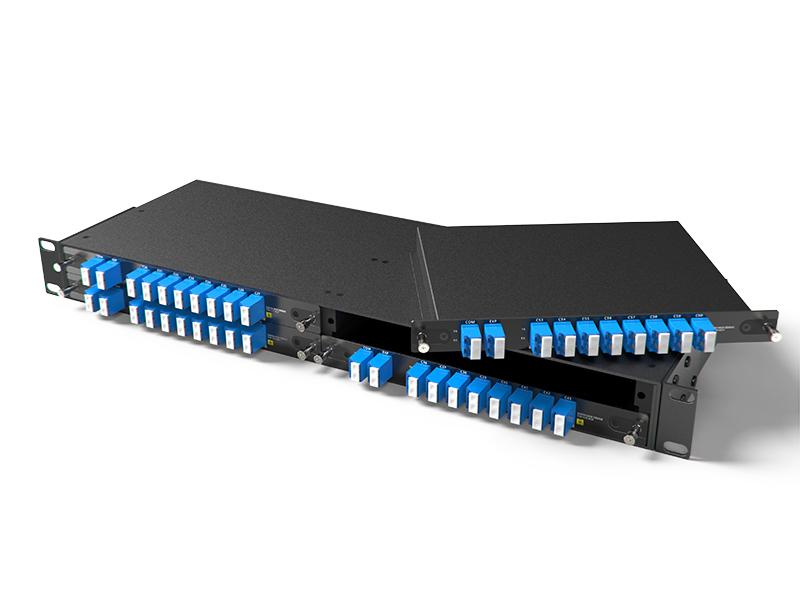

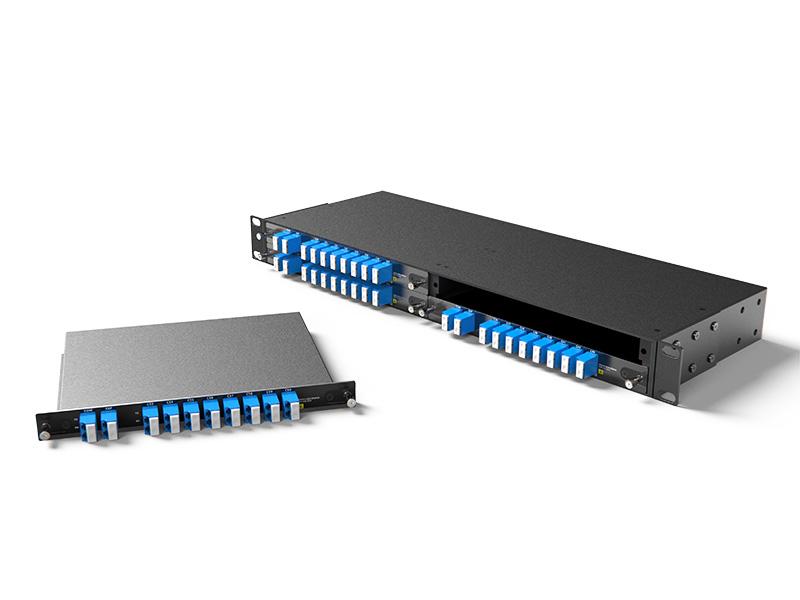

LGX BOX Plug in 4-Slot 1U Rack

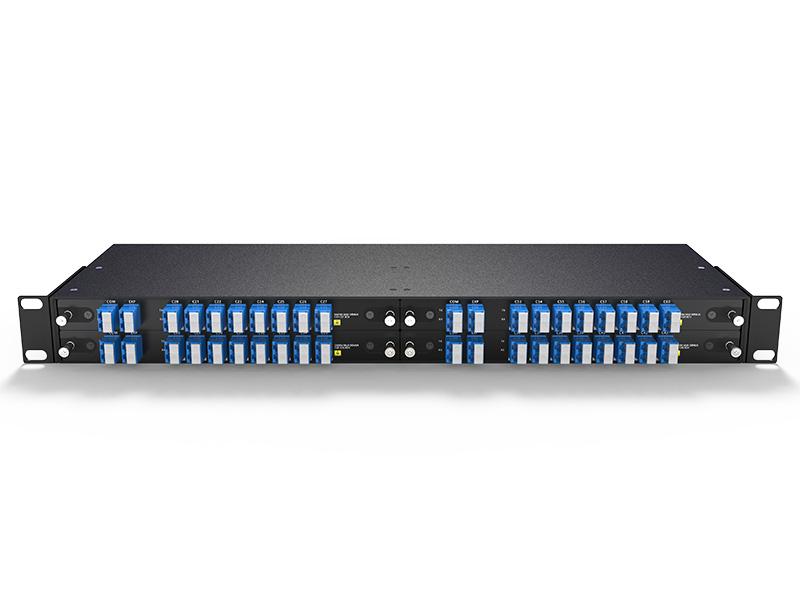

  4-Slot 1U Rack for LGX BOX


Order Information



Product No.

Product description

DMD8-1U01-C5360

DWDM MUX DEMUX 8CH (C53-C60) With EXP  Dual fiber, LC/UPC , Plug-in LGX Box

DMD8-1U01-Cxxxx

DWDM MUX DEMUX 8CH (Cxx-Cxx) With EXP , Dual fiber, LC/UPC , Plug-in LGX Box (Customized)

1U02-4LGX

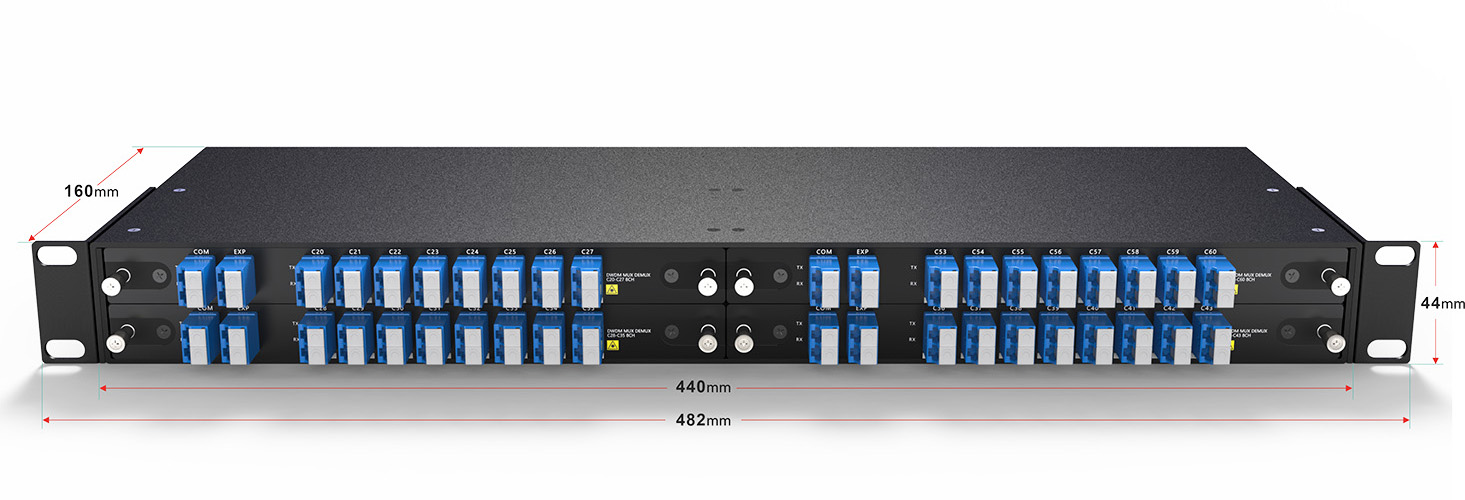

19” inch 1U rack with 4 slot for Plug-in LGX box, 440*160*44mm

Note:We Support Customized Design, please contact us by email.
