Single Fiber 8CH (16waves) DWDM MUX/ DEMUX, LC/UPC, LGX BOX

  • IL<3.5dB , 100GHZ DWDM MUX DEMUX
  • Multiplexing of 8 Channels over a Single Fiber Bidi Network
  • Fully Compatible with All ITU-T 1G/10G/25G/40G/100G DWDM Optics
  • Passive devices, No Power No Cooling Required
  • Support Metro, Regional and Long Haul DWDM Networks
  • Product Detail

Single Fiber 8CH (16 Waves) C21-C36 DWDM MUX/ DEMUX, WithEXP Port, LC/UPC,LGX Box, and 2 Slots 1U Rack



The 8ch DWDM MUX/ DEMUX is designed by FIBERWDM, wavelength from C21 to C36(1560.61nm~1548.51nm),(By the way, we can support customize other waves); in accordance with the ITU-T G.694.1 100GHZ grid, it maximizes the capacity of the C-band range.


The single fiber 8ch DWDM MUX is totally passive and LGX box module device, it can plug in the 2-slot 1 U rack; the product insertion loss is: wavelength ports<3.5dB, line<4.5dB .

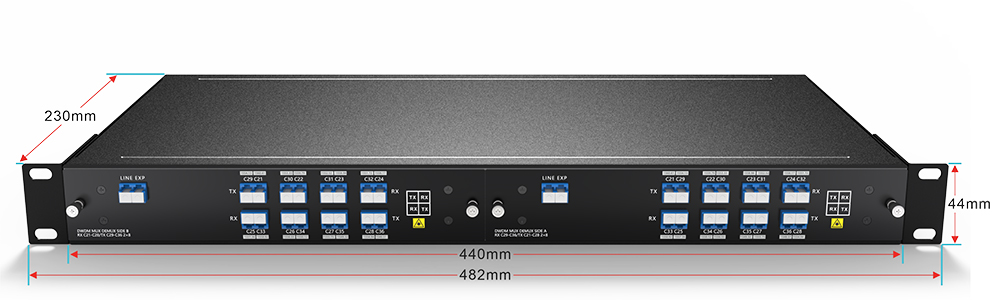

Product Panel


8ch DWDM MUX

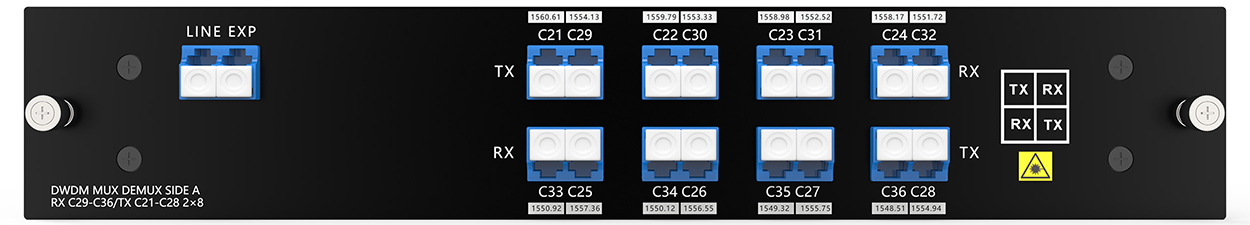

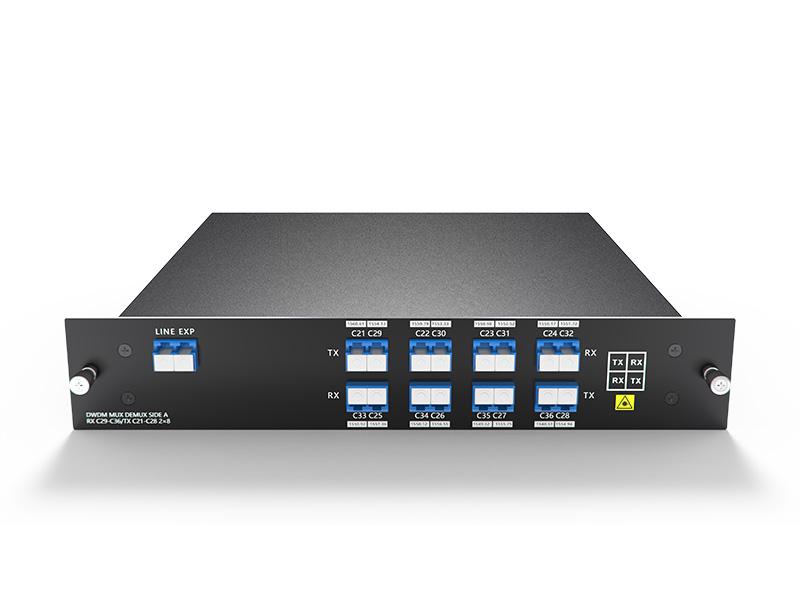

8CH DWDM MUX DEMUX Single Fiber Side A



8ch DWDM MUX

8CH DWDM MUX DEMUX Single Fiber Side B



Expansion Port for Future Bandwidth Increasing, makes it possible to increase the network capacity by connecting it to the line port of another DWDM MUX/DEMUX supporting different wavelengths, without the need of installing or leasing additional fibers.



Line Link

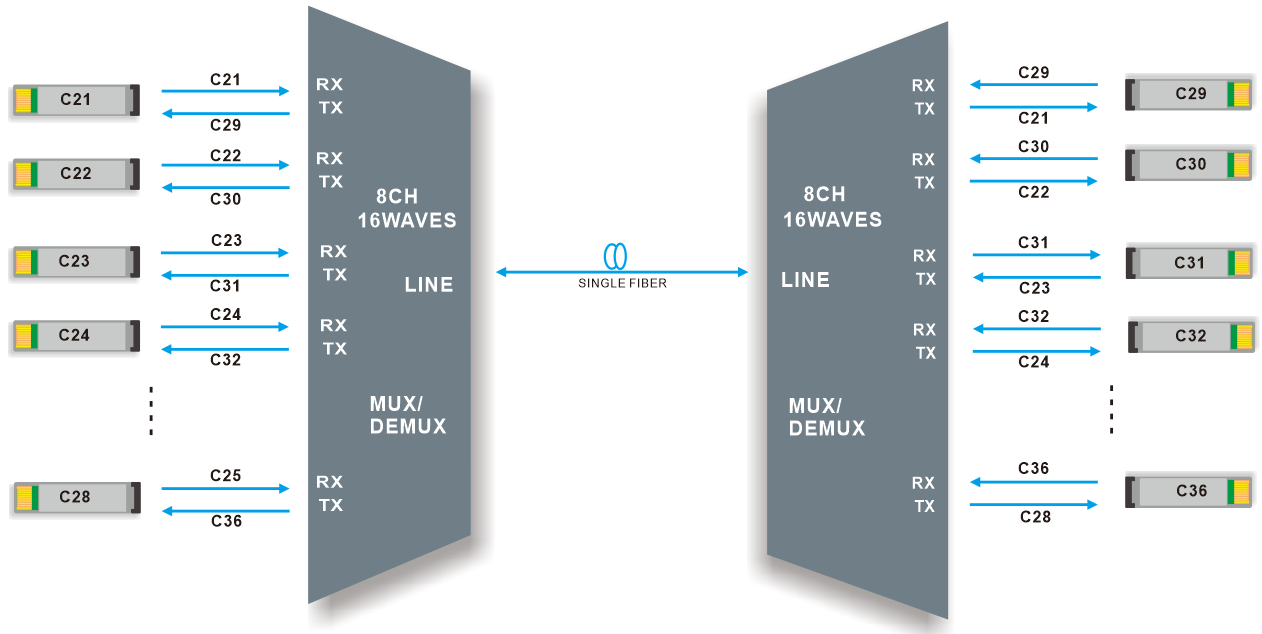

8CH DWDM MUX DEMUX Single fiber transmission



  8 Channels DWDM MUX/ DEMUX supports8 channels difference business inone optical fiber for point-to-point transmission.

  It works in Broadcast and TV, IDC, finance, government, cloud, massive data and other industries.



Product Specification



Wavelength

8ch 16 wavesC21-C36(or other waves)

Channel Spacing

100GHz (0.8nm)

Channel Passband

±0.11nm

Technology

TFF (Thin Film Filter)

Insertion Loss

≤3.5dB

Link Loss

≤4.5dB

Return Loss

≥ 45dB

Directivity

≥ 45dB

Polarization Mode Dispersion

≤ 0.1ps

Polarization Dependent Loss

≤ 0.3dB

Channel Isolation

Adjacent ≥30dB
Non-adjacent ≥45dB

Temperature

Operating -40 to 85°C

Storage -40 to 85°C

Net Weight

LGX Box:  0.5KG

2slot 1U Rack: 1.5KG

Dimensions (HxWxD)

LGX Box:220*200*39mm

1U Rack : 44*440*230mm

Note: Specified with connectors.



Package Information

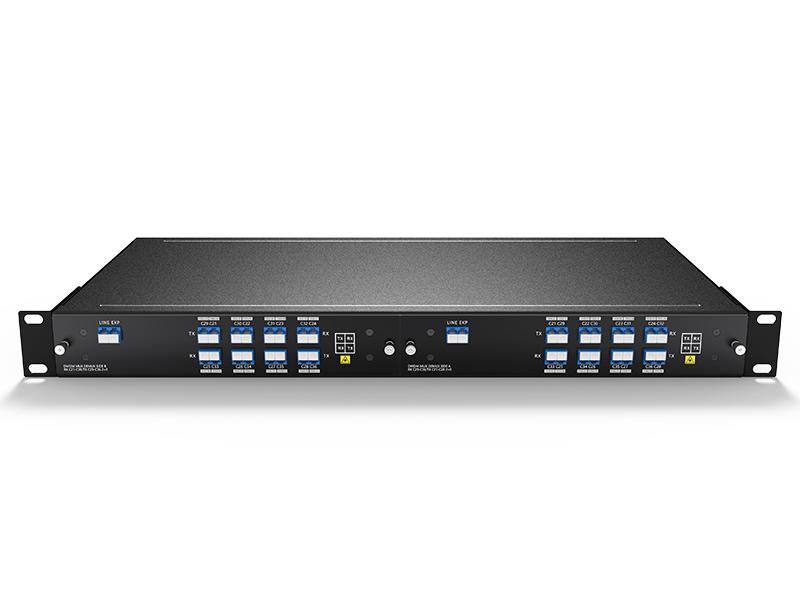

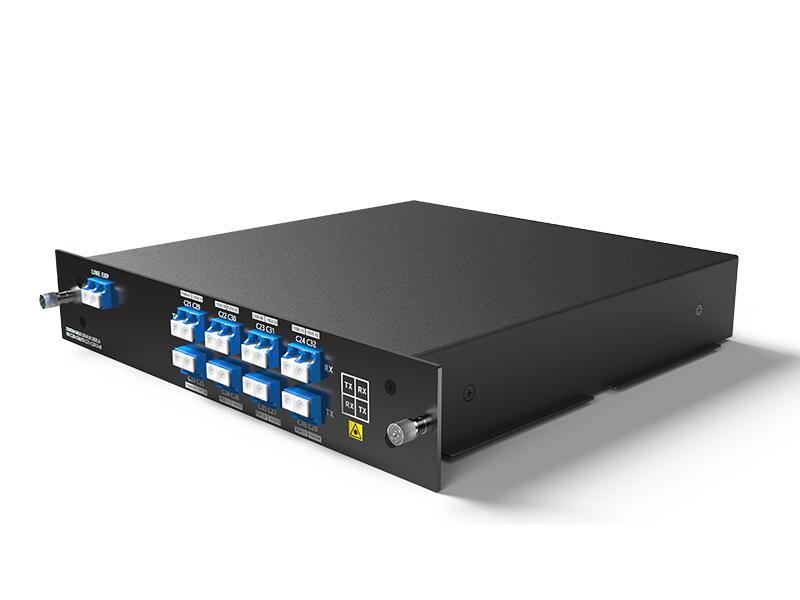

8ch DWDM MUX

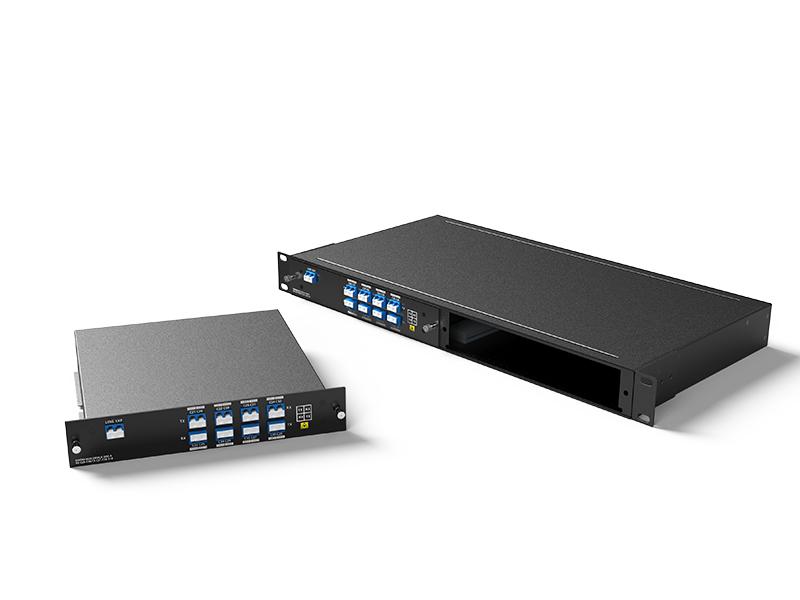

 LGX BOX Plug in 2-Slot 1U Rack


8ch DWDM MUX

      2-Slot 1U Rack for LGX BOX


Order Information



Product No.

Product description

DM16-1U01-C2136

DWDM MUX//DEMUX 8CH 16Waves (RX C21-C28/TX C29-C36) With EXP Port, Single fiber, LC/UPC , Plug-in LGX Box, Side A

DD16-1U01-C2136

DWDM MUX/ DEMUX 8CH 16Waves (RX C29-C36/TX C21-C28) With EXP Port, Single fiber, LC/UPC , Plug-in LGX Box, Side B

1U02-2LGX

19” inch 1U rack with 2 slot for Plug-in LGX box, 440*230*44mm

Note:We Support Customized Design, please contact us by email.
