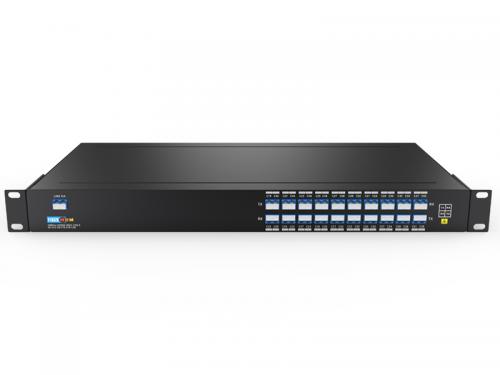

The 16ch DWDM MUX DEMUX is designed by FIBERWDM, wavelength from C21 to C26(1560.61nm~1548.52nm),(By the way, we can support customize other waves); in accordance with the ITU-T G.694.1 100GHZ grid, it maximizes the capacity of the C-band range. The 16ch DWDM is totally passive and LGX box module device, it can plug in the 2-slot 1 U rack; the product insertion loss is＜3.5dB. And it conjunct with The DWDM amplifiers and DCM device, the 8ch DWDM transfer system can support a long distance transmission.
The 8ch DWDM MUX DEMUX is designed by FIBERWDM, wavelength from C21 to C28(1560.61nm~1554.94nm),(By the way, we can support customize other waves); in accordance with the ITU-T G.694.1 100GHZ grid, it maximizes the capacity of the C-band range. The 8ch DWDM is totally passive and LGX box module device, it can plug in the 2-slot 1 U rack; the product insertion loss is＜2.4dB. And it conjunct with The DWDM amplifiers and DCM device, the 8ch DWDM transfer system can support a long distance transmission.
The 8ch DWDM MUX/ DEMUX is designed by FIBERWDM, wavelength from C21 to C28(1560.61nm~1554.94nm),(By the way, we can support customize other waves); in accordance with the ITU-T G.694.1 100GHZ grid, it maximizes the capacity of the C-band range. The single fiber 8ch DWDM MUX is totally passive and LGX box module device, it can plug in the 2-slot 1 U rack; the product insertion loss is: wavelength ports＜2.4dB, line＜3.5dB .
The 8ch(16waves) DWDM MUX/ DEMUX, is used in pairs, designed by FIBERWDM, in side A, the waves are: RX C21 to C28(1560.61nm~1554.94nm), TX C29 to C36(1554.13nm~1548.51nm); And in side B, the waves are: RX C29 to C36(1554.13nm~1548.51nm), TX C21 to C28(1560.61nm~1554.94nm). it conjunct with the DWDM amplifiers and DCM device, the 8ch DWDM transfer system can support a long distance transmission in one fiber. And it is LGX box Plug-in designed, so it can plug in the 2-Slot 1U rack, Max capacity support 2*8channels in the system.
The DWDM AAWG 101CH MUX/ DEMUX is designed by FIBERWDM, wavelength from C11 to C61(1568.772nm~1528.773nnm), in accordance with the ITU-T G.694.1 50GHZ grid, it maximizes the capacity of the C-band range. It’s totally passive DWDM device, and support low insertion loss( wavelength ports＜6.5dB).
The 4ch(8waves) DWDM MUX/ DEMUX with Blue and Red（R/B）filter, is used in pairs, designed by FIBERWDM, in side A, the waves are: RX C21 to C24, TX C45 to C48; And in side B, the waves are: RX C45 to C48, TX C21 to C24. it conjunct with the DWDM amplifiers and DCM device, the 4ch DWDM transfer system can support a long distance transmission in one fiber. And it is LGX box Plug-in designed, so it can plug in the 4-Slot 1U rack, Max capacity support 4*4channels in the system.
The 8ch(16waves) DWDM MUX/ DEMUX with Blue and Red（R/B）filter, is used in pairs, designed by FIBERWDM, in side A, the waves are: RX C21 to C28, TX C44 to C51; And in side B, the waves are: RX C44 to C51, TX C21 to C28. it conjunct with the DWDM amplifiers and DCM device, the 8ch DWDM transfer system can support a long distance transmission in one fiber. And it is LGX box Plug-in designed, so it can plug in the 4-Slot 1U rack, Max capacity support 4*8channels in the system.
The 40ch 50Ghz DWDM MUX DEMUX is designed by FIBERWDM, wavelength from C21 to C60(1560.61nm~1529.55nnm), in accordance with the ITU-T G.694.1 100GHZ grid, it maximizes the capacity of the C-band range. And we also provide EXP port to expand H14~H61 in the future. The 48ch DWDM is totally passive DWDM device, and support low insertion loss( wavelength ports＜7.0dB). And it conjunct with The DWDM amplifiers and DCM device, the 40ch DWDM transfer system can support a long distance transmission.
IL<3.5dB , 100GHZ DWDM MUX DEMUX Multiplexing of 16 Channels over a Dark Fiber Network Fully Compatible with All ITU-T 1G/10G/25G/40G/100G DWDM Optics Passive devices, No Power No Cooling Required Support Metro, Regional and Long Haul DWDM Networks
IL<2.4dB , 100GHZ DWDM MUX DEMUX Multiplexing of 8 Channels over a Dark Fiber Network Fully Compatible with All ITU-T 1G/10G/25G/40G/100G DWDM Optics Passive devices, No Power No Cooling Required Support Metro, Regional and Long Haul DWDM Networks
IL<6.0dB , 100GHZ DWDM AAWG Technology Fully Compatible with All ITU-T 1G/10G/25G/40G/100G DWDM Optics Passive devices, No Power No Cooling Required Support Metro, Regional and Long Haul DWDM Networks
