The 150GHz 32ch DWDM MUX DEMUX is designed by FIBERWDM, wavelength from C14-H60 (1566.31nm-1529.16nm), in accordance with the ITU 150GHZ grid, it maximizes the capacity of the C-band range.
The 150GHz 32ch DWDM is totally passive DWDM device, and support low insertion loss( wavelength ports＜6.0dB), Support 800G x 32ch business in DWDM transfer system.

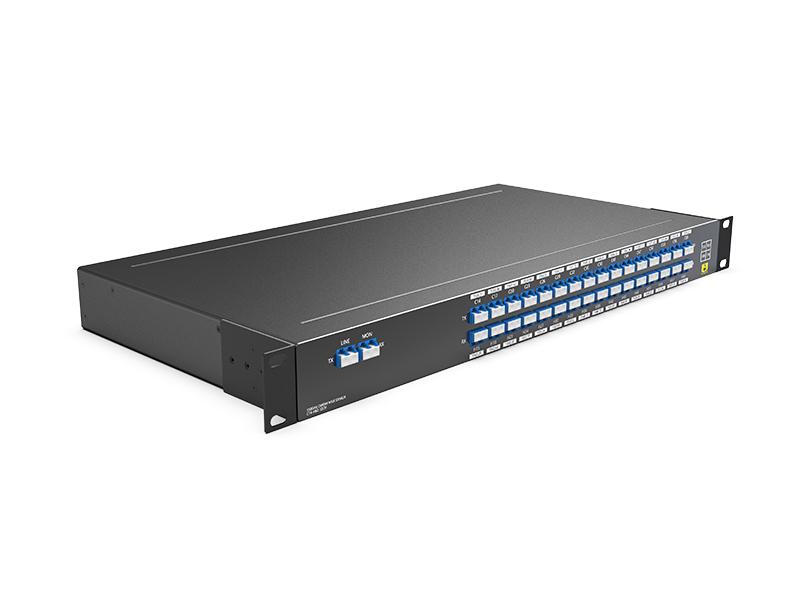

150GHz 32CH DWDM MUX DEMUX C14-H60（1566.31nm-1529.16nm ）with Monitor Port，LC/UPC 1U Rack
The 150GHz 32ch DWDM MUX DEMUX is designed by FIBERWDM, wavelength from C14-H60 (1566.31nm-1529.16nm), in accordance with the ITU 150GHZ grid, it maximizes the capacity of the C-band range.
The 150GHz 32ch DWDM is totally passive DWDM device, and support low insertion loss( wavelength ports＜6.0dB), Support 800G x 32ch business in DWDM transfer system.

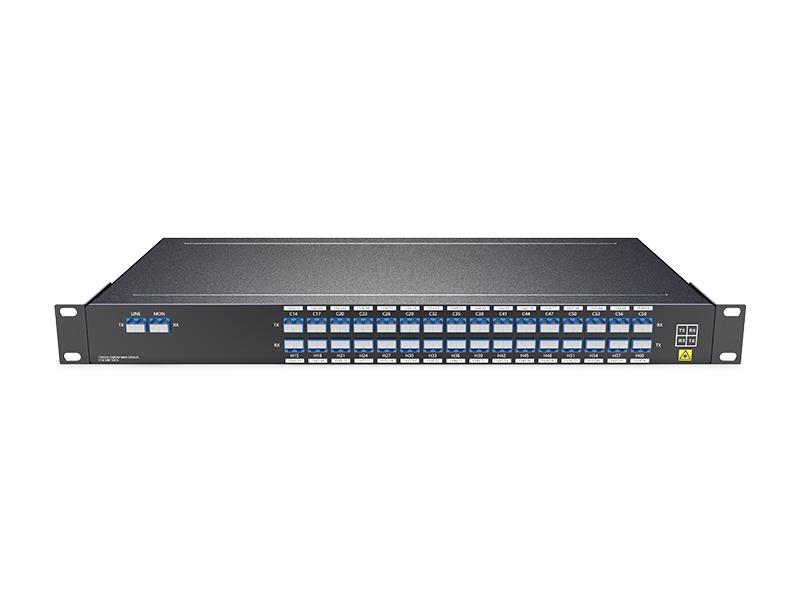

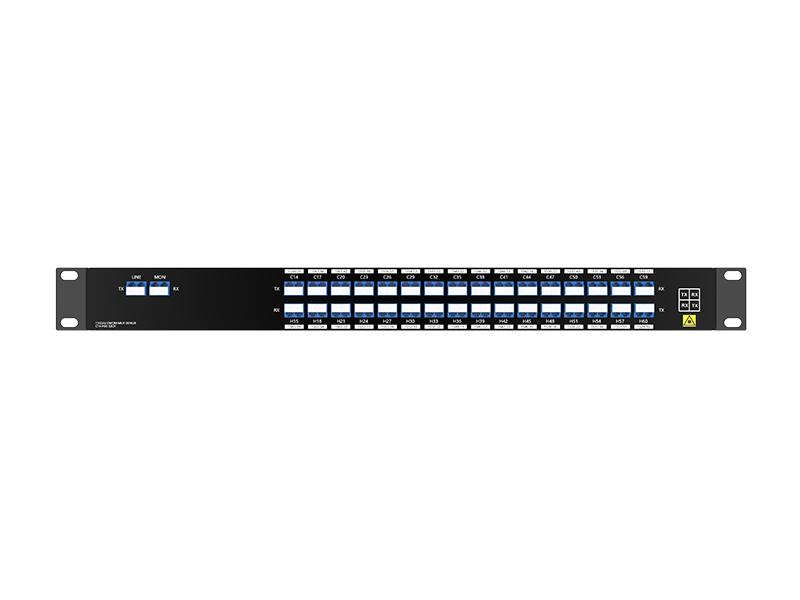

Product Panel
150Ghz 32CH DWDM MUX DEMUX
Mon port is for network link monitoring or power monitoring, easy trouble shooting without affecting traffic
Line Link

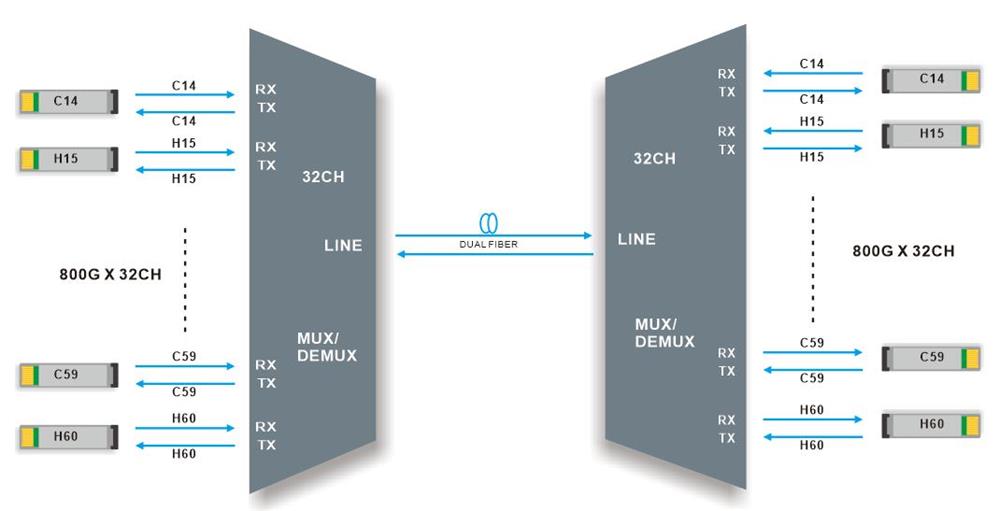

32CH DWDM MUX DEMUX Dual fiber transmission
32 Channels DWDM MUX DEMUX, supports 32 channels 800G difference business in two optical fiber for point-to-point transmission. It works in IDC transfer system.
Product Specification
| Wavelength | 1566.314nm-1529.163nm | Channel Spacing | 150GHz |
| Channel Passband | ±0.5nm | Technology | AAWG (Flat top) |
| Insertion Loss | ≤6.0dB | Link Loss | ≤12dB |
|
Center Wavelength Accuracy |
±0.05nm | Total Crosstalk | ≥5dB |
| -0.5dB Bandwidth | ≥90GHz | -3dB Bandwidth | ≥150GHz |
| Return Loss | ≥ 40dB | Directivity | ≥ 40dB |
|
Polarization Mode Dispersion |
≤ 1.0ps | Polarization Dependent Loss | ≤ 0.7dB |
| Channel Isolation @central frequency | Adjacent ≥ 15dB Non-adjacent ≥ 30dB |
Temperature |
Operating -5 to 65°C Storage -40 to 85°C |

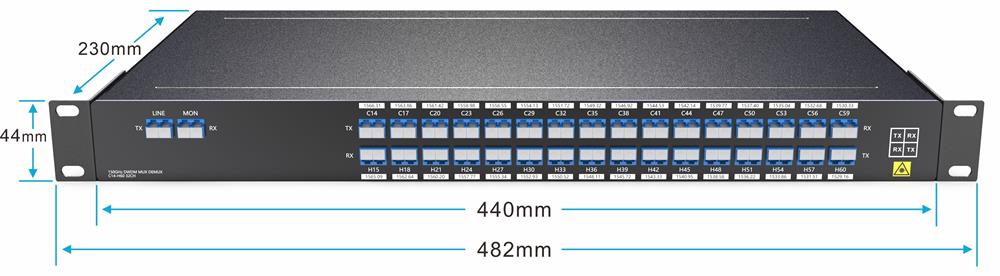

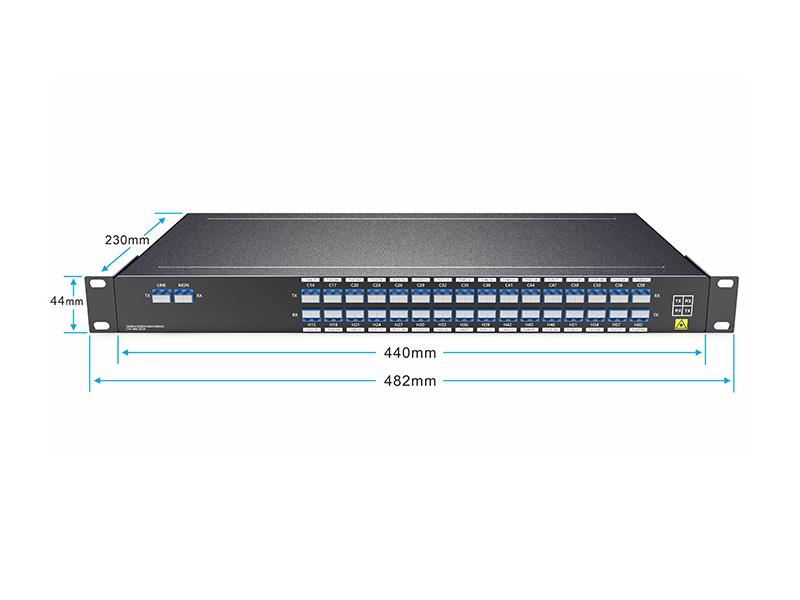

| Net Weight | 3.5KG | Dimensions (HxWxD) | 44*440*230mm |
Note: Specified with connectors.
Hannel Plan 32Port AWG - On grid

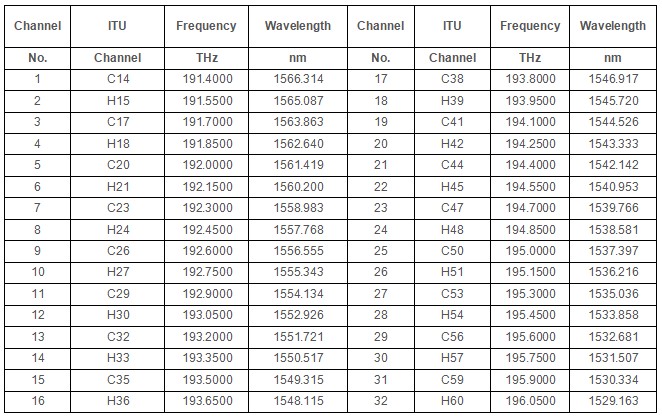

Table1 Channels List：Pass bands for 32channel AAWG
Package Information

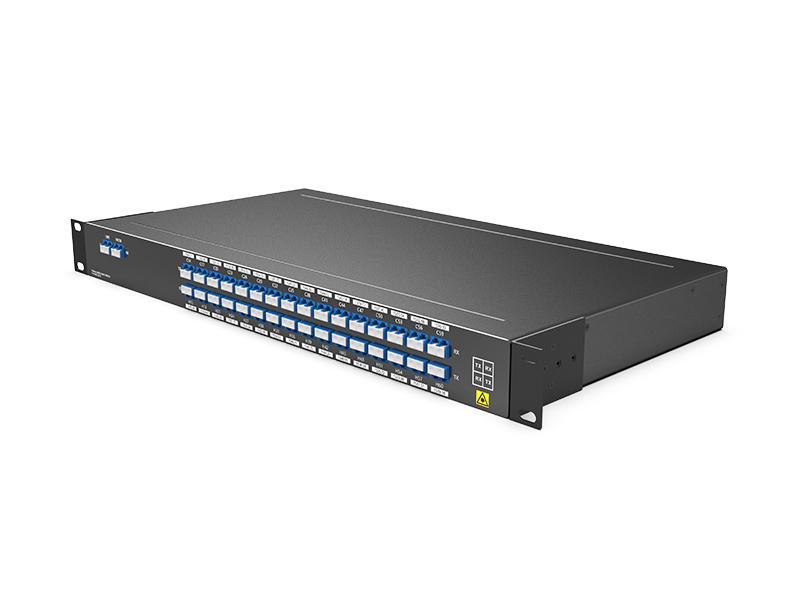

32CH DWDM 19” 1U Rack
Order Information
| Product No. | Product description |
| DMD32-1U01-150GHZ-M-C14H60 | 150GHz 32CH DWDM MUX DEMUX C14-H60 (1566.314nm-1529.163nm) with Monitor Port，LC/UPC 1U Rack |
Note: We Support Customized Design, please contact us by email.
