Dual Fiber 40CH C21-C60 DWDM MUX DEMUX, With 1310nm and Monitor Port

  • IL<3.5dB , 100GHZ DWDM AAWG Technology
  • Multiplexing of 40 Channels with 1310nm and Monitor a Dark Fiber Network
  • Fully Compatible with All ITU-T 1G/10G/25G/40G/100G DWDM Optics
  • Passive devices, No Power No Cooling Required
  • Support Metro, Regional and Long Haul DWDM Networks
  • Product Detail


Dual Fiber 40CH C21-C60 DWDM MUX DEMUX, With 1310nm and Monitor Port, LC/UPC, 1U Rack



The 40ch DWDM MUX DEMUX is designed by FIBERWDM, wavelength fromC21 toC60(1560.61nm~1529.55nnm), in accordance with the ITU-T G.694.1 100GHZ grid, it maximizes the capacity of the C-band range.



The 40ch DWDM with 1310nm port is totally passive DWDM device, and support low insertion loss( wavelength ports<3.5dB; 1310nm port<0.8dB).And it conjunct with The DWDM amplifiers and DCM device, the 40ch DWDM transfer system can support a long distance transmission.

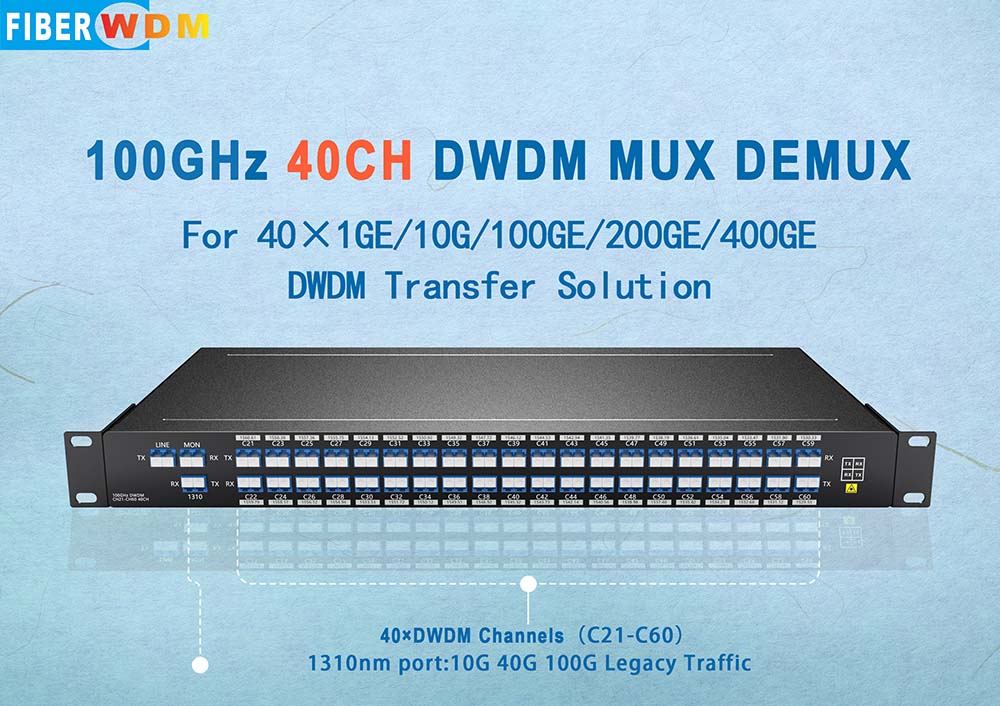

Product Panel


40CH DWDM MUX DEMUX

                             40CH DWDM MUX DEMUX


  •  1310nm portcan support 1G LX/SX, 10G LR, 40G ER4/LR4, 100GLR/ER4/LR4/ZR4; it forExisting Legacy Traffic.
  • Mon port is for network link monitoring or power monitoring, easy troubleshooting without affecting traffic.




Line Link



40CHDWDM MUX DEMUXDual fiber transmission


  •    40 Channels DWDM MUX DEMUX and with 1310nm Port, supports 40 channels difference business in two optical fiber for point-to-point transmission.
  •   It works in Broadcast and TV, IDC, finance, government, cloud, massive data and other industries.




Product Specification



Wavelength

40channels C21-C60

Channel Spacing

100GHz (0.8nm)

Channel Passband

±0.11nm

Technology

AAWG (Gaussian)

Insertion Loss

≤ 3.5dB

Link Loss

≤7dB

1310nm Port Pass

Band Width

1260nm~1360nm

Center Wavelength

Accuracy

±0.05nm

Insertion Loss @

1310 port

≤0.8dB

Insertion Loss @ 1% Mon

≤ 26dB

Return Loss

≥ 40dB

Directivity

≥ 40dB

Polarization Mode

Dispersion

≤ 0.1ps

Polarization Dependent Loss

≤ 0.3dB

Channel Isolation

Adjacent ≥ 25dB
Non-adjacent ≥ 29dB

Temperature

Operating -5 to 65°C

Storage -40 to 85°C

Net Weight

1.5KG

Dimensions (HxWxD)

44*440*230mm

Note: Specified with connectors.



Package Information





19” Inch 1U Rack



Order Information



Product No.

Product description

DMD40-1U01-C2160-31M

DWDM MUX DEMUX 40CH (C21-C60) With 1310nm and Monitor Port, Dual fiber, LC/UPC , 1U Rack

Note:We Support Customized Design, please contact us by email.
