Dual Fiber 8CH C40-C47 DWDM OADM, WEST TO EAST

  • IL<2.4dB , 100GHZ DWDM OADM MUX DEMUX
  • Multiplexing of 8 Channels Drop and Add, over a Dark Fiber Network
  • Fully Compatible with All ITU-T 1G/10G/25G/40G/100G DWDM Optics
  • Passive devices, No Power No Cooling Required
  • Support Metro, Regional and Long Haul DWDM Networks
  • Product Detail

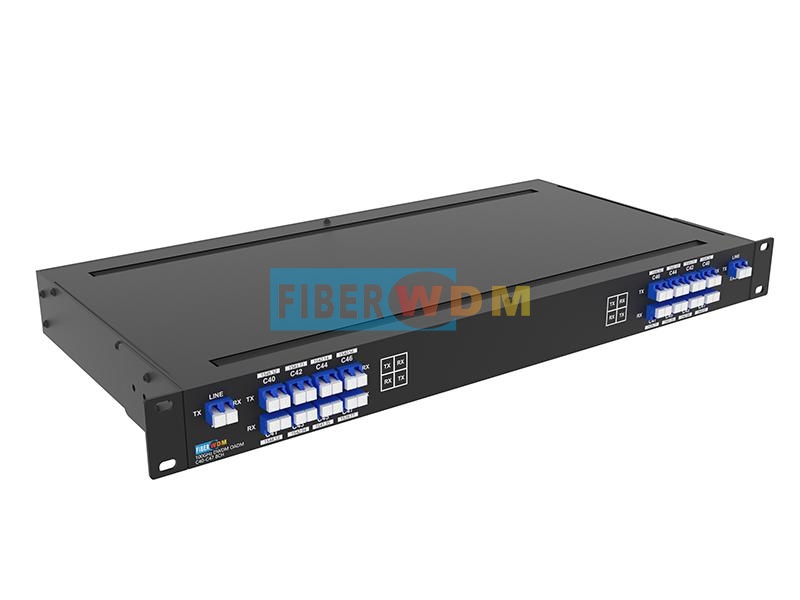

Dual Fiber 8CH C40-C47 DWDMOADM,WEST TO EAST, LC/UPC, 1U Rack



The8ch DWDM OADM is designed by FIBERWDM, wavelength from C40 to C47(1545.32nm~1539.77nnm),(By the way, we can support customize other waves); in accordance with the ITU-T G.694.1 100GHZ grid, it maximizes the capacity of the C-band range.


The 8ch DWDM OADM port is totally passive DWDM device, and support drop 8 channels business and add 8 channels business in two fibers. The loss of The waves to west or east is<2.4dB, line loss of west to east( or east to west) is<4.8dB.



Product Panel

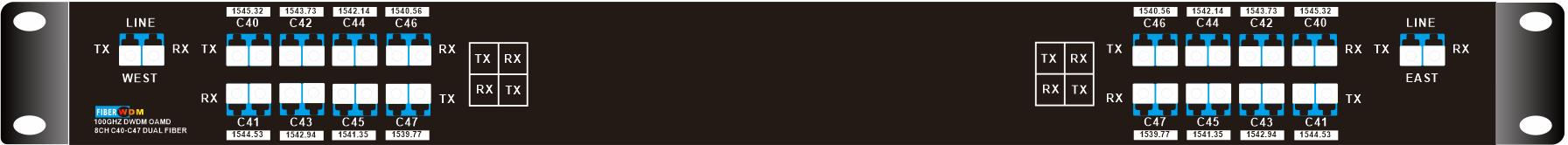

 8CH DWDM OADM Dual Fiber



Line Link




8CH DWDM OADMDual fiber transmission

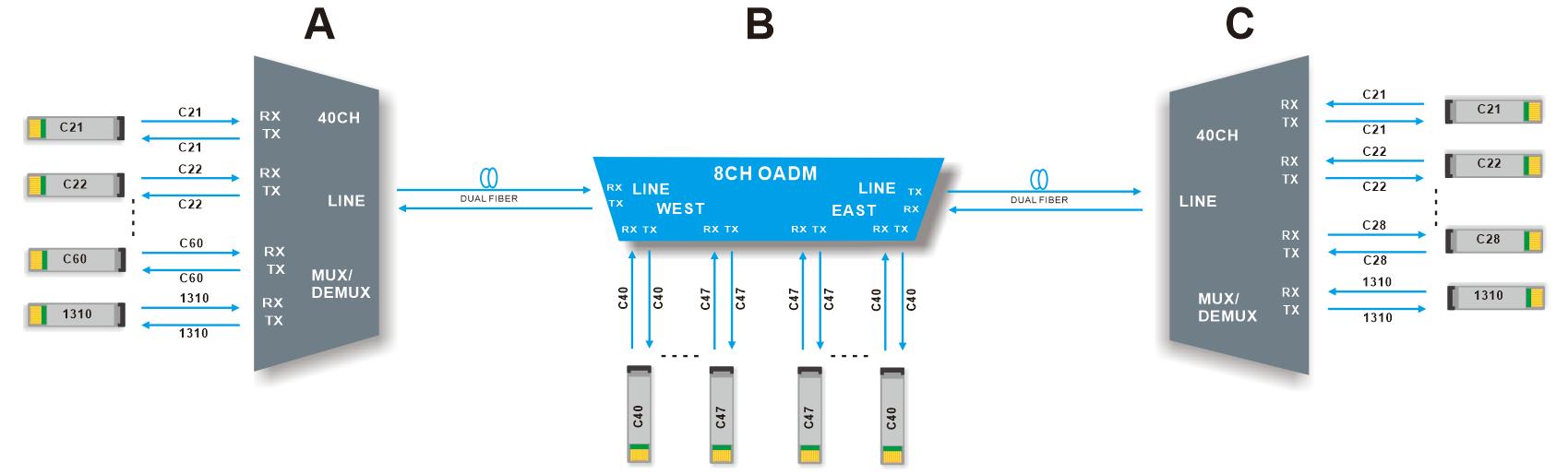

A to C has 32ch DWDM and one 1310 business transmission in two fiber, and A to B, B to C have 8ch business transmission in two fiber. In B side, drop 8channels and add 8 channels in two fiber.

It works in Broadcast and TV, IDC, finance, government, cloud, massive data and other industries.



Product Specification



Wavelength

8channels OADM C40-C47  (or other waves)

Channel Spacing

100GHz (0.8nm)

Channel Passband

±0.11nm

Technology

TFF (Thin Film Filter)

Insertion Loss

≤2.4dB( waves to west or east)

Link Loss

≤4.8dB ( west to east)

Return Loss

≥ 45dB

Directivity

≥ 45dB

Polarization Mode Dispersion

≤ 0.1ps

Polarization Dependent Loss

≤ 0.3dB

Channel Isolation

Adjacent ≥30dB
Non-adjacent ≥45dB

Temperature

Operating -40 to 85°C

Storage -40 to 85°C

Net Weight

1.5KG

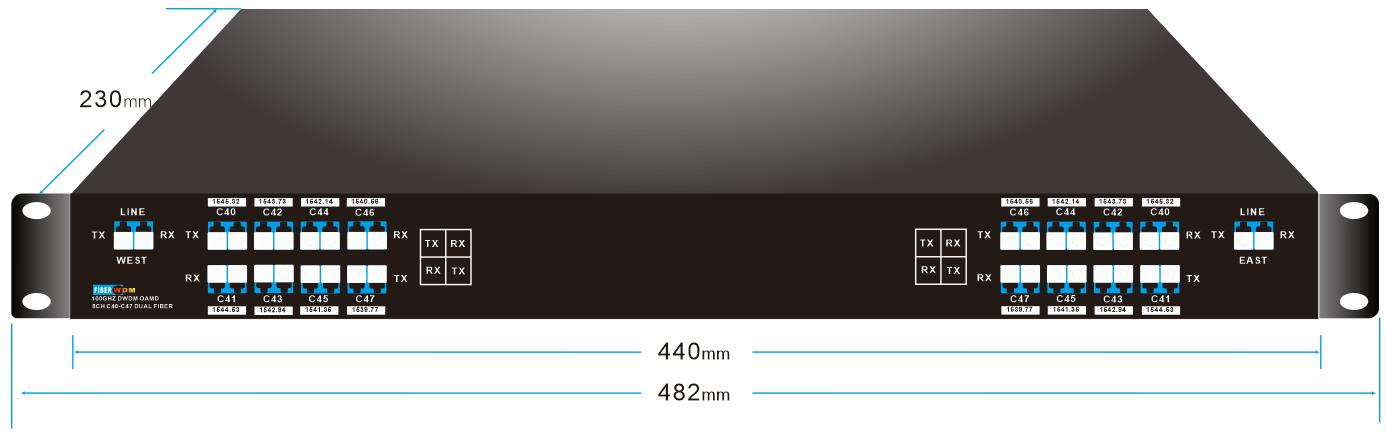

Dimensions (HxWxD)

44*440*230mm

Note: Specified with connectors.



Package Information

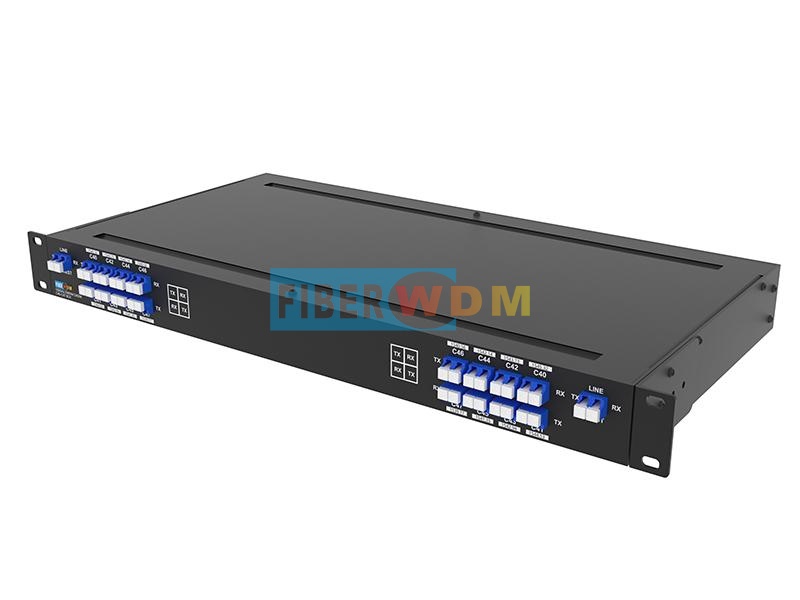

8CH DWDM MUX DEMUX OADM 19” 1U Rack

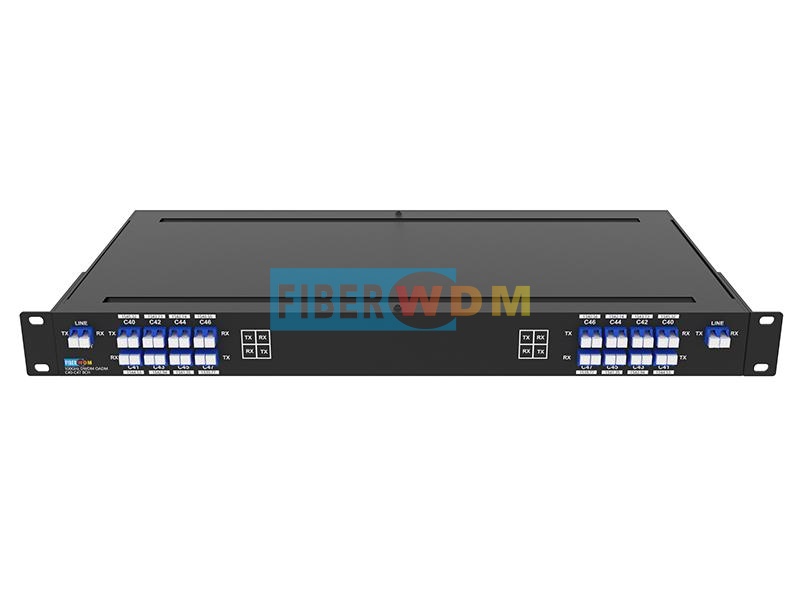

8CH DWDM MUX DEMUX OADM 19” 1U Rack



Order Information



Product No.

Product description

DOA8-1U01-C4047

DWDM OADM Drop and Add 8CH (C40-C47) ,west to east, Dual fiber, LC/UPC , 1U Rack

Note:We Support Customized Design, please contact us by email.
