100GHZ DWDM AAWG 40/48CH MODULE

  • 40ch/ 48ch DWDM AAWG Module, Low Insertion Loss, High Isolation, Low PDL
  • Wide Operating Wavelength: C-Band ITU ( C17~ C61)
  • Wide Operating Temperature: -20 to 70°C


  • Product Detail

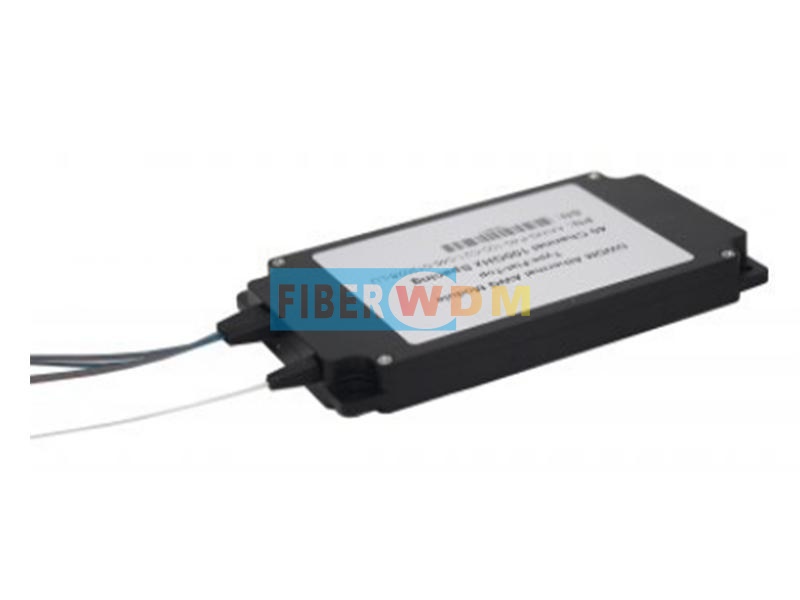

100GHZ DWDM AAWG 40/48CH MODULE



FiberWDM’s Dense Wavelength Division Mux/Demultiplexer Athermal Arrayed Waveguide Grating(AAWG) Modules are part of a series of high performance products based on silica-on-silicon planar technology and a unique athermal packaging design requiring no electrical power, software or temperature control for a completely passive DWDM solution. This product range offers a combination of very low loss and high channel isolation along with long term reliability .Each module can perform Mux and Demux functions. Both C- and L-band devices are available with flat top spectral response. Custom frequency grids, fiber types and connector options are also available



Features

  • Low insertion loss
  • High isolation
  • Low PDL
  • Compact design
  • Good channel-to-channel uniformity
  • Wide operating wavelength
  • Wide operating temperature: -20 to70℃

Applications

  • DWDM system
  • PON networks
  • CATV links
  • Fiber optical amplifier
  • Wavelength routing





Product specification



Parameter

Unit

Specifications

ITU Band

GHz

ITU, C-band

Channel Spacing

GHz

100

Number of channels



40CH

48CH

Wavelength accuracy

Max

nm

0.05

Insertion Loss

Waves

Max

dB

3.5

4.0

-1dB passband

Min

nm

0.3

-3dB passband

Min

nm

0.5

Isolation

Adjacent Channel

Min

dB

25

Non-adjacent Channel

Min

dB

30

Total Crosstalk

Min

dB

23

Ripple in Passband

Max

dB

0.75

Polarization Dependent Loss

Max

dB

0.5

Uniformity

Max

dB

1.5

Directivity

Min

dB

50

Return Loss

Min

dB

45

Polarization Mode Dispersion

Max

ps

0.5

Power Handling

Max

mW

300

Fiber Type



Corning SMF-28 / SMF-28e or customize

Operating Temperature

°C

5~70

Storage Temperature

°C

-40~85

Package

Weight



0.5kg

Dimensions

mm

(L)120×(W)70×(H)12.7

Note: 2>Specified with connectors.

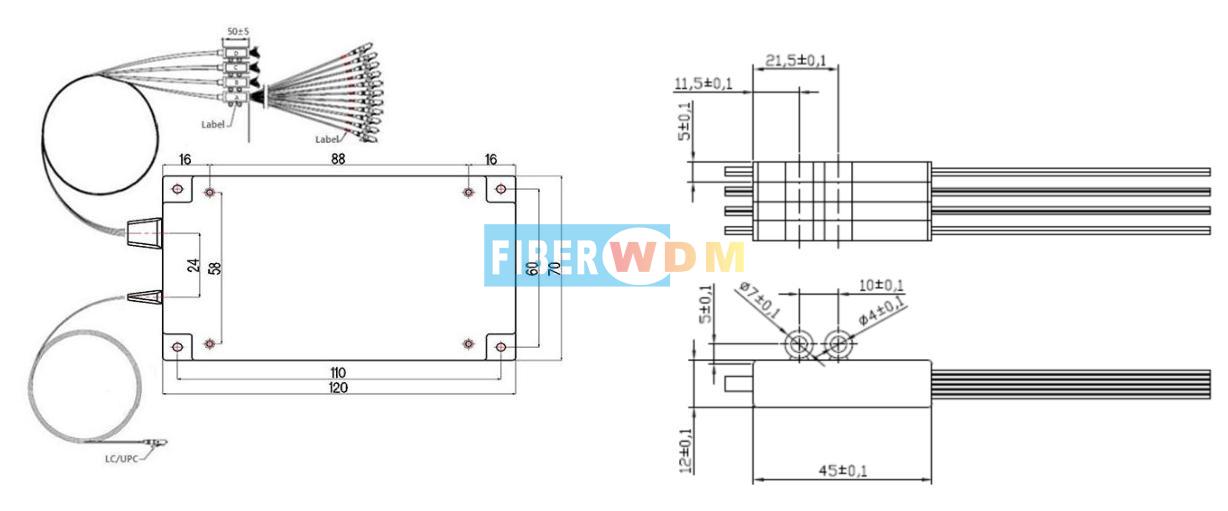

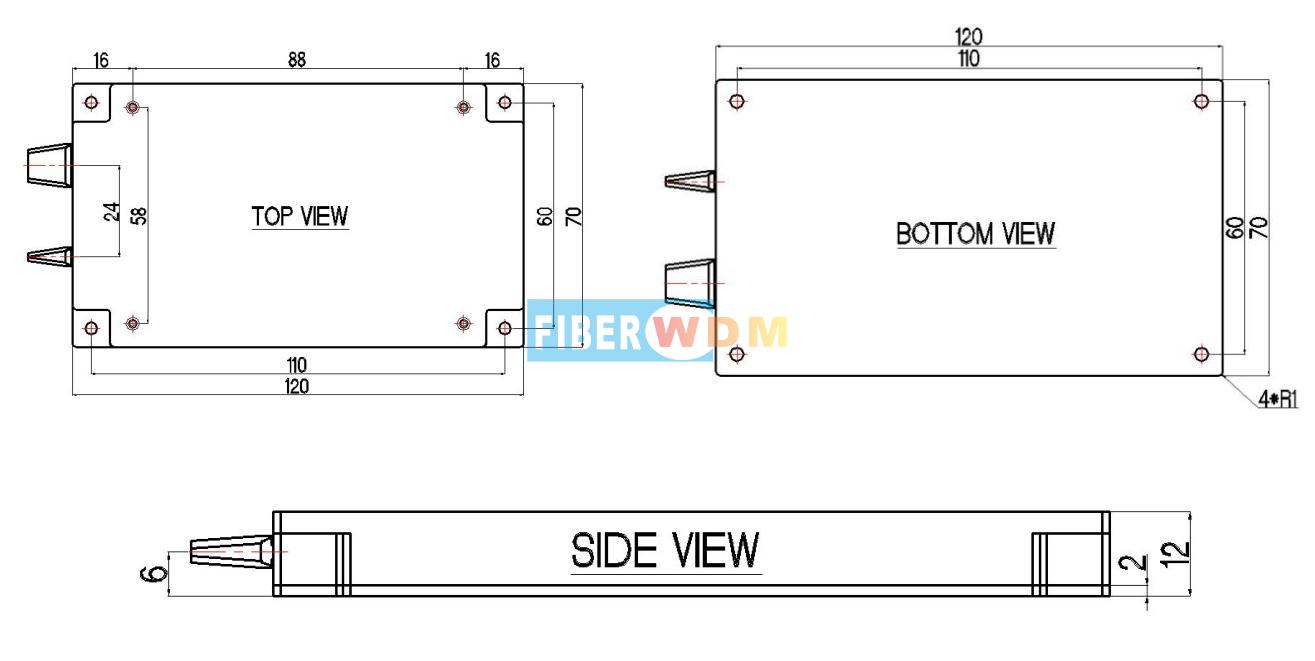

Dimensions

 40CH DWDM AAWG



Fiber Connector Specifications

 48CH DWDM AAWG


Parameter

Unit

Specification

Fiber Type



SMF28e with 900um Loose Tube Fiber

Fiber Format



2 x 8 + 2 x 12 -Fiber ribbons

Input Common Fiber Length

mm

1000+/ -50

Ribbon Fiber

mm

1000+/ -50

Fanout Fiber

mm

500+/ -50

Connector Type



LC/UPC
