  • 100G Single Fiber 80km Transceiver
    100Gb/s QSFP28 ZR4 BIDI 80km Transceiver
    Features Support line rates from 103.125 Gb/s to 112.2 Gb/s OTU4 Built-in 4-channel Clock and Data Recovery (CDR) in TX and RX LAN WDM EML laser and PIN receiver with SOA Up to 80km reach for G.652 SMF Hot pluggable 38 pin electrical interface QSFP28 MSA compliant BIDI LC optical receptacle RoHS-10 compliant and lead-free Excellent EMI performance Single +3.3V power supply Maximum power consumption 5.5W Case operating temperature Commercial: 0 ~ 70℃ Extended: -5 ~ +85℃ Applications 100GBASE-ZR4 Ethernet Links Infiniband QDR and DDR interconnects       Telecom networking
  • 100G QSFP28 SWDM4
    100G QSFP28 SWDM4 Optical Transceiver
      Feature Compliant with QSFP28 MSA Compliant with SWDM MSA Compliant with IEEE802.3bm CAUI-4 Hot-pluggable QSFP28 form factor 4x25Gb/s 850mm VCSEL-based transmitter Supports 103.1Gbps aggregate bit rate Power dissipation<3.5W Maximum link length of 150m on OM5 multi mode Fiber Case temperature range of 0℃ to 70℃ Duplex LC receptacles CAUI-4 electrical interface RoHS compliant   Applications 100G Ethernet over Duplex MMF
  • 100G CFP Module
    100G CFP2 ER4 Dual Rate 40km Module
      Features Supports multi-rate (100GE and OTU4); from 103.1Gb/s to 111.8Gb/s aggregate; Lane bit rate 25.78 Gb/s 100GE, 27.95 Gb/s OTU4; Up to 40km transmission on SMF; LANWDM laser and PIN receiver with SOA; High speed I/O electrical interface (CAUI-4); MDIO interface with integrated Digital Diagnostic CFP2 MSA package with duplex LC connector; Single +3.3V power supply; Maximum power consumption 14W; Operating case temperature: 0 to +70 °C; Complies with IEEE802.3ba and ITU-T G.959.1; Complies with EU Directive 2015/863/EU;   Application 100GBASE-ER4;
  • 100G CFP Module
    100G CFP2 LR4 single Rate 10km Module
    Features Supports single-rate 103.1Gb/s aggregate(100GE); Lane bit rate 25.78 Gb/s 100GbE; Up to 10km transmission on SMF; LAN WDM laser and PIN receiver; High speed I/O electrical interface (CAUI-4); MDIO interface with integrated Digital Diagnostic monitoring; CFP2 MSA package with duplex LC connector; Single +3.3V power supply; Maximum power consumption 6W; Operating case temperature: -5 to +70 °C; Complies with IEEE802.3bm; Complies with EU Directive 2015/863/EU;   Application 100GBASE-LR4;
  • 100G CFP Module
    100G CFP2 LR4 Dual Rate 10km Module
    Features Supports multi-rate (100GE and OTU4); from 103.1Gb/s to 111.8Gb/s aggregate; Up to 10km transmission on SMF; LANWDM laser and PIN receiver with SOA; High speed I/O electrical interface (CAUI-4); MDIO interface with integrated Digital Diagnostic CFP2 MSA package with duplex LC connector; Single +3.3V power supply; Maximum power consumption 12W; Operating case temperature: 0 to +70 °C; Complies with IEEE802.3ba and ITU-T G.959.1; Complies with EU Directive 2015/863/EU; Application 100GBASE-LR4
  • 100G CFP Module
    100G CFP LR4 Dual Rate 10km Module
    Features Supports multi-rate (100GE and OTU4) from 103.1Gb/s to 111.8Gb/s aggregate. Lane bit rate 25.78 Gb/s 100GE, 27.95 Gb/s OTU4 Up to 10km transmission on SMF High speed I/O electrical interface (CAUI-10) MDIO interface with integrated Digital Diagnostic monitoring CFP MSA package with duplex LC connector Single +3.3V power supply Maximum power consumption 12W Operating case temperature: 0 to +70 °C Complies with IEEE802.3ba and ITU-T G.959.1 Complies with EU Directive 2015/863/EU Application 100GBASE-LR4
  • 100G CFP to QSFP28 Adaptor
    100G CFP to QSFP28 Adaptor Module with FEC
    Features CAUI -10 Electrical Interface:10 Lanes @10Gbit/s for CFP port CAUI -4 Electrical Interface:4 Lanes @25.78Gbit/s for QSFP28 port Hot Pluggable Low latency FEC MDIO, I2C Support Compliant to CFP MSA Case operating temperature: 0 to 70 °C The RQ-CFP-QSFP28-F Adaptor Module converts a 100 Gigabit CFP port into a 100 Gigabit QSFP28 port. With the Adaptor Module, customers have the flexibility to use the 100 Gigabit CFP interface port of a switch with CFP modules or QSFP28 modules. For 100G Ethernet, reference clock can switch 161.133mhz or 644.531mhz; For OUT 4, reference clock can switch 174.703mhz or 698.812mhz; Users can control whether FEC function is enabled or not through register configuration.
  • 100G QSFP28 BIDI
    100G QSFP28 BIDI 1271nm/1331nm 10km Transceiver
    Features Supports 100GBASE-LR1- 10 BIDI Lane signaling rate 106.25Gb/s with PAM4 Up to 10km transmission on SMF EML Laser and PIN receiver 4x25.78Gb/s with NRZ electrical interface (CAUI-4) High speed I/O electrical interface I2C interface with integrated Digital Diagnostic monitoring QSFP28 MSA package with simplex LC connector Single +3.3V power supply Support HW TX_DIS and RX_LOS for telecom application Maximum power consumption 4 W Operating case temperature: 0 to +70 °C Compliant to 802.3cu, SFF-8636&SFF-8679 standard Complies with EU Directive 2015/863/EU Application 100GBASE-LR1- 10 BIDI Transceiver Types:
  • 100G QSFP28 BIDI

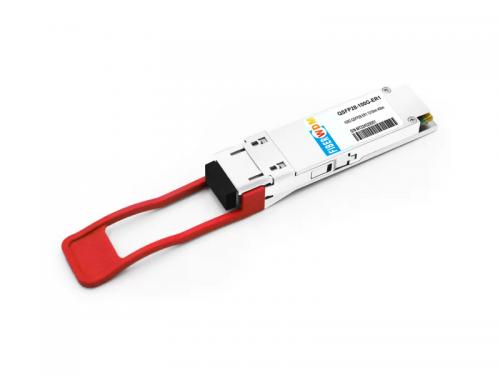

    100G QSFP28 BIDI 1304nm/1309nm 40km Transceiver
    Features Supports 100GBASE-ER1-40 BIDI Lane signaling rate 106.25Gb/s with PAM4 Up to 40km transmission on SMF EML laser and APD receiver 4x25.78Gb/s with NRZ electrical interface (CAUI-4) High speed I/O electrical interface I2C interface with integrated Digital Diagnostic monitoring QSFP28 MSA package with simplex LC connector Single +3.3V power supply Maximum power consumption 4.5 W Operating case temperature: 0 to +70 °C Compliant to 802.3cu, SFF-8636&SFF-8679 standard Complies with EU Directive 2015/863/EU Application 100GBASE-ER1-40 BIDI Transceiver Types:
  • 100G QSFP28 BIDI

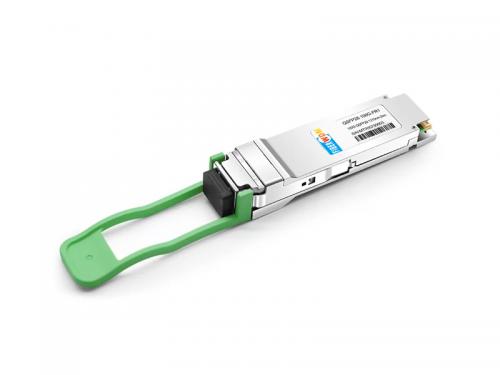

    100G QSFP28 BIDI 1290nm/1310nm 20km Transceiver
    Features Supports 100GBASE-LR1-20 BIDI Lane signaling rate 106.25Gb/s with PAM4 Up to 20km transmission on SMF EML Laser and PIN receiver 4x25.78Gb/s with NRZ electrical interface (CAUI-4) High speed I/O electrical interface I2C interface with integrated Digital Diagnostic monitoring QSFP28 MSA package with simplex LC connector Single +3.3V power supply Support HW TX_DIS and RX_LOS for telecom application Maximum power consumption 4.5 W Operating case temperature: 0 to +70 °C Compliant to 802.3cu, SFF-8636&SFF-8679 standard Complies with EU Directive 2015/863/EU Applications 100GBASE-LR1-20 BIDI Transceiver Types:
  • 100G QSFP28 DWDM
    100G DWDM QSFP28 Dual CS Connector PAM4 Transceiver
    100G QSFP28 DWDM optical transceiver module, support 48*100Gb/s DWDM System and up to 80 km transmission on SM fiber, it works in high-speed IDC connection solutions.
  • 100G QSFP28 LR1
    100Gb QSFP28 LR1 10Km Single Lambda 1271/1291/1311/1331nm LC Optical Transceiver
    The 100G LR1 Single Lambda QSFP28 Optical Transceiver Module is designed for use in 100GBASE Ethernet throughput up to 10km over single mode fiber (SMF) using a wavelength of 1290nm or 1270/1290/1310/1330 via duplex LC connectors. So can be used 4x100G QSFP28 CWDM transceiver and one 4CH CWDM MUX(1270~1330nm) up to 400G transmission on two core fiber(SMF), 2-10KM distance between two Data Center Features Up to 106.25Gbps data rate single channel 1x106.25Gbps PAM4 Line side, 4x25.78Gbps NRZ Host side or 4x26.56Gbps NRZ Host side (close Media-side KP1 FEC inside Module) 100Gbps hermetic TOSA with EML (1271,1291, 1311 or 1331nm)and PIN Detector Dual LC optical interface compliant DDM function implemented Maximum link length of 10km on SMF fiber Low power dissipation: <4W International class 1 laser safety certified Operating temperature range: 0C ~ +70 C Compliant with ROHS6
