100G LR1 10km SFP-DD Optical Transceiver
100G LR1 10km SFP-DD Optical Transceiver

100G LR1 10km SFP-DD Optical Transceiver

The 100G LR1 SFP56-DD optical transceiver, 100G SFP56-DD LR1 is designed for using in 100-Gigabit Ethernet links up to 10km over Single-Mode Fiber (SMF). It is compliant with the SFP56-DD MSA,IEEE802.3CU,100G Lambda 100G LR1 and 100GAUI-2(no FEC)1. Digital diagnostics functions are available via the I2C interface, as specified by the SFP56-DD MSA.

The module incorporates 1 channel optical signal, on 1311nm center wavelength, operating at 100Gbps data rate. This module can convert 2 channels of 53Gbps (PAM4) electrical input data to 1 channel of 106Gbps (PAM4) optical signal, and also can convert 1 channel of 106Gbps (PAM4) optical signal to 2 channels of 53Gbps (PAM) electrical output data. The optical interface uses a Duplex LC connector. The high performance cooled EML transmitter and high sensitivity PIN receiver provide superior performance for 100Gigabit Ethernet applications up to 10km links.

Inquire now
  • Product Detail

100G LR1 10km SFP-DD Optical Transceiver    RSD-100G-LR1



Features


  • Compliant to 100G Lambda MSA 100G LR1-10
  • Full-duplex transceiver module
  • 1x106.25Gb/s(PAM4) optical interface
  • 2x53.125Gb/s(PAM4) electrical interface
  • 106.25Gbps PAM4 based on a cooled EML TOSA transmitter
  • 106.25Gbps PAM4 PIN Receiver
  • 3.5W maximum power dissipation
  • Hot-pluggable SFP56-DD form factor
  • Maximum link length of 10km on G.652 SMF with KP-FEC
  • Duplex LC receptacles
  • Built-in digital diagnostic functions
  • Operating case temperature range: 0 to 70°C
  • Single 3.3V power supply
  • RoHS compliant (lead free)



Applications



  • 100G Lambda 100G LR1-10
  • IEEE802.3CU



Note:

1. KR-FEC is optional, please contact us if necessary.

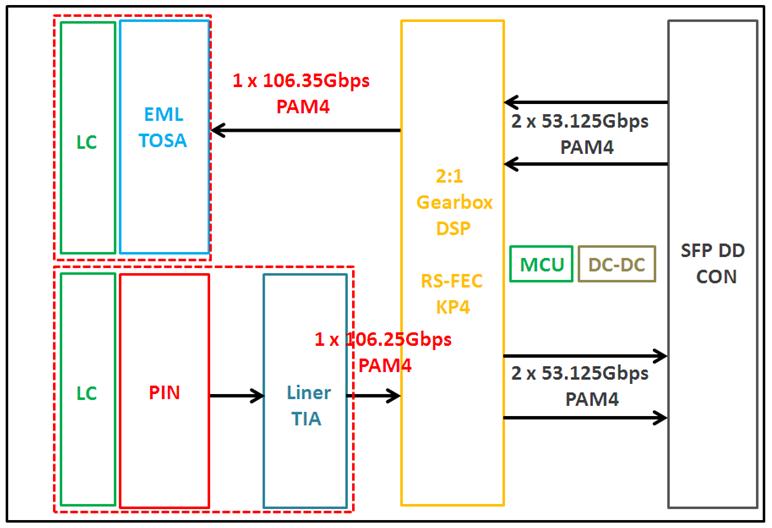

Figure 1. Module Block Diagram



Absolute Maximum Ratings



Parameter Symbol Min Max Unit
Supply Voltage Vcc -0.3   V
Input Voltage Vin -0.3 Vcc+0.3 V
Storage Temperature Ts -20 85 ºC
Case Operating Temperature Tc 0 70 ºC
Humidity (non-condensing) Rh 5 85 %



Recommended Operating Conditions



Parameter Symbol Min Typical Max Unit
Supply Voltage Vcc 3.13 3.3 3.47 V
Operating Case temperature Tc 0   70 ºC
Data Rate Per Lane fd   106.25   Gb/s
Humidity Rh 5   85 %
Power Dissipation Pm   3 3.5 W
Link Distance with G.652 D     10 km



Electrical Specifications



Parameter Symbol Min Typical Max Unit
Differential Input Impedance Zin 90 100 110 ohm
Differential Output Impedance Zout 90 100 110 ohm
Differential Input Voltage Amplitude1 ΔVin     1600 mVp-p
Differential Output Voltage Amplitude2 ΔVout     900 mVp-p

Note:

1. Differential input voltage amplitude is measured between TxnP and TxnN.

2. Differential output voltage amplitude is measured between RxnP and RxnN.



Optical Characteristics
