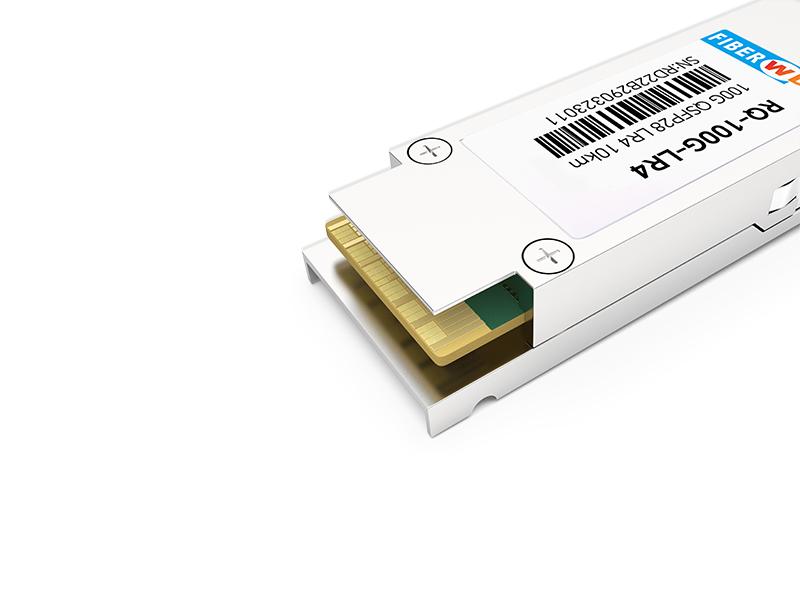

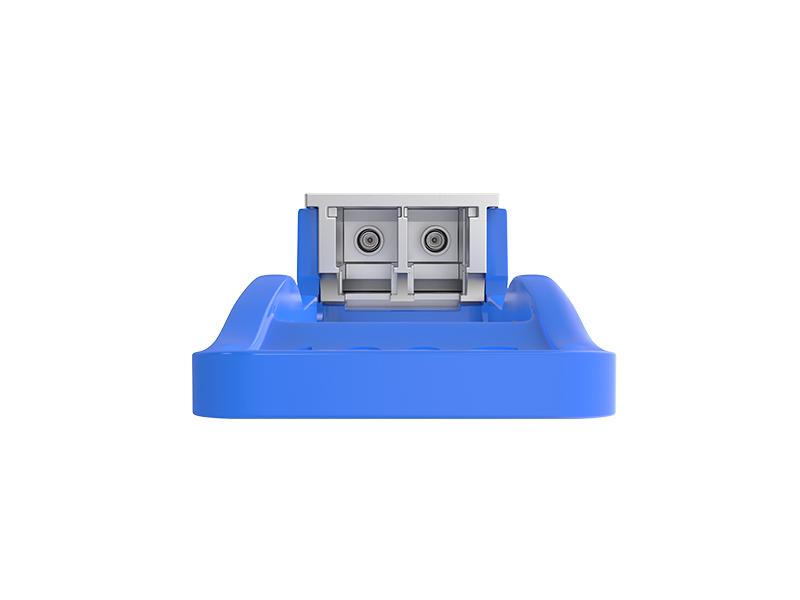

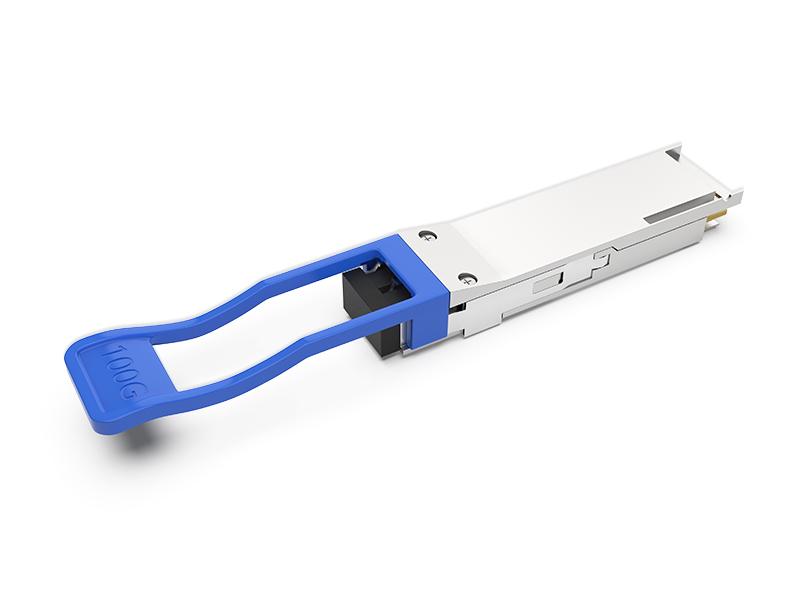

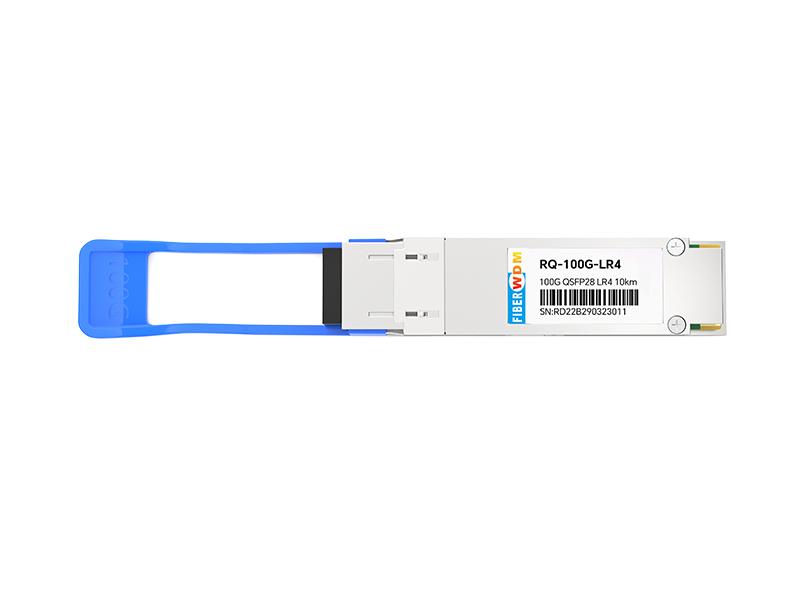

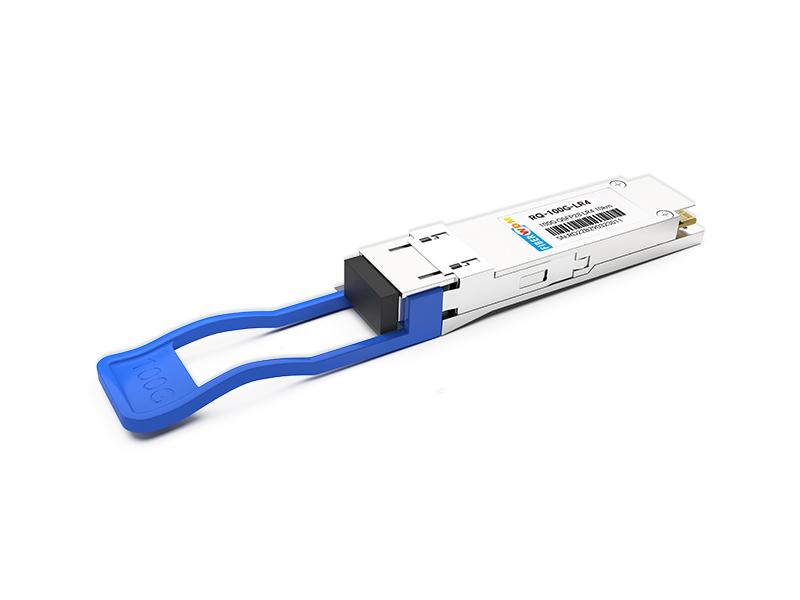

100G QSFP28 LR4 1310nm 10km LC Optical Transceiver

100G QSFP28 LR4 optical transceiver module, support 100Gb/s and up to 10 km transmission on SM fiber, it works in high-speed IDC connection solutions, and so on.
  • Product Detail

100G QSFP28 LR4 10Km 1310nm LC Optical Transceiver



Features



  • Supports100Gb/s bit rate,4x25G data rate per channel
  • LAN WDM: 1295.56/1300.05/1304.58/1309.14nm
  • Up to 10km over SMF
  • Duplex LC Connector
  • Hot Pluggable QSFP form factor
  • Digital diagnostic monitoring support
  • Single 3.3V power supply
  • RoHS-10 compliant and lead-free
  • Maximum power consumption3.5W
  • All-metal housing for superior EMI performance
  • Case operating temperature:0℃ to+ 70℃/ -40℃ to +85℃


Order information


Product Number

Data Rate(Gb/s)

Wavelength(nm)

Reach(km)

LD

Tx Power(dBm)

PD

Rx Sens(dBm)

Temperature(℃)

RQ-100G-LR4

100

1310nm

10

LAN WDM DFB

-4.3~4.5

PIN

<-10.6

0~70

RQ-100G-LR4-I

100

1310nm

10

LAN WDM DFB

-4.3~4.5

PIN

<-10.6

-40~85
