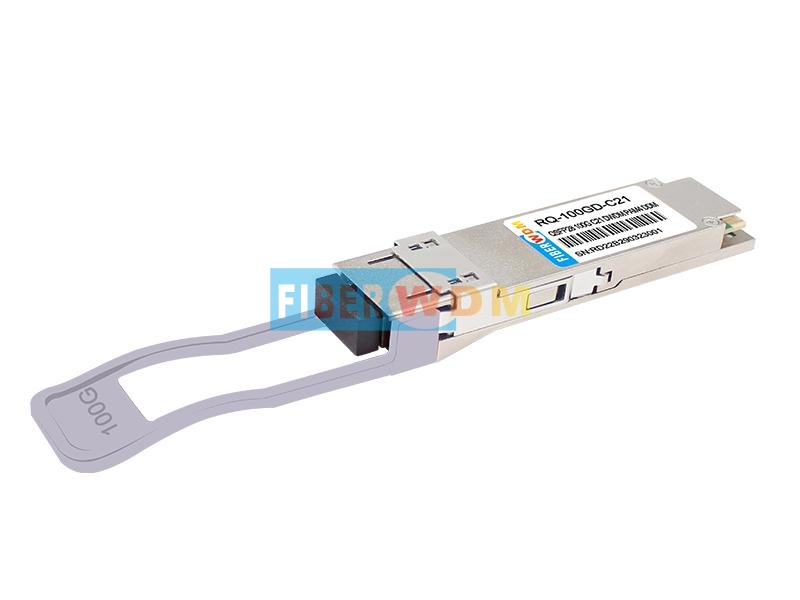

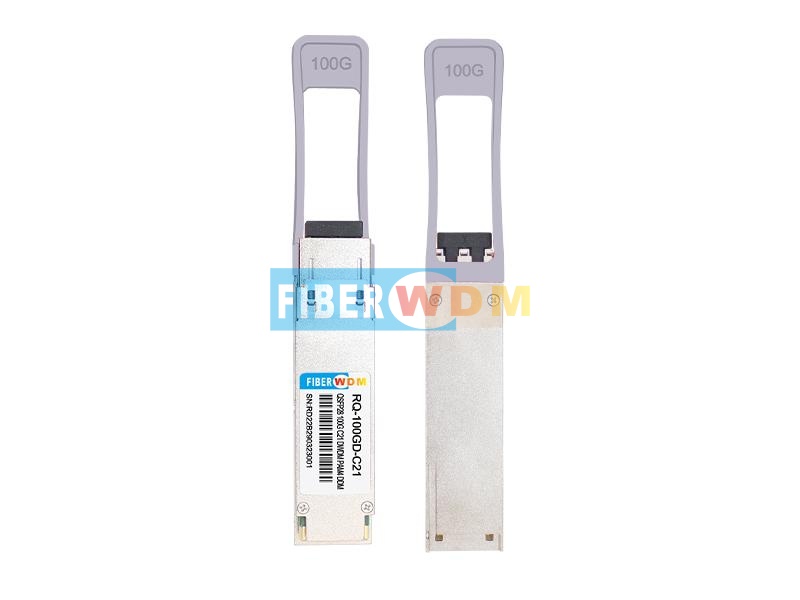

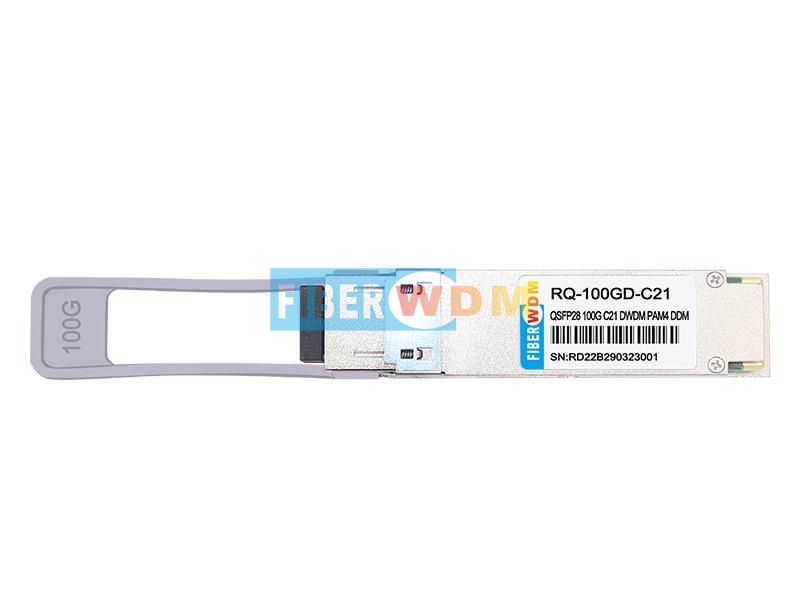

Single Wave 100G QSFP28 DWDM PAM4 Dual LC Transceiver

100G QSFP28 DWDM optical transceiver module, support 48*100Gb/s DWDM System and up to 80 km transmission on SM fiber, it works in high-speed IDC connection solutions.
  • Product Detail


100G QSFP28 DWDM PAM4 LC QSFP28 DWDM Transceiver



The RQ-100GD-CXX series QSFP28 100G DWDM PAM4 LC QSFP28 DWDM Transceiver module is designed for use in duplex optical data communications. This module is designed for single mode optical fiber and operates at a data rate of 100Gbps at the nominal DWDM wavelength from 1528.77nm to 1565.50nm as specified by the ITU-T. This module can convert 4 channels of 25Gbps (NRZ) electrical input data to 1 channel of 100Gbps (PAM4) optical signal, and also can convert 1 channel of 100Gbps (PAM4) optical signal to 4 channels of 25Gbps (NRZ) electrical output data. The electrical interface of the module is compliant with the OIF CEI-28G-VSR and QSFP28 MSA. It is designed to deploy in the DWDM networking equipment in metropolitan access and core

networks.



Features



  • Supports 100Gbps
  • Available in all C-Band Wavelengths on the
  • 100GHz DWDM ITU Grid
  • Single 3.3V Power Supply
  • Power Dissipation < 5.5W
  • 80km reach over SMF with EDFA&DCM (dispersion compensation modules)
  • QSFP28 MSA Compliant
  • SFF-8636 Rev 2.10a Compliant
  • 4x25G Electrical Interface

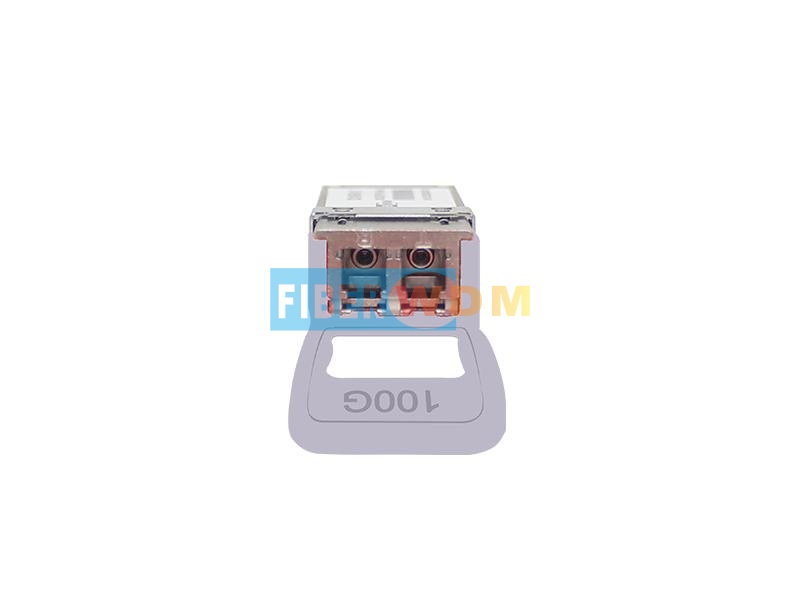

  • LC Duplex Connector
  • Commercial Case Temperature Range of 0°C to 70°C
  • I2C Interface with Integrated Digital
  • Diagnostic Monitoring
  • Safety Certification: TUV/UL/FDA*1 RoHS Compliant




100G DWDM QSFP28 Transceiver


Ordering Information



Part No

Data Rate

Package

Center Wavelength

(nm)

Tx

Rx

Distance

Interface

Temp.

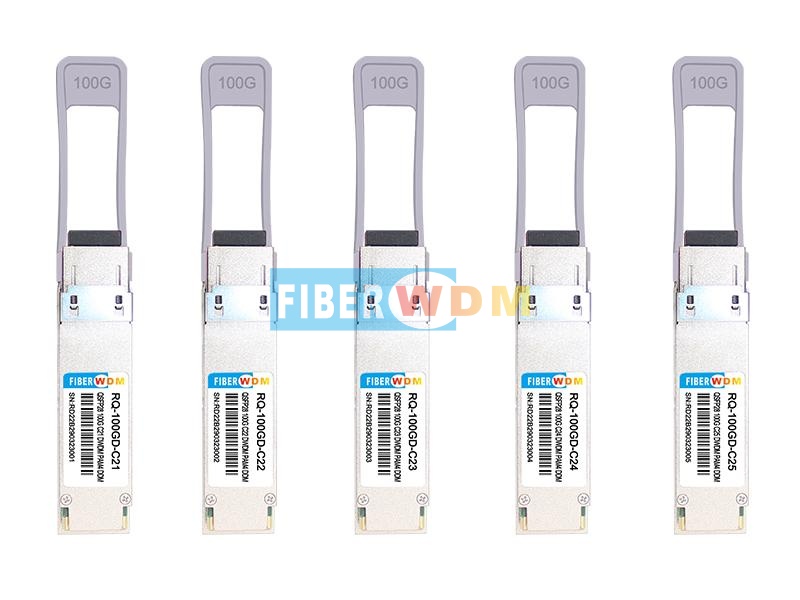

RQ-100GD-C21

100G

QSFP28

1560.61

-7~4dB

<-12.5 dBm @BER 4E-3

80km

(with DCM and EDFA

LC

0°C to 70°C

RQ-100GD-C22

100G

QSFP28

1559.79

-7~4dB

<-12.5 dBm @BER 4E-3

80km

(with DCM and EDFA

LC

0°C to 70°C

RQ-100GD-C23

100G

QSFP28

1558.98

-7~4dB

<-12.5 dBm @BER 4E-3

80km

(with DCM and EDFA

LC

0°C to 70°C

RQ-100GD-C24

100G

QSFP28

1558.17

-7~4dB

<-12.5 dBm @BER 4E-3

80km

(with DCM and EDFA

LC

0°C to 70°C

RQ-100GD-C25

100G

QSFP28

1557.36

-7~4dB

<-12.5 dBm @BER 4E-3

80km

(with DCM and EDFA

LC

0°C to 70°C

RQ-100GD-C26

100G

QSFP28

1556.55

-7~4dB

<-12.5 dBm @BER 4E-3

80km

(with DCM and EDFA

LC

0°C to 70°C

RQ-100GD-C27

100G

QSFP28

1555.75

-7~4dB

<-12.5 dBm @BER 4E-3

80km

(with DCM and EDFA

LC

0°C to 70°C

RQ-100GD-C28

100G

QSFP28

1554.94

-7~4dB

<-12.5 dBm @BER 4E-3

80km

(with DCM and EDFA

LC

0°C to 70°C

RQ-100GD-C29

100G

QSFP28

1554.13

-7~4dB

<-12.5 dBm @BER 4E-3

80km

(with DCM and EDFA

LC

0°C to 70°C

RQ-100GD-C30

100G

QSFP28

1553.33

-7~4dB

<-12.5 dBm @BER 4E-3

80km

(with DCM and EDFA

LC

0°C to 70°C

RQ-100GD-C31

100G

QSFP28

1552.52

-7~4dB

<-12.5 dBm @BER 4E-3

80km

(with DCM and EDFA

LC

0°C to 70°C

RQ-100GD-C32

100G

QSFP28

1551.72

-7~4dB

<-12.5 dBm @BER 4E-3

80km

(with DCM and EDFA

LC

0°C to 70°C

RQ-100GD-C33

100G

QSFP28

1550.92

-7~4dB

<-12.5 dBm @BER 4E-3

80km

(with DCM and EDFA

LC

0°C to 70°C

RQ-100GD-C34

100G

QSFP28

1550.12

-7~4dB

<-12.5 dBm @BER 4E-3

80km

(with DCM and EDFA

LC

0°C to 70°C

RQ-100GD-C35

100G

QSFP28

1549.32

-7~4dB

<-12.5 dBm @BER 4E-3

80km

(with DCM and EDFA

LC

0°C to 70°C

RQ-100GD-C36

100G

QSFP28

1548.51

-7~4dB

<-12.5 dBm @BER 4E-3

80km

(with DCM and EDFA

LC

0°C to 70°C

RQ-100GD-C37

100G

QSFP28

1547.72

-7~4dB

<-12.5 dBm @BER 4E-3

80km

(with DCM and EDFA

LC

0°C to 70°C

RQ-100GD-C38

100G

QSFP28

1546.92

-7~4dB

<-12.5 dBm @BER 4E-3

80km

(with DCM and EDFA

LC

0°C to 70°C

RQ-100GD-C39

100G

QSFP28

1546.12

-7~4dB

<-12.5 dBm @BER 4E-3

80km

(with DCM and EDFA

LC

0°C to 70°C

RQ-100GD-C40

100G

QSFP28

1545.32

-7~4dB

<-12.5 dBm @BER 4E-3

80km

(with DCM and EDFA

LC

0°C to 70°C

RQ-100GD-C41

100G

QSFP28

1544.53

-7~4dB

<-12.5 dBm @BER 4E-3

80km

(with DCM and EDFA

LC

0°C to 70°C

RQ-100GD-C42

100G

QSFP28

1543.73

-7~4dB

<-12.5 dBm @BER 4E-3

80km

(with DCM and EDFA

LC

0°C to 70°C

RQ-100GD-C43

100G

QSFP28

1542.94

-7~4dB

<-12.5 dBm @BER 4E-3

80km

(with DCM and EDFA

LC

0°C to 70°C

RQ-100GD-C44

100G

QSFP28

1542.14

-7~4dB

<-12.5 dBm @BER 4E-3

80km

(with DCM and EDFA

LC

0°C to 70°C

RQ-100GD-C45

100G

QSFP28

1541.35

-7~4dB

<-12.5 dBm @BER 4E-3

80km

(with DCM and EDFA

LC

0°C to 70°C

RQ-100GD-C46

100G

QSFP28

1540.56

-7~4dB

<-12.5 dBm @BER 4E-3

80km

(with DCM and EDFA

LC

0°C to 70°C

RQ-100GD-C47

100G

QSFP28

1539.77

-7~4dB

<-12.5 dBm @BER 4E-3

80km

(with DCM and EDFA

LC

0°C to 70°C

RQ-100GD-C48

100G

QSFP28

1538.98

-7~4dB

<-12.5 dBm @BER 4E-3

80km

(with DCM and EDFA

LC

0°C to 70°C

RQ-100GD-C49

100G

QSFP28

1538.19

-7~4dB

<-12.5 dBm @BER 4E-3

80km

(with DCM and EDFA

LC

0°C to 70°C

RQ-100GD-C50

100G

QSFP28

1537.40

-7~4dB

<-12.5 dBm @BER 4E-3

80km

(with DCM and EDFA

LC

0°C to 70°C

RQ-100GD-C51

100G

QSFP28

1536.61

-7~4dB

<-12.5 dBm @BER 4E-3

80km

(with DCM and EDFA

LC

0°C to 70°C

RQ-100GD-C52

100G

QSFP28

1535.82

-7~4dB

<-12.5 dBm @BER 4E-3

80km

(with DCM and EDFA

LC

0°C to 70°C

RQ-100GD-C53

100G

QSFP28

1535.04

-7~4dB

<-12.5 dBm @BER 4E-3

80km

(with DCM and EDFA

LC

0°C to 70°C

RQ-100GD-C54

100G

QSFP28

1534.25

-7~4dB

<-12.5 dBm @BER 4E-3

80km

(with DCM and EDFA

LC

0°C to 70°C

RQ-100GD-C55

100G

QSFP28

1533.47

-7~4dB

<-12.5 dBm @BER 4E-3

80km

(with DCM and EDFA

LC

0°C to 70°C

RQ-100GD-C56

100G

QSFP28

1532.68

-7~4dB

<-12.5 dBm @BER 4E-3

80km

(with DCM and EDFA

LC

0°C to 70°C

RQ-100GD-C57

100G

QSFP28

1531.90

-7~4dB

<-12.5 dBm @BER 4E-3

80km

(with DCM and EDFA

LC

0°C to 70°C

RQ-100GD-C58

100G

QSFP28

1531.12

-7~4dB

<-12.5 dBm @BER 4E-3

80km

(with DCM and EDFA

LC

0°C to 70°C

RQ-100GD-C59

100G

QSFP28

1530.33

-7~4dB

<-12.5 dBm @BER 4E-3

80km

(with DCM and EDFA

LC

0°C to 70°C

RQ-100GD-C60

100G

QSFP28

1529.55

-7~4dB

<-12.5 dBm @BER 4E-3

80km

(with DCM and EDFA

LC

0°C to 70°C
