MTP/MPO Trunk Cable

  • High Performance in IL & RL
  • Available in 8,12 and 24 fiber
  • Precise dimension
  • 100% in-house tested
  • Customized furcation length to cater for different installation situations
  • Single-fiber connector interface available in SC & LC in forms of Simplex or Duplex channel
  • Support higher speed Ethernet and Fibre Channel applications (OM3, OM4 and SM fibers)

Inquire now
  • Product Detail

MTP/MPO Trunk Cable



Pre-connector MTP/MPO Trunk Cable Assemblies are made up of 12, 24, 48 fiber LSZH jacketed micro cables terminated at both ends with MTP/MPO Connectors (without pins). These are used as backbone or horizontal cable interconnections . These plug and play solutions with micro core cable maximize bend radius and minimize cable weight and size. MTP/MPO Trunk Cable are factory pre-terminated, tested and packed along with the test reports. These assemblies are available in OM3, OM4 and SM fiber. Standard lengths of 5, 10, 25 meters are available. Custom lengths are also available on request. The MTP/MPO Trunk cables are packed as coils in lengths up to 50m long and on reels . OM3 and OM4 cables are available in aqua and SM cables are in yellow color.



Performance Specifications



MPO Connector

Standard SM MT Ferrule

Low Loss SM MT Ferrule

Standard MM MT Ferrule

Low Loss MM MT Ferrule

Polish

APC

PC

APC

PC

PC

PC

IL(dB)

Typical

0.50

0.50

0.3

0.3

0.5

0.3

Maximun

0.70

0.70

0.5

0.5

0.7

0.5

Return Loss（dB）

60

45

60

45

20

20

Exchangeability(dB）

≤0.3

Durability（dB）

≤0.2dB (500 Matings,per EIA-455-21A)

Tensile Strength（dB）

≤0.3dB (Max 66N)

Operating temperature（℃）

-20~+60

Storage temperature（℃）

-40~+80

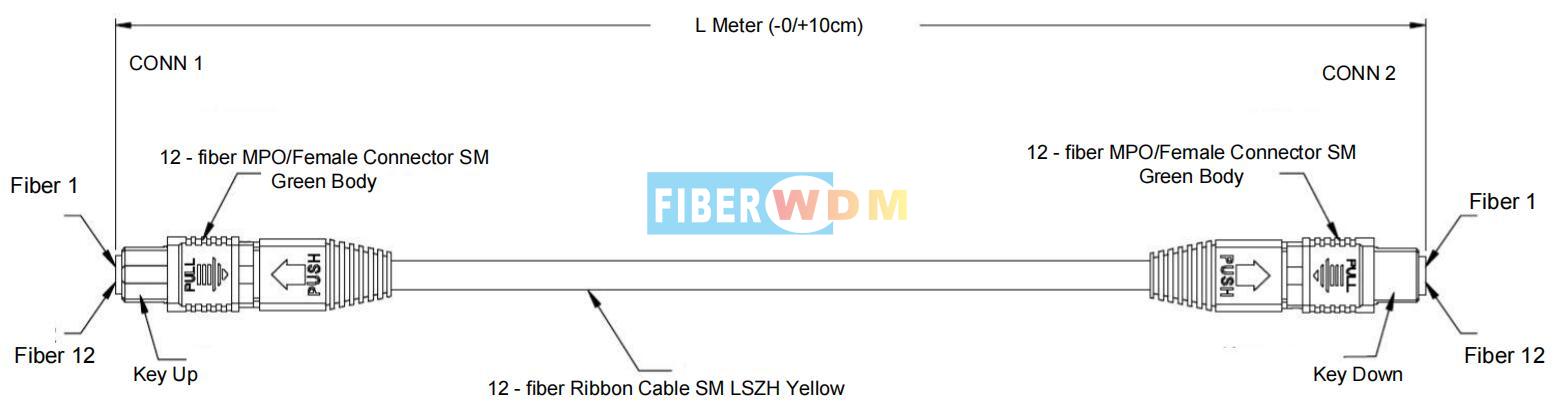

Assembly Structure Illustration



Polarity A: Straight Through

MPO fiber cable


CONN 1 Fiber Number

Fiber 1

Fiber 2

Fiber 3

Fiber 4

Fiber 5

Fiber 6

Fiber 7

Fiber 8

Fiber 9

Fiber 10

Fiber 11

Fiber12

Buffer Color

Blue

Orange

Green

Brown

Grey

White

Red

Black

Yellow

Violet

Rose

Aqua

CONN2 Fiber Number

Fiber 1

Fiber 2

Fiber 3

Fiber 4

Fiber 5

Fiber 6

Fiber 7

Fiber 8

Fiber 9

Fiber 10

Fiber 11

Fiber12



Polarity B: Cross

MPO fiber cable


CONN 1 Fiber Number

Fiber 1

Fiber 2

Fiber 3

Fiber 4

Fiber 5

Fiber 6

Fiber 7

Fiber 8

Fiber 9

Fiber 10

Fiber 11

Fiber12

Buffer Color

Blue

Orange

Green

Brown

Grey

White

Red

Black

Yellow

Violet

Rose

Aqua

CONN2 Fiber Number

Fiber 12

Fiber 11

Fiber 10

Fiber 9

Fiber 8

Fiber 7

Fiber6

Fiber 5

Fiber 4

Fiber 3

Fiber 2

Fiber 1







Polarity C: Cross Pair

  MPO fiber cable


CONN 1 Fiber Number

Fiber 1

Fiber 2

Fiber 3

Fiber 4

Fiber 5

Fiber 6

Fiber 7

Fiber 8

Fiber 9

Fiber 10

Fiber 11

Fiber12

Buffer Color

Blue

Orange

Green

Brown

Grey

White

Red

Black

Yellow

Violet

Rose

Aqua

CONN2 Fiber Number

Fiber 2

Fiber 1

Fiber 4

Fiber 3

Fiber 6

Fiber 5

Fiber 8

Fiber 7

Fiber 10

Fiber 9

Fiber 12

Fiber 11



Order information



MPO CONN 1

MPO CONN2

Fiber Count

Cable Diameter

Cable Length

Fiber Type

Polarity

Female

UPC

Female

UPC

8

Cable Ø 3.0mm

0.5m

SM G652A

Polarity A

male

APC

male

APC

12

Cable Ø 4.5mm

1.0m

SM G657A

Polarity B









24

Cable Ø 5.0mm

2.0m

MM OM2

Polarity C









48

Specify

3.0m

MM OM3











Specify



Specify

MM OM4

















Specify



Note:the colors and type of the connector and cable are standard, If want other specify please contact us.

Want to know about this product?

SEND A MESSAGE
Leave A Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
