Dual Fiber 8CH C31-C38 DWDM MUX DEMUX LGX BOX

  • IL<2.4dB , 100GHZ DWDM MUX DEMUX
  • Monitor Port for Troubleshooting, 1310nm Port for Legacy Traffic
  • Multiplexing of 8 Channels over a Dark Fiber Network
  • Fully Compatible with All ITU-T 1G/10G/25G/40G/100G DWDM Optics
  • Passive devices, No Power No Cooling Required
  • Support Metro, Regional and Long Haul DWDM Networks
  • Product Detail

Dual Fiber 8CH C31-C38 DWDM MUX DEMUX, With 1310nm,Monitor and EXP Port, LC/UPC, LGX Box, and 2 Slots 1U Rack



The 8ch DWDM MUX DEMUX is designed by FIBERWDM, wavelength from C31 to C38(1552.52nm~1546.92nm),(By the way, we can support customize other waves); in accordance with the ITU-T G.694.1 100GHZ grid, it maximizes the capacity of the C-band range.



The 8ch DWDM with 1310nm port is totally passive and LGX box module device, it can plug in the 2-slot 1 U rack; the product insertion loss is:( wavelength ports<2.4dB; 1310nm port<0.8dB).And it conjunct with The DWDM amplifiers and DCM device, the 8ch DWDM transfer system can support a long distance transmission.

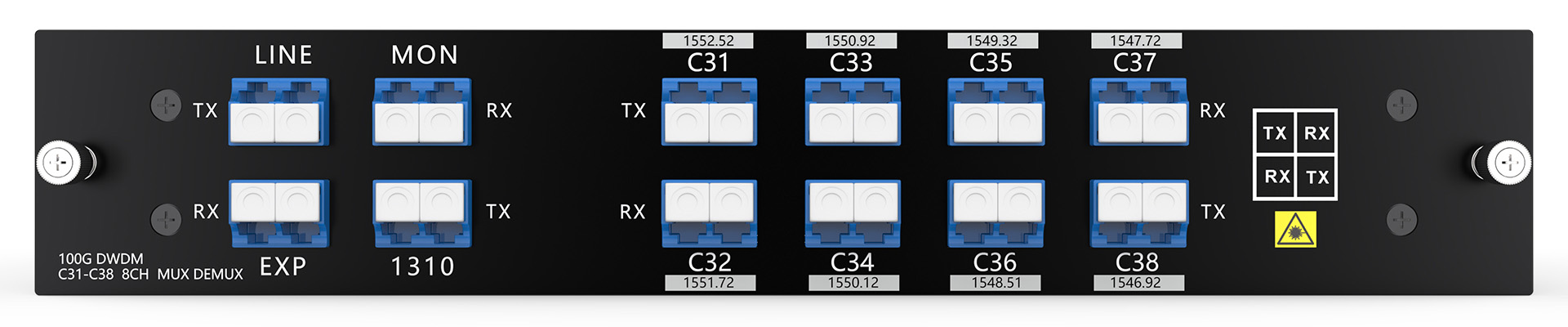

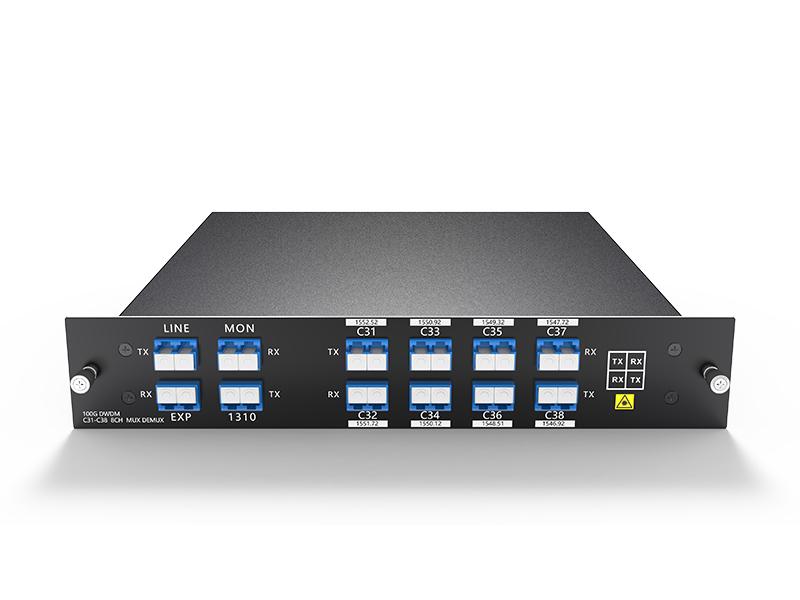

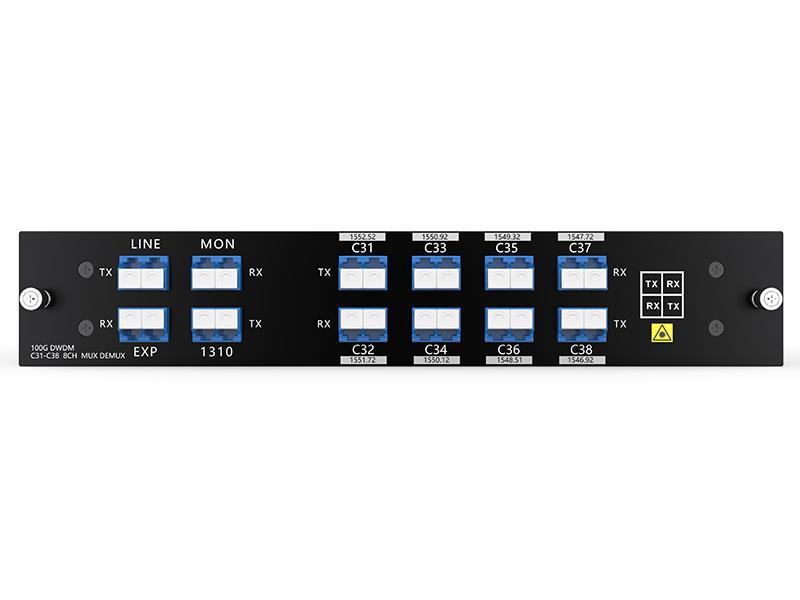

Product Panel


8ch DWDM MUX DEMUX

 8CH DWDM MUX DEMUX Dual Fiber



  • 1310nm port can support 1G LX/SX, 10G LR, 40G ER4/LR4, 100GLR/ER4/LR4/ZR4; it for Existing Legacy Traffic.
  • Mon port is for network link monitoring or power monitoring, easy troubleshooting without affecting traffic.
  • Expansion Port for Future Bandwidth Increasing, makes it possible to increase the network capacity by connecting it to the line port of another DWDM MUX/DEMUX supporting different wavelengths, without the need of installing or leasing additional fibers.

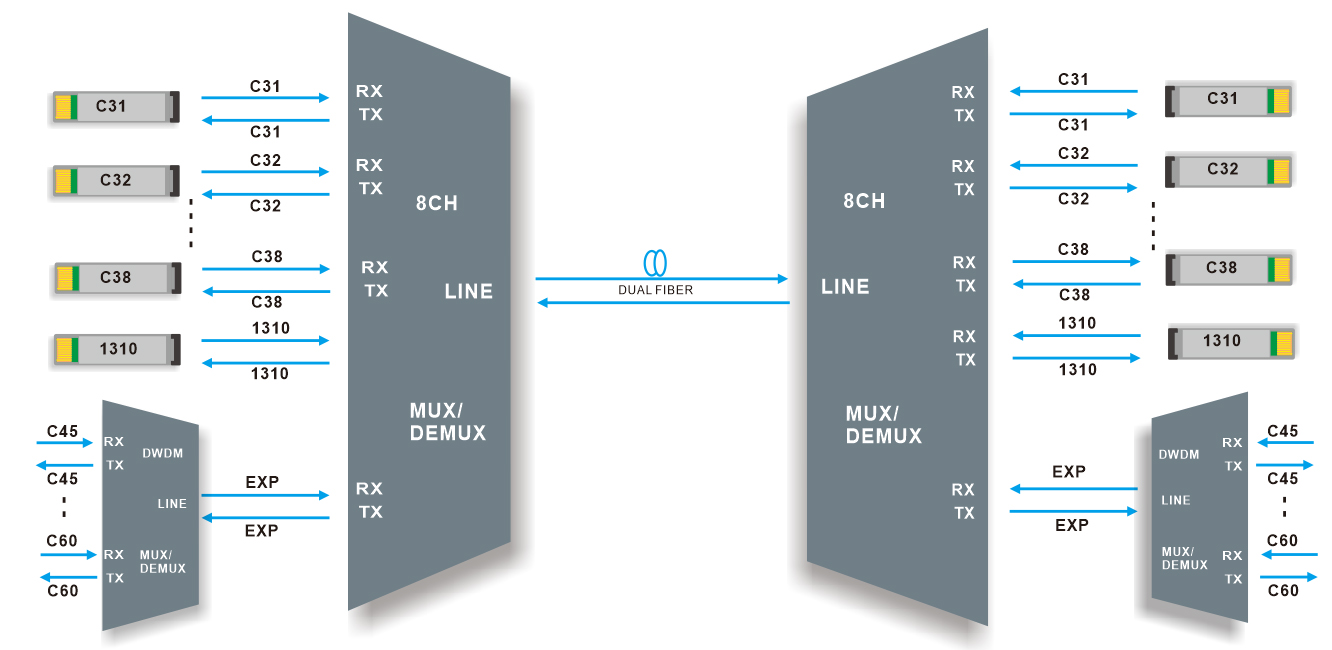

Line Link

 8CH DWDM MUX DEMUXDual fiber transmission

8CH DWDM MUX DEMUXDual fiber transmission



  8 Channels DWDM MUX DEMUX and with 1310nm Port, supports8 channels difference business in two optical fiber for point-to-point transmission.

  It works in Broadcast and TV, IDC, finance, government, cloud, massive data and other industries.

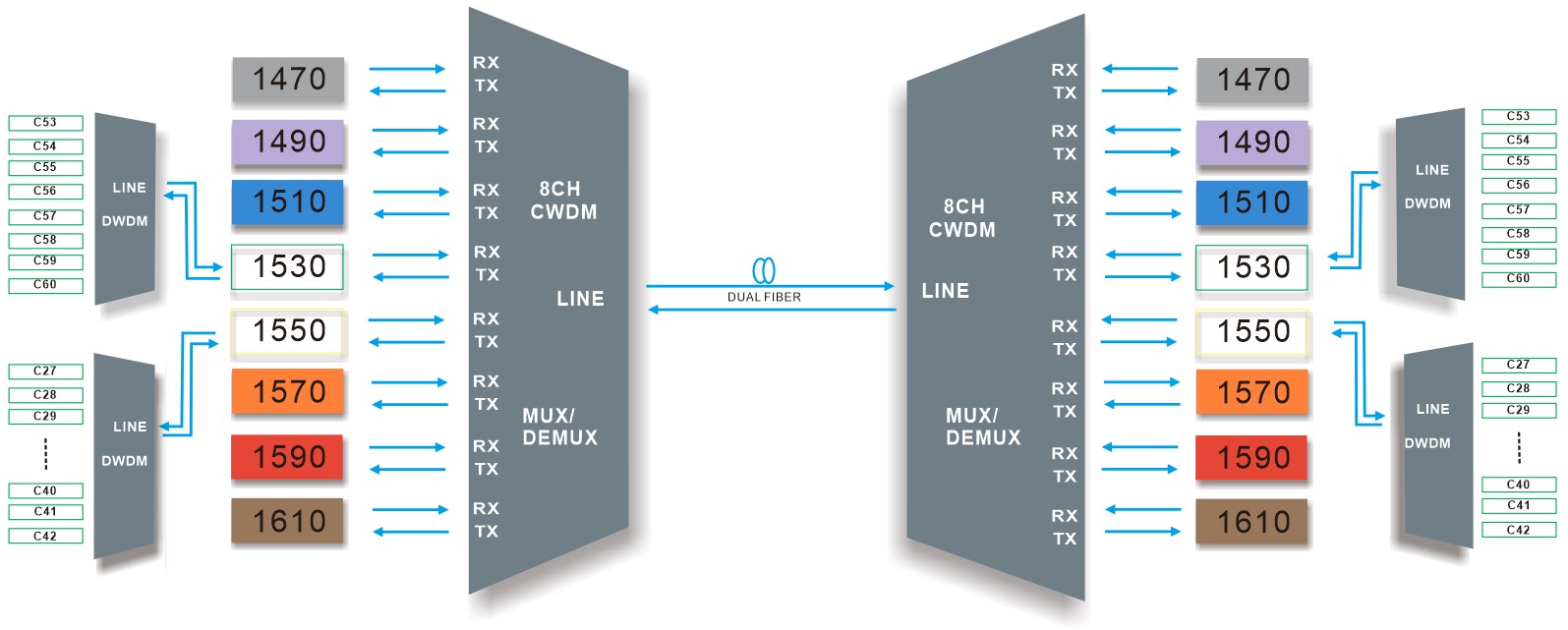

Hybrid DWDM over CWDM Network


CWDM wavelengths range from 1260-1625nm, channel spacing is 20nm, which actually cover all the range of DWDM wavelengths (1470-1625nm). And DWDM wavelengths have much smaller channel spaces (0.8nm). Therefore, the CWDM wavelengths near DWDM wavelengths can be used to transmit the DWDM wavelengths.



Product Specification



Wavelength

8 channels C31-C38(or other waves)

Channel Spacing

100GHz (0.8nm)

Channel Passband

±0.11nm

Technology

TFF (Thin Film Filter)

Insertion Loss

≤2.4dB

Link Loss

≤3.2dB

1310nm Port Pass Band Width

1260nm~1360nm

Center Wavelength Accuracy

±0.05nm

Insertion Loss @

1310 port

≤0.8dB

Insertion Loss @ 1% Mon

≤ 26dB

Return Loss

≥ 45dB

Directivity

≥ 45dB

Polarization Mode Dispersion

≤ 0.1ps

Polarization Dependent Loss

≤ 0.3dB

Channel Isolation

Adjacent ≥30dB
Non-adjacent ≥45dB

Temperature

Operating -40 to 85°C

Storage -40 to 85°C

Net Weight

LGX Box:  0.5KG

2slot 1U Rack: 1.5KG

Dimensions (HxWxD)

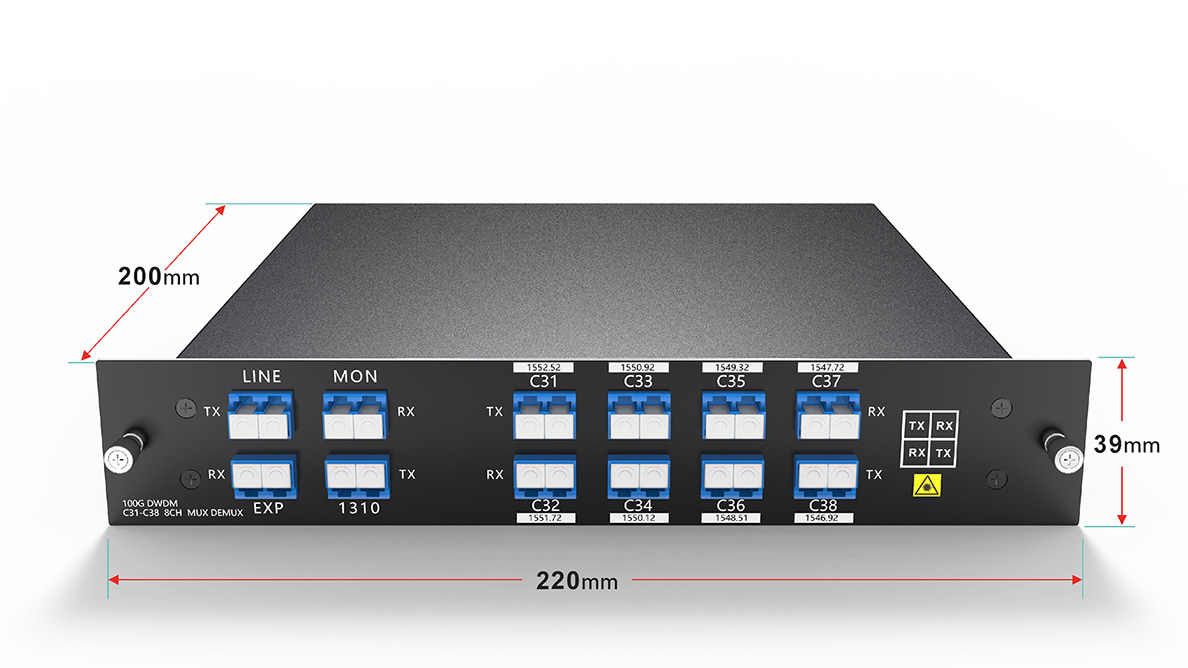

LGX Box:220*200*39mm

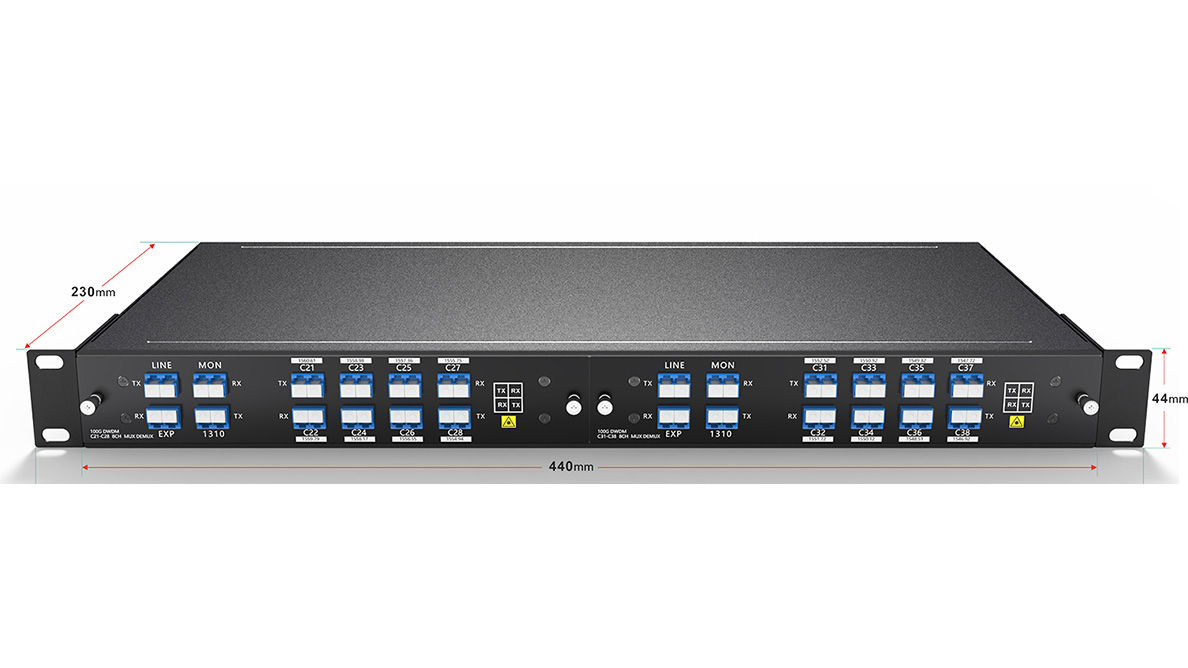

1U Rack : 44*440*230mm

Note: Specified with connectors.


Package Information

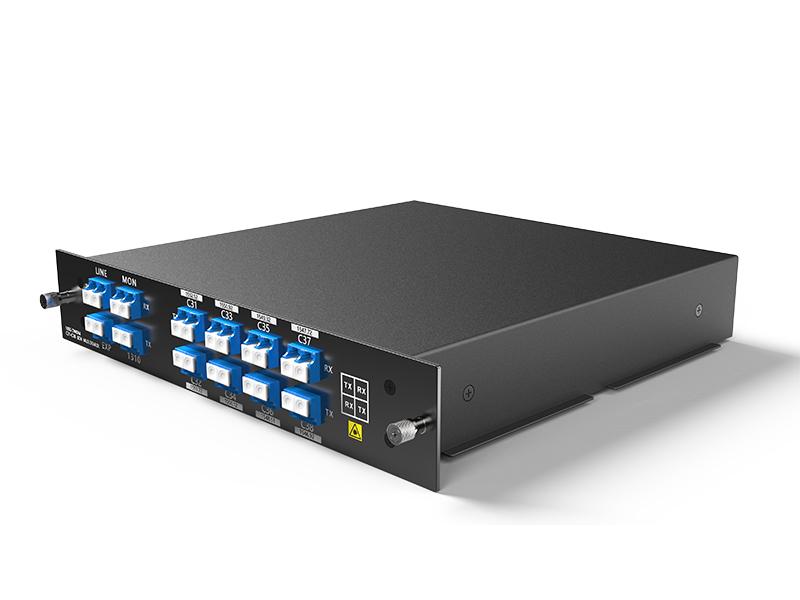

8ch DWDM MUX DEMUX

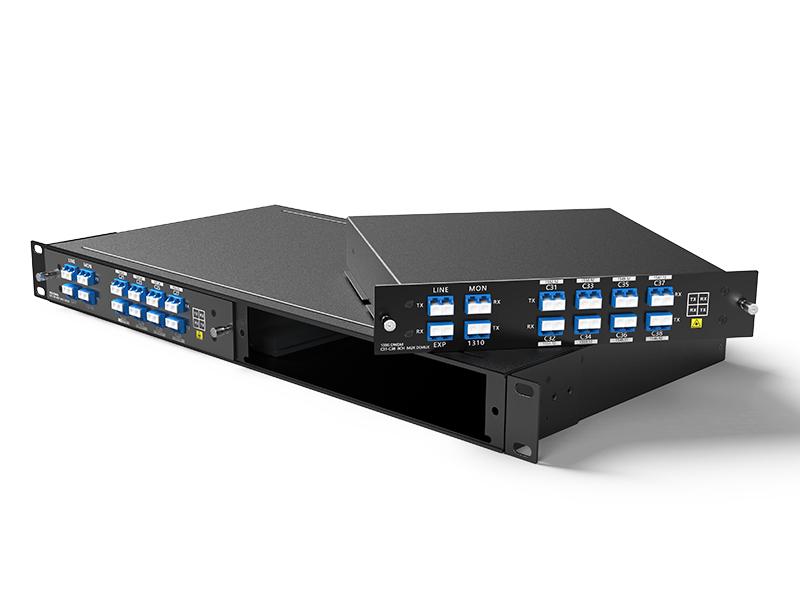

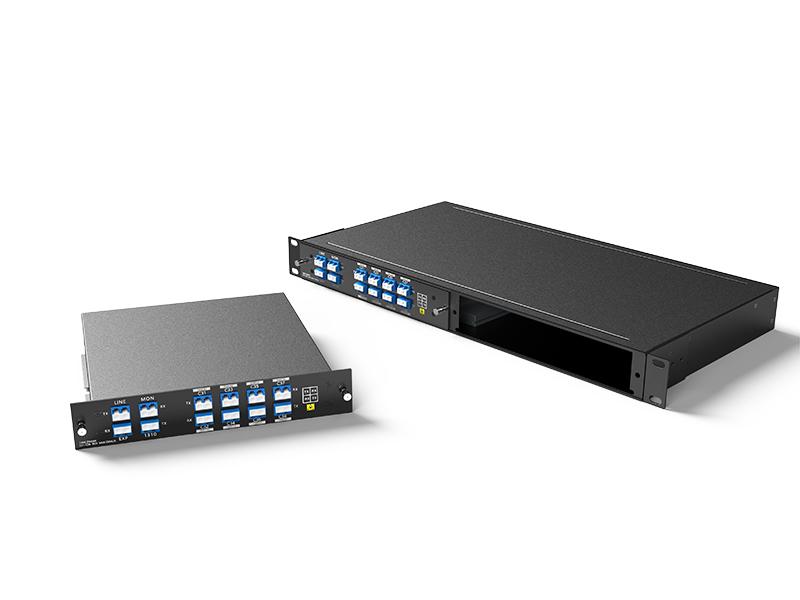

LGX BOX Plug in 2-Slot 1U Rack

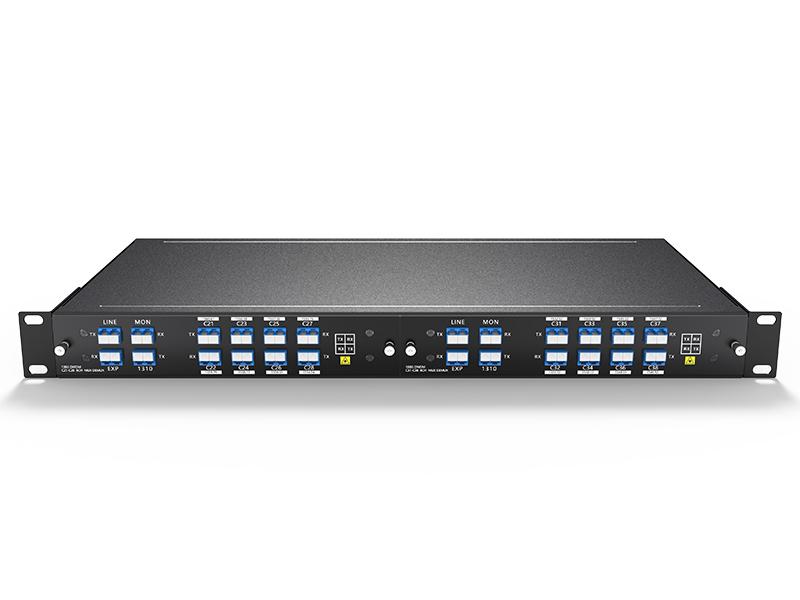

   8ch DWDM MUX DEMUX     2-Slot 1U Rack for LGX BOX




Order Information



Product No.

Product description

DMD8-1U01-C2128-31M

DWDM MUX DEMUX 8CH (C21-C28) With EXP and 1310nm, Monitor Port, Dual fiber, LC/UPC , Plug-in LGX Box

DMD8-1U01-Cxxxx-31M

DWDM MUX DEMUX 8CH (Cxx-Cxx) With EXP and 1310nm, Monitor Port, Dual fiber, LC/UPC , Plug-in LGX Box (Customized)

1U02-2LGX

19” inch 1U rack with 2 slot for Plug-in LGX box, 440*230*44mm

Note:We Support Customized Design, please contact us by email.
