Single Fiber 20CH (40waves) DWDM MUX/ DEMUX, LC/UPC, 1U Rack

  • IL<3.5dB , 100GHZ DWDM AAWG Technology
  • Multiplexing of 20 Channels over a Single Fiber Bidi Network
  • Fully Compatible with All ITU-T 1G/10G/25G/40G/100G DWDM Optics
  • Passive devices, No Power No Cooling Required
  • Support Metro, Regional and Long Haul DWDM Networks
  • Product Detail

Single Fiber 20CH (40waves) DWDM MUX/ DEMUX, LC/UPC, 1U Rack


The 20ch(40waves) DWDM MUX/ DEMUX is used in pairs,designed by FIBERWDM, in side A, the waves are: RX C19 to C38(1562.23nm~1546.92nm), TX C42 to C61(1543.73nm~1528.77nm); And in side B, the waves are: RXC42 to C61(1543.73nm~1528.77nm), TX C19 to C38(1562.23nm~1546.92nm).



The 20ch DWDM MUX/ DEMUX insertion loss is:<3.5dB( line loss<7dB) , and totally passive DWDM device,support 20 channels difference business in one optical fiber for point-to-point transmission , so it is greatly used in which rare optical fiber resource, like in Broadcast and TV, IDC, finance, government, cloud, massive data and other industries.



Product Panel


Single fiber 20CH DWDM Mux and Demux
20CH DWDM MUX/ DEMUX RX C19 to C38/ TX C42 to C61 Side A


DWDM mux and demux single fiber
20CH DWDM MUX/ DEMUX RX C42 to C61/ TX C19 to C38 Side B


Line Link


20ch dwdm mux demux single fiber link

20CH DWDM MUX/ DEMUX Single fiber BIDI transmission



20 Channels DWDM MUX/DEMUX, supports 20 channels difference business in one optical fiber bi-direction point-to-point transmission.

it is greatly used in which rare optical fiber resource, like in Broadcast and TV, IDC, finance, government, cloud, massive data and other industries.



Product Specification



Wavelength

40 waves C19-C38/C42-C61

Channel Spacing

100GHz (0.8nm)

Channel Passband

±0.11nm

Technology

AAWG (Gaussian)

Insertion Loss

≤ 3.5dB

Link Loss

≤7dB

Passband Ripple

≤ 0.5dB

Center Wavelength Accuracy

±0.05nm

Return Loss

≥ 40dB

Directivity

≥ 40dB

Polarization Mode Dispersion

≤ 0.1ps

Polarization Dependent Loss

≤ 0.3dB

Channel Isolation

Adjacent ≥ 25dB
Non-adjacent ≥30dB

Temperature

Operating -5 to 65°C

Storage -40 to 85°C

Net Weight

1.5KG

Dimensions (HxWxD)

44*440*230mm

Note: Specified with connectors.



Package Information

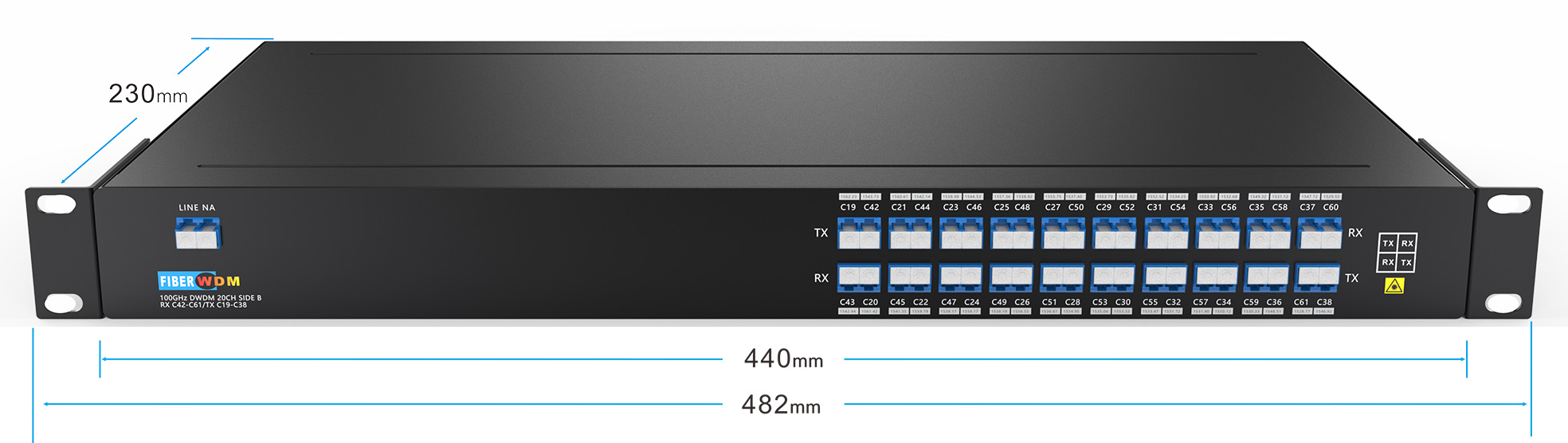

 Single fiber DWDM MUX and DEMUX 19” Inch 1U Rack

Single fiber DWDM MUX/ DEMUX 19” Inch 1U Rack



Order Information



Product No.

Product description

DM40-1U01-C1961

DWDM MUX/ DEMUX 20CH 40 Waves (RX C19-C38/ TX C42-C61) Single fiber, LC/UPC , 1U Rack Side A

DD40-1U01-C1961

DWDM MUX/ DEMUX 20CH 40 Waves (RX C42-C61/ TX C19-C38) Single fiber, LC/UPC , 1U Rack Side B

Note:We Support Customized Design, please contact us by email.
