Product Features:   Max support 16x100G for client side, 8x200G or 4x400G for line side in transmission. Total max is 1.6Tbps(3.2Tbps on bidirectional) in 1U device. Achieve higher transfer capacity through device stacking. Maximum up to 19.2Tbps (200G*96ch@50GHz) or 25.6Tbps (400G*64 75GHz or 400G*48 100GHz) 1U chassis modular design, single board adopts hot-swappable design, supports smooth upgrade, and can flexibly expand or delete services according to needs. Dual power supply, compatible with AC or DC power supply DC-48V. Complete network management protocol: supports WEB, SNMP, CLI, TLI and other network management interfaces. Support dual network management cards, 1+1 network function.

Product Features The single board supports 4*100G to 1*400G coherent transmission, which can realize single-channel 400G line-side transmission. The wavelength is adjustable, supporting up to 400G 75GHz * 64 waves or 400G*100Ghz 48 waves, 200G 50GHz * 96 waves. With flexible coherent modulation technology: DP-16QAM, DP-8QAM, DP-QPSK. Multiple FEC error correction technologies: oFEC, CFEC, SCFEC, SDFEC. Support flexible service access functions: 100GE, 100GE KR4, OTU4 and 100G FlexE. Support perfect performance monitoring and statistical functions. Supports Ethernet RMON performance statistics, LLDP monitoring, constellation diagram monitoring, DM delay and PRBS detection functions, OTN PM and SM performance statistics and other functions. Supports real-time monitoring of high-precision board temperature, voltage, current and power consumption. The client side supports multiple module interface types: 100GSR4/CWDM4/LR4/PSM4. Support unified network management platform, network management methods SNMP, CLI, Web, NMS (graphical interface).

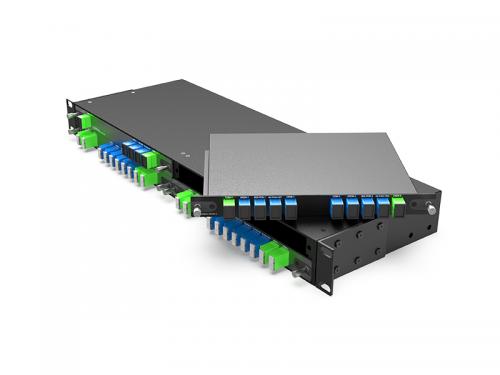

Product Features Flexible networking with a compact footprint and strong scalability. Supports hot-swappable CWDM/DWDM/EDFA/OLPS/OTAP service cards. Supports access to various services such as SDH, SONET, Ethernet, SAN, OTN, and Video. Supports maximum single-channel rates of 100G, 200G, 400G. Supports various networking configurations, including point-to-point, point-to-multipoint, and ring topologies, with options for single-fiber or dual-fiber bidirectional transmission. Supports interoperability with client devices from different vendors, including single-mode (1310nm/1550nm), multimode (850nm/1310nm), and Ethernet ports (RJ45), enabling optical add-drop multiplexing (OADM) functionality and wavelength conversion at intermediate nodes. Supports SNMP-based unified network management platform with management options including CLI (telnet and console), web interface, and NetView(graphical interface). Supports 1+1 hot-swappable redundant power backup with options for both AC and DC power sources.

QSFP-DD 400G LR8 module are designed for 10 km optical communication applications, and it is compliant to IEEE 802.3cn for 400GE Ethernet. This module contains 8-lane optical transmitter, 8-lane optical receiver and module management block including 2 wire serial interfaces. The optical signals are multiplexed to a single-mode fiber through an industry standard LC connector. A block diagram is shown in Figure 1-1.

FSW14M05F is a 1×4 (4×1) optical switch developed by Guangzhou Ruid Electronic Technology Co., Ltd., utilizing step-index multimode fiber and specially designed for the visible light band of 405–640 nm. This product adopts precision micro-electromechanical or solid-state optical switching technology to achieve fast and reliable optical path switching between one input channel and four output channels. It is suitable for high-precision applications requiring dynamic multi-channel optical path selection, such as industrial inspection, biomedical imaging, spectral analysis, laser beam splitting, and scientific research experiments.

Application   400GBASE-ER4-30; 400G Ethernet; Data center / Cloud application.

The 100G LR1 SFP56-DD optical transceiver, 100G SFP56-DD LR1 is designed for using in 100-Gigabit Ethernet links up to 10km over Single-Mode Fiber (SMF). It is compliant with the SFP56-DD MSA,IEEE802.3CU,100G Lambda 100G LR1 and 100GAUI-2(no FEC)1. Digital diagnostics functions are available via the I2C interface, as specified by the SFP56-DD MSA. The module incorporates 1 channel optical signal, on 1311nm center wavelength, operating at 100Gbps data rate. This module can convert 2 channels of 53Gbps (PAM4) electrical input data to 1 channel of 106Gbps (PAM4) optical signal, and also can convert 1 channel of 106Gbps (PAM4) optical signal to 2 channels of 53Gbps (PAM) electrical output data. The optical interface uses a Duplex LC connector. The high performance cooled EML transmitter and high sensitivity PIN receiver provide superior performance for 100Gigabit Ethernet applications up to 10km links.

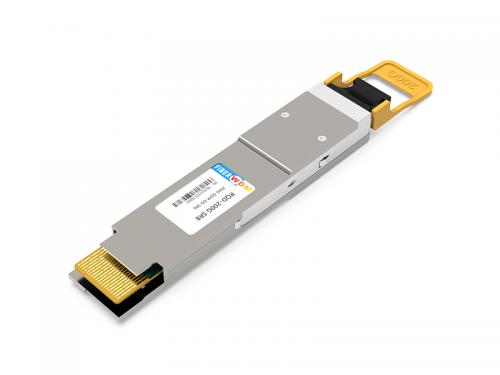

The FiberWDM RQD-200G10-PSM8 is a Eight-Channel, Pluggable, Parallel, Fiber-Optic QSFP DD PSM8 for 2×100 Gigabit Ethernet , Infiniband DDR/EDR Applications. This transceiver is a high performance module for data communication and interconnect applications. It integrates eight data lanes in each direction with 208 Gbps bandwidth. Each lane can operate at 26Gbps up to 10km over G.652 SMF. These modules are designed to operate over singlemode fiber systems using a nominal wavelength of 1310nm. The electrical interface uses a 76 contact edge type connector. The optical interface uses an 24 fiber MTP (MPO) connector. This module incorporates FiberWDM proven circuit and Optical technology to provide reliable long life, high performance, and consistent service.

The RQ-100GDO40-XXXX series single mode transceiver module is designed for multiple channel 100GbE transmissions for up to 40KM distance over standard G.652 single mode optical fiber (SMF) . The transceiver operates at a data rate of 100Gbps at the nominal DWDM wavelength from 1295.56nm to 1312.58nm as specified by the CW-WDM MSA. This module can convert 4 channels of 25Gbps (NRZ) electrical input data to 1 channel of 100Gbps (PAM4) optical signal, and also can convert 1 channel of 100Gbps (PAM4) optical signal to 4 channels of 25Gbps (NRZ) electrical output data. The electrical interface of the module is compliant with the OIF CEI-28G-VSR and QSFP28 MSA. It is designed to deploy in the DWDM networking equipment in metropolitan access and core networks.

The RQ-100GDO60-XXXX series single mode transceiver module is designed for multiple channel 100GbE transmissions for up to 60KM distance over standard G.652 single mode optical fiber (SMF) . The transceiver operates at a data rate of 100Gbps at the nominal DWDM wavelength from 1295.56nm to 1312.58nm as specified by the CW-WDM MSA. This module can convert 4 channels of 25Gbps (NRZ) electrical input data to 1 channel of 100Gbps (PAM4) optical signal, and also can convert 1 channel of 100Gbps (PAM4) optical signal to 4 channels of 25Gbps (NRZ) electrical output data. The electrical interface of the module is compliant with the OIF CEI-28G-VSR and QSFP28 MSA. It is designed to deploy in the DWDM networking equipment in metropolitan access and core networks.

The FiberWDM Technologies RQD-200G-16P8-10 is a Eight-Channel, Pluggable, Parallel, Fiber-Optic QSFP DD PSM8 for 2×100 Gigabit Ethernet , Infiniband DDR/EDR Applications. This transceiver is a high performance module for data communication and interconnect applications. It integrates eight data lanes in each direction with 208 Gbps bandwidth. Each lane can operate at 26Gbps up to 10km over G.652 SMF. These modules are designed to operate over single mode fiber systems using a nominal wavelength of 1310nm. The electrical interface uses a 76 contact edge type connector. The optical interface uses an 16 fiber MTP (MPO) connector. This module incorporates FiberWDM Technologies proven circuit and Optical technology to provide reliable long life, high performance, and consistent service.

FiberWDM’s RQD-200G-2CWDM4 200GE QSFP-DD 2xCWDM4 Optical Transceiver modules are designed for using in 2x100G Ethernet 2km links over single-mode fiber. They are compliant with the QSFP-DD MSA and with CWDM4 MSA. Digital diagnostics functions are available via the I2C interface as specified by CMIS V4.0. These modules can convert 8 channels of 25Gbps NRZ electrical input data to 8 channels of 25Gbps NRZ optical signal (2xCWDM4), and also can convert 8 channels of 25Gbps NRZ optical signal (2xCWDM4) to 8 channels of 25Gbps NRZ electrical output data. And these modules incorporate FiberWDM Technologies proven circuit to provide reliable long life, high performance, and consistent service.
