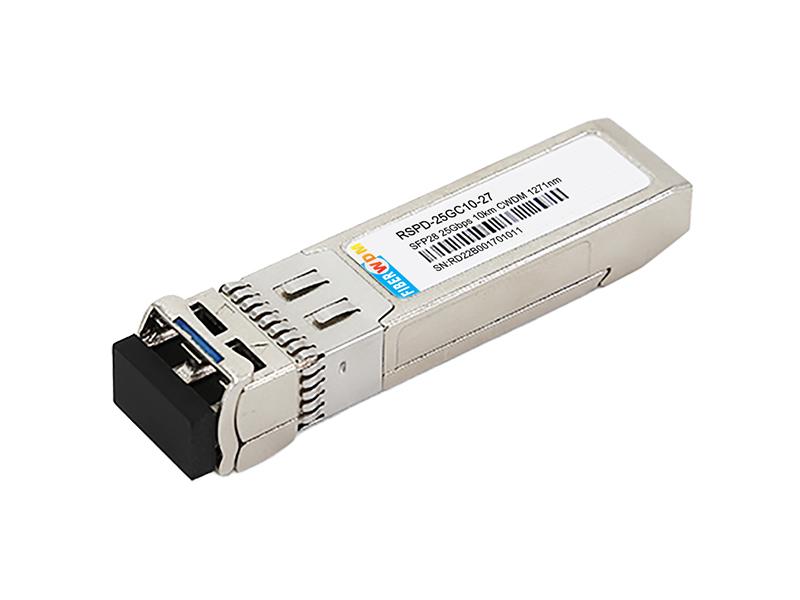

25Gbps SFP28 CWDM 1271~1371nm Duplex 10km Transceiver

The SFP28 CWDM(1271~1371nm) optical Transceiver integrates receiver and transmitter path on one module. In the transmit side, one of serial data streams are recovered, retimed, and passed to laser driver. In the receive side, the optical data streams is recovered by a PIN and trans-impedance amplifier, retimed. This module features a hot-pluggable electrical interface, low power consumption.

The product is designed with form factor, optical/electrical connection and digital diagnostic interface according to the SFP28 and compliant to IEEE 802.3cc.

Inquire now Download
  • Product Detail

25Gbps SFP28 CWDM 1271~1371nm Duplex 10km Transceiver



Product Feature



  • UP to 25.78Gb/s bi-directional data links
  • Hot-Pluggable SFP28 footprint
  • Duplex LC connector
  • CWDM DFB laser transmitter
  • Up to 10km on 9/125m SMF
  • Power Supply :+3.3V
  • RoHS compliant
  • 2-wire interface for management specifications compliant with SFF 8472 digital diagnostic monitoring interface for optical transceivers
  • Case operating temperature
  • Commercial: 0°C to +70°C
  • Extended: -20°C to +85°C



Applications



  • 25G Ethernet
  • CPRI
  • Data center



Product Selection



Part Number Operating Case temperature DDMI
RSPD-25GC10-xx Commercial(0~70°C) Yes
RSPD-25GC10-xx-I Extended( -20~85°C) Yes



Product Channel Selection



Part Number Center Wavelength Data Rate Distance
RSPD-25GC10-27 1271nm 25.78G 10km
RSPD-25GC10-29 1291nm 25.78G 10km
RSPD-25GC10-31 1311nm 25.78G 10km
RSPD-25GC10-33 1331nm 25.78G 10km
RSPD-25GC10-35 1351nm 25.78G 10km
RSPD-25GC10-37 1371nm 25.78G 10km



Absolute Maximum Ratings



Parameter  Symbol Min. Max. Unit
Storage Temperature Ts -50 +95 °C
Relative Humidity RH 0 95 %
Power Supply Voltage VCC 0 +3.6 V



Recommended Operating Conditions



Parameter  Symbol Min. Typ. Max. Unit Note
Case Operating Temperature TA 0   70 °C Commercial
-20   85 °C Extended
Power Supply Voltage  VCC 3.15 3.3 3.46 V
Power Supply Current  ICC     450 mA
Power Consumption P     1.5 W
Data Rate BR 24.3 25.78 26.5 Gbps
9/125um G.652 SMF Lmax     10 km



Electrical Characteristics



Parameter  Symbol Min. Max. Unit
Transmitter
Tx Disable Input-High VDISH 2 Vcc+0.3 V
Tx Disable Input-Low VDISL 0 Vcc+0.8 V
Tx Fault Input-High VTxFH 2 Vcc+0.3 V
Tx Fault Input-Low VTxFL 0 Vcc+0.8 V
Receiver
LOSS -High VLOSH 2 Vcc+0.3 V
LOSS -Low VLOSL 0 Vcc+0.8 v

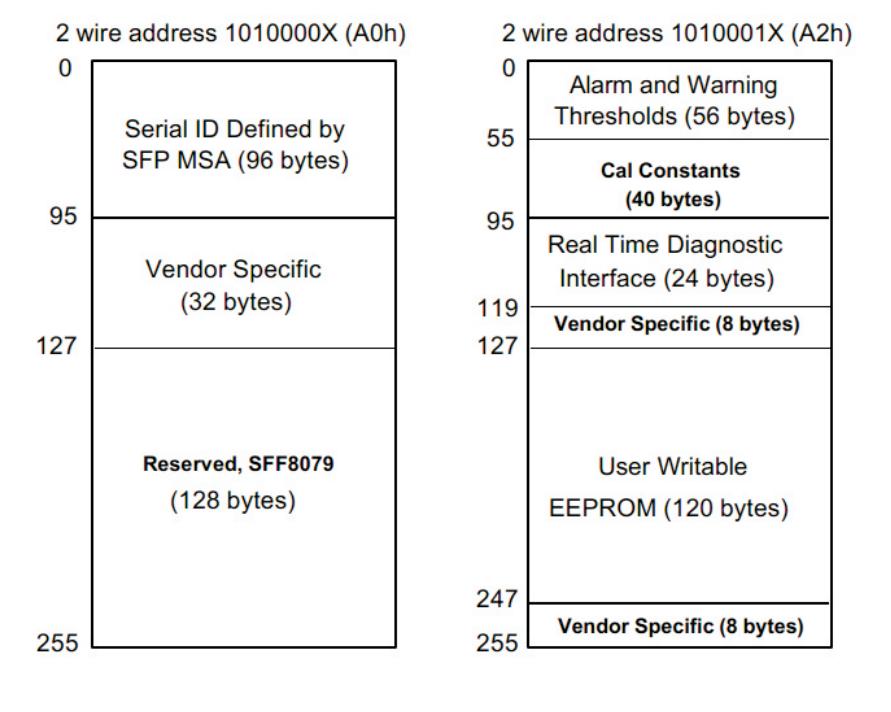

EEPROM Information



EEPROM memory map specific data field description is as below:



25Gbps SFP28 CWDM 1271~1371nm Duplex 10km Transceiver

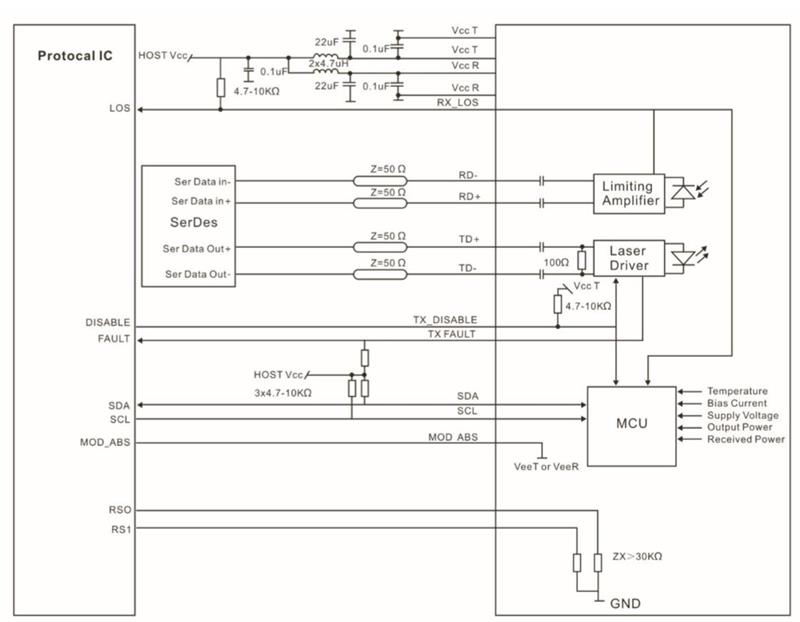

Recommend Circuit Schematic



25Gbps SFP28 CWDM 1271~1371nm Duplex 10km Transceiver

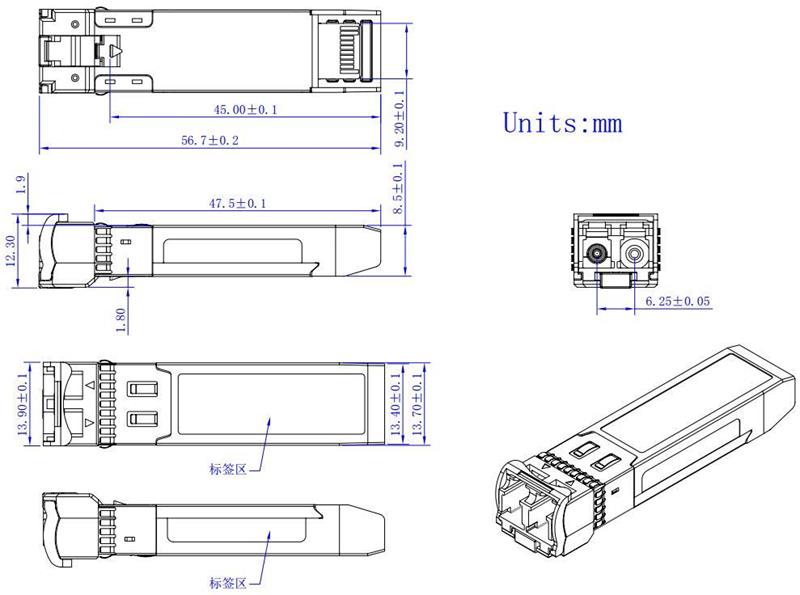

Mechanical Specifications



25Gbps SFP28 CWDM 1271~1371nm Duplex 10km Transceiver
