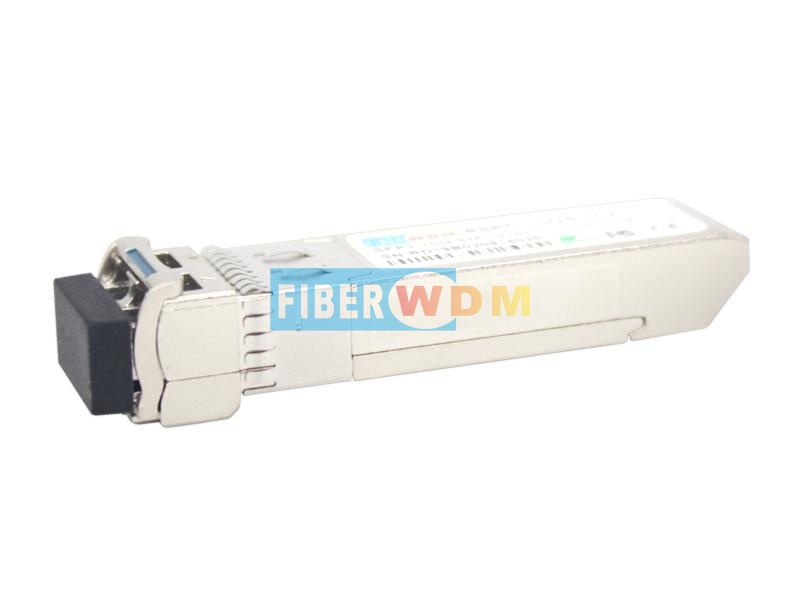

25G SFP28 DWDM Optical Transceiver

25G SFP28 DWDM optical transceiver module, support 25Gb/s and up to 10 km transmission, it works in high-speed IDC connection solutions, 5G network front-haul solution, and so on.
  • Product Detail

25G SFP28 DWDM Optical Transceiver



Features



  • Supports25Gb/s bit rate
  • DWDM ITU C-BAND:CH17-CH61
  • Duplex LC Connector
  • Hot Pluggable SFP28 form factor
  • Digital diagnostic monitoring support
  • Single 3.3V power supply
  • RoHS-10 compliant and lead-free
  • All-metal housing for superior EMI performance
  • Case operating temperature:0℃ to+ 70℃/ -40℃ to +85℃


Order information


Product Number

Data Rate(Gb/s)

Wavelength(nm)

Reach(km)

LD

Tx Power(dBm)

PD

Rx Sens(dBm)

Temperature(℃)

RSPD-25GD10-XX

25

DWDM

10

DFB

-7.0~2.5

PIN

<-14

0~70

RSPD-25GD10-XX-I

25

DWDM

10

DFB

-7.0~2.5

PIN

<-14

-40~85

RSPD-25GD40-XX

25

DWDM

40

EML

-3.0~6.0

APD

<-21

0~70

RSPD-25GD40-XX-I

25

DWDM

40

EML

-3.0~6.0

APD

<-21

-40~85
