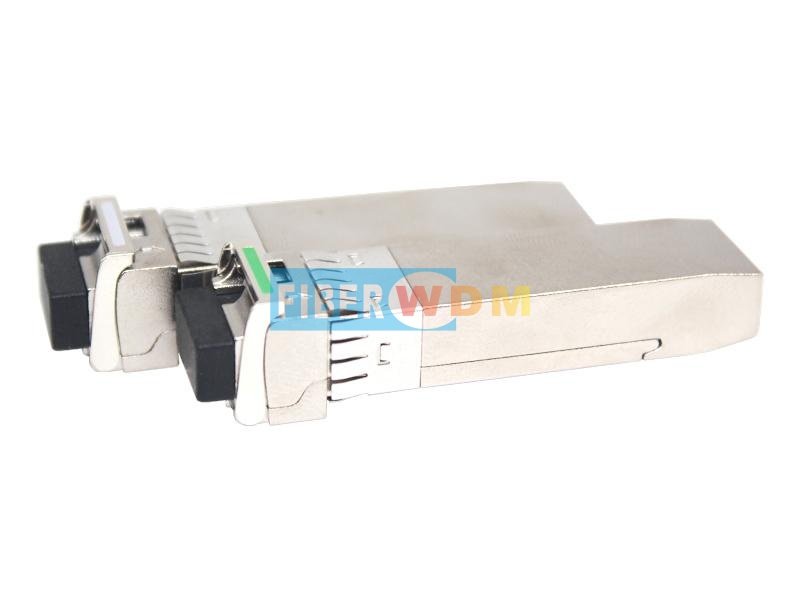

25G SFP28 BIDI Optical Transceiver

25G SFP28 CWDM optical transceiver module, support 25Gb/s and up to 10 km transmission, it works in high-speed IDC connection solutions, 5G network front-haul solution, and so on.

25G SFP28 MWDM optical transceiver module, support 25Gb/s and up to 10 km transmission, it works in high-speed IDC connection solutions, 5G network front-haul solution, and so on.

25G SFP28 LWDM optical transceiver module, support 25Gb/s and up to 10 km transmission, it works in high-speed IDC connection solutions, 5G network front-haul solution, and so on.

25G SFP28 DWDM optical transceiver module, support 25Gb/s and up to 10 km transmission, it works in high-speed IDC connection solutions, 5G network front-haul solution, and so on.

25G SFP28 optical transceiver module, support 25Gb/s and SR up to 100 m transmission, LR 25G SFP28 up to 10 km transmission, and ER 25G SFP28 up to 40 km transmission, it works in high-speed IDC connection solutions, and so on.

Product Features   Supports up to 25.78Gbps bit rates Hot-pluggable SFP+ footprint Up to 40km for SMF transmission Compliant with SFP+ MSA and SFF-8472 with duplex LC receptacle Compatible with RoHS Single +3.3V power supply2 Real Time Digital Diagnostic Monitoring Operating case temperature: Standard:  0 to +70°C

Super C-band 60ch+MON 100GHz DWDM MUX/DEMUX 1U LC/UPC This 60 Channels DWDM Mux Demux has 100GHz channel spacing and performs 60 channel multiplexing or demultiplexing at the ITU wavelengths in Super C-band, greatly expanding the effective working spectrum compared with the traditional C band and extended C band. It offers a combination of low optical insertion loss and high channel isolation along with long term reliability Product Information 60 Channels Super C-band 100GHz with Monitor Port, LC/UPC, Dual Fiber DWDM Mux Demux, 1U Rack Mount Configuration Product Application Optical Specifications Parameter Specification Units Notes Min Type Max Channel Spacing 100 Ghz Technology AAWG (Flat-top) Nos of Channel 60 Channels Channel Frequencies ITU Grid THz Available Channel Frequency Range Odd 190.75 196.650 THz 1524.50-1571.65nm Even 190.7 196.600 THz 1524.89-1572.06 Channel Passband -12.5 +12.5 Ghz -0.10 +0.10 nm Center Wavelength Accuracy -0.05 +0.05 nm Insertion Loss@com 6 6.7 dB @Center Wavelength Insertion Loss@mon 22 dB 1% Passband Ripple 1.0 1.5 nm Full Bandwidth Bandwidth @1.0dB 0.22 nm Bandwidth @3.0dB 0.42 nm Bandwidth @20dB 1.20 nm Insertion Loss Uniformity at ITU 1.20 dB Polarization Dependent Loss 0.5 dB Adjacent Channel Isolation 25 dB Non-Adjacent Channel Isolation 30 dB Total Cross Talk 24 24 dB Directivity 40 dB Return Loss with connectors 40 45 dB Chromatic Dispersion -20 +20 ps/nm PDL 0.5 dB PMD 1.0 ps Optical Power Handling of Common Port 24 dBm Net Weight 3.5 KGS Dimensions (HxWxD) 44x481.8x230mm mm Operating Conditions Parameter Min Max Units Temperature -5 65 ℃ Humidity Non-condensing 0 90 % R.H. Storage Conditions Parameter Min Max Units Temperature -40 85 ℃ Humidity Non-condensing 0 90 % R.H.

S6750-48X8CQB-AC 48×1/10GE SFP+ 8×40/100GE QSFP28 2×hot-swapped fans 1+1 power redundancy Models:
