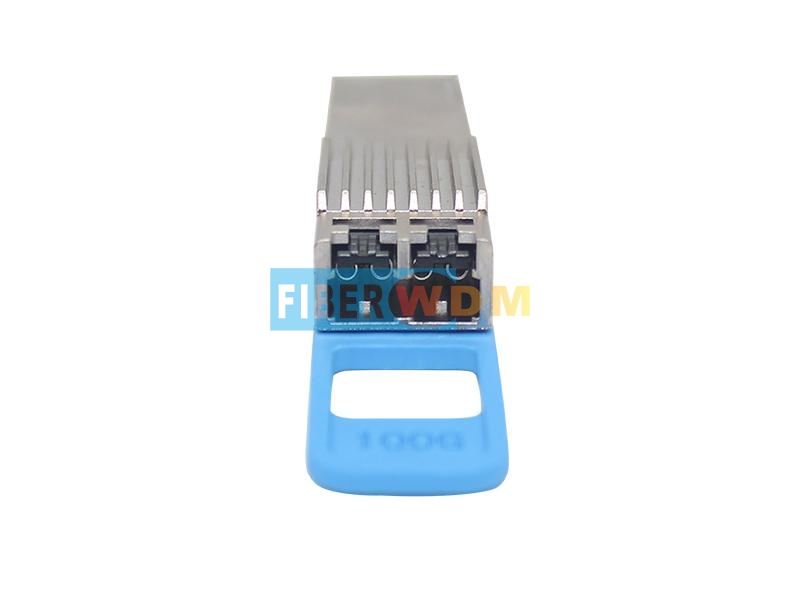

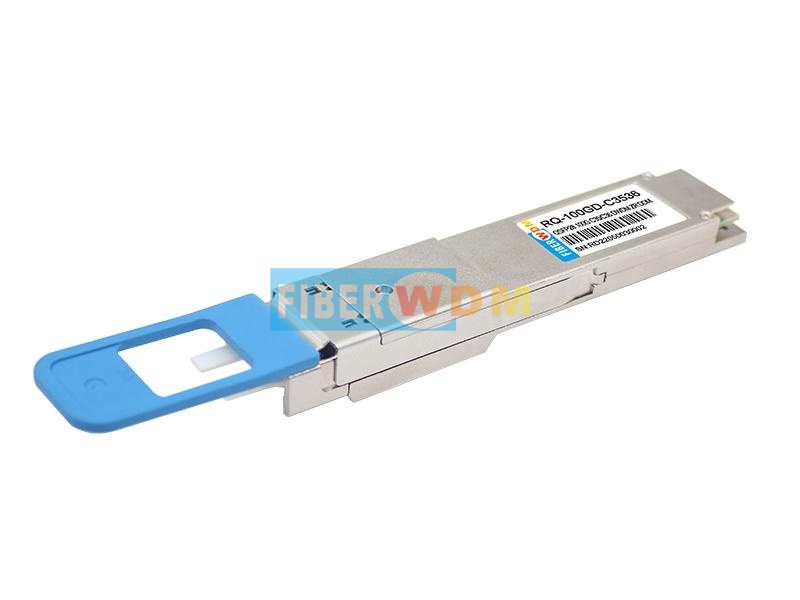

100G QSFP28 DWDM
100G QSFP28 DWDM 100G QSFP28 DWDM 100G QSFP28 DWDM 100G QSFP28 DWDM 100G QSFP28 DWDM

100G DWDM QSFP28 Dual CS Connector PAM4 Transceiver

100G QSFP28 DWDM optical transceiver module, support 48*100Gb/s DWDM System and up to 80 km transmission on SM fiber, it works in high-speed IDC connection solutions.
Inquire now Download
  • Product Detail

100G DWDM QSFP28 PAM4 CS Connector Transceiver



The RQ-100GD-CXXXX series 100G DWDM QSFP28 PAM4 CS Transceiver module is designed for use in optical data communications. This module is designed for single mode optical fiber and operates at a data rate of 100Gbps at the nominal DWDM wavelength from 1528.77nm to 1565.50nm as specified by the ITU-T. This module can convert 4 channels of 25Gbps (NRZ) electrical input data to dual waves of50Gbps (PAM4) optical signal, and also can convertdual wavesof50Gbps (PAM4) optical signal to 4 channels of 25Gbps (NRZ) electrical output data. The electrical interface of the module is compliant with the OIF CEI-28G-VSR and QSFP28 MSA. It is designed to deploy in the DWDM networking equipment in metropolitan access and corenetworks.


Product Function

  • Hot pluggable QSFP28 MSA form factor
  • Up to 80km reach for G.652 SMF with transport white box
  • Single +3.3V power supply
  • Temperature Range 0 to 70°C
  • Transmitter: Cooled EML 2*27.5Gbaud/s DWDM TOSA
  • Receiver: 2*27.5Gbaud/s Pin-PD ROSA
  • 4*25G CAUI4 electrical interface
  • Integrated SFEC with high coding gain
  • PAM4 modulation format on 100GHz ITU DWDM wavelength grid compatible
  • Dual CS adaptor
  • Compatible with RoHS6


Ordering information



Part No

Specifications

Package

Data rate

Tx

Pout

Rx Sen.

Top

Others

RQ-100GD-CXX

QSFP28

103.125

Gbps

Cooled

EAM DFB-LD

-1 ~ +4 dBm

-12.5 dBm @BER 4E-3

0~70oC

DDM



Wavelength Table


Product Code

TX1

TX2

Ch. No.

Frequency

(THz)

Center Wavelength(nm)

Ch. No.

Frequency

(THz)

Center Wavelength(nm)

RQ-100GD-C1314

C13

191.30

1567.13

C14

191.40

1566.31

RQ-100GD-C1516

C15

191.50

1565.50

C16

191.60

1564.68

RQ-100GD-C1718

C17

191.70

1563.86

C18

191.80

1563.05

RQ-100GD-C1920

C19

191.90

1562.23

C20

192.00

1561.42

RQ-100GD-C2122

C21

192.10

1560.61

C22

192.20

1559.79

RQ-100GD-C2324

C23

192.30

1558.98

C24

192.40

1558.17

RQ-100GD-C2526

C25

192.50

1557.36

C26

192.60

1556.55

RQ-100GD-C2728

C27

192.70

1555.75

C28

192.80

1554.94

RQ-100GD-C2930

C29

192.90

1554.13

C30

193.00

1553.33

RQ-100GD-C3132

C31

193.10

1552.52

C32

193.20

1551.72

RQ-100GD-C3334

C33

193.30

1550.92

C34

193.40

1550.12

RQ-100GD-C3536

C35

193.50

1549.32

C36

193.60

1548.51

RQ-100GD-C3738

C37

193.70

1547.72

C38

193.80

1546.92

RQ-100GD-C3940

C39

193.90

1546.12

C40

194.00

1545.32

RQ-100GD-C4142

C41

194.10

1544.53

C42

194.20

1543.73

RQ-100GD-C4344

C43

194.30

1542.94

C44

194.40

1542.14

RQ-100GD-C4546

C45

194.50

1541.35

C46

194.60

1540.56

RQ-100GD-C4748

C47

194.70

1539.77

C48

194.80

1538.98

RQ-100GD-C4950

C49

194.90

1538.19

C50

195.00

1537.40

RQ-100GD-C5152

C51

195.10

1536.61

C52

195.20

1535.82

RQ-100GD-C5354

C53

195.30

1535.04

C54

195.40

1534.25

RQ-100GD-C5556

C55

195.50

1533.47

C56

195.60

1532.68

RQ-100GD-C5758

C57

195.70

1531.90

C58

195.80

1531.12

RQ-100GD-C5960

C59

195.90

1530.33

C60

196.00

1529.55


Notes:

The two channels of the transceiver meet above wavelength table. And other channel wavelength configurations are acceptable for customize design.

All the specification is designed by single wavelength.



Compatibale with main stream DC switch/routers





100G QSFP28 DWDM Solution



1. Passive DWDM MUX 1X100G QSFP28 DWDM 120KM Solution



 100G QSFP28 DWDM

Power budget consideration(dBm)



2. Passive DWDM MUX 4X100G QSFP28 DWDM 80KM Solution

100G QSFP28 DWDM

Power budget consideration(dBm)



3. Passive DWDM MUX 24X100G QSFP28 DWDM 80KM Solution

100G QSFP28 DWDM

4. Passive DWDM MUX 48X100G QSFP28 DWDM 80KM Solution

100G QSFP28 DWDM



Mechanical Drawings



100G QSFP28 DWDM
