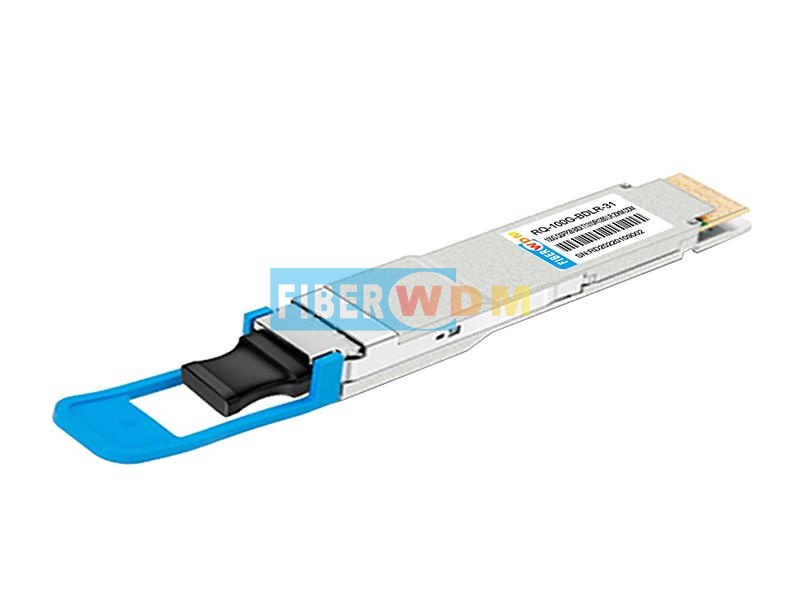

100GBASE-LR Bi-Directional QSFP28 1280/1310nm 20km LC SM Optical Transceiver Module

100G QSFP28 BIDI optical transceiver module is a pluggable optical transceiver with a Simplex LC connector interface for long-reach data communication and interconnect applications using one core Single-Mode Fiber (SMF).
  • Product Detail

100G QSFP28 BiDi Optical Transceiver Module

1280/1310nm, LWDM4,20km, Simplex LC, -20~+85℃, with DDM




The 100G QSFP28 LR4 Bidi transceiver is a four-channel 4x25Gb/s LAN WDM, pluggable, Single-mode, fiber-optic QSFP28 transceiver for 100-Gigabit Ethernet applications. This transceiver is a high-performance module for long-range data communication and interconnect applications.



These modules are designed to operate over single-mode fiber systems using nominal wavelengths of 1280nm and 1310nm. The electrical interface uses a 38-contact QSFP28-edge type connector. The optical interface uses a conventional one-fiber Simplex LC SMF connector.


Features



  • Hot pluggable QSFP28 MSA form factor
  • Supports 103.1Gb/s aggregate bit rate
  • Up to 20km reach for G.652 SMF with RS (528,514) FEC
  • Single +3.3V power supply
  • Extended case temperature range of -20 to 85℃
  • Cooled 4x25Gb/s LAN WDM Blue or Red Side TOSA
  • LAN WDM Red or Blue Side ROSA
  • Maximum power consumption 5.5W
  • Single LC receptacle
  • Compliant with the QSFP28 and 4WDM-20 MSA
  • Compatible with RoHS2.0
  • DDM function



Order information



Product Number

Data Rate(Gb/s)

Wavelength(nm)

Reach(m)

LD

Tx Power(dBm)

PD

Rx Sens(dBm)

Temperature(℃)

RQ-100G-BDLR-28

100

TX1280/RX1310nm

20KM

DFB

-4.3 -4.5dBm

PIN

<-14.5dBm

-20~85

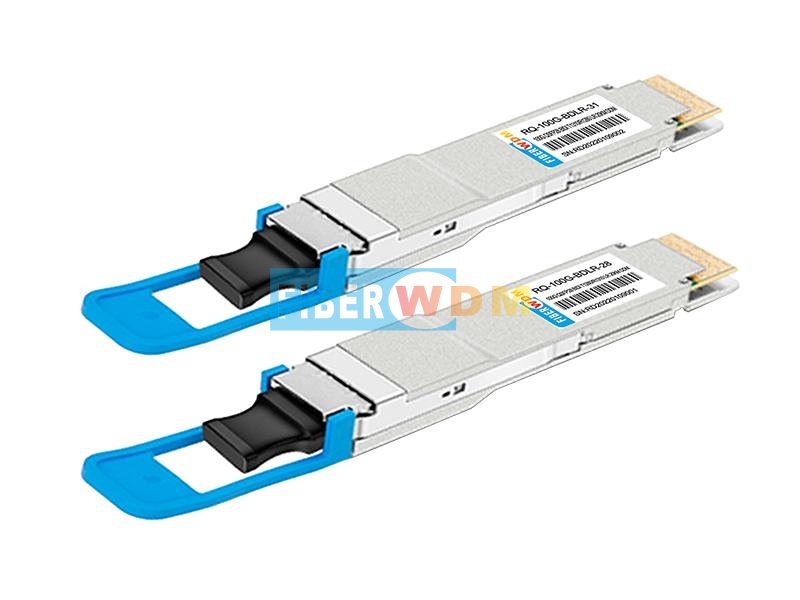

RQ-100G-BDLR-31

100

TX1310/RX1280nm

20KM

DFB

-4.3 -4.5dBm

PIN

<-14.5dBm

-20~85
