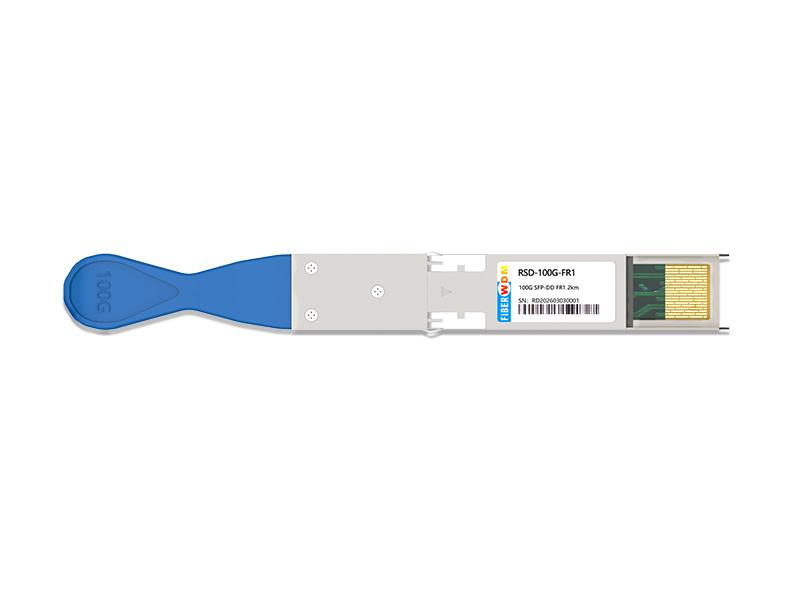

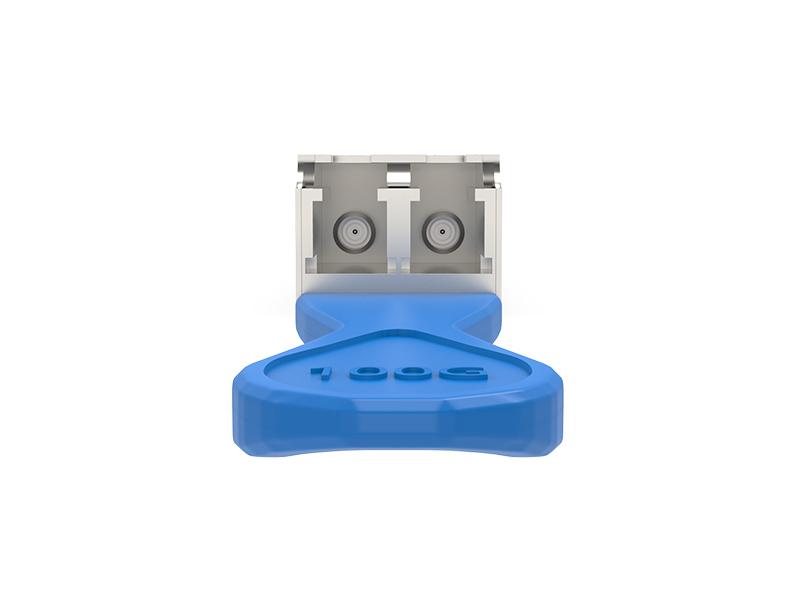

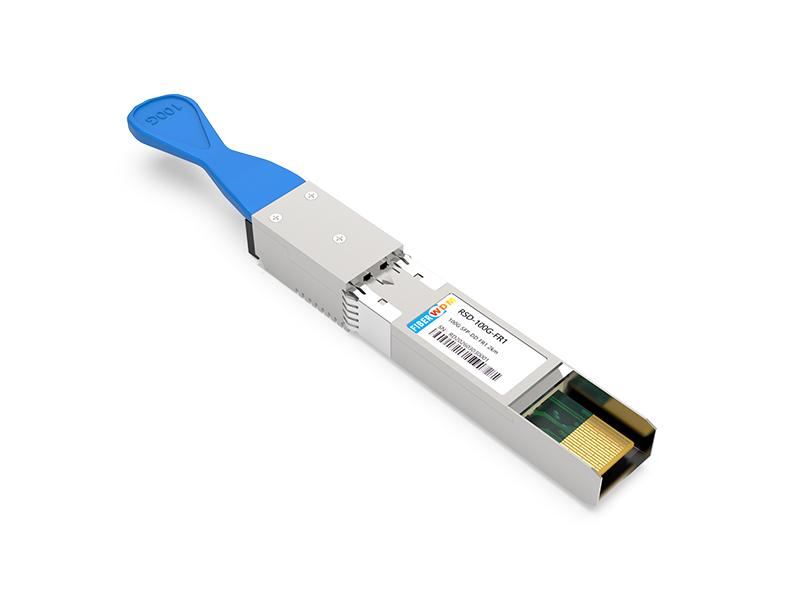

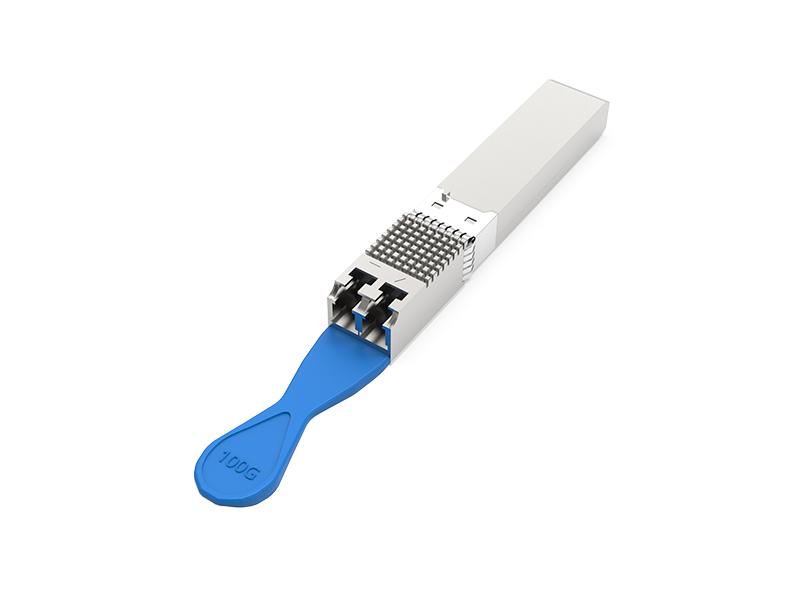

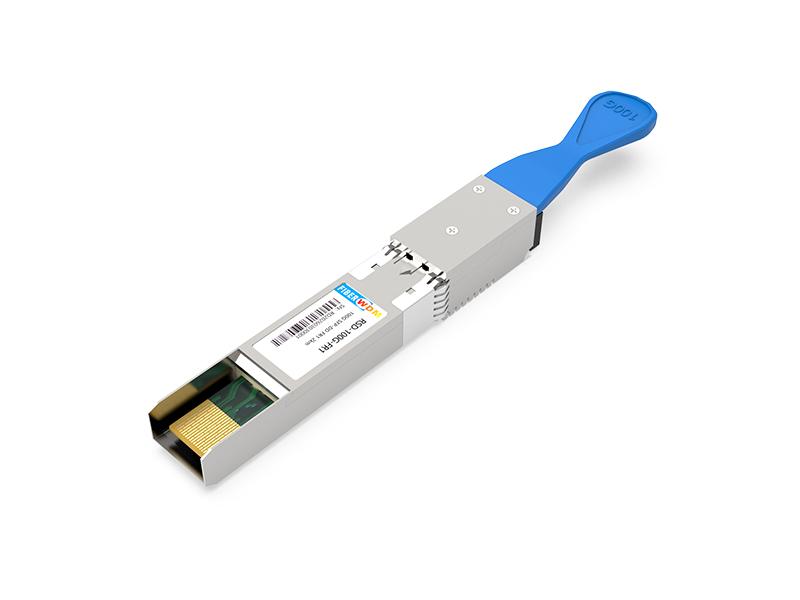

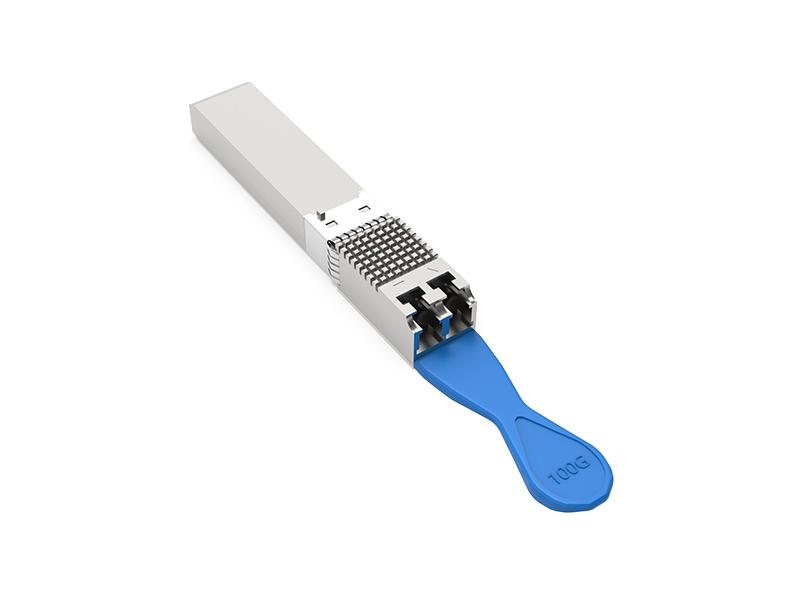

100G FR1 2km SFP-DD Optical Transceiver
100G FR1 2km SFP-DD Optical Transceiver

100G FR1 2km SFP-DD Optical Transceiver

The 100G FR1 SFP56-DD optical transceiver, 100G SFP56-DD FR1 is designed for using in 100-Gigabit Ethernet links up to 2km over Single-Mode Fiber (SMF). It is compliant with the SFP56-DD MSA,IEEE802.3CU,100G Lambda 100G FR1 and 100GAUI-2(no FEC)1. Digital diagnostics functions are available via the I2C interface, as specified by the SFP56-DD MSA.

The module incorporates 1 channel optical signal, on 1311nm center wavelength, operating at 100Gbps data rate. This module can convert 2 channels of 53Gbps (PAM4) electrical input data to 1 channel of 106Gbps (PAM4) optical signal, and also can convert 1 channel of 106Gbps (PAM4) optical signal to 2 channels of 53Gbps (PAM) electrical output data. The optical interface uses a Duplex LC connector. The high performance cooled EML transmitter and high sensitivity PIN receiver provide superior performance for 100Gigabit Ethernet applications up to 2km links.

Inquire now
  • Product Detail

 100G FR1 2km SFP-DD Optical Transceiver  RSD-100G-FR1



Features



  • Compliant to 100G Lambda MSA 100G FR1
  • Full-duplex transceiver module
  • 1x106.25Gb/s(PAM4) optical interface
  • 2x53.125Gb/s(PAM4) electrical interface
  • 106.25Gbps PAM4 based on a cooled EML TOSA transmitter
  • 106.25Gbps PAM4 PIN Receiver
  • 3.5W maximum power dissipation
  • Hot-pluggable SFP56-DD form factor
  • Maximum link length of 2km on G.652 SMF with KP-FEC
  • Duplex LC receptacles
  • Built-in digital diagnostic functions
  • Operating case temperature range: 0 to 70°C
  • Single 3.3V power supply
  • RoHS compliant (lead free)



Applications



  • 100G Lambda 100G FR1
  • IEEE802.3CU



Note:



1. KR-FEC is optional, please contact us if necessary.

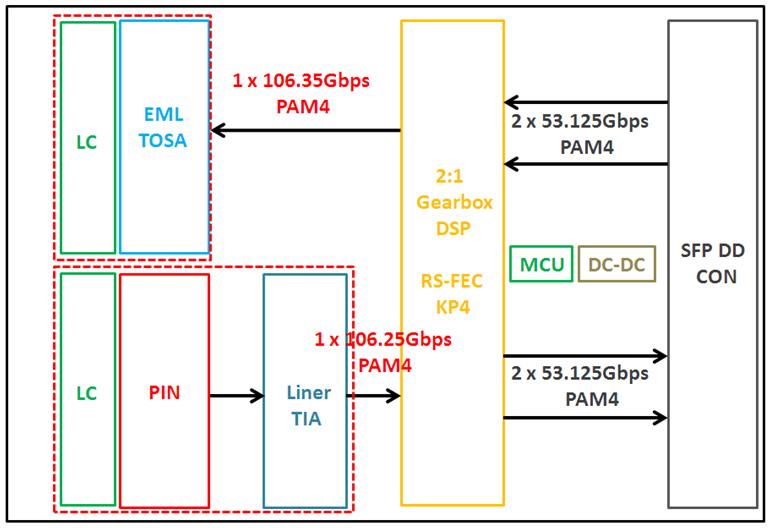

Figure 1. Module Block Diagram



Absolute Maximum Ratings



Parameter Symbol Min Max Unit
Supply Voltage Vcc -0.3 3.6 V
Input Voltage Vin -0.3 Vcc+0.3 V
Storage Temperature Ts -20 85 ºC
Case Operating Temperature Tc 0 70 ºC
Humidity (non-condensing) Rh 5 85 %
