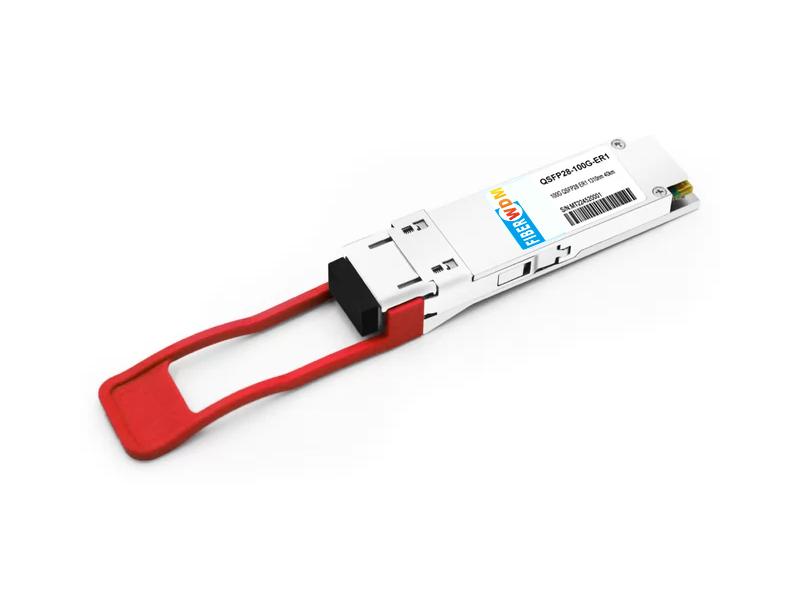

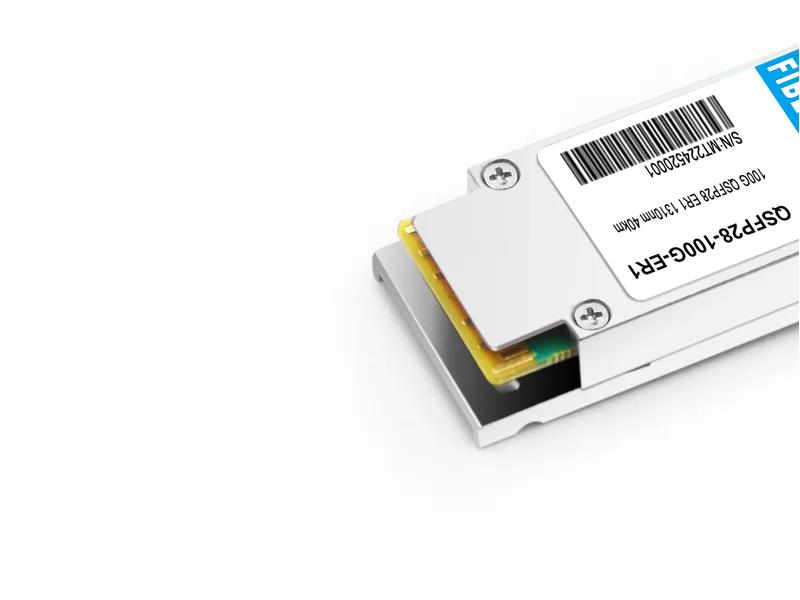

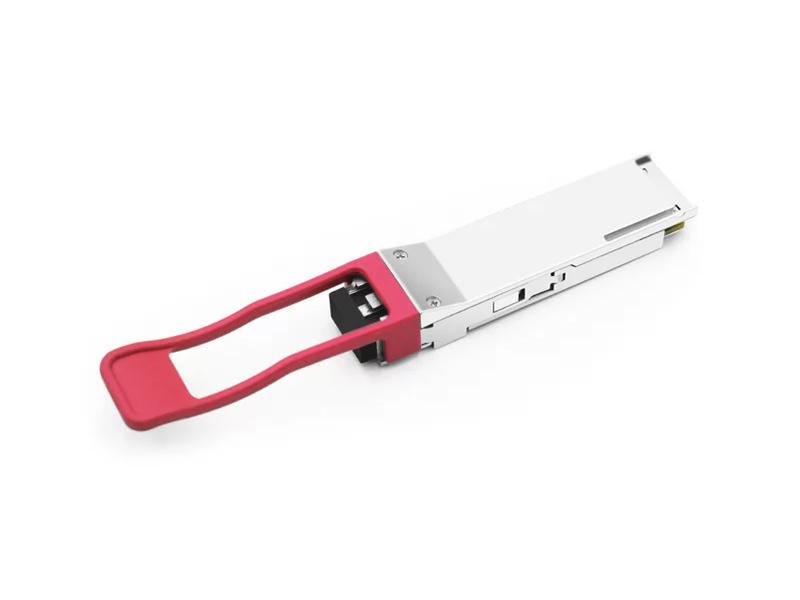

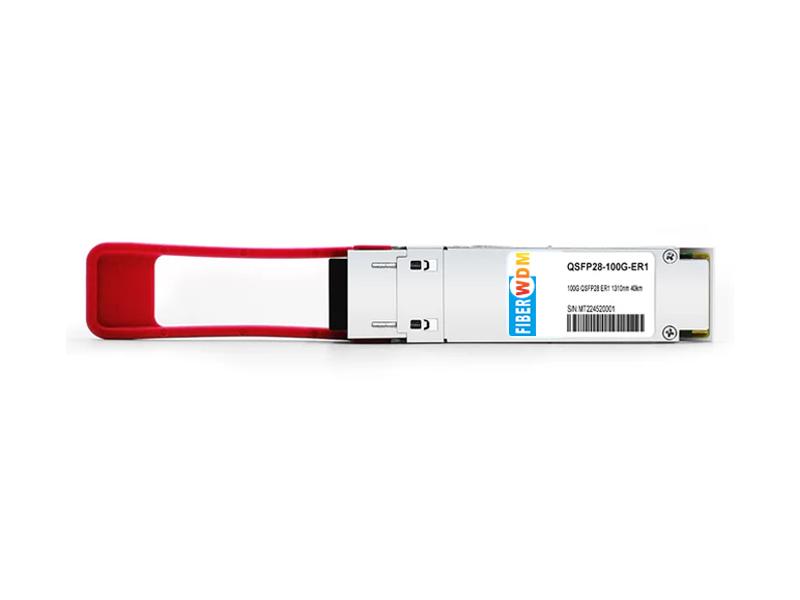

QSFP28-100G-ER1 100G QSFP28 ER1 Single Lambda 1310nm 40km PAM4 LC SMF DDM Transceiver Module

100G QSFP28 SR4 100m 850nm MPO Optical Transceiver，support 100Gb/s and up to 100m transmission on MM fiber, it works in high-speed IDC connection solutions and so on. Features Compliant with IEEE Std 802.3bm Compliant with SFF-8665 Transmission data rate up to 25 .78125GbpsData rate per channel High Reliability 850nm VCSEL technology Electrically hot-pluggable Single +3 .3V power supply Case temperature range: 0 ~ +70℃ Maximum power consumption 2 .5W Single MPO12 connector RoHS complaint

100G QSFP28 CWDM4 optical transceiver module, support 100Gb/s and up to 10 km transmission on SM fiber, it works in high-speed IDC connection solutions, and so on.

100G QSFP28 LR4 optical transceiver module, support 100Gb/s and up to 10 km transmission on SM fiber, it works in high-speed IDC connection solutions, and so on. Features 4 lanes MUX/DEMUX design Integrated LAN WDM TOSA / ROSA for up to 10 km reach over SMF Support 100GBASE-ER4 for line rate of 103.125Gbps and OTU4 for line rate of 111.81Gbps Aggregate bandwidth of >100Gbps Duplex LC connectors Compliant with IEEE 802.3-2012 Clause 88 standard IEEE 802.3bm CAUI-4 chip to module electrical standard ITU-T G.959.1-2012-02 standard· Single +3.3V power supply operating   Built-in digital diagnostic functions   Temperature range 0°C to 70°C   RoHS Compliant Part Support FEC(Forward Error Correction)

100G QSFP28 ER4 optical transceiver module, support 100Gb/s and up to 40 km transmission on SM fiber, it works in high-speed IDC connection solutions, and so on. Features: 4 lanes MUX/DEMUX design Support 100GBASE-ER4 for line rate of 103.125Gbps. Integrated LAN WDM TOSA / ROSA for up to 40 km reach over SMF. Aggregate bandwidth of >100Gbps Duplex LC connectors Compliant withIEEE 802.3-2012 Clause 88 standard IEEE 802.3bm CAUI-4 chip to module  electrical standard ITU-T G.959.1-2012-02 standard· Single +3.3V power supply operating Built-in digital diagnostic functions Temperature range 0°C to 70°C RoHS Compliant Part Support FEC(Forward Error Correction)

100G QSFP28 ZR4 optical transceiver module, support 100Gb/s and up to 80 km transmission on SM fiber, it works in high-speed IDC connection solutions, and so on. Features 4 lanes MUX/DEMUX design Support 100GBASE-ZR4 for line rate of 103.125Gbps and OTU4 for line rate of 111.81GbpsLANWDM EML laser and PIN receiver with SOA Aggregate bandwidth of >100Gbps Duplex LC connectors Compliant withIEEE 802.3-2012 Clause 88 standard IEEE 802.3bm CAUI-4 chip to module  electrical standard ITU-T G.959.1-2012-02 standard· Single +3.3V power supply operating Built-in digital diagnostic functions Temperature range 0°C to 70°C RoHS Compliant Part Support FEC(Forward Error Correction)

100G QSFP28 DWDM optical transceiver module, support 48*100Gb/s DWDM System and up to 80 km transmission on SM fiber, it works in high-speed IDC connection solutions.

100G QSFP28 BIDI optical transceiver module is a pluggable optical transceiver with a duplex LC connector interface for short-reach data communication and interconnect applications using Multi-Mode Fiber (MMF). It offers customers a compelling solution that enables reuse of their existing 10 Gb duplex MMF infrastructure for migration to 100 Gigabit Ethernet connectivity.

100G QSFP28 BIDI optical transceiver module is a pluggable optical transceiver with a Simplex LC connector interface for long-reach data communication and interconnect applications using one core Single-Mode Fiber (SMF).
