DWDM Mux Demux

/75GHz 64CH DWDM MUX DEMUX 1528.68nm-1566.42nm with Monitor Port LC/UPC 1U Rack

64ch 75G DWDM MUX DEMUX
64ch 75G DWDM MUX DEMUX 64ch 75G DWDM MUX DEMUX 64ch 75G DWDM MUX DEMUX

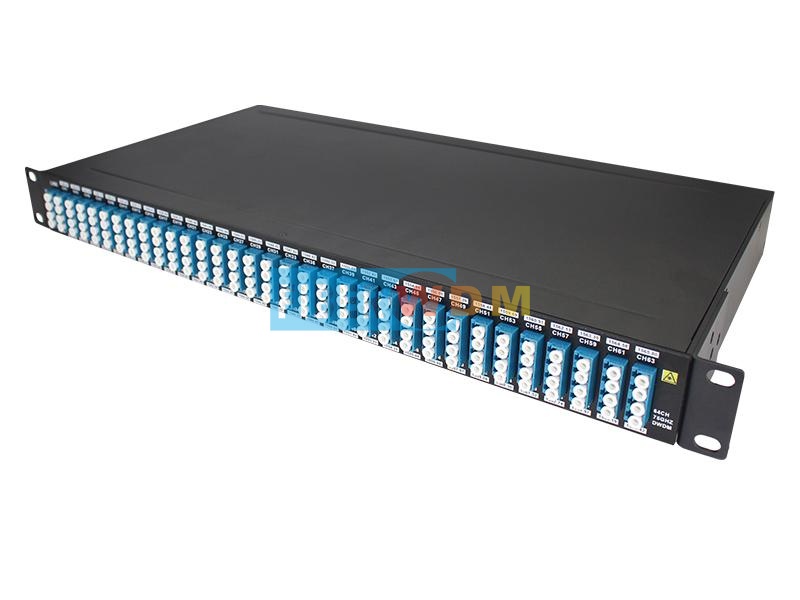

75GHz 64CH DWDM MUX DEMUX 1528.68nm-1566.42nm with Monitor Port LC/UPC 1U Rack

  • IL<5.5dB, 75GHZ DWDM AAWG Technology
  • Multiplexing of 64 Channels in a Dark Fiber Network
  • 64 * 400G DCI transfer system
  • Passive devices, No Power No Cooling Required
  • Support Metro, Regional and Long Haul DWDM Networks
Inquire now Download
  • Product Detail

For DCI 64 x 400G Transfer system


75GHz 64CH DWDM MUX DEMUX 1528.68nm-1566.42nm with Monitor Port，LC/UPC, 1U Rack



The 75GHz 64ch DWDM MUX DEMUX is designed by FIBERWDM, wavelength from 1528.68nm-1566.42nm, in accordance with the ITU-T G.694.1 100GHZ grid, it maximizes the capacity of the C-band range.



The 75GHz 64ch DWDM is totally passive DWDM device, and support low insertion loss (wavelength ports＜5.5dB), Support 400G x 64chbusiness in DWDM transfer system.


64CH AWG DWDM MUX

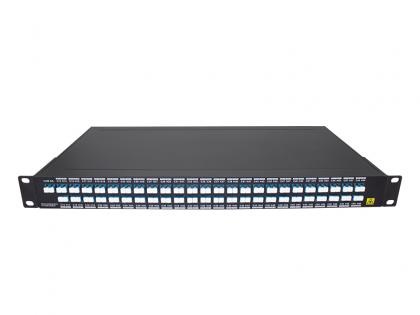

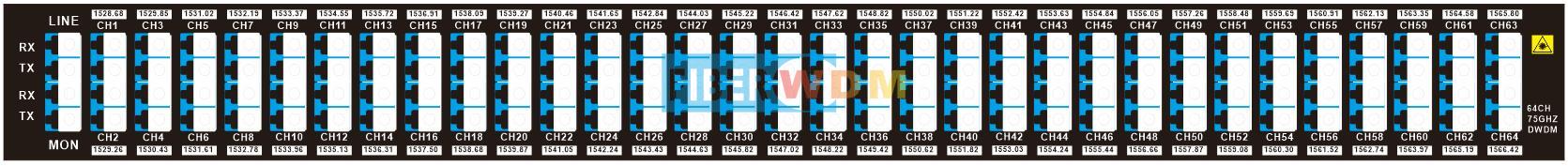

Product Panel


75Ghz 64CH DWDM MUX

75GHz 64CH DWDM MUX DEMUX


Mon port is for network link monitoring or power monitoring, easy troubleshooting without affecting traffic.



Line Link


64CH DWDM MUX DEMUX Dual fiber transmission



  64 Channels DWDM MUX DEMUX, supports64 channels 400G difference business in two optical fiber for point-to-point transmission. It works in IDC transfer system.


Product Specification



Wavelength

1528.68nm-1566.42nm

Channel Spacing

75GHz

Channel Passband

±0.05nm

Technology

AAWG (Flat top)

Insertion Loss

≤5.5dB

Link Loss

≤11dB

1310nm Port Pass

Band Width

1260nm~1360nm

Center Wavelength

Accuracy

±0.05nm

Insertion Loss @ 1% Mon

≤ 26dB

Total Crosstalk

≥5dB

Return Loss

≥ 40dB

Directivity

≥ 40dB

Polarization Mode

Dispersion

≤1.0ps

Polarization Dependent Loss

≤ 0.7dB

Channel Isolation


Adjacent ≥18dB
Non-adjacent ≥ 25dB


Temperature

Operating -5 to 65°C

Storage -40 to 85°C

Net Weight

3.5KG

Dimensions (HxWxD)

44*440*230mm

Note: Specified with connectors.



Hannel Plan 64 Port AWG-On grid

Table1 Channels List：Pass bands for 64channel AAWG



Channel

Frequency

Wavelength



Channel

Frequency

Wavelength

#

(THz)

(nm)

#

(THz)

(nm)

1

196.112

1528.68

33

193.712

1547.62

2

196.037

1529.26

34

193.637

1548.22

3

195.962

1529.85

35

193.562

1548.82

4

195.887

1530.43

36

193.487

1549.42

5

195.812

1531.02

37

193.415

1550.02

6

195.737

1531.61

38

193.337

1550.62

7

195.662

1532.19

39

1993.262

1551.22

8

195.587

1532.78

40

193.187

1551.82

9

195.512

1533.37

41

193.112

1552.42

10

195.437

1533.96

42

193.037

1553.03

11

195.362

1534.55

43

192.962

1553.63

12

195.287

1535.13

44

192.887

1554.24

13

195.212

1535.72

45

192.812

1554.84

14

195.137

1536.31

46

192.737

1555.44

15

195.062

1536.91

47

192.662

1556.05

16

194.987

1537.50

48

192.587

1556.66

17

194.912

1538.09

49

192.512

1557.26

18

194.837

1538.68

50

192.437

1557.87

19

194.762

1539.27

51

192.362

1558.48

20

194.687

1539.87

52

192.287

1559.08

21

194.612

1540.46

53

192.212

1559.69

22

194.537

154105

54

192.137

1560.30

23

194.462

1541.65

55

192.062

1560.91

24

194.387

1542.24

56

191.987

1561.52

25

194.312

1542.84

57

191.912

1562.13

26

194.237

1543.43

58

191.837

1562.74

27

194.162

1544.03

59

191.762

1563.35

28

194.087

1544.63

60

191.687

1563.97

29

194.012

1545.22

61

191.612

1564.58

30

193.937

1545.82

62

1991.537

1565.19

31

193.862

1546.42

63

191.462

1565.80

32

193.787

1547.02

64

191.387

1566.42



Package Information




64CH DWDM 19” 1U Rack



Order Information



Product No.

Product description

DMD64-1U01-75GHZ-M-A

75GHz 64CH DWDM MUX DEMUX 1528.68nm-1566.42nm with Monitor Port，LC/UPC 1U Rack

Note:We Support Customized Design, please contact us by email.
