The 8ch O-BAND DWDM MUX DEMUX is designed by FIBERWDM, it is totally passive DWDM device, and support low insertion loss( wavelength ports＜3.0dB; ). Waves are 1304.58/1305.72/1306.85/1308.00/1309.14/1310.28/1311.43/1312.58nm, support 8CH business on two fiber transmission.
Dual Fiber 8CH O-BAND DWDM MUX DEMUX, LC/UPC, LGX Box, and 2 Slots 1U Rack

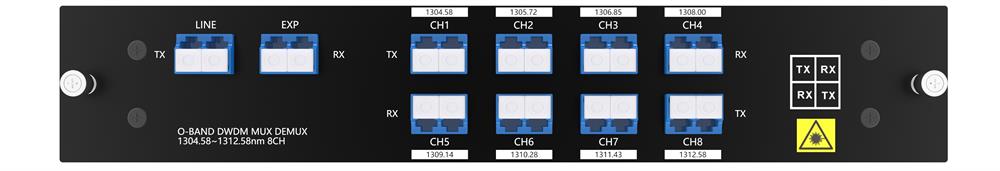

Product Panel
8CH O-BAND DWDM MUX DEMUX Dual Fiber
Line Link
8CH O-Band DWDM MUX DEMUX Dual fiber transmission
8 Channels O-BAND DWDM MUX DEMUX, supports 8 channels difference business in two optical fiber for point-to-point transmission.
It works in Broadcast and TV, IDC, finance, government, cloud, massive data and other industries.
Product Specification
| Work Wavelength |
1304.58/1305.72/1306.85/1308.00/ 1309.14/1310.28/1311.43/1312.58nm |
Operating Wavelength | 1260~1360nm |
| Channel Passband | ±0.11nm | Technology | TFF (Thin Film Filter) |
| Insertion Loss | ≤ 3.0dB | Insertion Loss Temperature Sensitivity | ≤ 0.5dB |
| Return Loss | ≥ 45dB | Directivity | ≥ 45dB |
|
Polarization Mode Dispersion |
≤ 0.2ps | Polarization Dependent Loss | ≤ 0.2dB |
| Channel Isolation | Adjacent ≥25dB Non-adjacent ≥ 35dB |
Temperature |
Operating -40 to 85°C Storage -40 to 85°C |
| Net Weight |
LGX Box: 0.5KG 2slot 1U Rack: 1.5KG |
Dimensions (HxWxD) |
LGX Box: 220*200*39mm 1U Rack : 44*440*230mm |
Note: Specified with connectors.
Package Information

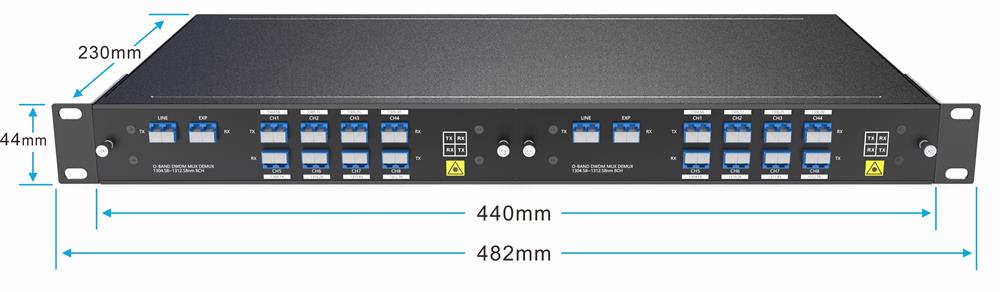

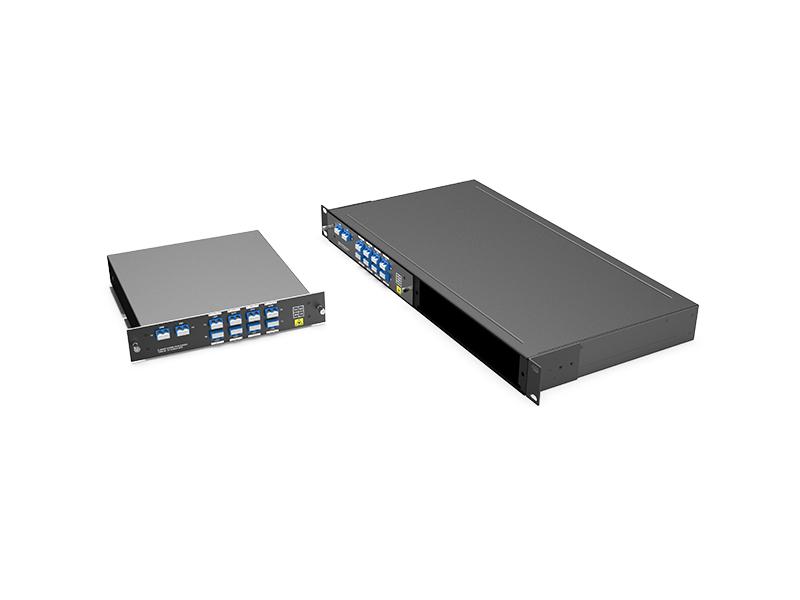

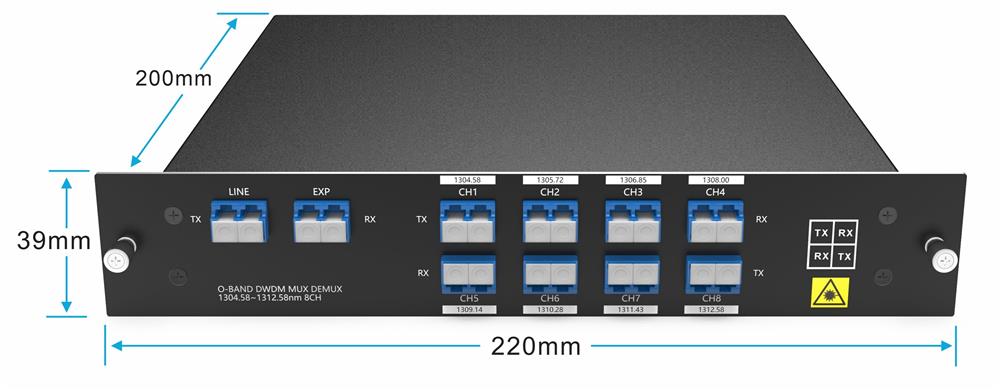

LGX BOX Plug in 2-Slot 1U Rack

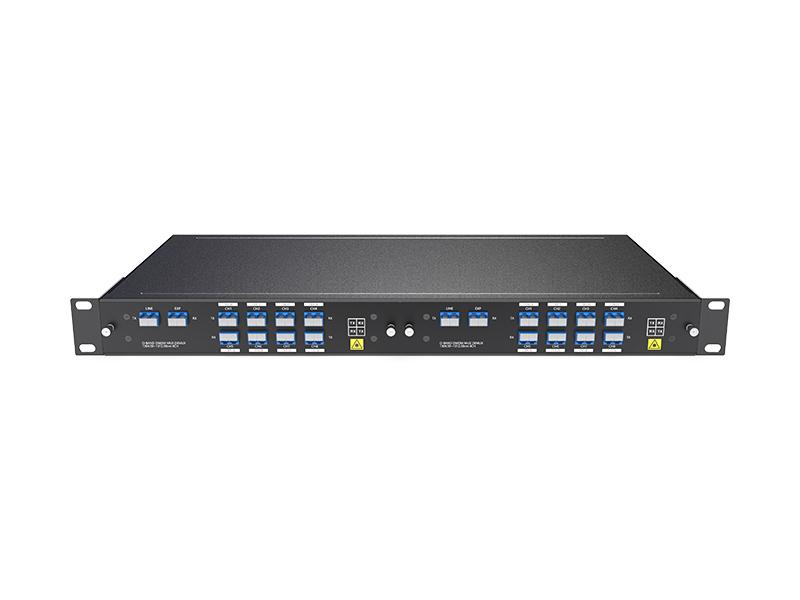

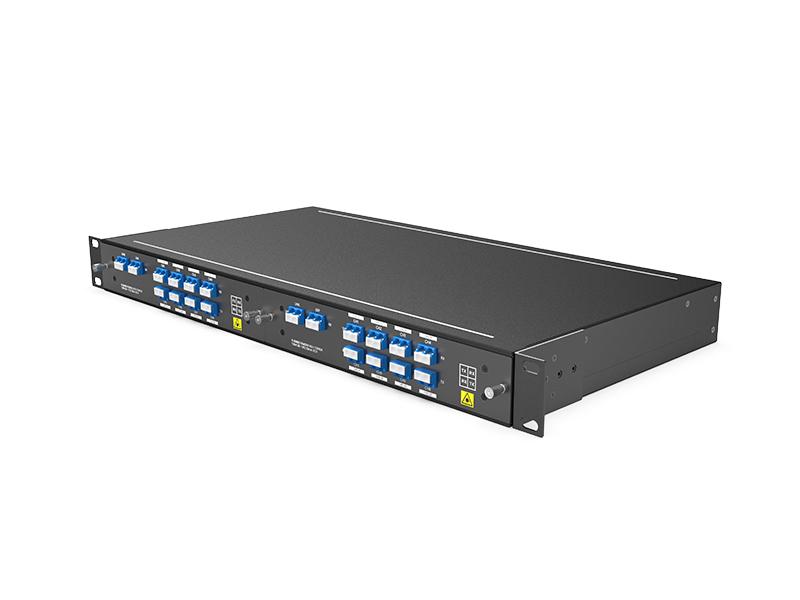

2-Slot 1U Rack for LGX BOX
Order Information
| Product No. | Product description |
| ODMD8-LGX01-1310H | DWDM MUX DEMUX 8CH (1304.58/1305.72/1306.85/1308.00/1309.14/1310.28/1311.43/1312.58nm) , Dual fiber, LC/UPC , LGX Box |
| 1U02-2LGX | 19” inch 1U rack with 2 slot for Plug-in LGX box, 440*230*44mm |
Note: We Support Customized Design, please contact us by email.
