The 150GHz 8ch DWDM MUX DEMUX is designed by FIBERWDM, wavelength from C14-H24(1566.314nm-1557.768nm), in accordance with the ITU 150GHZ grid, it maximizes the capacity of the C-band range.
The 150GHz 8ch DWDM is totally passive DWDM device, and support low insertion loss( wavelength ports＜2.4dB), Support 800G x 8ch business in DWDM transfer system.

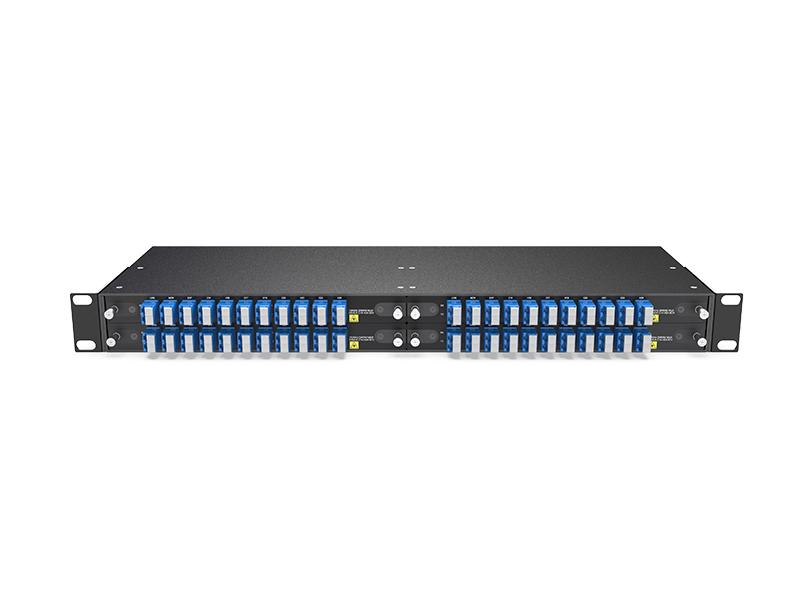

150GHz 8CH DWDM MUX DEMUX C14-H24(1566.314nm-1557.768nm) with Monitor Port，LC/UPC,LGX Box, and 4 Slots 1U Rack
The 150GHz 8ch DWDM MUX DEMUX is designed by FIBERWDM, wavelength from C14-H24(1566.314nm-1557.768nm), in accordance with the ITU 150GHZ grid, it maximizes the capacity of the C-band range.
The 150GHz 8ch DWDM is totally passive DWDM device, and support low insertion loss( wavelength ports＜2.4dB), Support 800G x 8ch business in DWDM transfer system.

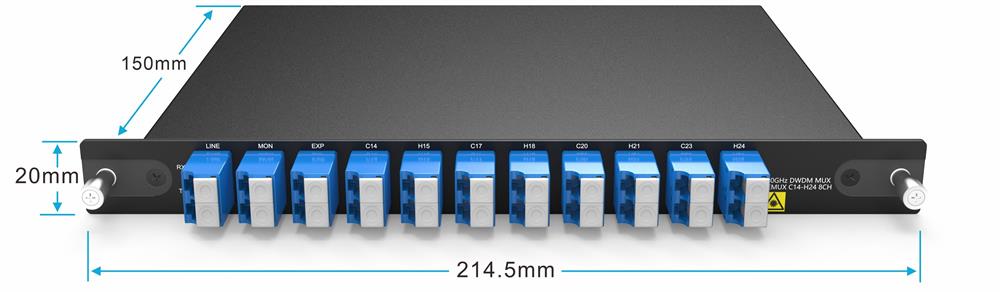

Product Panel
150Ghz 8CH DWDM MUX DEMUX

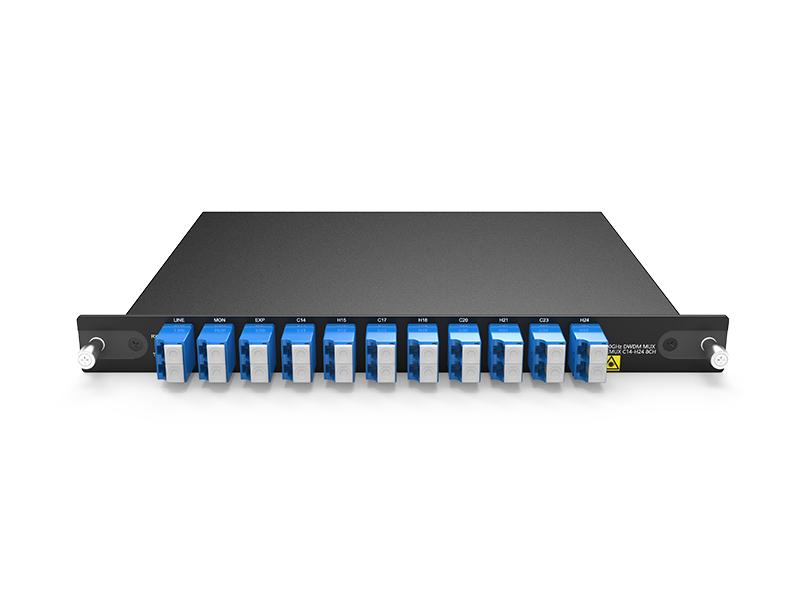

Mon port is for network link monitoring or power monitoring, easy trouble shooting without affecting traffic
Line Link

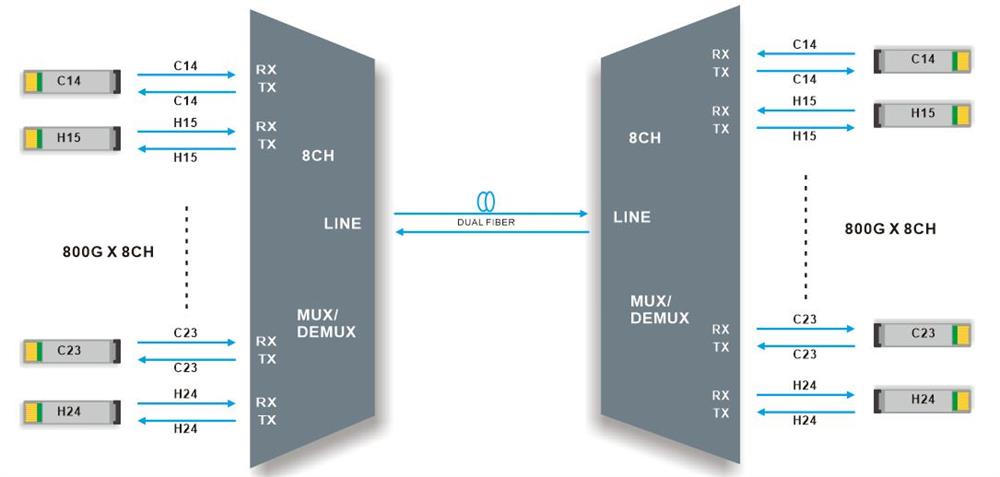

8CH DWDM MUX DEMUX Dual fiber transmission
8 Channels DWDM MUX DEMUX, supports 8 channels 800G difference business in two optical fiber for point-to-point transmission. It works in IDC transfer system.
Product Specification
| Wavelength | 1566.314-1557.768nm | Channel Spacing | 150GHz |
| Channel Passband | ±0.5nm | Technology | TFF |
| Insertion Loss | ≤2.4dB | Link Loss | ≤3.5dB |
|
Center Wavelength Accuracy |
±0.05nm | Total Crosstalk | ≥5dB |
| -0.5dB Bandwidth | ≥90GHz | -3dB Bandwidth | ≥150GHz |
| Return Loss | ≥ 40dB | Directivity | ≥ 40dB |
|
Polarization Mode Dispersion |
≤ 1.0ps | Polarization Dependent Loss | ≤ 0.7dB |
| Channel Isolation @central frequency | Adjacent ≥ 30dB Non-adjacent ≥ 45dB |
Temperature |
Operating -40 to 85°C Storage -40 to 85°C |
| Net Weight |
LGX Box: 0.5KG 4slot 1U Rack: 2.5KG |
Dimensions |

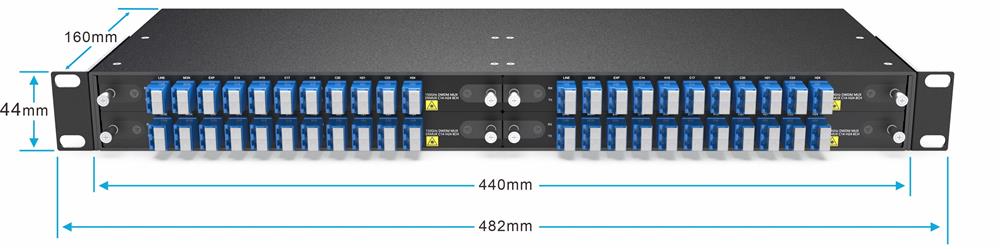

LGX Box: 214.5*150*20mm 1U Rack : 440*160*44mm |
Note: Specified with connectors.

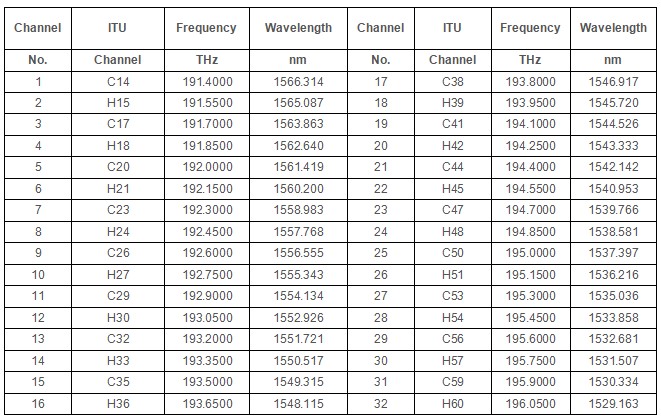

Channel Plan
Package Information

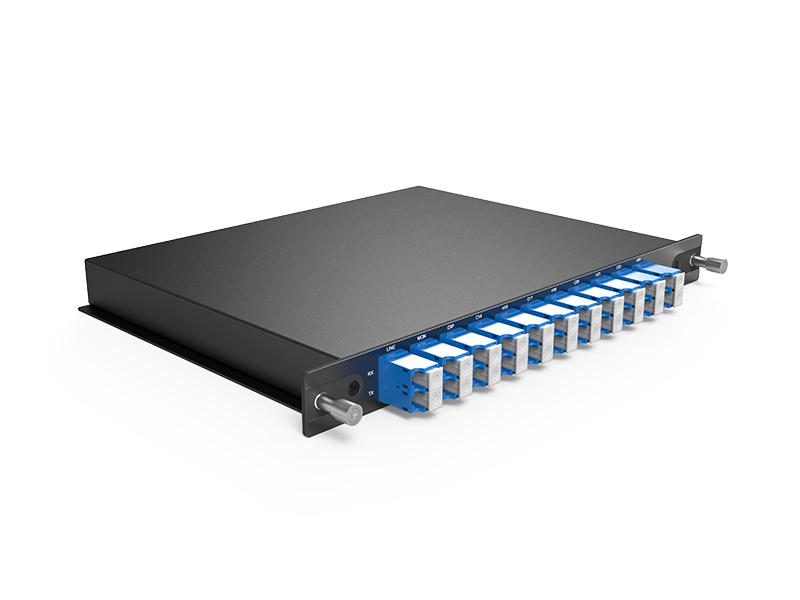

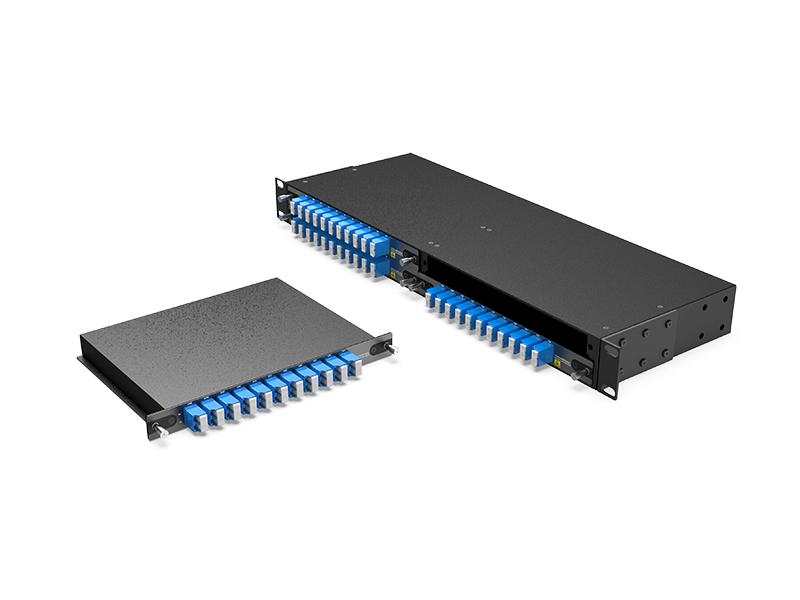

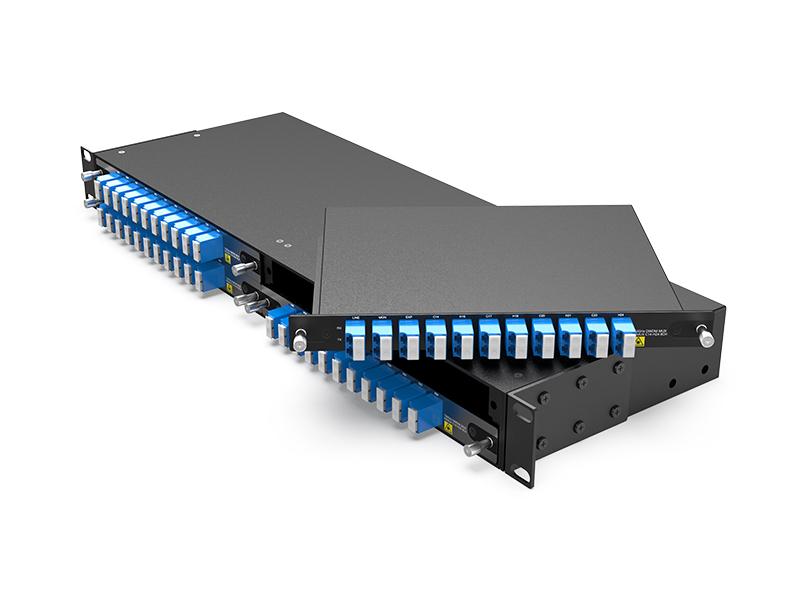

LGX BOX Plug in 4-Slot 1U Rack

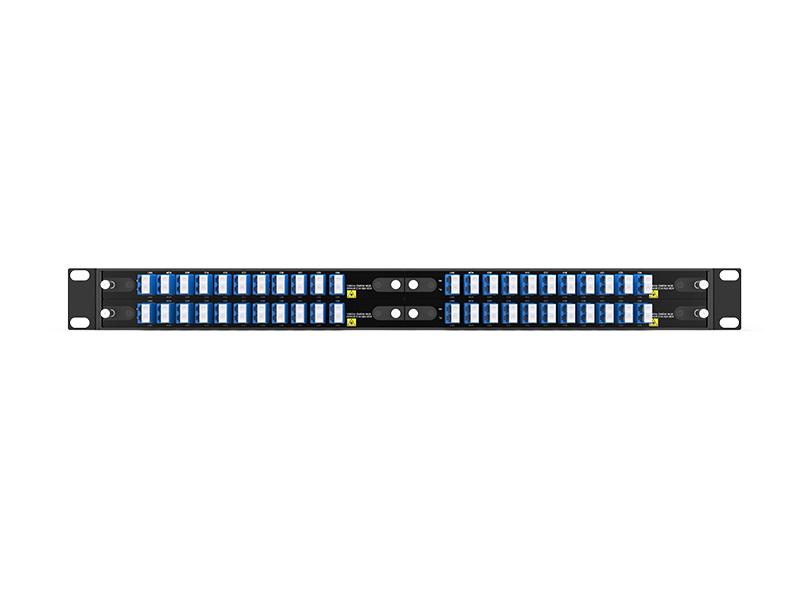

4-Slot 1U Rack for LGX BOX
Order Information
| Product No. | Product description |
| DMD8-LGX01-150GHZ-M-C14H24 | 150GHz 8CH DWDM MUX DEMUX C14-H24(1566.314nm-1557.768nm) with Monitor Port，LC/UPC Plug-in LGX Box 214.5*150*20mm |
| 1U02-4LGX | 19” inch 1U rack with 4 slot for Plug-in LGX box, 440*160*44mm |
Note: We Support Customized Design, please contact us by email.
