The 8CH 16Waves DWDM MUX/ DEMUX can support 16 channel business Bidi transmission on one single fiber, wavelength from C28 to C35/ C53 to C60, in accordance with the ITU-T G.694.1 100GHZ grid, it maximizes the capacity of the C-band range.
Single Fiber 8CH C28-C35/C53-C60 DWDM MUX DEMUX, With RB , LC/UPC, 1U Rack
The 8CH 16Waves DWDM MUX/ DEMUX can support 16 channel business Bidi transmission on one single fiber, wavelength from C28 to C35/ C53 to C60, in accordance with the ITU-T G.694.1 100GHZ grid, it maximizes the capacity of the C-band range.

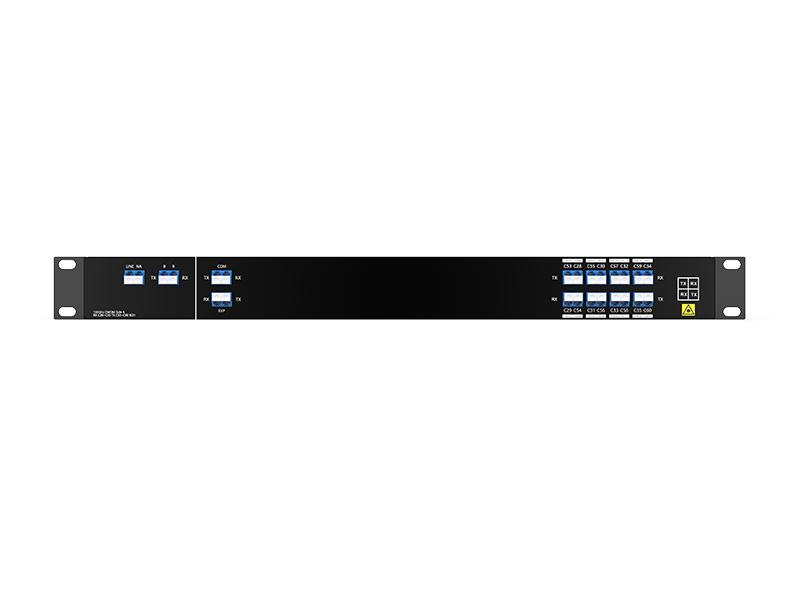

Product Panel
8CH 16Waves RX C28~C35 / TX C53~C60 DWDM MUX DEMUX, With R/B Port Single fiber in Side A
8CH 16Waves RX C53~C60 / TX C28~C35 DWDM MUX DEMUX, With R/B Port Single fiber in Side B
Expansion Port for Future Bandwidth Increasing, makes it possible to increase the network capacity by connecting it to the line port of another DWDM MUX/DEMUX supporting different wavelengths, without the need of installing or leasing additional fibers.
Line Link

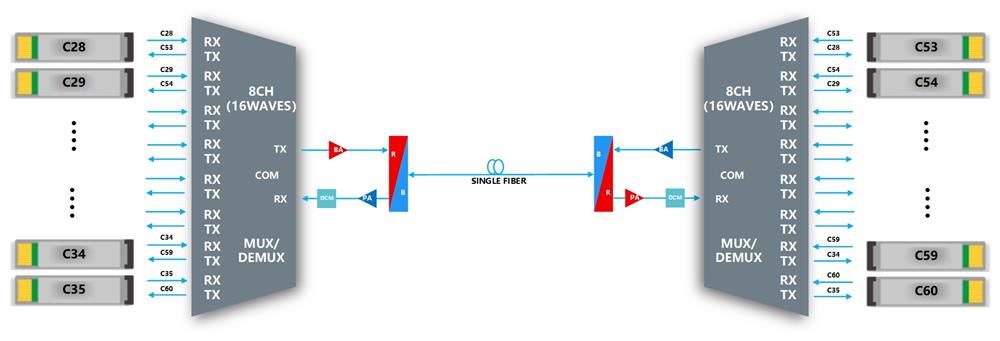

8CH DWDM MUX/ DEMUX Single fiber BIDI transmission
8 Channels DWDM difference business in one optical fiber for point-to-point transmission.
It works in Broadcast and TV, IDC, finance, government, cloud, massive data and other industries.
Product Specification
| Wavelength | C28~C35/C53~60 | Channel Spacing | 100GHz (0.8nm) |
| Channel Passband | ±0.11nm | Technology | TFF (Thin Film Filter) |
| Insertion Loss | ≤ 4.0dB |
Center Wavelength Accuracy |
±0.05nm |
| Return Loss | ≥ 45dB | Directivity | ≥ 45dB |
|
Polarization Mode Dispersion |
≤ 0.1ps | Polarization Dependent Loss | ≤ 0.3dB |
| Channel Isolation | Adjacent ≥30dB Non-adjacent ≥ 45dB |
Temperature |
Operating -20 to70°C Storage -40 to 85°C |

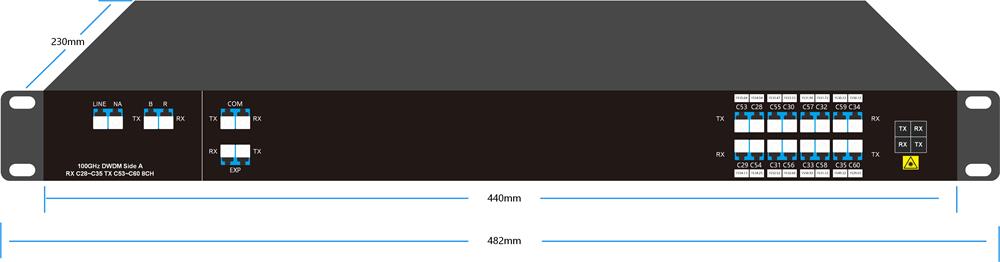

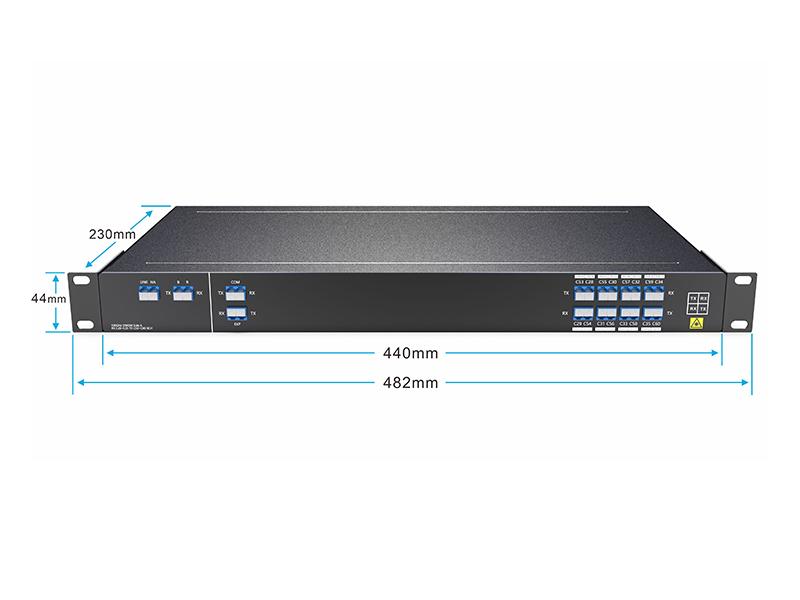

| Net Weight | 3.5KG | Dimensions (HxWxD) | 44*440*230mm |
Note: Specified with connectors.
Package Information
19” Inch 1U Rack
Order Information
| Product No. | Product description |
| DM161U01-C2860-RB-A | DWDM MUX DEMUX 8CH 16Waves (RX C28~C35/ TX C53~C60), With R/B Port Single fiber in Side A |
| DD16-1U01-C2860-RB-B | DWDM MUX DEMUX 8CH 16Waves (RX C53~C60/ TX C28~C35), With R/B Port Single fiber in Side B |
Note: We Support Customized Design, please contact us by email.
