40CH 80Waves DWDM MUX DEMUX With INTL port Single FIBER 1U Rack

Single Fiber 40CH 80Waves C21-C60/H21-H60 DWDM MUX DEMUX,With INTL port, LC/UPC, 1U Rack

The 40CH 80Waves DWDM MUX/ DEMUX can support 40channel business Bidi transmission on one single fiber, wavelength from C21 to C60/ H21 to H60, in accordance with the ITU-T G.694.1 100GHZ grid, it maximizes the capacity of the C-band range.

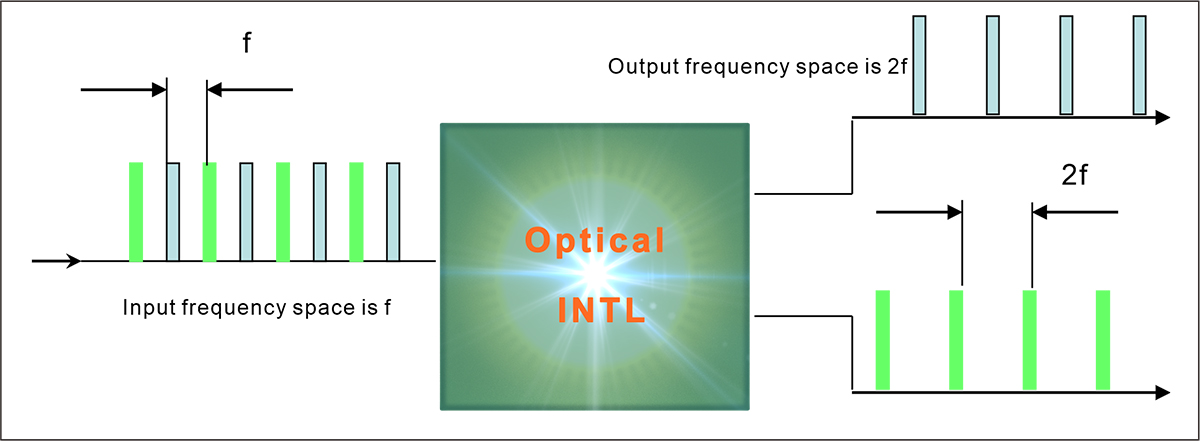

And FIBERWDM provide a INTL port is a three-port optical passive device. When a series wave with frequency space f pass this device, this wave will be de-multiplexed to two series wave with frequency space 2f and interleaved output to other two ports. The optical INTL is complete passive, no temperature control need, with excellent environmental stability. It meets Telcordia GR-1221-CORE requirements.

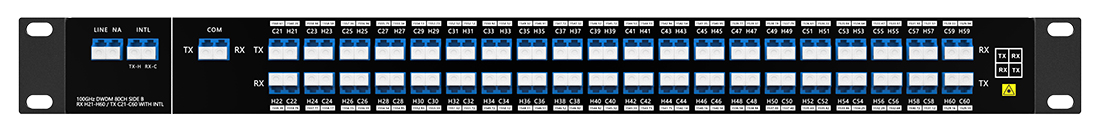

Product Panel

40CH 80Waves RX C21~C60 / TX H21~H60 DWDM MUX DEMUX, With INTL Port Single fiber in Side A

40CH 80Waves RX H21~H60/ TX C21~C60 DWDM MUX DEMUX, With R/B Port Single fiber in Side B

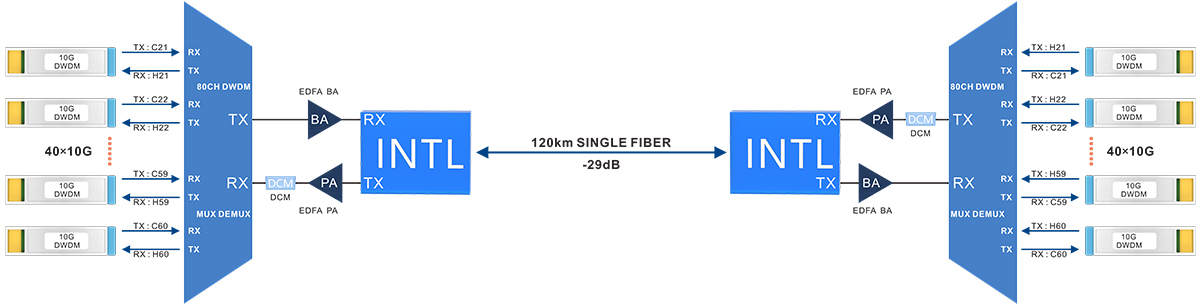

Line Link

40CH DWDM MUX/ DEMUX Single fiber BIDI transmission

40 Channels DWDM difference business in one optical fiber for point-to-point transmission.

It works in Broadcast and TV, IDC, finance, government, cloud, massive data and other industries.

Product Specification

Note: Specified with connectors.

Package Information

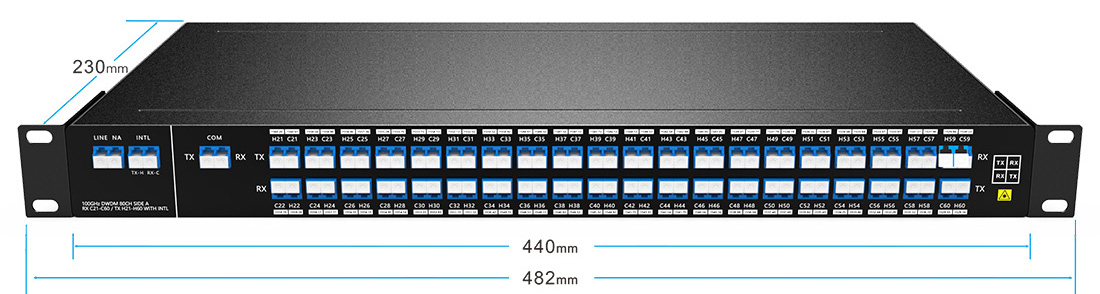

19” Inch 1U Rack

Order Information

Note: We Support Customized Design, please contact us by email.
