Super C-band 60ch+MON 100GHz DWDM MUX/DEMUX 1U LC/UPC
This 60 Channels DWDM
Mux Demux has 100GHz channel spacing and performs 60 channel multiplexing or
demultiplexing at the ITU wavelengths in Super C-band, greatly expanding the
effective working spectrum compared with the traditional C band and extended C
band. It offers a combination of low optical insertion loss and high channel
isolation along with long term reliability
Product Information

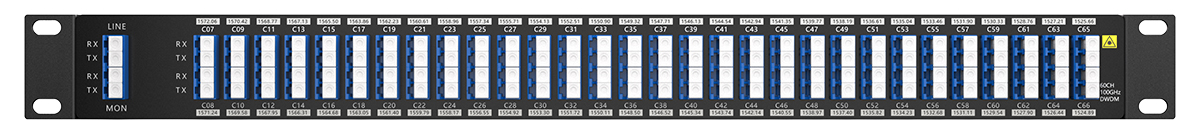

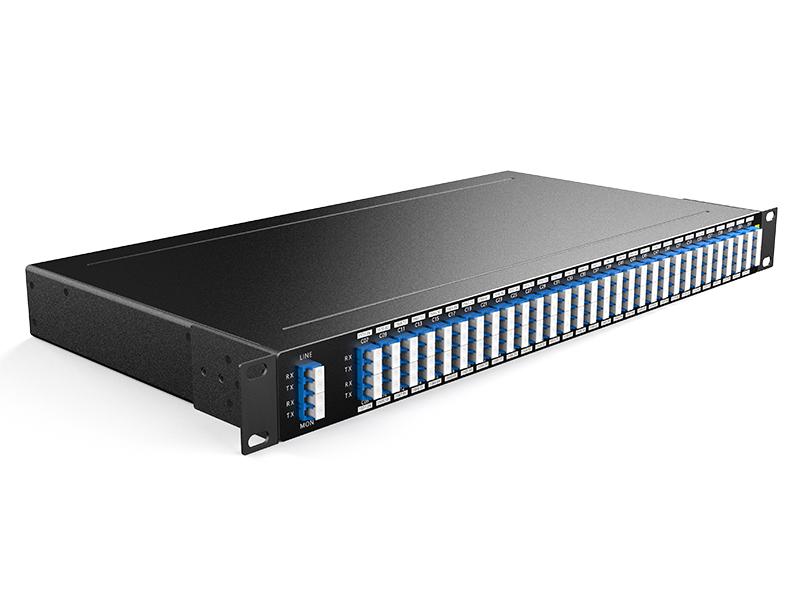

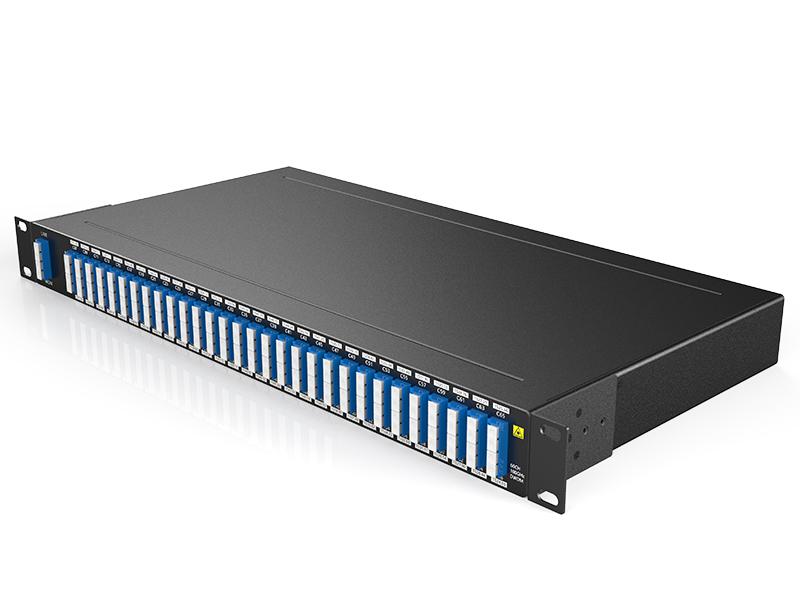

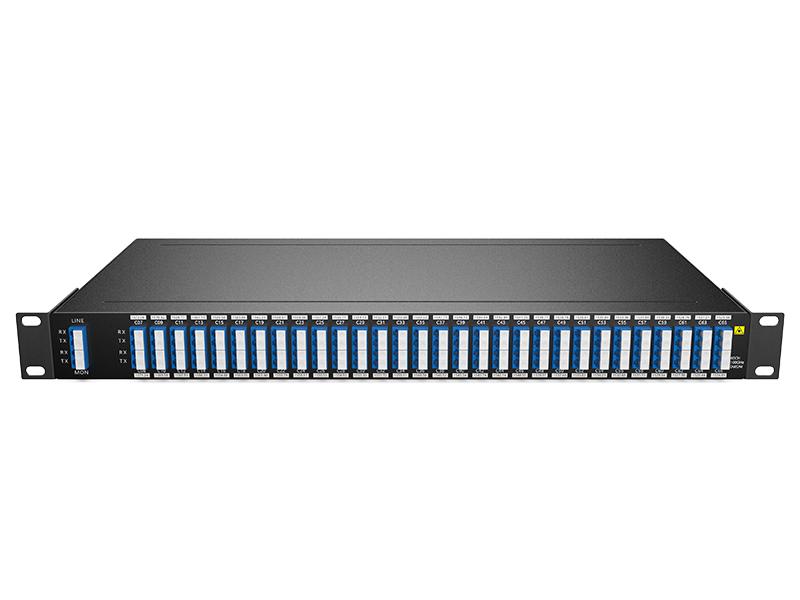

60 Channels Super C-band 100GHz with Monitor Port, LC/UPC, Dual Fiber DWDM Mux Demux, 1U Rack Mount

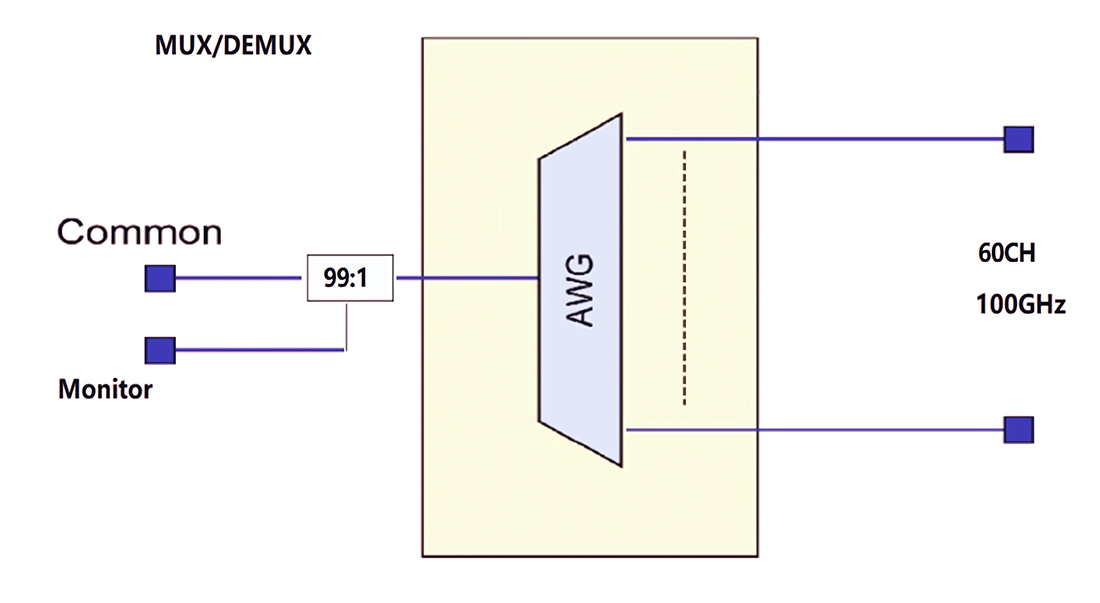

Configuration
Product Application
Optical Specifications
|
Parameter |
Specification |
Units |
Notes |
|||
|
Min |
Type |
Max |
||||
|
Channel Spacing |
100 |
Ghz |
|
|||
|
Technology |
AAWG (Flat-top) |
|||||
|
Nos of Channel |
60 |
Channels |
|
|||
|
Channel Frequencies |
ITU Grid |
THz |
|
|||
|
Available Channel Frequency Range |
Odd |
190.75 |
|
196.650 |
THz |
1524.50-1571.65nm |
|
Even |
190.7 |
|
196.600 |
THz |
1524.89-1572.06 |
|
|
Channel Passband |
-12.5 |
|
+12.5 |
Ghz |
|
|
|
-0.10 |
|
+0.10 |
nm |
|
||
|
Center Wavelength Accuracy |
-0.05 |
|
+0.05 |
nm |
|
|
|
Insertion Loss@com |
|
6 |
6.7 |
dB |
@Center Wavelength |
|
|
Insertion Loss@mon |
|
|
22 |
dB |
1% |
|
|
Passband Ripple |
|
1.0 |
1.5 |
nm |
Full Bandwidth |
|
|
Bandwidth @1.0dB |
0.22 |
|
|
nm |
|
|
|
Bandwidth @3.0dB |
0.42 |
|
|
nm |
|
|
|
Bandwidth @20dB |
|
|
1.20 |
nm |
|
|
|
Insertion Loss Uniformity at ITU |
|
|
1.20 |
dB |
|
|
|
Polarization Dependent Loss |
|
|
0.5 |
dB |
|
|
|
Adjacent Channel Isolation |
25 |
|
|
dB |
|
|
|
Non-Adjacent Channel Isolation |
30 |
|
|
dB |
|
|
|
Total Cross Talk |
24 |
24 |
|
dB |
|
|
|
Directivity |
40 |
|
|
dB |
|
|
|
Return Loss with connectors |
40 |
45 |
|
dB |
|
|
|
Chromatic Dispersion |
-20 |
|
+20 |
ps/nm |
|
|
|
PDL |
|
|
0.5 |
dB |
|
|
|
PMD |
|
|
1.0 |
ps |
|
|
|
Optical Power Handling of Common Port |
|
|
24 |
dBm |
|
|
|
Net Weight |
|
|
3.5 |
KGS |
|
|
|
Dimensions (HxWxD) |
44x481.8x230mm |
mm |
|
|||
Operating Conditions
|
Parameter |
|
Min |
|
Max |
Units |
|
Temperature |
|
-5 |
|
65 |
℃ |
|
Humidity |
Non-condensing |
0 |
|
90 |
% R.H. |
Storage Conditions
|
Parameter |
|
Min |
|
Max |
Units |
|
Temperature |
|
-40 |
|
85 |
℃ |
|
Humidity |
Non-condensing |
0 |
|
90 |
% R.H. |
Want to know about this product?
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
