10/100M External Media Converter 1*RJ45 and 1*SFP Port Switch

Functional characteristics

  • 10/100 Mbps adaptive RJ45 port
  • One upper port is a 100Mbps SFP fiber port
  • Automatic port flipping (Auto MDI/MDIX)
  • Flow control mode: full duplex adopts IEEE 802.3x standard, half duplex adopts Back pressure standard
  • complies with IEEE 802.310Base-T and IEEE 802.3u 100/1000Base-TX standards
  • The store-and-forward switching mechanism is adopted
Inquire now Download
  • Product Detail

10/100M Media converter series


10/100 Series Converter

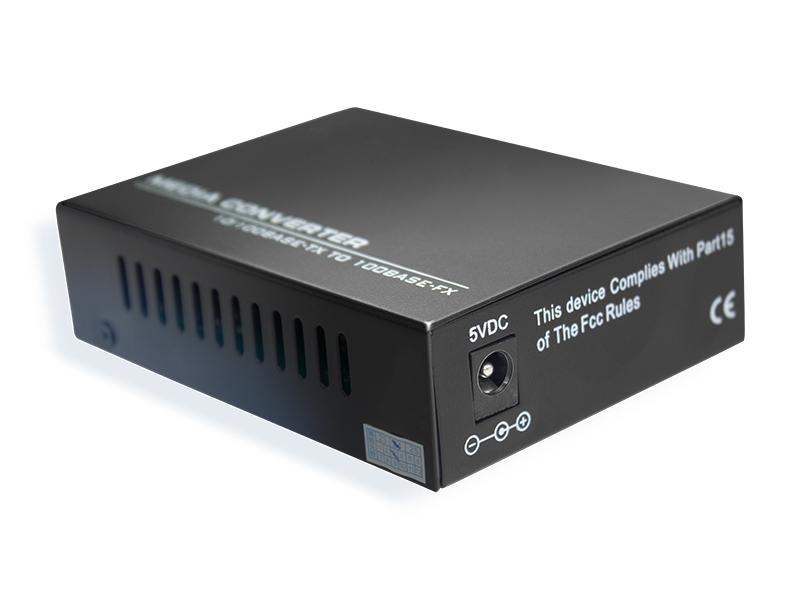

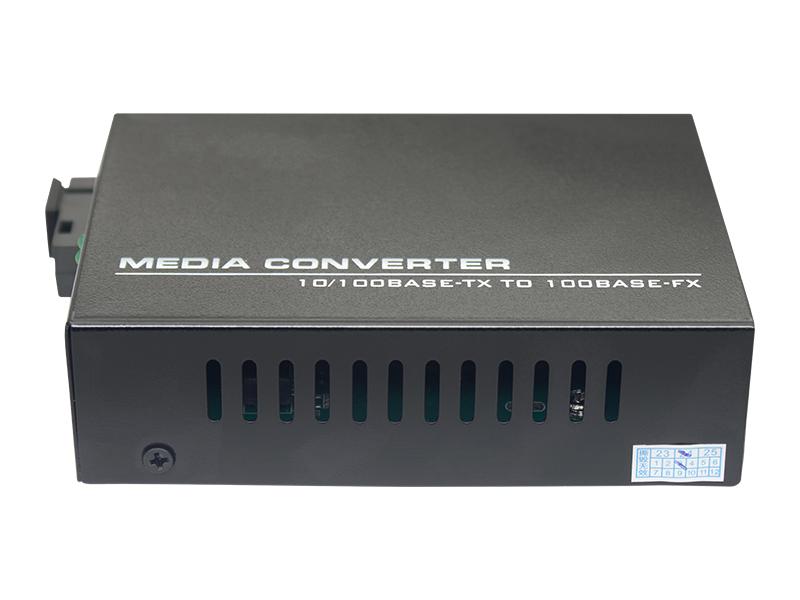

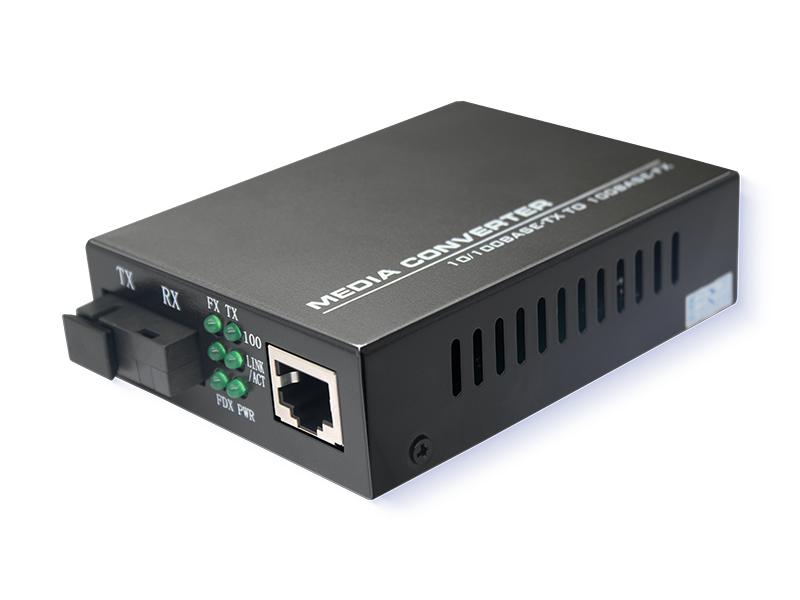

The 10/ 100M Series 10/ 100BASE-TX to 100BASE-SX/LX converter is primarily designed for   larger and higher bandwidth demanding workgroups that require expansion of the Ethernet network. The 10/ 100M features a RJ45 jack and a SC or SFP fiber optic connector, connecting the 10/ 100BASE-TX network to the 100BASE-SX/LX (fiber optic) network. At full duplex mode, the converter can extend distance up to 550 meters for multi-mode fiber and up to 80 kilometers for Single-mode fiber. It is fully compliant with IEEE 802.3u & 802.3 standards. The Installation & operation procedures of the 10/ 100M Series are simple & straightforward. User can monitor the real time operation status easily via a set of LED located in the front pane


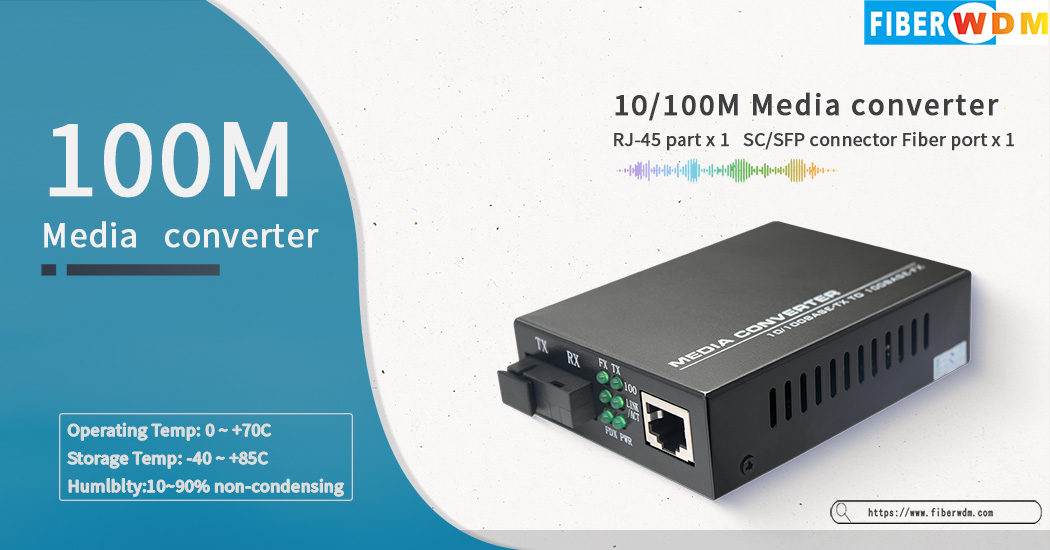

10/100M Media converter


Cable Connection of 10/100M Series Converter

Port type

Cable Type

Max. Length

10/ 100BASE-T

Cat. 5, 5E UTP, RJ-45

100 meters

100BASE-SX

Multi-mode Fiber of 850n (62.5/ 125μm)

220 meters

100BASE-SX

Multi-mode Fiber of 850nm (50/ 125μm)

550meter

100BASE-LX

Single-mode Fiber of 1310nm(9/ 125um)

10- 100km

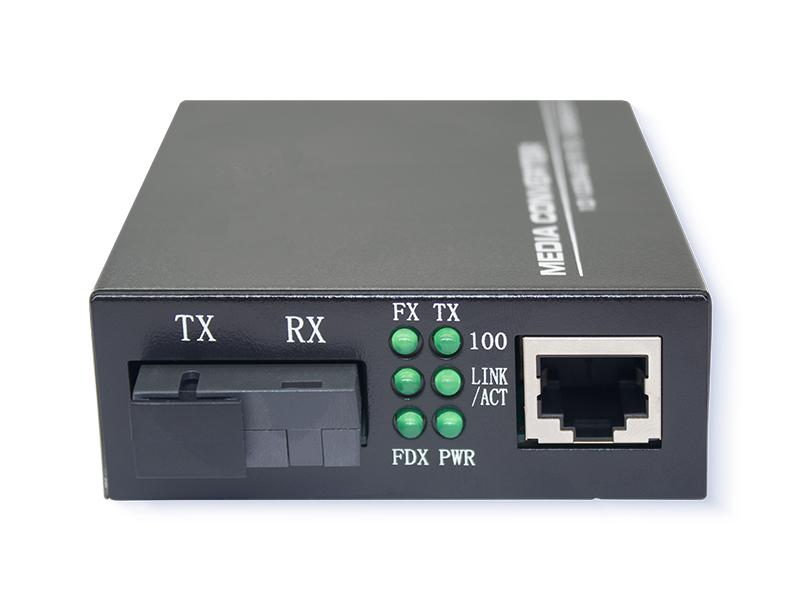

LED Indication

Please refer to the following table for LED indication of 10/ 100M Series Converter

LED

Status

Indication

POW

ON

The Power is on

FPL

ON

when detects the optical signal

OFF

when no optical signal detects

10/100

ON

TP Speed is 100M

OFF

TP Speed is 10M


FDX

ON

Full Speed

OFF

half Speed

FRX

Flash

Fiber Data

TRX

Flash

UTP Data


Specifications of 10/100M Series Converter

MODEL

1、10/100M Series

2、10/100M Series

STANDARD

IEEE802.3u 100BASE-T;

IEEE802.3u

100BASE-T;

IEEE802.3 100BASE-SX

IEEE802.3

100BASE-LX

INTERFACE

RJ-45 part x 1 (10/ 100 Mbps)

SC/SFP connector Fiber port x 1 (100 Mbps)

TP

CONNECTIONS

10/ 100BASE-T: UTP Category 5, 5E

FIBER CONNECTIONS

100BASE-SX:62.5/ 125 µm or 50/ 125µm multi-mode fiber, SC/SFP connector

100BASE-LX:9 or

10/ 125µm Single-mode fiber, SC/SFP connector

LED

INDICATIONS

POW，FPL，10/100，FDX，FRX，TRX

MAX.DISTANCE

550m~2km

10km ~100km

ENVIRONMENT

Operating Temp:0~+70C

Storage Temp: -40~+85C

Humlblty:10~90% non-condensing

POWER

5V 1000mA

NET WELGHT

650 g/pair

EMISSION

FCC Class A, CE


Typical Optical Power Budget

10/100M Series

Connector

SC

SC

SC

SC

SC

Wavelength

850nm

1310nm

1310nm

1310nm

1550nm

Typical

550m/220m

20Km

40Km

60Km

80- 100Km

Optical

power

≥- 12dBm

≥- 14dBm

≥- 11dBm

≥-6dBm

≥-5dBm

Sensitivity

≤-23dBm

≤-34dBm

≤-36dBm

≤-38dBm

≤-38dBm


Want to know about this product?

SEND A MESSAGE
Leave A Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

Related Products
10/100/1000M External Media Converter 10/100/1000M External Media Converter 1*RJ45 and 1*SFP Port Switch
Functional characteristics 10/100/1000 Mbps adaptive RJ45 port One upper port is a 1000Mbps SFP fiber port Automatic port flipping (Auto MDI/MDIX) Flow control mode: full duplex adopts IEEE 802.3x standard, half duplex adopts Back pressure standard complies with IEEE 802.310Base-T and IEEE 802.3u 100/1000Base-TX standards The store-and-forward switching mechanism is adopted Line speeds are available in the range of 64 to 9000 frame lengths
Read More
10/100/1000M External Media Converter 10/100/1000M External Media Converter 1*RJ45 and 1*SFP Port With 100~260V AC to DC 5V Power adapter Switch
Functional characteristics 10/100/1000 Mbps adaptive RJ45 port One upper port is a 1000Mbps SFP fiber port Automatic port flipping (Auto MDI/MDIX) Flow control mode: full duplex adopts IEEE 802.3x standard, half duplex adopts Back pressure standard complies with IEEE 802.310Base-T and IEEE 802.3u 100/1000Base-TX standards The store-and-forward switching mechanism is adopted Line speeds are available in the range of 64 to 9000 frame lengths
Read More
10G Media Converter 10G Media Converter
This product is a high-performance 10G photoelectric converter, which uses optical-electric conversion to achieve balanced amplification of optical signals, clock extraction and optical regeneration, and adopts WDM (DWDM / CWDM) technology, which can realize one or more channels on a single fiber Long-distance transmission of optical signals. The 10G mini Ethernet optical-to-electrical converter is designed by our company for big data and high-speed digital broadband networks. It is mainly used for metropolitan optical fiber digital broadband network upgrade and expansion, and large-capacity server data transmission. The product provides high-quality, high-reliability, high-bandwidth, and low-price design ideas to provide users with sufficient bandwidth, stable performance, and powerful network solutions.
Read More

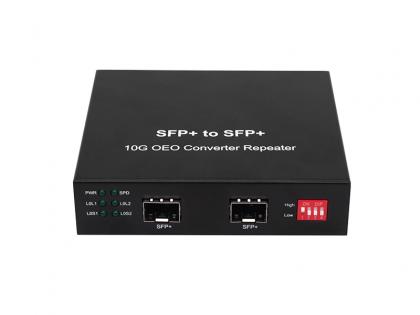

SFP+ 10G media converter 10G SFP+ Converter
