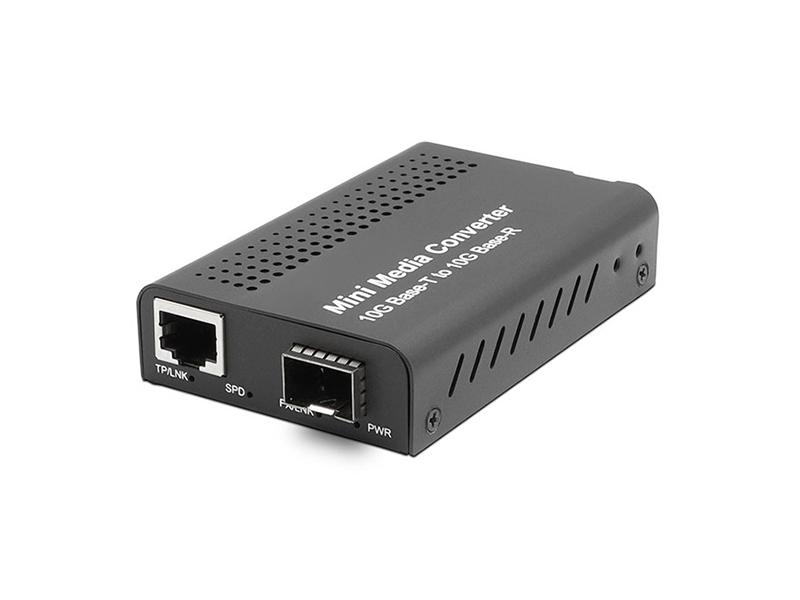

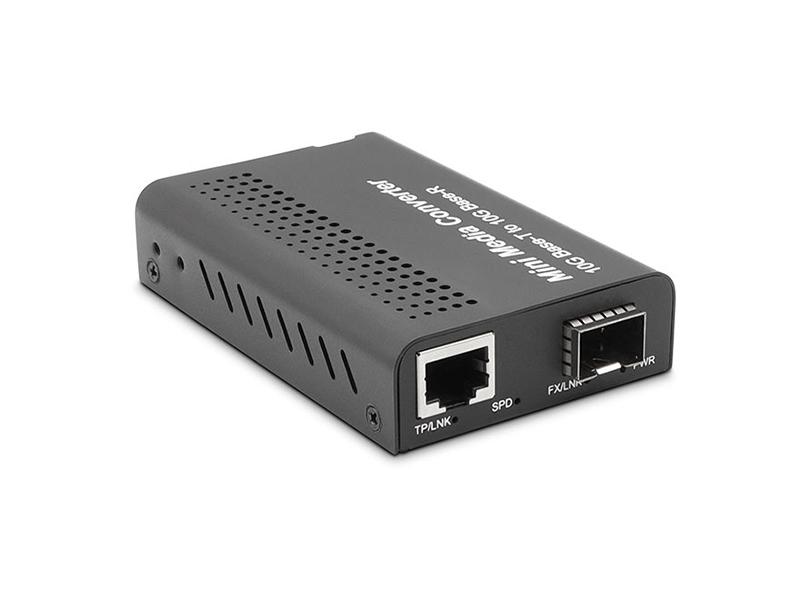

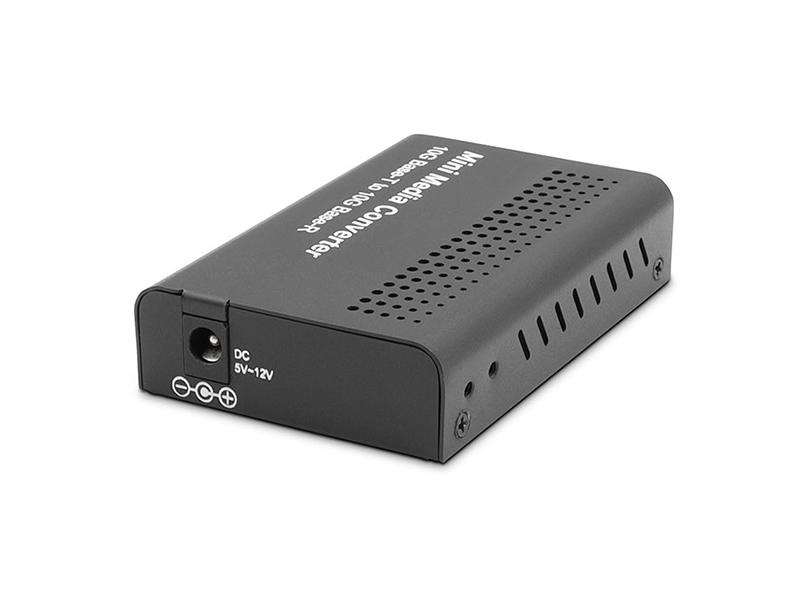

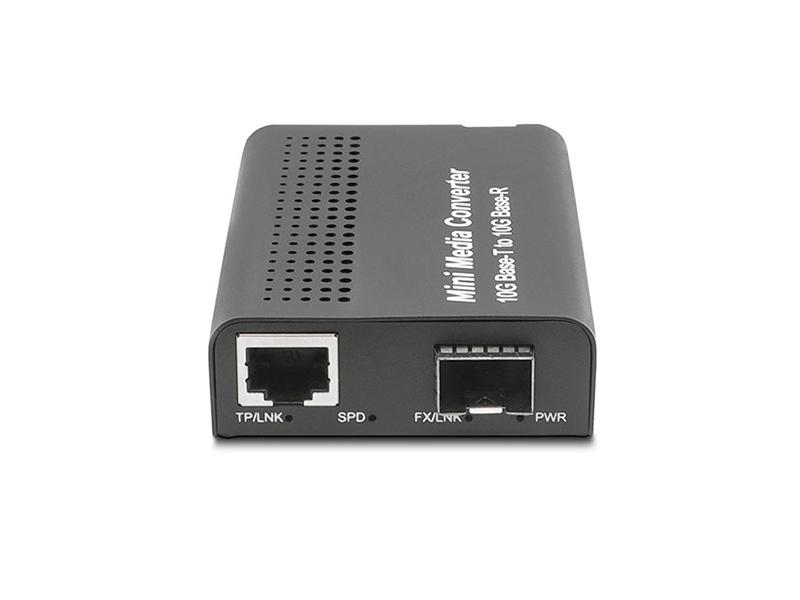

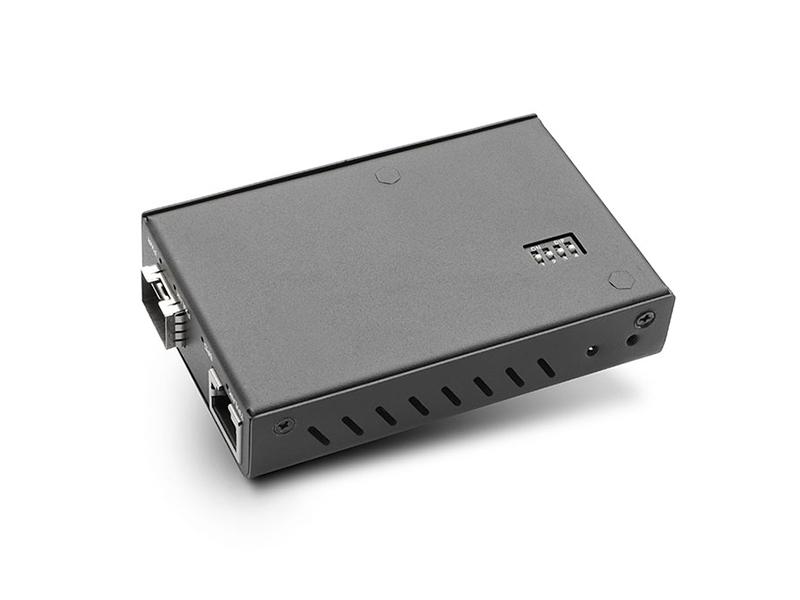

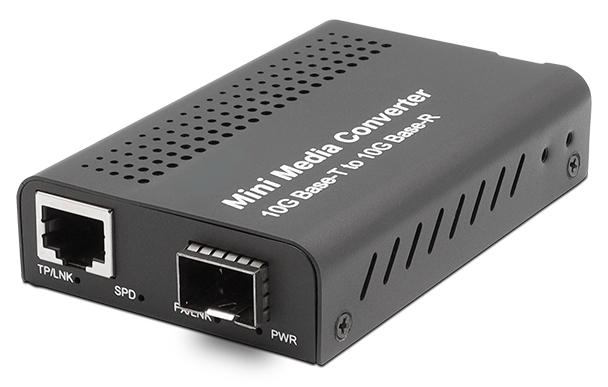

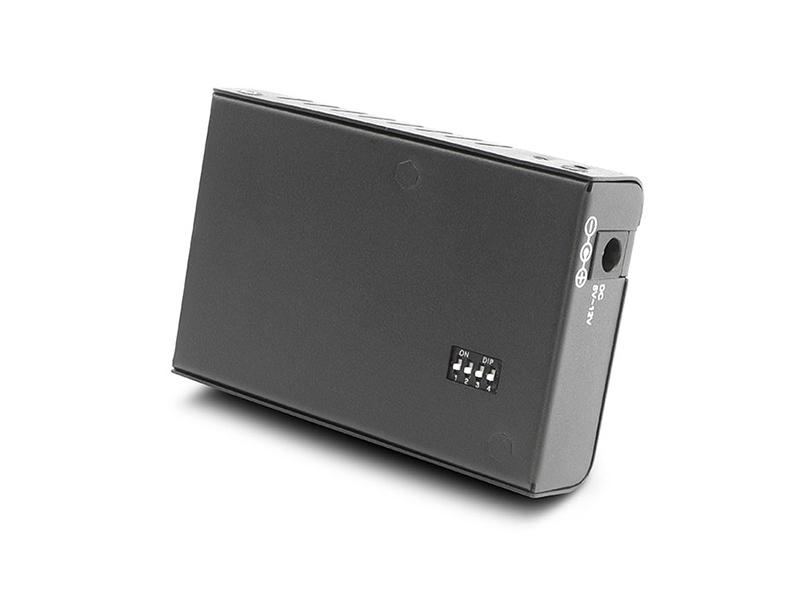

10G Media Converter

Functional characteristics 10/100/1000 Mbps adaptive RJ45 port One upper port is a 1000Mbps SFP fiber port Automatic port flipping (Auto MDI/MDIX) Flow control mode: full duplex adopts IEEE 802.3x standard, half duplex adopts Back pressure standard complies with IEEE 802.310Base-T and IEEE 802.3u 100/1000Base-TX standards The store-and-forward switching mechanism is adopted Line speeds are available in the range of 64 to 9000 frame lengths

Functional characteristics 10/100/1000 Mbps adaptive RJ45 port One upper port is a 1000Mbps SFP fiber port Automatic port flipping (Auto MDI/MDIX) Flow control mode: full duplex adopts IEEE 802.3x standard, half duplex adopts Back pressure standard complies with IEEE 802.310Base-T and IEEE 802.3u 100/1000Base-TX standards The store-and-forward switching mechanism is adopted Line speeds are available in the range of 64 to 9000 frame lengths

Functional characteristics 10/100 Mbps adaptive RJ45 port One upper port is a 100Mbps SFP fiber port Automatic port flipping (Auto MDI/MDIX) Flow control mode: full duplex adopts IEEE 802.3x standard, half duplex adopts Back pressure standard complies with IEEE 802.310Base-T and IEEE 802.3u 100/1000Base-TX standards The store-and-forward switching mechanism is adopted

10G Converter is connection between fiber to fiber 10Gbps equipment function as fiber media converter ,or as fiber repeater for long distance transmission.OEO for network backbone(SAN, LAN, MAN). Support SDH/SONET STM-64/OC-192，10G fiber channel，10G Ethernet etc. Can be applied in Telecommunication room, R&D laboratory, Data center, and etc. 1310nm /1550nm/CWDM/DWDM Optical Wavelength Conversion.

Product Features   Low insertion loss, wide wavelength range Low channel crosstalk, high stability, and high reliability Maintains optical path when power is off Internal circuit design with self-diagnostic fault detection Simple control method, compact size, easy to integrate into systems

Features: Support multi protocol from 9.95Gb/s to 11.3Gb/s Hot pluggable 30 pin connector Compliant with XFP MSA Transmission distance of 40km over single mode fiber DWDM EML laser transmitter 100GHz ITU Grid, C Band Duplex LC connector 2-wire interface for management and diagnostic monitor XFI electrical interface with AC coupling Power supply voltages: +3.3V, +5V Temperature range 0°C to 70°C Power dissipation: <3.5W RoHS Compliant Part Applications: 10GBASE-ER/EW Ethernet SONET OC-192 /SDH 40km 10G FC DWDM Networks Transceiver Types:

10G  ER SFP+ optical transceiver module, support 10Gb/s and up to 40km transmission, It works in high-speed IDC connection solutions, 5G network front-haul solution, network switch, PTN, OTN, SONET OC-192 / SDH, 10G Fibre Channel and so on. Features Supports 9.95 to 11.3Gb/s bit rates Hot-Pluggable Duplex LC connector 1550nm cooled EML transmitter, PIN photo-detector SMF links up to 40km 2-wire interface for management specifications compliant with SFF 8472 digital diagnostic monitoring interface Power Supply :+3.3V Power consumption<1.5W Temperature Range: (Commercial) 0°C~ 70°C /(Industrial)-40°C~85°C RoHS compliant

Product Features The board supports two channels of 2*100G to 200G coherent transmission, enabling dual 200G line-side transmission. It has adjustable wavelengths and supports a maximum of two channels of 200G with 75GHz * 64 waves or 200G with 100GHz * 48 waves. It features flexible coherent modulation technologies: DP-16QAM, DP-8QAM, DP-QPSK. It incorporates various FEC error correction technologies: oFEC, CFEC, SCFEC, SDFEC. It supports flexible service access functions: 100GE, 100GE KR4, OTU4, and 100G FlexE. It provides comprehensive performance monitoring and statistical functions. It supports Ethernet RMON performance statistics, DM delay and PRBS detection functions, and OTN PM and SM performance statistics. It supports high-precision real-time monitoring of board temperature, voltage, current, and power consumption. On the client side, it supports various module interface types: 100GSR4/CWDM4/LR4/PSM4. It supports a unified network management platform with SNMP, CLI, Web, NMS (graphical interface), and Netconf Yang model interfaces.
