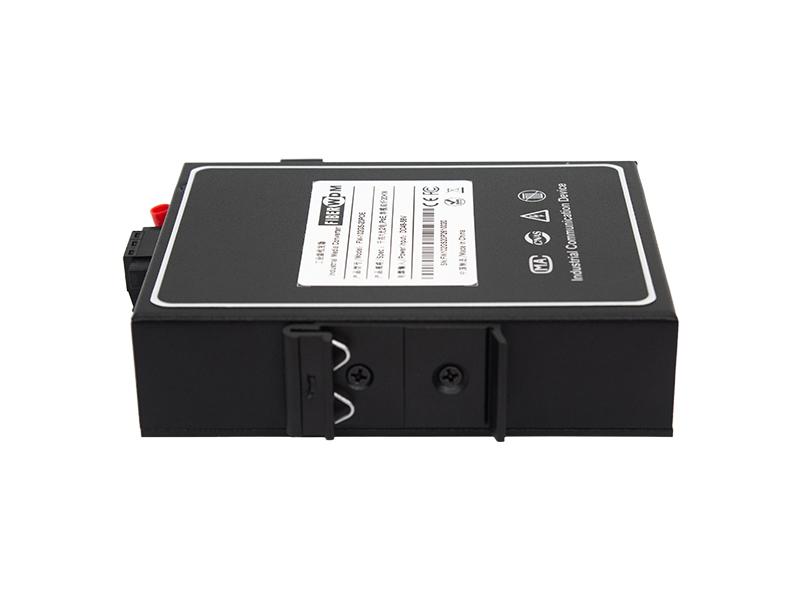

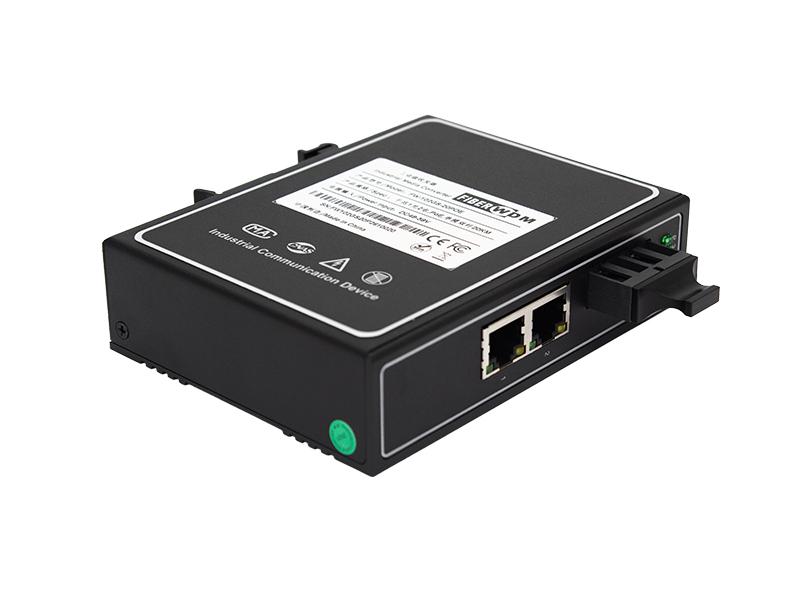

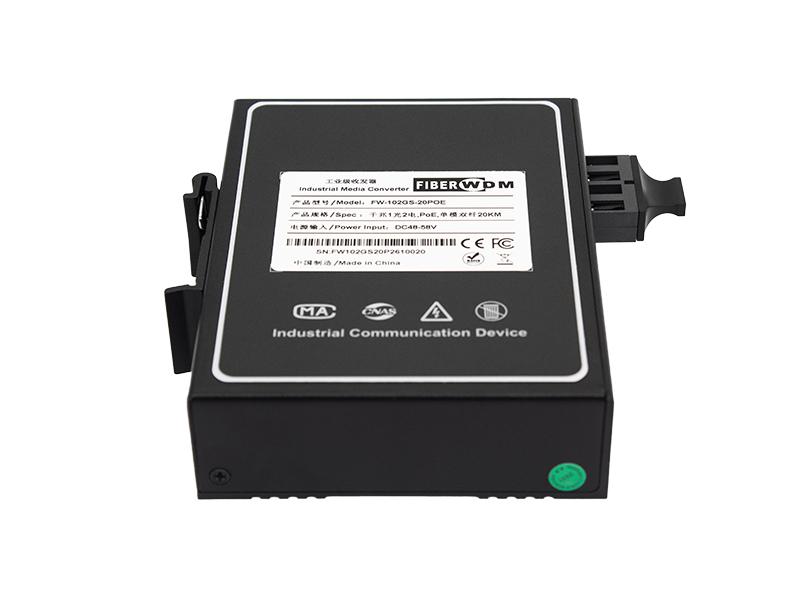

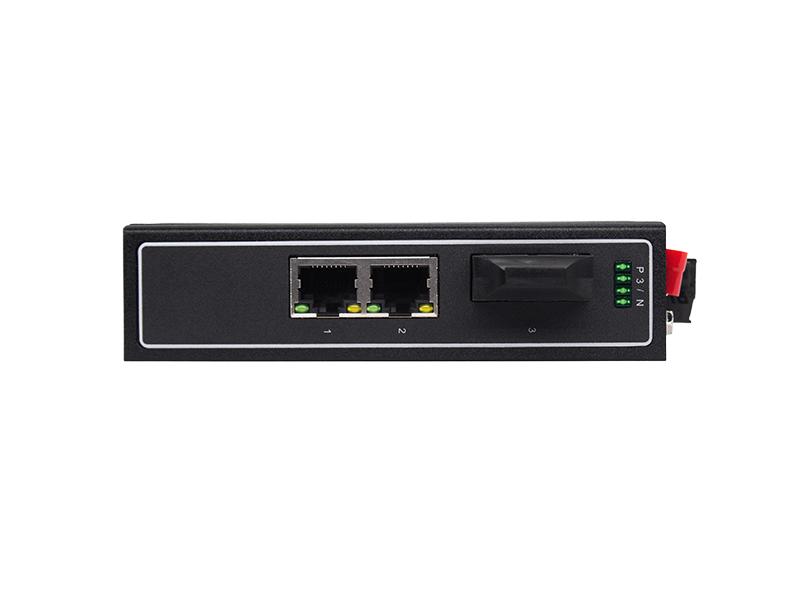

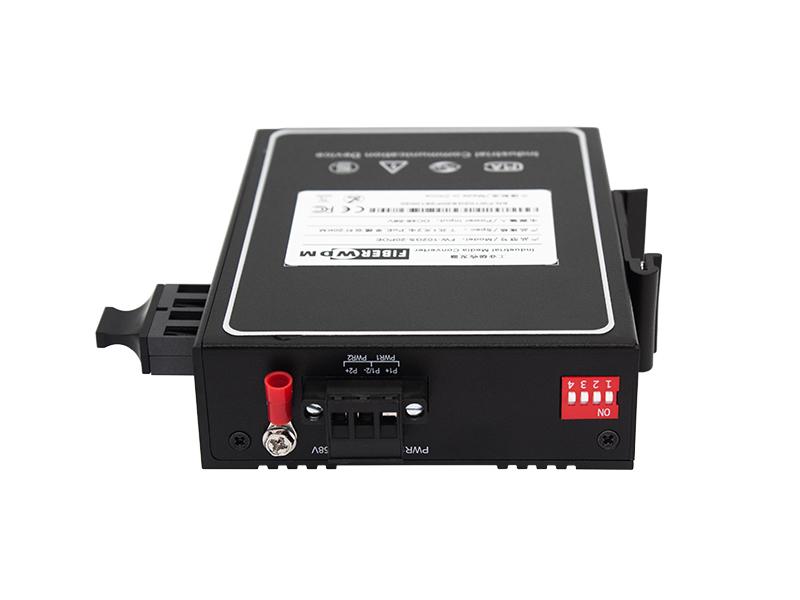

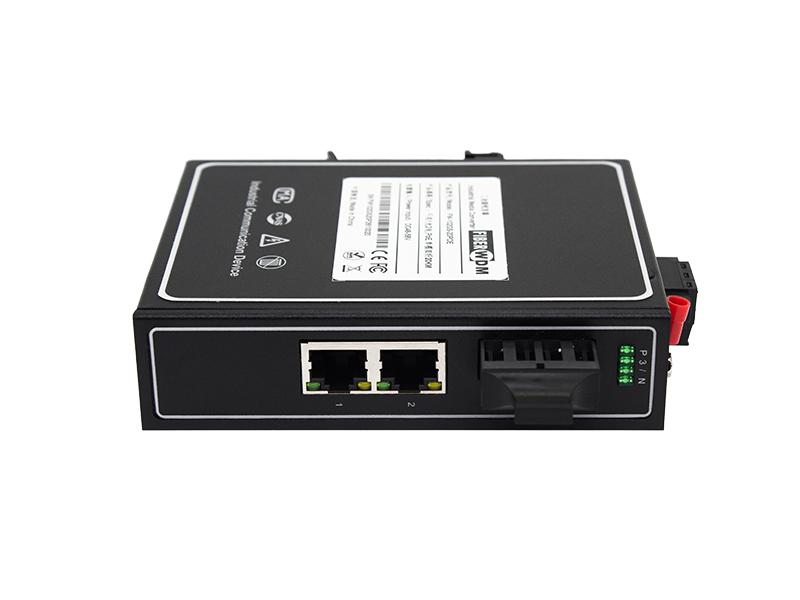

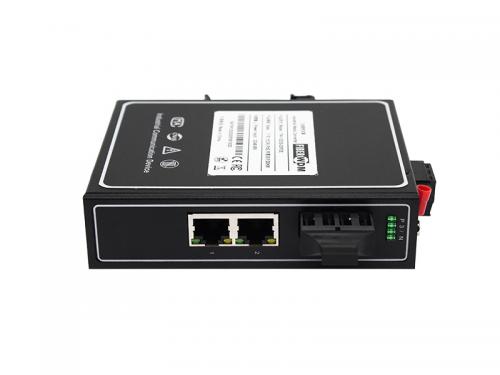

Non-Managed Industrial Ethernet Media Converter with PoE, 2-Port Gigabit Ethernet

Functional characteristics 10/100/1000 Mbps adaptive RJ45 port One upper port is a 1000Mbps SFP fiber port Automatic port flipping (Auto MDI/MDIX) Flow control mode: full duplex adopts IEEE 802.3x standard, half duplex adopts Back pressure standard complies with IEEE 802.310Base-T and IEEE 802.3u 100/1000Base-TX standards The store-and-forward switching mechanism is adopted Line speeds are available in the range of 64 to 9000 frame lengths

Functional characteristics 10/100/1000 Mbps adaptive RJ45 port One upper port is a 1000Mbps SFP fiber port Automatic port flipping (Auto MDI/MDIX) Flow control mode: full duplex adopts IEEE 802.3x standard, half duplex adopts Back pressure standard complies with IEEE 802.310Base-T and IEEE 802.3u 100/1000Base-TX standards The store-and-forward switching mechanism is adopted Line speeds are available in the range of 64 to 9000 frame lengths

Functional characteristics 10/100 Mbps adaptive RJ45 port One upper port is a 100Mbps SFP fiber port Automatic port flipping (Auto MDI/MDIX) Flow control mode: full duplex adopts IEEE 802.3x standard, half duplex adopts Back pressure standard complies with IEEE 802.310Base-T and IEEE 802.3u 100/1000Base-TX standards The store-and-forward switching mechanism is adopted

This product is a high-performance 10G photoelectric converter, which uses optical-electric conversion to achieve balanced amplification of optical signals, clock extraction and optical regeneration, and adopts WDM (DWDM / CWDM) technology, which can realize one or more channels on a single fiber Long-distance transmission of optical signals. The 10G mini Ethernet optical-to-electrical converter is designed by our company for big data and high-speed digital broadband networks. It is mainly used for metropolitan optical fiber digital broadband network upgrade and expansion, and large-capacity server data transmission. The product provides high-quality, high-reliability, high-bandwidth, and low-price design ideas to provide users with sufficient bandwidth, stable performance, and powerful network solutions.

10G Converter is connection between fiber to fiber 10Gbps equipment function as fiber media converter ,or as fiber repeater for long distance transmission.OEO for network backbone(SAN, LAN, MAN). Support SDH/SONET STM-64/OC-192，10G fiber channel，10G Ethernet etc. Can be applied in Telecommunication room, R&D laboratory, Data center, and etc. 1310nm /1550nm/CWDM/DWDM Optical Wavelength Conversion.

Features:                                               Up to 1.25Gb/s Data Links Hot-Pluggable Single LC connector Up to 180km on 9/125μm SMF 1550nm DFB laser transmitter APD Receiver Single +3.3V Power Supply Monitoring Interface Compliant with SFF-8472 Power dissipation<1.5W operating temperature range: 0°C to 70°C  RoHS compliant and Lead Free Applications: 1000Base-ZX Ethernet Metro/Access Networks 1×Fibre Channel Other Optical Links

10G  LR SFP+ optical transceiver module, support 10Gb/s and up to 10km transmission, It works in high-speed IDC connection solutions, 5G network front-haul solution, network switch, PTN, OTN, SONET OC-192 / SDH, 10G Fibre Channel and so on. Features Supports 9.95 to 11.3Gb/s bit rates Hot-Pluggable Duplex LC connector 1310nmDFBtransmitter, PIN photo-detector SMF links up to10km 2-wire interface for management specifications compliant with SFF 8472 digital diagnostic monitoring interface Power Supply :+3.3V Power consumption<1.5W Temperature Range: (Commercial)0°C to +70° (Industrial) -40°C to +85°C RoHS compliant

The 12PIN mini single-channel optical module is designed for optical backplane transmission, digital radar arrays, Ethernet/SONET/SDH/FC, and switches. It features a 12PIN pin header with an I2C management interface and optimized signal pin design. It operates at wavelengths of 850nm/1310nm/1550nm, with a temperature range of -40°C to +85°C, supporting rates from 1.25Gbps to 10.3125Gbps.
