32chanenls WDMUX OTDR 1625/1650 and FTTH DATA
32chanenls WDMUX OTDR 1625/1650 and FTTH DATA 32chanenls WDMUX OTDR 1625/1650 and FTTH DATA 32chanenls WDMUX OTDR 1625/1650 and FTTH DATA 32chanenls WDMUX OTDR 1625/1650 and FTTH DATA 32chanenls WDMUX OTDR 1625/1650 and FTTH DATA 32chanenls WDMUX OTDR 1625/1650 and FTTH DATA 32chanenls WDMUX OTDR 1625/1650 and FTTH DATA

32chanenls WDMUX OTDR 1625/1650 and FTTH DATA

  • Wide bandwidth
  • Low insertion loss
  • High channel isolation
  • Exceptional reliability and stability
Inquire now Download
  • Product Detail

32chanenls WDMUX OTDR 1625/1650 and FTTH DATA



1310/1490/1550,LC/UPC



32chanenls WDMUX OTDR

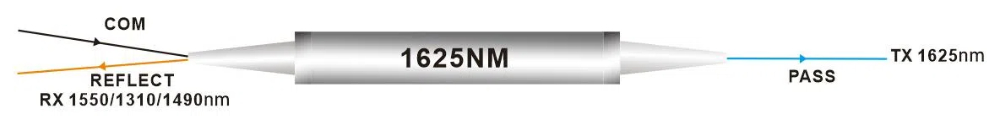

FIBERWDM Provide FWDM TX 1625nm RX 1310/1490/1550nm is low loss and reliable performances.

It works in Optical Fiber Cable Line Monitoring System, OTDR.



32chanenls WDMUX OTDR



Features

u Wide bandwidth

u Low insertion loss

u High channel isolation

u Exceptional reliability and stability

Applications

u Optical amplifiers

u CATV

u OTDR

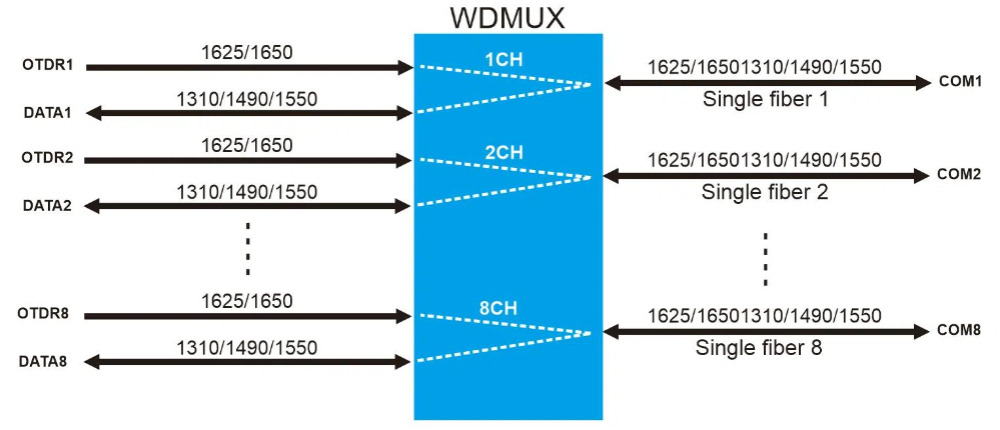

Line Link

32chanenls WDMUX OTDR

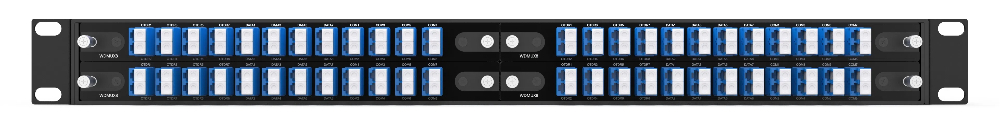

Product Panel

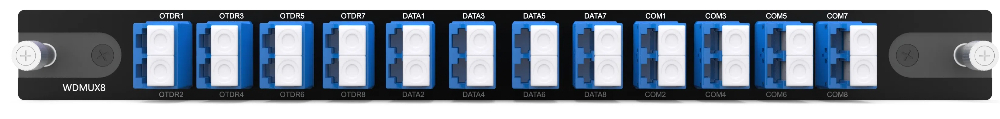

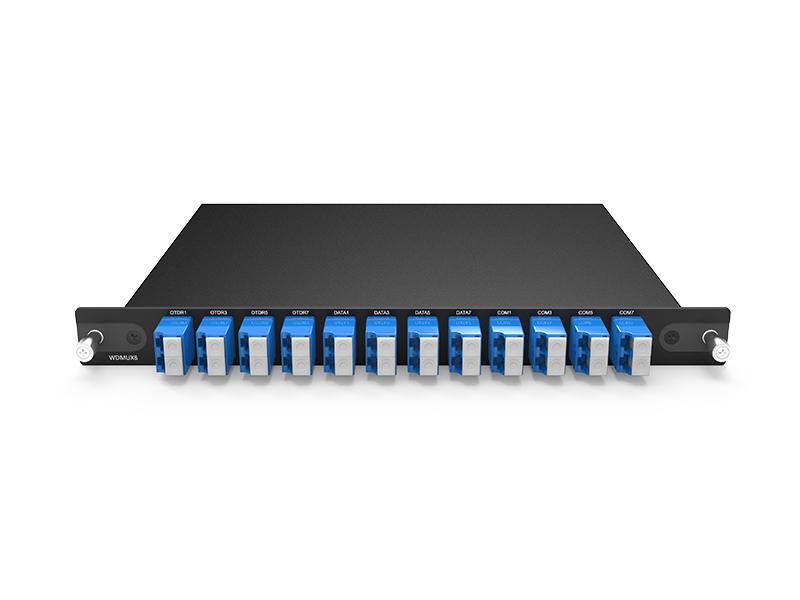

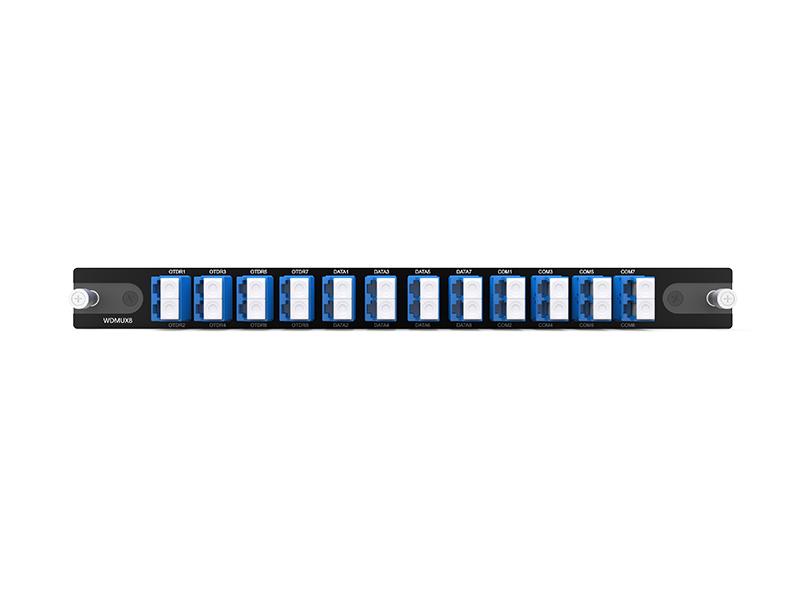

8CH WDMUX Plug-in LGX Module



8CH WDMUX Plug-in LGX Module

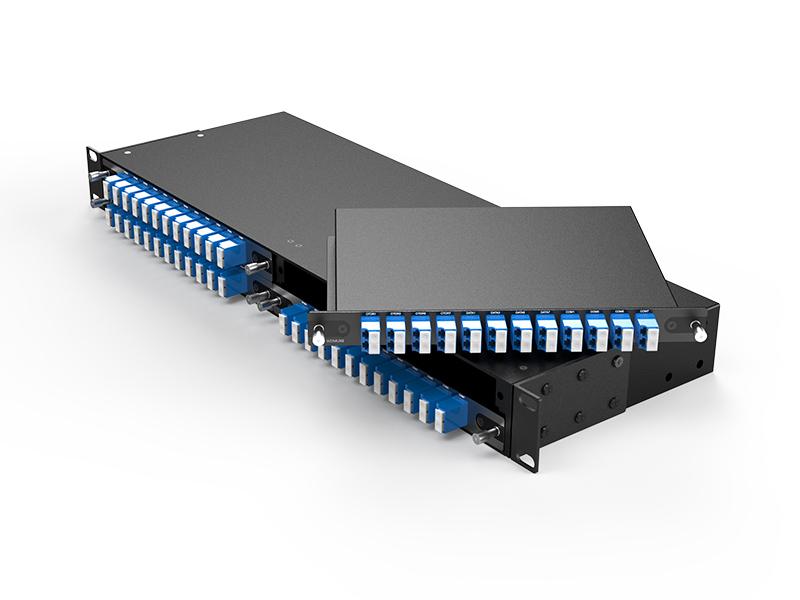

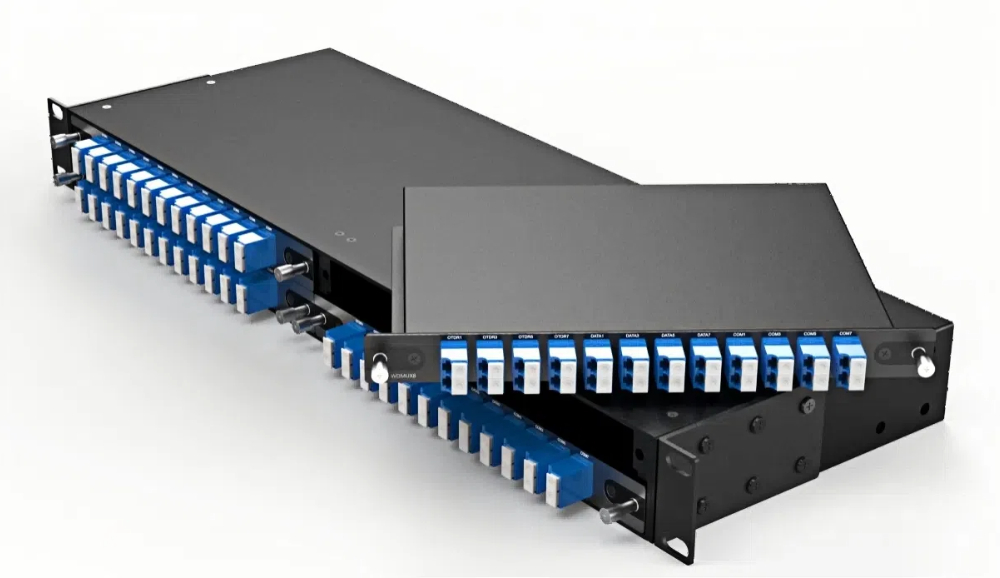

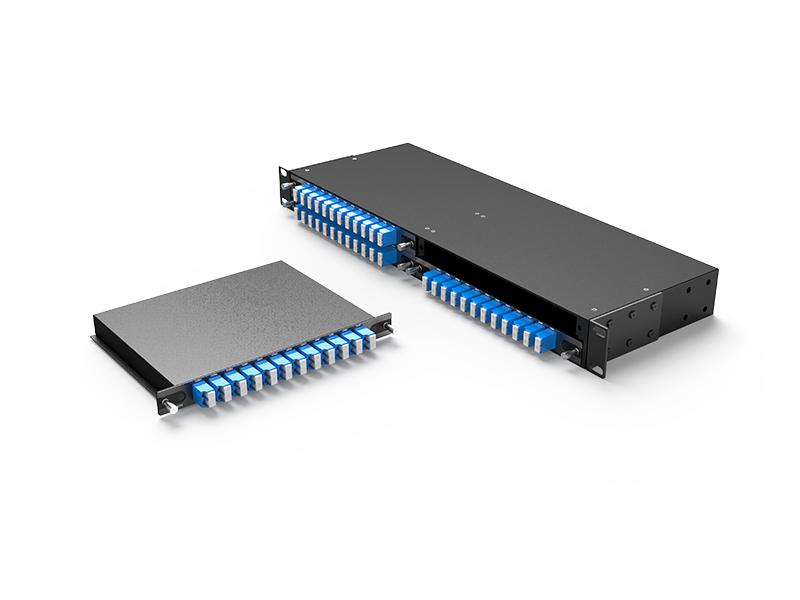

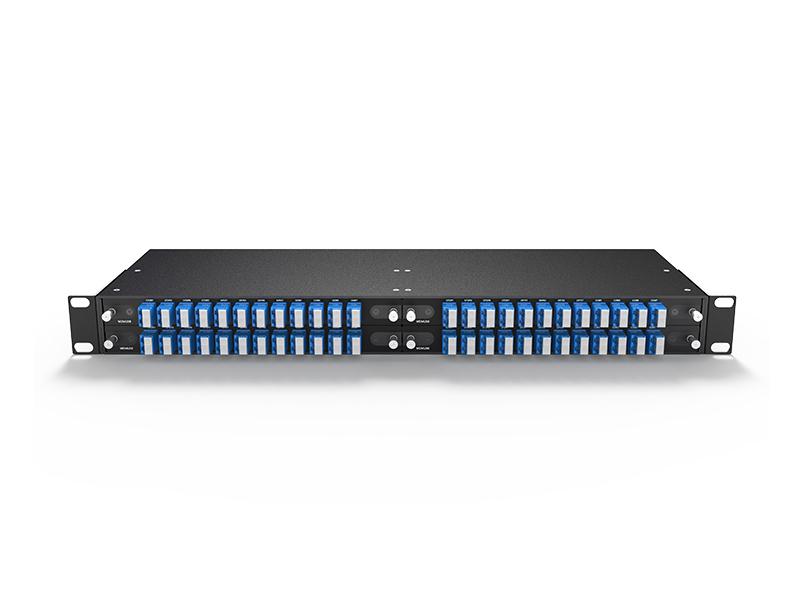

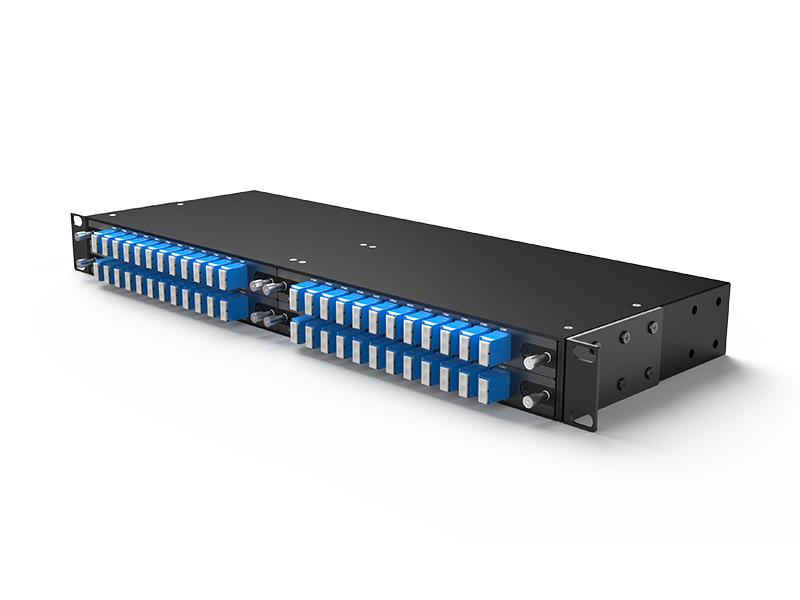

4slos 1U Rack for holding 4pcs LGX Module, up to 32ch WDMUX

4slos 1U Rack for holding 4pcs LGX Module, up to 32ch WDMUX



Specifications



Wavelength

TX1625/1650nm RX1310/1490/1550nm

Technology

TFF (Thin Film Filter)

Passband

1600~1670nm

Reflection

1260~1580

Passband ripple

≤0.30dB

IL @ Passband

≤0.80dB

Reflection band ripple

≤0.20dB

IL @ Reflection

≤0.60dB

Transmission isolation (adj channel)

≥30dB

Transmission isolation (non-adj channel)

≥50dB

Reflection isolation

≥15dB

Polarization dependent loss

≤0.1dB

Polarization mode dispersion

≤0.2ps

Thermal Stability

≤0.005N

Directivity

≥50dB

Return loss

≥45dB

Optical power handling

≤500mW

Temperature

Operating -40 to 85°C

Storage  -40 to 85°C

Net Weight

LGX BOX  0.5KG

4Slot 1u Rack 1.5KG

Package dimension

LGX Module 214.5*20*150mm

1U Rack  440*40*160nm

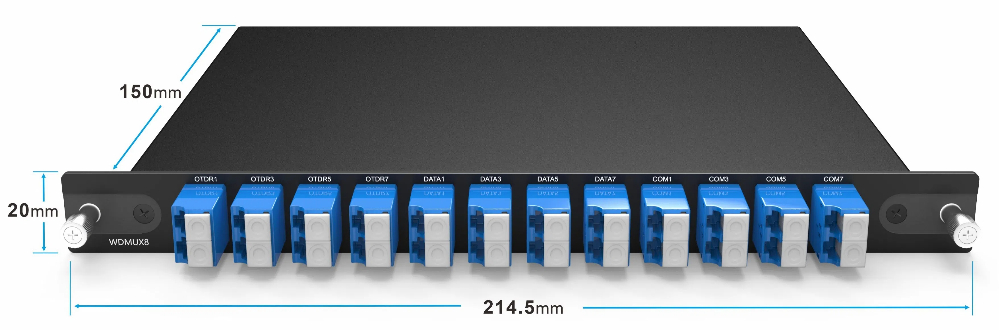

Dimensions drawing（mm）



Plug-in LGX Module

Plug-in LGX Module

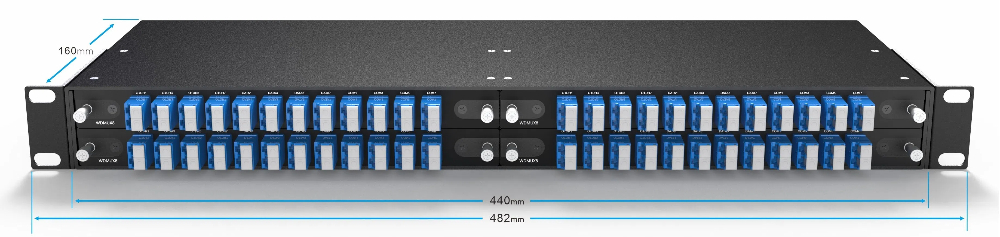

4slots 1U Rack for holding LGX Module

4slots 1U Rack for holding LGX Module



Ordering information



Part No.

Specifications

WDMUX8

8chanenls WDMUX OTDR 1625/1650 and FTTH DATA 1310/1490/1550,LC/UPC Plug-in LGX Module

1U02-4LGX

19”inch 1U rack with 4 slot for Plug-in LGX box, 440*160*44mm
