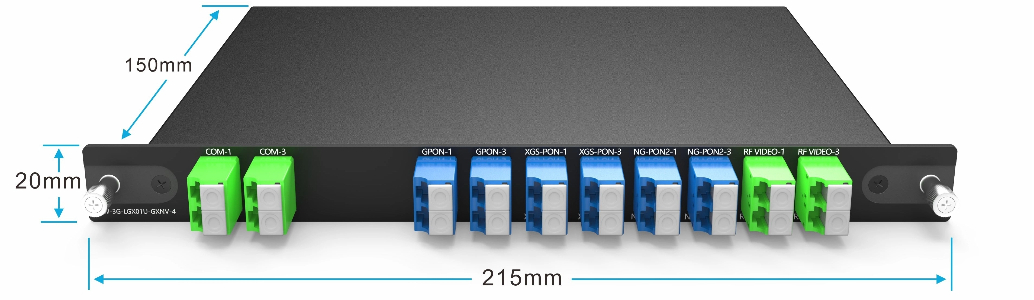

4CH WDM GPON XGS-PON NG-PON2 And RF Video Plug-in LGX Box 215*150*20MM

4CH WDM GPON XGS-PON NG-PON2 And RF Video Plug-in LGX Box 215*150*20MM

FW-3G-LGX02-GXNV

GPON (Gigabit-Capable Passive Optical Network)

GPON has key features: downstream rates up to 2.5Gbps, upstream up to 1.25Gbps, and split ratios of 1:16 to 1:128. It uses WDM to transmit video, data, and voice simultaneously over a single fiber. For applications, it is ideal for reliable home broadband (widely in residential areas) and also used in enterprise networks and smart cities, offering a cost-effective high-speed data solution.

XGS-PON (10G Symmetric PON)

XGS-PON supports symmetrical 10Gbps uplink/downlink rates, split ratios of 1:16 to 1:256, and uses Time and Wavelength Division Multiplexing (TWDM) to coexist with GPON on the same fiber. It is for applications needing high-bandwidth symmetrical transmission—such as enterprise networks, data center interconnection, and 5G fronthaul—and is particularly useful in scenarios requiring both high-speed data and low-latency services.

NG-PON2 (Next-Generation PON2)

NG-PON2 leverages WDM technology to create up to eight wavelength-separated PON trees on a single fiber, supports 10Gbps uplink/downlink rates and 1:16 to 1:256 split ratios, and is compatible with TWDM-PON and point-to-point WDM-PON for diverse use cases. It is ideal for enterprise networks, mobile backhaul/fronthaul, and scenarios needing high bandwidth and flexible wavelength allocation, while also future-proofing networks for emerging tech like 5G and IoT.

RF Video

Features: RF Video technology allows the transmission of analog video signals over fiber, enabling the delivery of high-quality video content. It is often used in conjunction with PON technologies to provide integrated video services.

Application Scenarios: RF Video is commonly used in cable TV networks, video-on-demand services, and other applications where high-quality video delivery is essential. It can be seamlessly integrated with PON networks to offer a comprehensive solution for both data and video services.

Advantages

• Bandwidth Increase: By adding wavelength channels, the transmission bandwidth of the fiber is significantly increased.
• Cost-Effective: It increases network capacity without adding extra fibers, reducing deployment costs.
• Flexibility: It supports the coexistence of multiple PON technologies, such as GPON, XGS-PON, NG-PON2, RF Video

Application

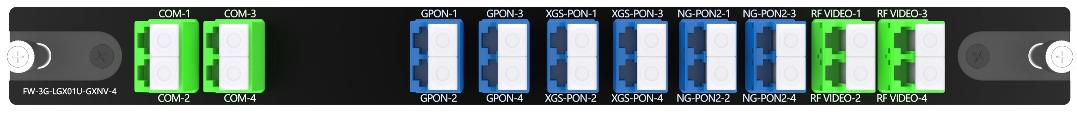

Product Panel

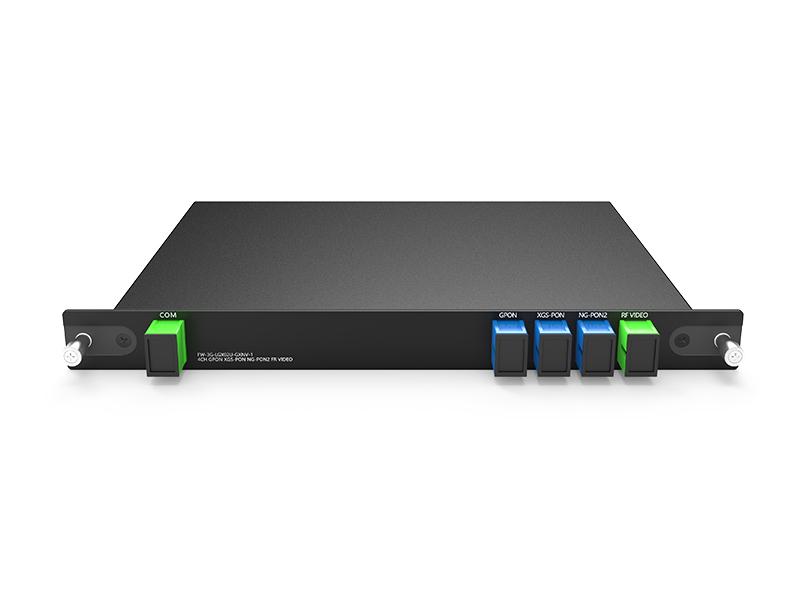

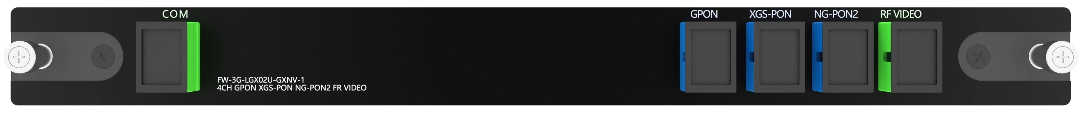

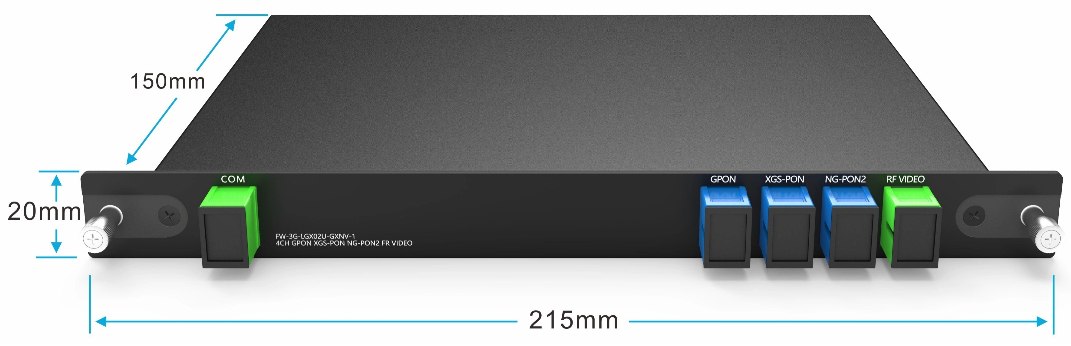

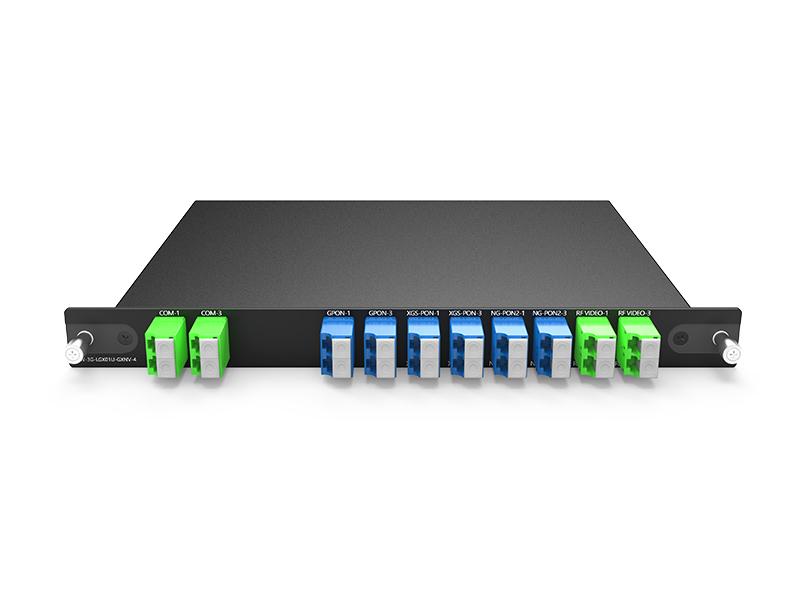

4CH WDM GPON XGS-PON NG-PON2 And RF Video，PON SC/UPC, COM RF Video SC/APC Plug-in LGX Box 215*150*20MM

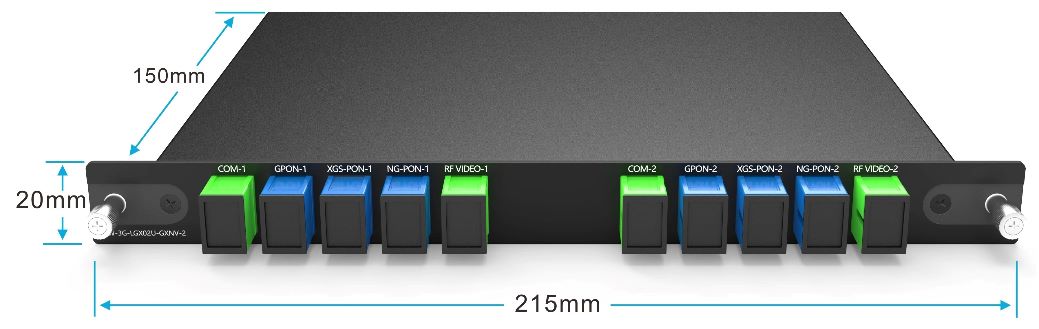

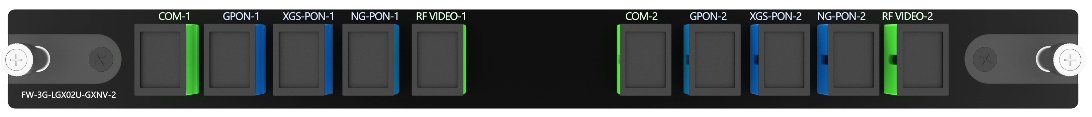

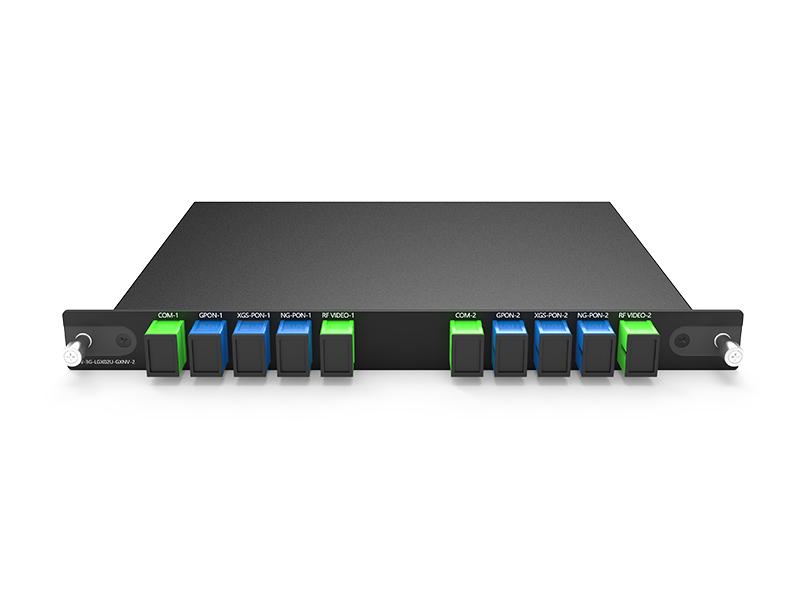

2X4CH WDM GPON XGS-PON NG-PON2 And RF Video，PON SC/UPC, COM RF Video SC/APC Plug-in LGX Box 215*150*20MM

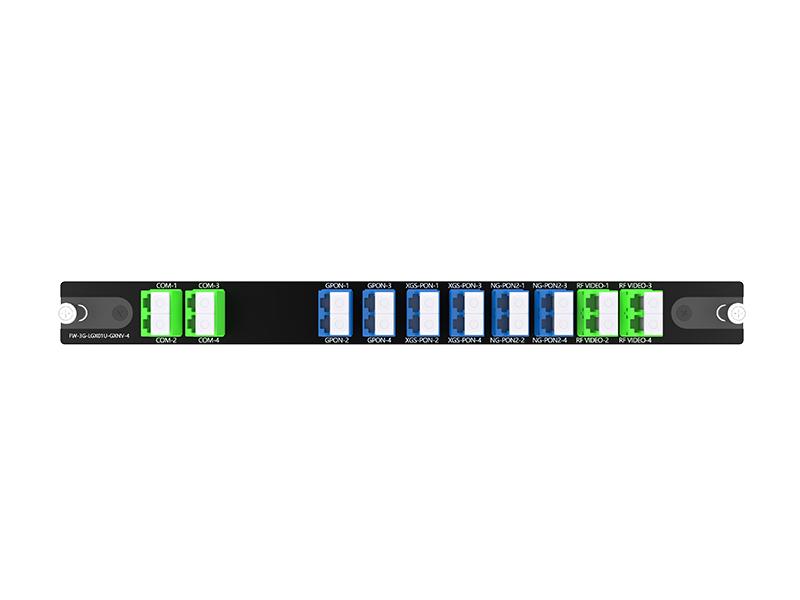

4X4CH WDM GPON XGS-PON NG-PON2 And RF Video，PON LC/UPC, COM RF Video LC/APC Plug-in LGX Box 215*150*20MM

Specifications

Package Information

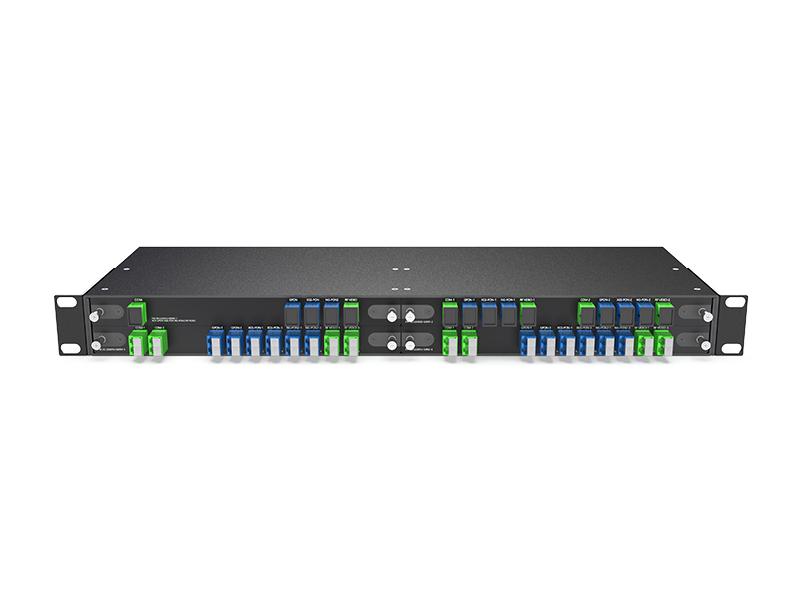

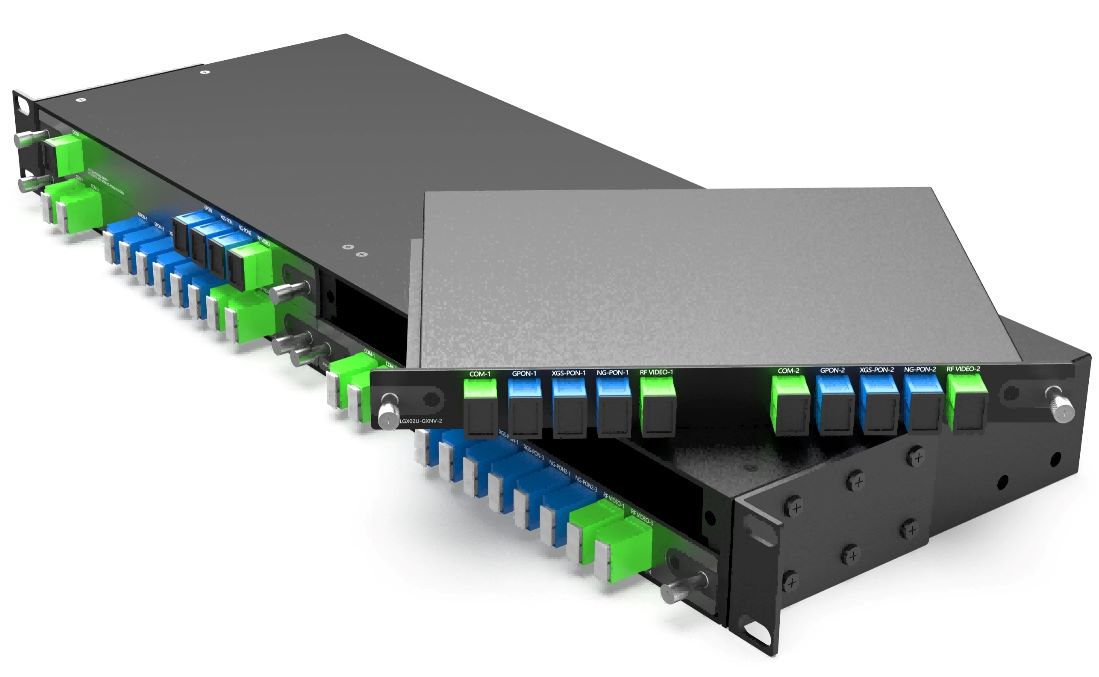

LGX BOX Plug in 4-Slot 1U Rack

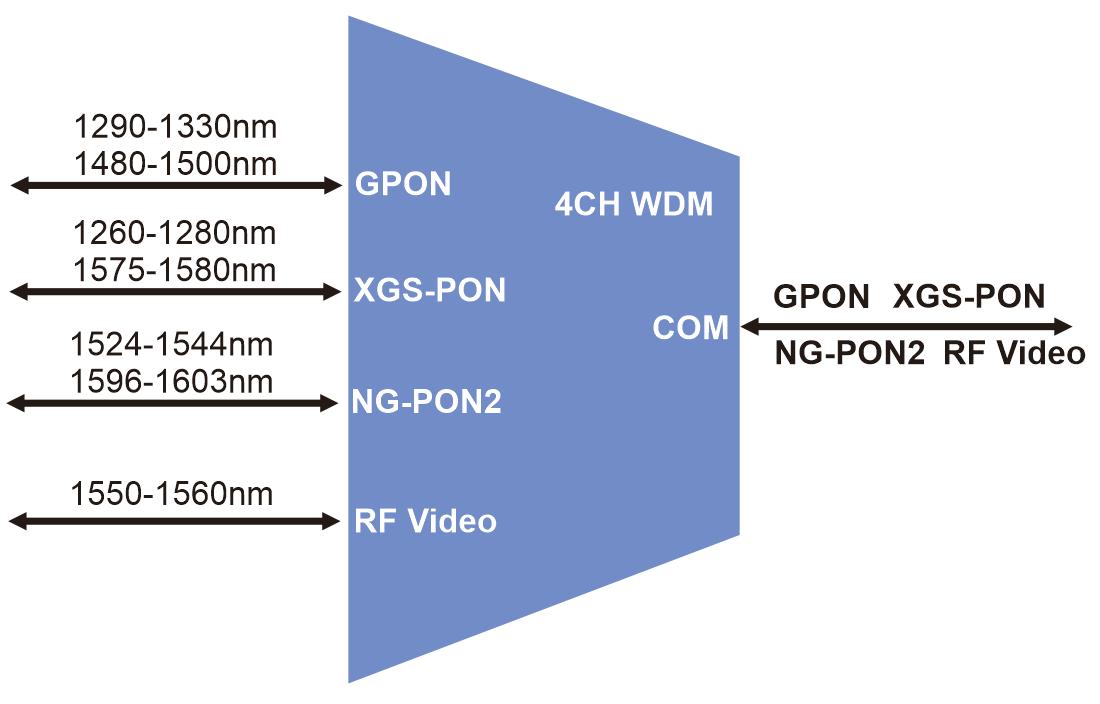

4CH WDM

2x4CH WDM

4x4CH WDM

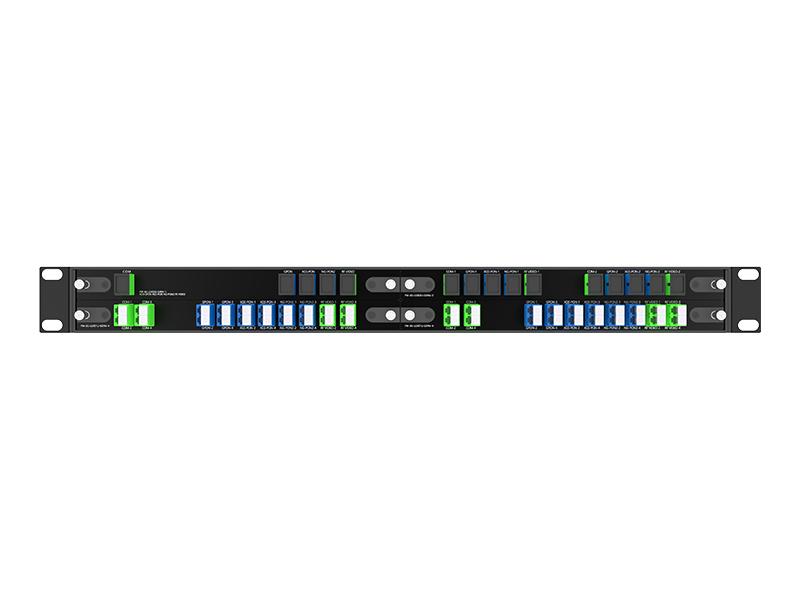

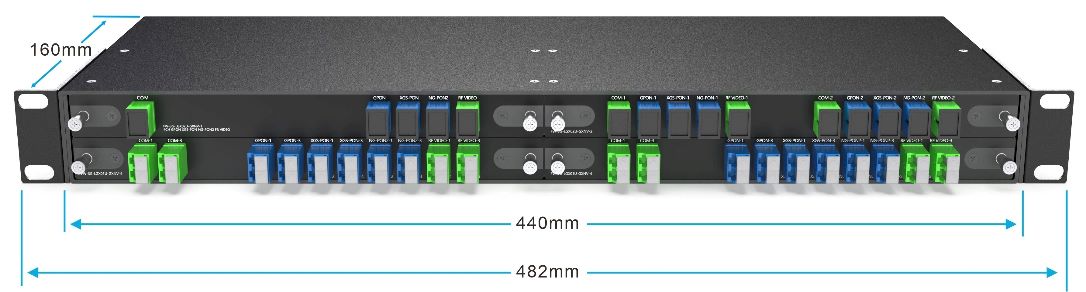

4-Slot 1U Rack for LGX BOX

Order Information

Note: We Support Customized Design, please contact us by email.
