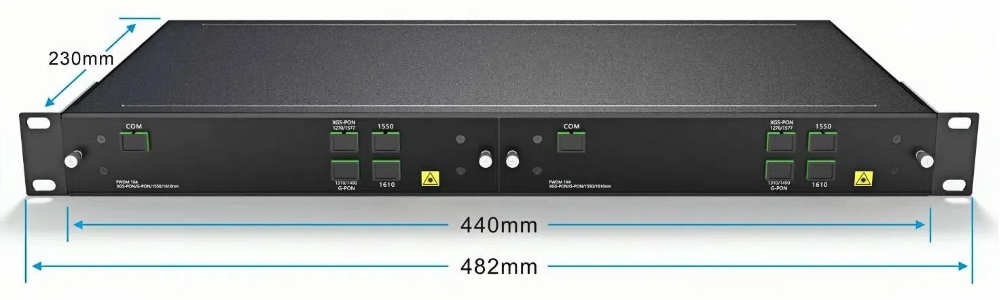

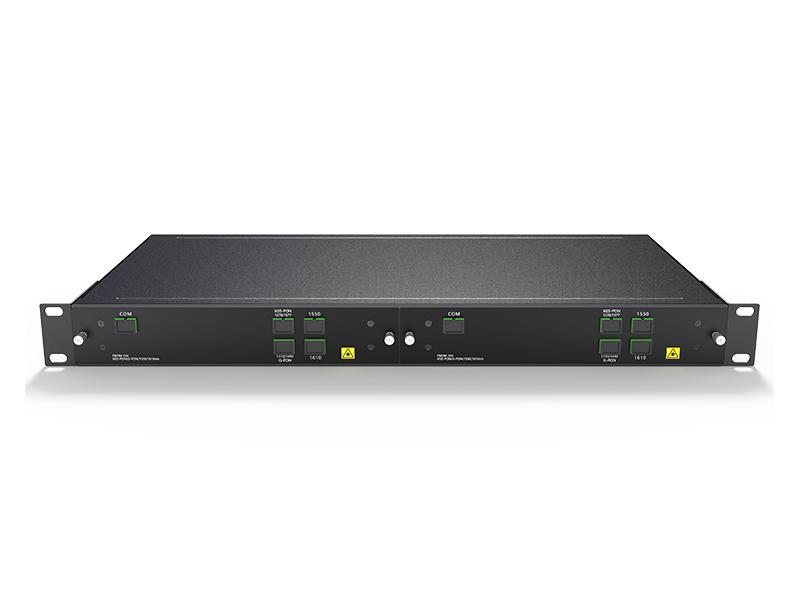

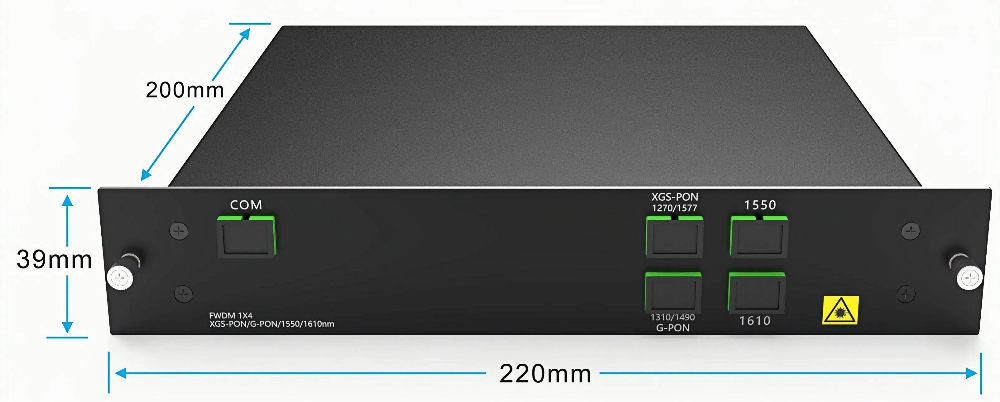

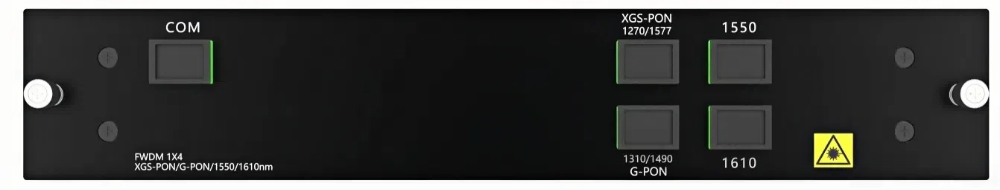

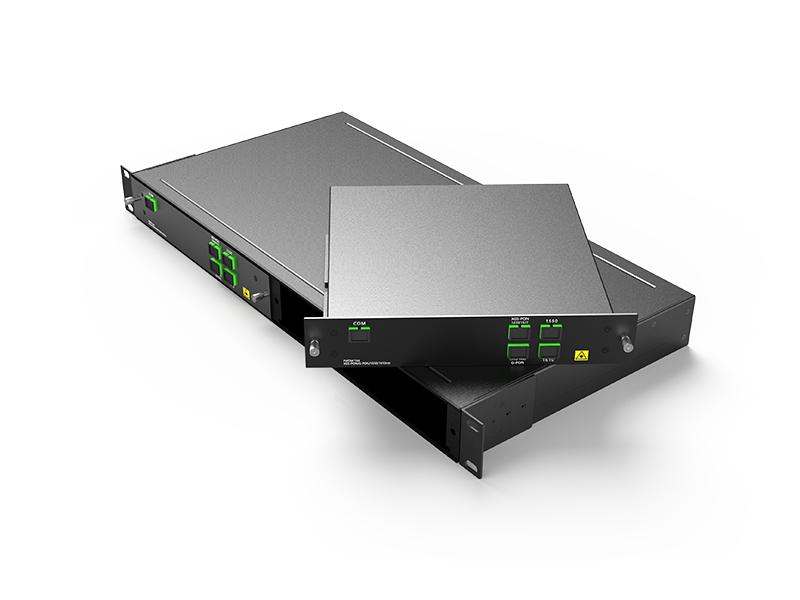

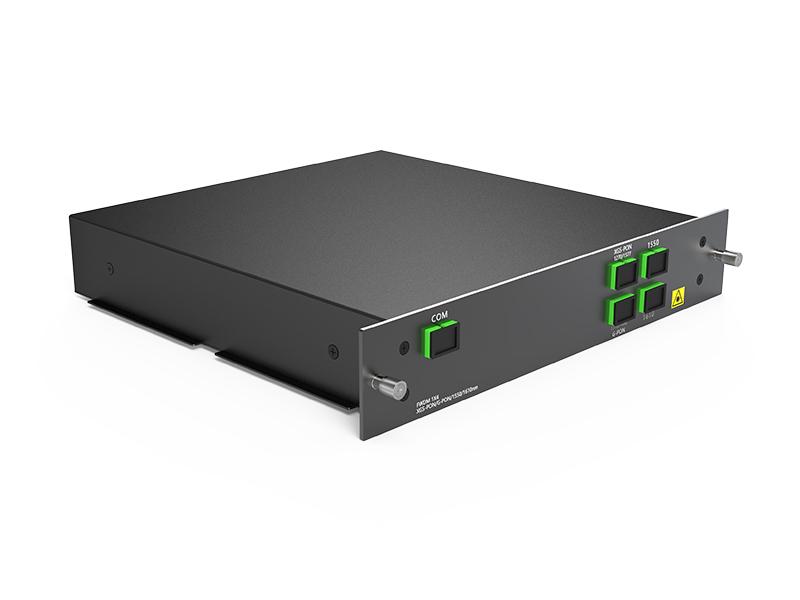

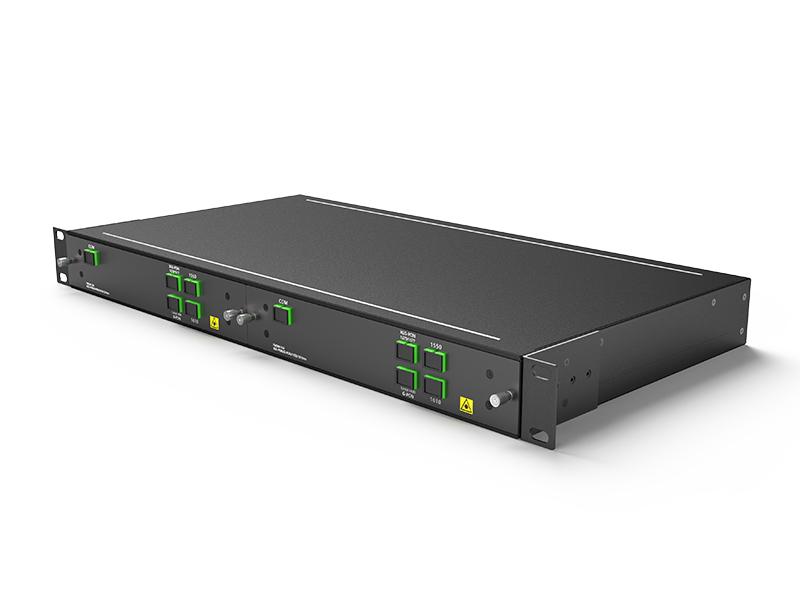

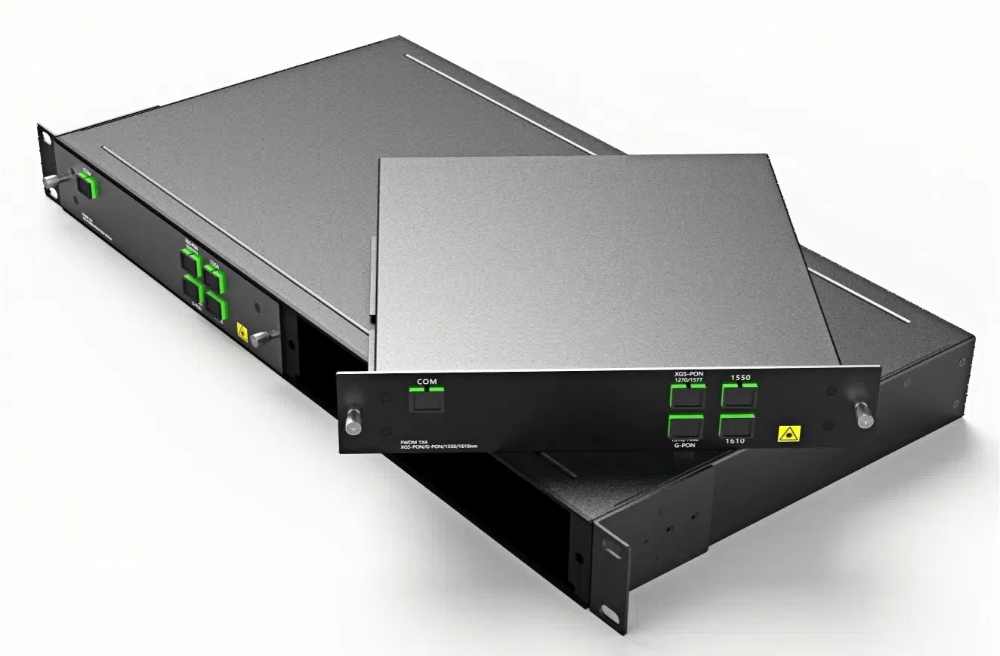

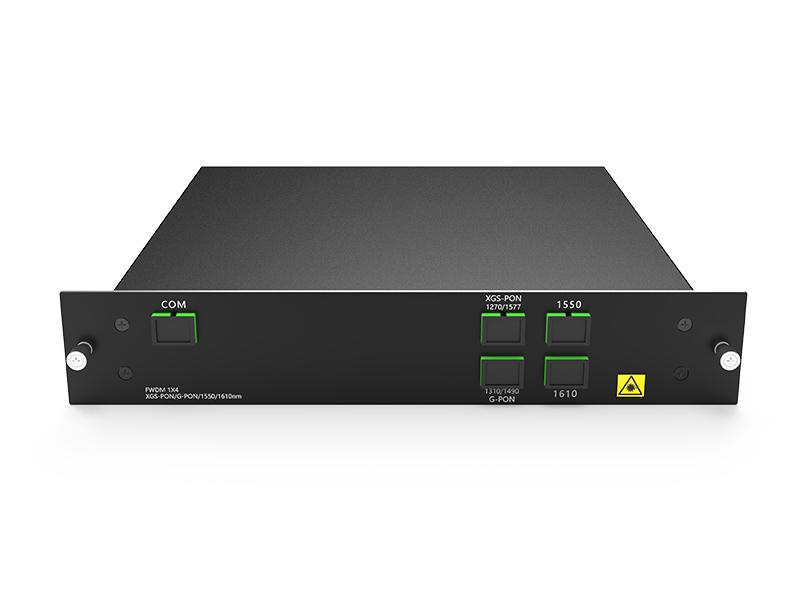

FWDM 1X4 MUX G-PON 1310/1490 & XGS-PON 1270/1577 &1550/1610nm SC/APC LGX Box

Single channel 3 port FWDM filter, works in FTTH/FTTx optical network PON CATV Mux Low insertion loss High channel isolation Low polarization dependent loss Exceptional reliability and stability

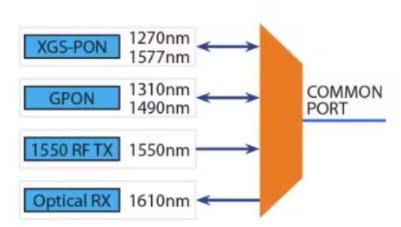

This 32-channel FWDM module integrates CATV 1550nm transmission with PON 1310/1490nm and XGS-PON 1270/1577nm reception for FTTH/FTTX networks. Using TFF technology, it features low insertion loss (≤0.8dB), high isolation (≥30dB), and stable performance in harsh environments (-40°C to 85°C). The 1U rack design with LC/UPC connectors supports hybrid signal transmission. Two models offer reflection isolation of ≥15dB (A) or 20dB (B), suitable for CATV, optical amplifiers, and fiber access systems.

Triple Play Integration, 16-channel FWDM Low Loss, High Isolation, Wide Temperature Stability Supports Multi-Services for CATV/PON/XGS-PON 1U Rack-Mountable, High-Density Integration

Wide bandwidth                          Low insertion loss                        High channel isolation Exceptional reliability and stability

With the rapid development of emerging technologies such as 5G and the Internet of Things, the demand for bandwidth is continuously increasing. To meet these demands, Passive Optical Network (PON) technologies are also evolving. GPON, XGS-PON, and NG-PON2 are the main PON technologies currently in use, and they have achieved coexistence on the same fiber through Wavelength Division Multiplexing (WDM) technology, thereby enhancing the network's bandwidth and flexibility.

With the rapid development of emerging technologies such as 5G, the Internet of Things, and cloud computing, the demand for bandwidth is continuously increasing. To meet these demands, Passive Optical Network (PON) technologies are also evolving. GPON, XGS-PON, and NG-PON2 are the main PON technologies currently in use, while OTDR (Optical Time Domain Reflectometer) is a tool used for network fault diagnosis and maintenance. Through 4CH WDM (Four-Channel Wavelength Division Multiplexing) technology, these technologies can coexist on the same fiber, thereby enhancing the network's bandwidth and flexibility.
