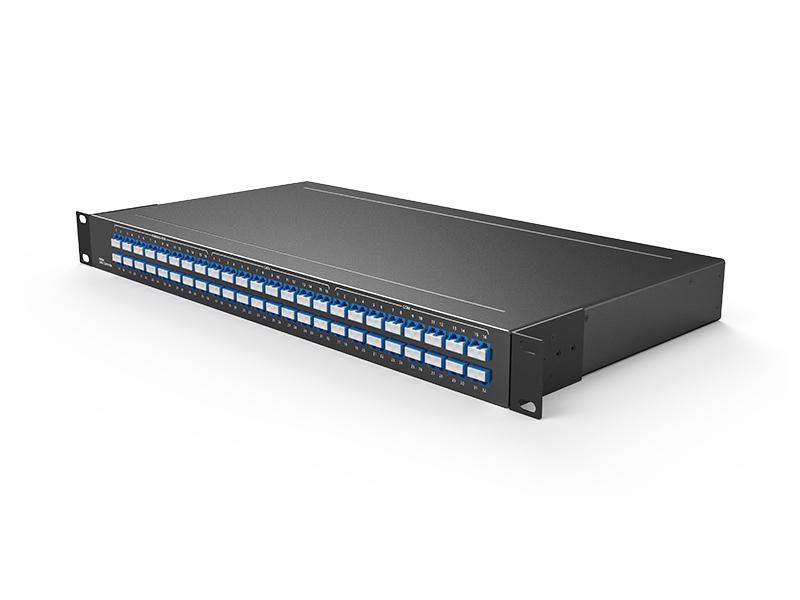

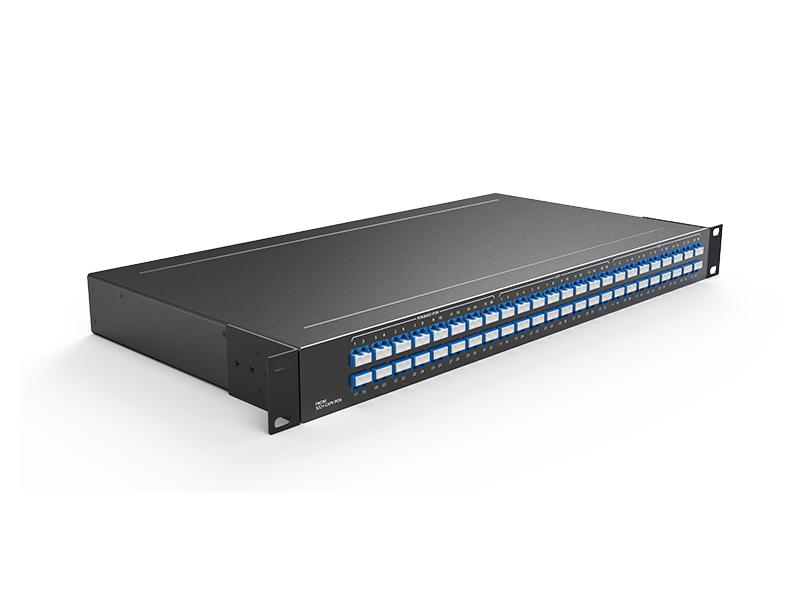

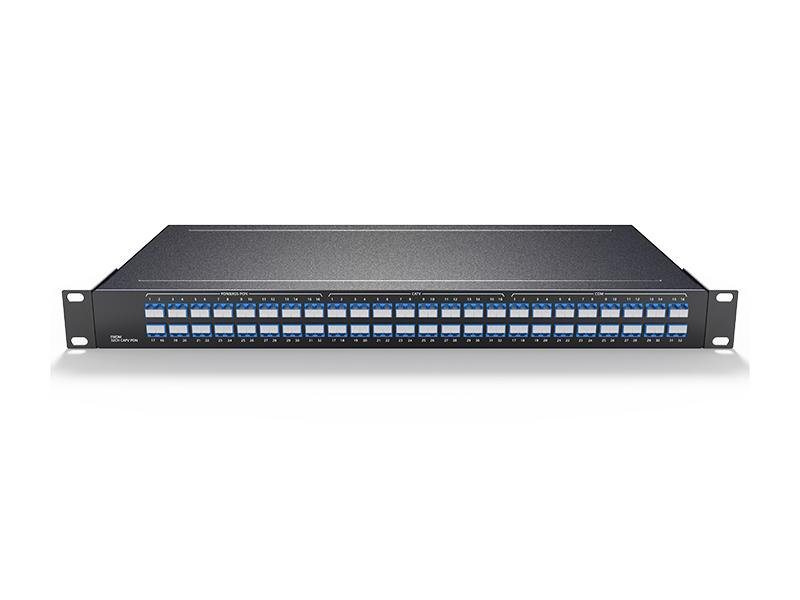

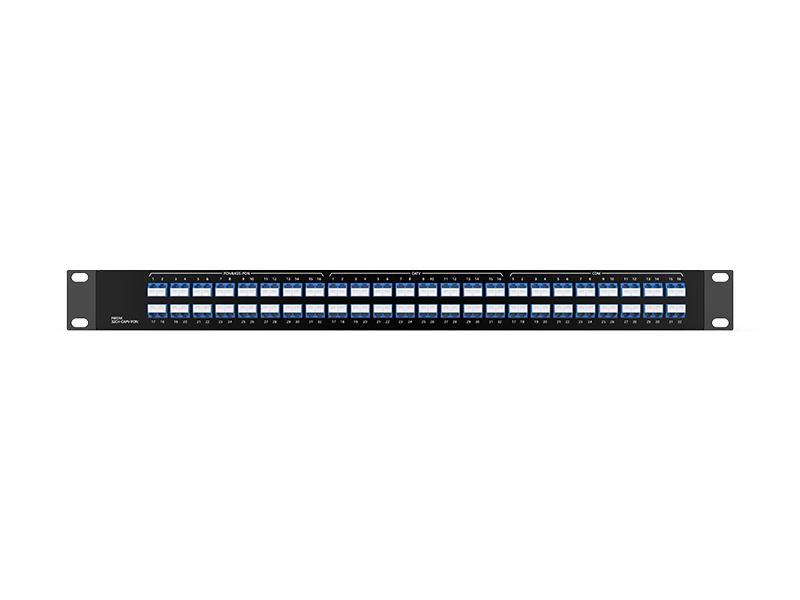

32Channels FWDM TX CATV 1550nm RX PON 1310/1490nm & XGS-PON 1270/1577nm LC/UPC 1U Rack



32FW-1U01-T55R3149-2757A/B



FIBERWDM Provide FWDM TX 1550nm RX PON 1310/1490nm & XGS-PON 1270/1577nm is low loss and reliable performances.

It works in FTTH/FTTX, in PON system works on 1310/1490 &1270/1577nm, and CATV signal is delivered over same fiber using 1550nm.



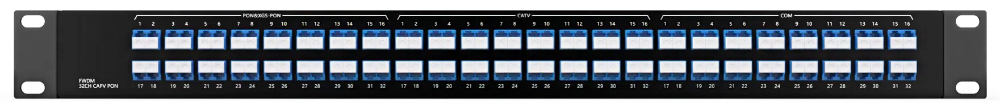

Product Penal





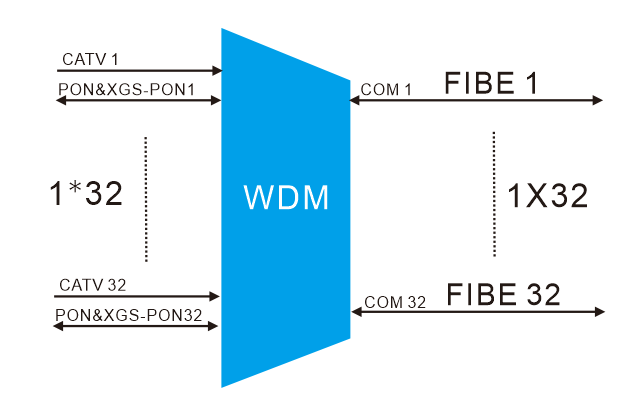

Application



Features

u Wide bandwidth

u Low insertion loss

u High channel isolation

u Exceptional reliability and stability



Applications

u Optical amplifiers

u CATV



Specifications



Wavelength

TX1550 RX1310/1490nm&1270/1577nm

Technology

TFF (Thin Film Filter)

Passband

1540~1560nm

Reflection

1260~1500&1574~1620

Passband ripple

≤0.30dB

IL @ Passband

≤0.80dB

Reflection band ripple

≤0.20dB

IL @ Reflection

≤0.60dB

Passband isolation

≥30dB

Reflection isolation

≥15dB (A Type)

20dB (B Type)

Polarization mode dispersion

≤0.2ps

Thermal Stability

≤0.005N

Directivity

≥50dB

Return loss

≥45dB

Optical power handling

≤500mW

Temperature

Operating -40 to 85°C

Storage  -40 to 85°C

Fiber type

SMF-28e

Package dimension

44*440*230MM



Note：1) All the specifications are based on the devices without connectors, and guaranteed over wavelength, polarization and temperature.

           2)  PMD and chromatic dispersion values are guaranteed by design.

  3) Specifications are subject to change without notice

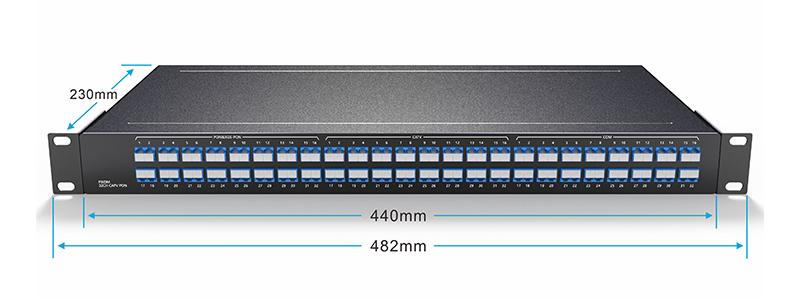

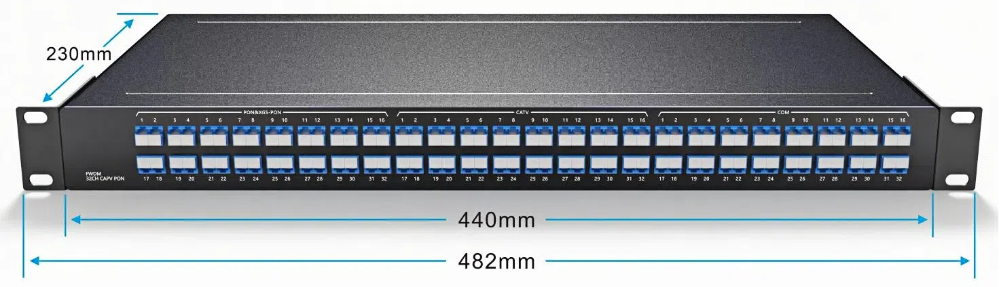

Steel Dimensions drawing（mm）





Ordering information



Ordering information

Specifications

32FW-1U01-T55R3149-2757A

32Channels FWDM TX CATV 1550nm RX PON 1310/1490nm & XGS-PON 1270/1577nm LC/UPC 1U Rack Reflection isolation ≥15dB

32FW-1U01-T55R3149-2757B

32Channels FWDM TX CATV 1550nm RX PON 1310/1490nm & XGS-PON 1270/1577nm LC/UPC 1U Rack Reflection isolation 20dB
