FTTH FWDM TX 1540-1560 RX 1260-1500&1575-1650 FWDM Component

  • Single channel 3 port FWDM filter, works in FTTH/FTTx optical network
  • PON CATV Mux
  • Low insertion loss
  • High channel isolation
  • Low polarization dependent loss
  • Exceptional reliability and stability
Inquire now Download
  • Product Detail

FTTH FWDM TX1540-1560 RX 1260-1500&1575-1650 FWDM Component CATV、GEPON、XGS-PON、NG-PON2



FIBERWDM Provide Passive FWDM Filter TX1540-1560 RX 1260-1500&1575-1650 is low loss and reliable performances. It works in FTTH/FTTX, in PON (Support GEPON、XGS-PON、NG-PON2） system works on 1260-1500&1575-1650nm,and CATV signal is delivered over same fiber using 1550±10nm.



Product

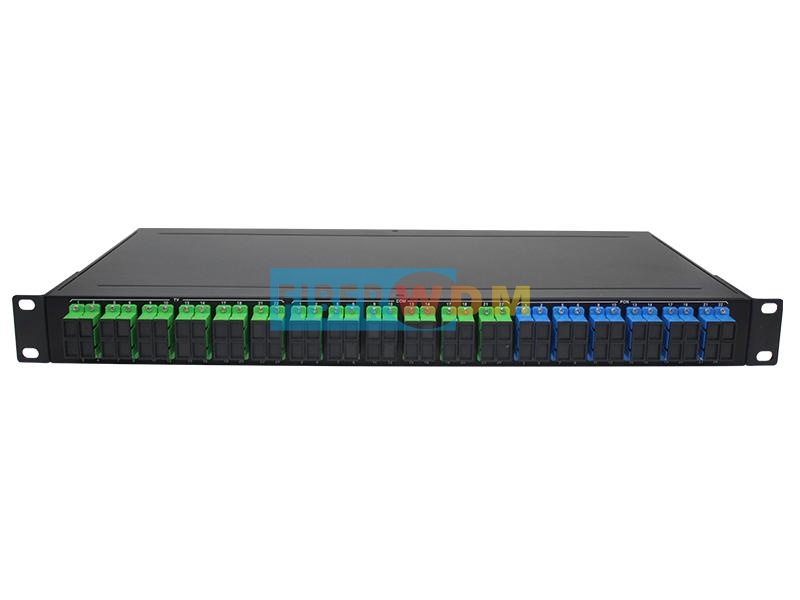

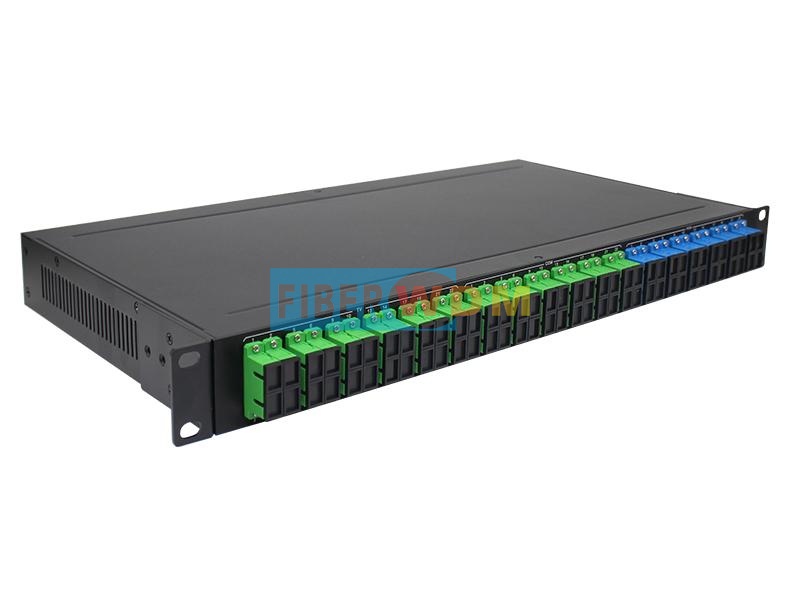

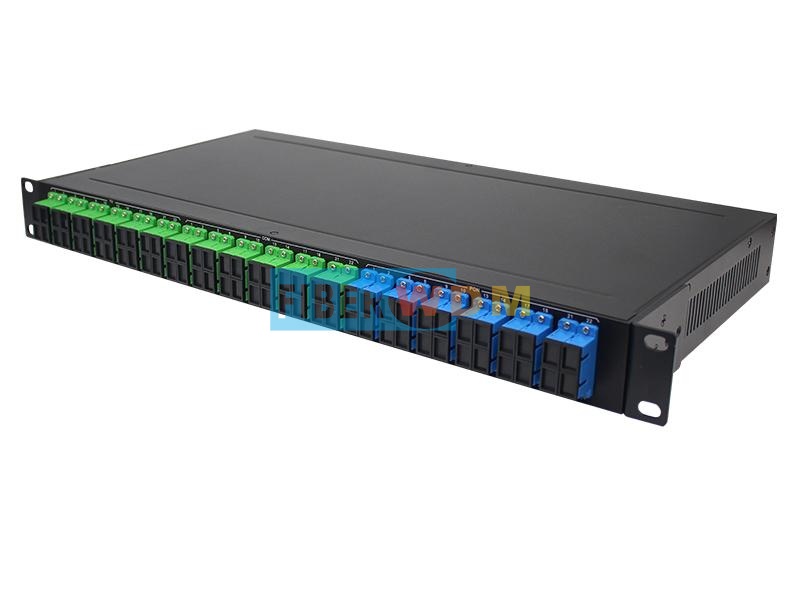

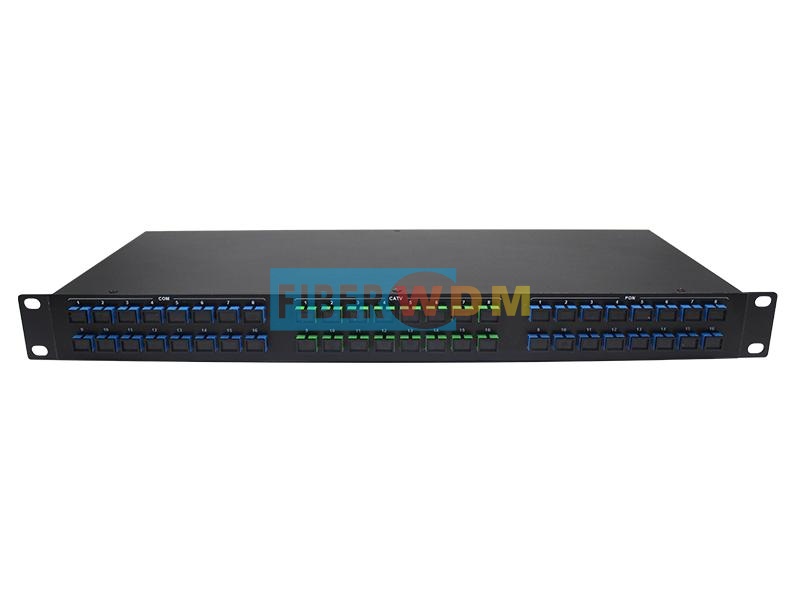

RACK Panel


1U Rack Support 24* CATV + PON



Specifications


Wavelength

TX1550±10nm RX1260-1500&1575-1650nm

Technology

TFF (Thin Film Filter)

Passband

1540~1560nm

Reflection

1260~1500&1575~1650

Passband ripple

≤0.30dB

IL @ Passband

≤0.60dB

Reflection band ripple

≤0.20dB

IL @Reflection

≤0.40dB

Transmission isolation (adj channel)

≥30dB

Transmission isolation (non-adj channel)

≥50dB

Reflection isolation

≥15dB

Polarization dependent loss

≤0.1dB

Polarization mode dispersion

≤0.2ps

Thermal Stability

≤0.005N

Directivity

≥50dB

Return loss

≥45dB

Optical power handling

≤500mW

Temperature

Operating -40 to 85°C

Storage -40 to 85°C

Fiber type

SMF-28e

Package dimension

Steel∮5.5 xL34mm

ABS  90*20*10mm

1U 440*230*44mm

Note.  1) All the specifications are based on the devices without connectors, and guaranteed over wavelength, polarization and temperature.

2)PMD and chromatic dispersion values are guaranteed by design.

3) Specifications are subject to change without notice

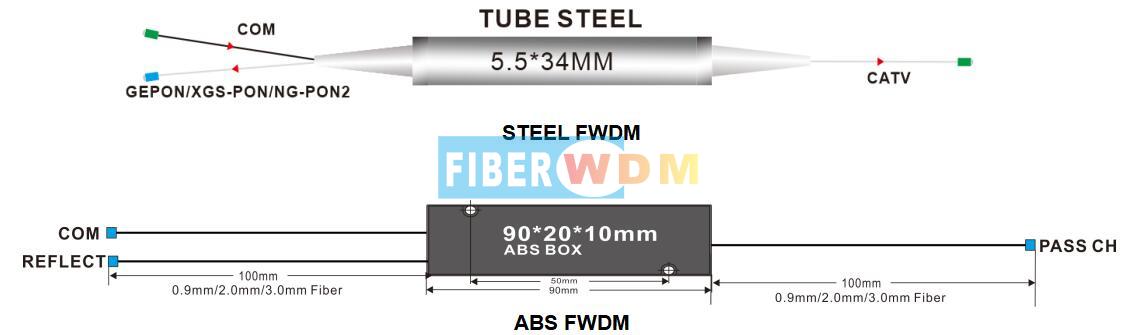

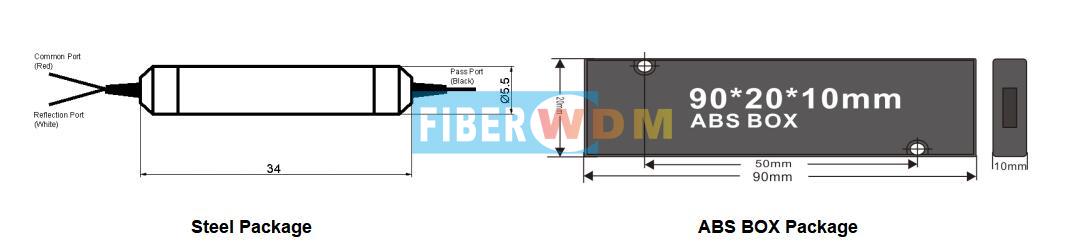

Component Dimensions drawing（mm）



Note:Fiber diameter can be 0.9mm/2.0mm/3.0mm. Fiber length is 1M or others. Connector can be LC/SC/FC, or others. If you want to order, please check with us first.

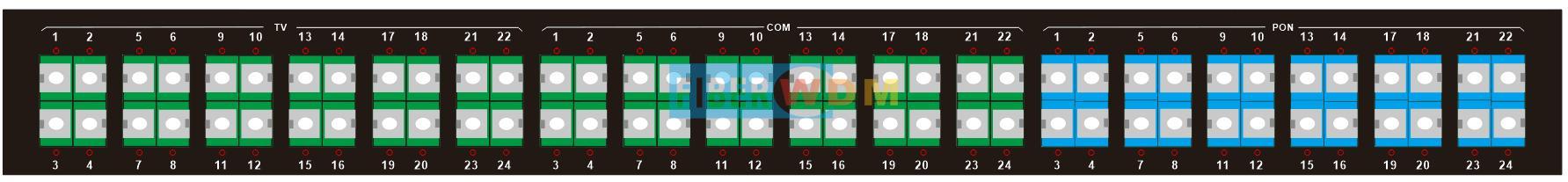

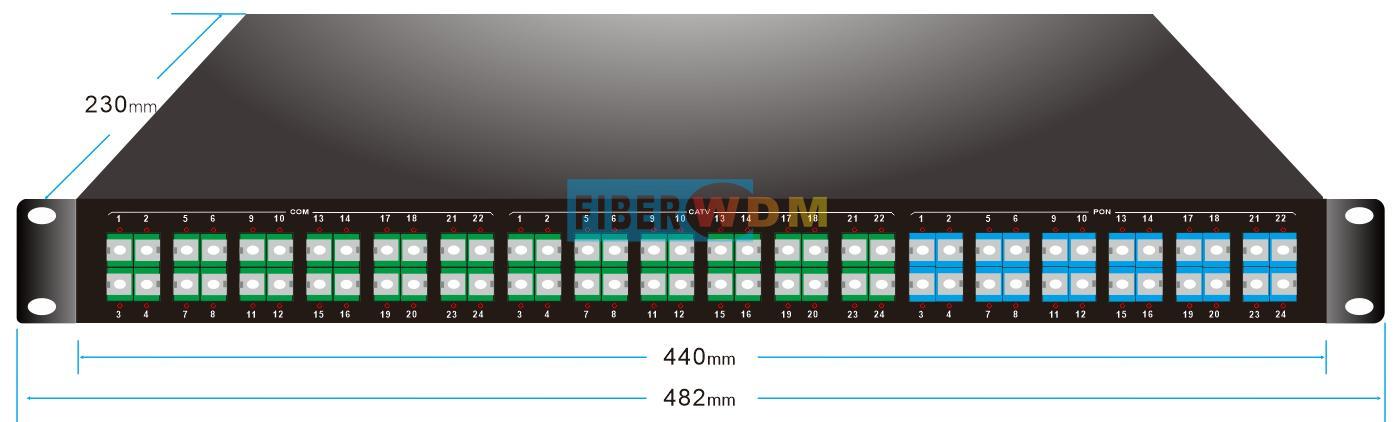

1U RackDimensions drawing（mm）



Ordering information



1) 1 channelComponent



RD-FW

- Package

-Connector Type

U/A

-5456

-Fiber Type

-Fiber Length



S: Steel

0: No connector

U: UPC

 TX:1540~1560nm

9: 0.9mm Fiber

005: 0.5+/-0.1m



B: ABS BOX

1: LC

A: APC

RX:1260~1500&1575~1650

20:2.0mm

01: 1.0+/-0.1m





2: SC





30:2.0mm

others





3: FC





Others







4: Others











2) N channel 1U Rack



RD-FW

- xx

- Package

-Connector Type

U/A

-5456



08: 8 channel

1U: 1U rack

1: LC

U: UPC

 TX:1540~1560nm/ RX:1260~1500&1575~1650



16: 16channel

B: ABS BOX

2: SC

A: APC





24: 24channel



3: FC

Others





4: Others



4: Others








Want to know about this product?

SEND A MESSAGE
Leave A Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
