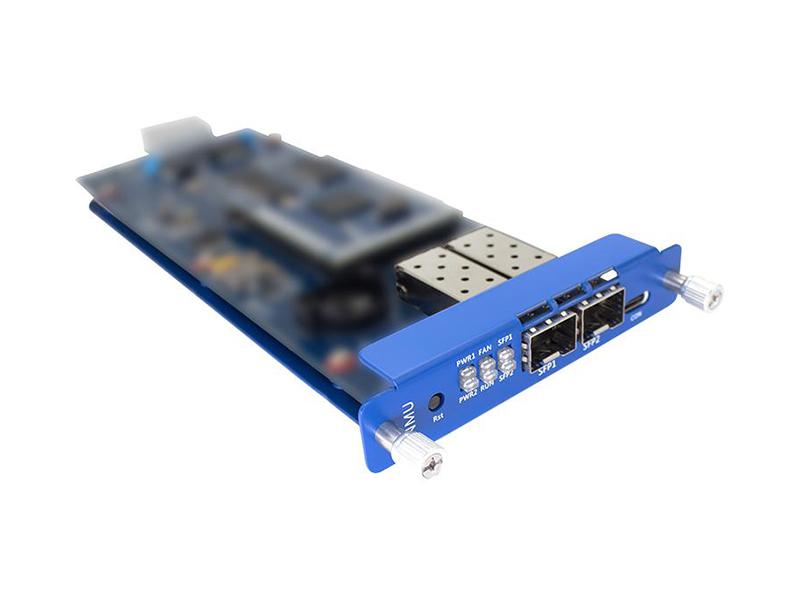

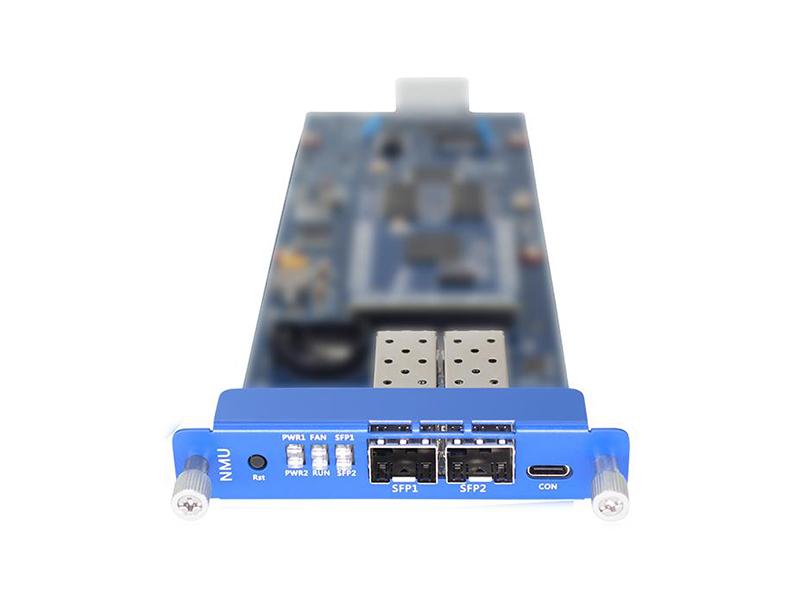

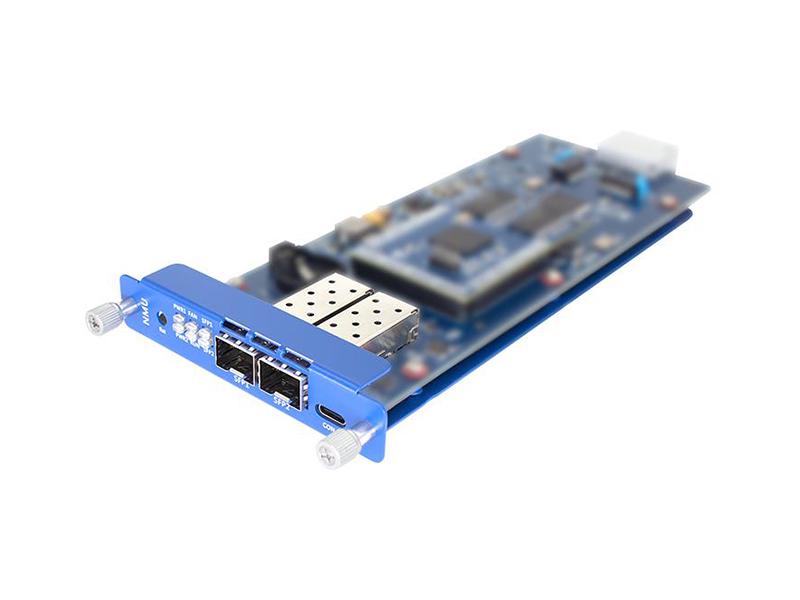

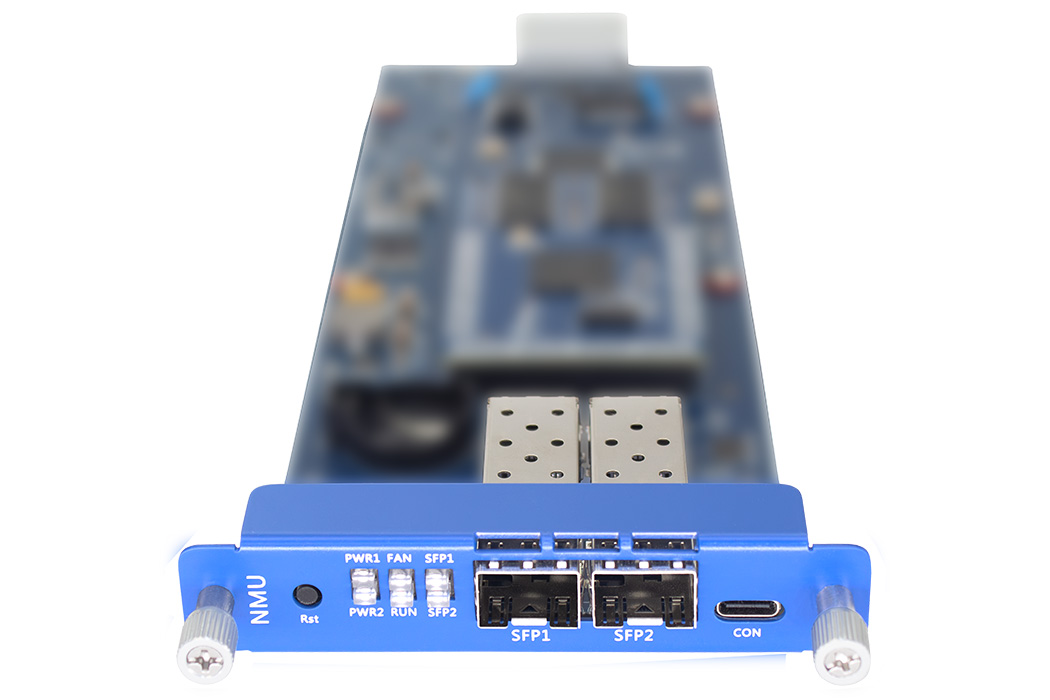

400G DCI Box Network management Control Board FW8N

Product Features:   Max support 16x100G for client side, 8x200G or 4x400G for line side in transmission. Total max is 1.6Tbps(3.2Tbps on bidirectional) in 1U device. Achieve higher transfer capacity through device stacking. Maximum up to 19.2Tbps (200G*96ch@50GHz) or 25.6Tbps (400G*64 75GHz or 400G*48 100GHz) 1U chassis modular design, single board adopts hot-swappable design, supports smooth upgrade, and can flexibly expand or delete services according to needs. Dual power supply, compatible with AC or DC power supply DC-48V. Complete network management protocol: supports WEB, SNMP, CLI, TLI and other network management interfaces. Support dual network management cards, 1+1 network function.

Product Features The single board supports 4*100G to 1*400G coherent transmission, which can realize single-channel 400G line-side transmission. The wavelength is adjustable, supporting up to 400G 75GHz * 64 waves or 400G*100Ghz 48 waves, 200G 50GHz * 96 waves. With flexible coherent modulation technology: DP-16QAM, DP-8QAM, DP-QPSK. Multiple FEC error correction technologies: oFEC, CFEC, SCFEC, SDFEC. Support flexible service access functions: 100GE, 100GE KR4, OTU4 and 100G FlexE. Support perfect performance monitoring and statistical functions. Supports Ethernet RMON performance statistics, LLDP monitoring, constellation diagram monitoring, DM delay and PRBS detection functions, OTN PM and SM performance statistics and other functions. Supports real-time monitoring of high-precision board temperature, voltage, current and power consumption. The client side supports multiple module interface types: 100GSR4/CWDM4/LR4/PSM4. Support unified network management platform, network management methods SNMP, CLI, Web, NMS (graphical interface).

Product Features The board supports two channels of 2*100G to 200G coherent transmission, enabling dual 200G line-side transmission. It has adjustable wavelengths and supports a maximum of two channels of 200G with 75GHz * 64 waves or 200G with 100GHz * 48 waves. It features flexible coherent modulation technologies: DP-16QAM, DP-8QAM, DP-QPSK. It incorporates various FEC error correction technologies: oFEC, CFEC, SCFEC, SDFEC. It supports flexible service access functions: 100GE, 100GE KR4, OTU4, and 100G FlexE. It provides comprehensive performance monitoring and statistical functions. It supports Ethernet RMON performance statistics, DM delay and PRBS detection functions, and OTN PM and SM performance statistics. It supports high-precision real-time monitoring of board temperature, voltage, current, and power consumption. On the client side, it supports various module interface types: 100GSR4/CWDM4/LR4/PSM4. It supports a unified network management platform with SNMP, CLI, Web, NMS (graphical interface), and Netconf Yang model interfaces.

Features Each channel includes 8-channel audio embedded. Automatic cable equalization, used for all rate below 3.2 Gb/s (Belden 1694A). Automatic reclocking 270Mbit/s - 1.48Gbit/s - 3Gbit/s Directly compatible with HD-SDI camera systems Long transmission capability up to 80 km Hot swap and hot plug. Handle all Pathological patterns, fully digital non-compression broadcast level transmission. LED Status Indication to monitor the working conditions. super optic dynamic range and free of adjustment. 1470~1610nm CWDM wavelengths optional. industry level ultra-broad temperature range (-20℃~+70℃), adaptable to various environments.

IL<2.7dB , 100GHZ DWDM OADM MUX DEMUX Multiplexing of 8 Channel DWDM and one channel 1310nm Drop and Add, over a Dark Fiber Network Fully Compatible with All ITU-T 1G/10G/25G/40G/100G DWDM Optics Passive devices, No Power No Cooling Required Support Metro, Regional and Long Haul DWDM Networks

Features   OSFP Module compliant to OSFP MSA Transmission data rate up to PAM4 106.25Gbps per channel. Enable 800Gb/s to 2x400Gb/s Transmission Link length up to 3m Built-in EEPROM functions  Operating case temperature 0°C to +70°C RoHS2.0 compliant

Product Features   Supports optical amplification for C-band DWDM systems. Supports amplification with OSC signal input. Supports maximum saturated output power of +23dB and minimum input power of -35dB. Supports power amplification, line amplification (two-stage optical amplification), and pre-amplification. Monitoring capabilities include: pump drive current, pump output power, pump switch status, pump temperature, input optical power, output optical power, and module temperature. Supports configuration of pump switch, AGC mode, and APC mode (adjustable input/output optical power). Supports SNMP-based unified network management platform with management options including CLI (telnet and console), Web, and NetView (graphical interface). Includes optical monitoring port (MON).

Functional characteristics 10/100 Mbps adaptive RJ45 port One upper port is a 100Mbps SFP fiber port Automatic port flipping (Auto MDI/MDIX) Flow control mode: full duplex adopts IEEE 802.3x standard, half duplex adopts Back pressure standard complies with IEEE 802.310Base-T and IEEE 802.3u 100/1000Base-TX standards The store-and-forward switching mechanism is adopted
