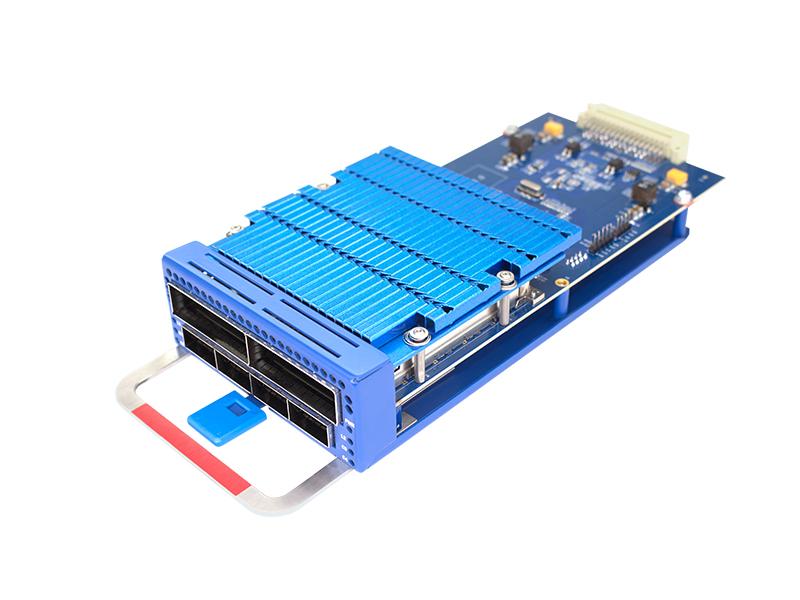

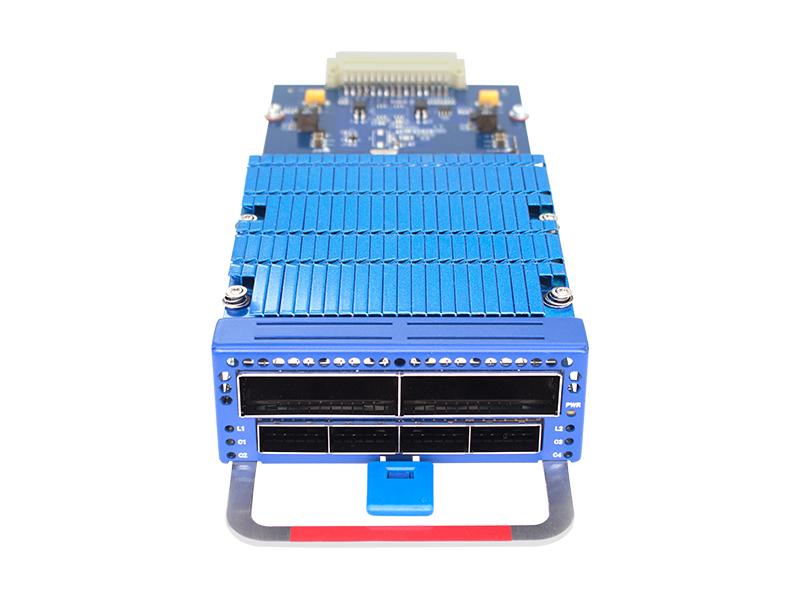

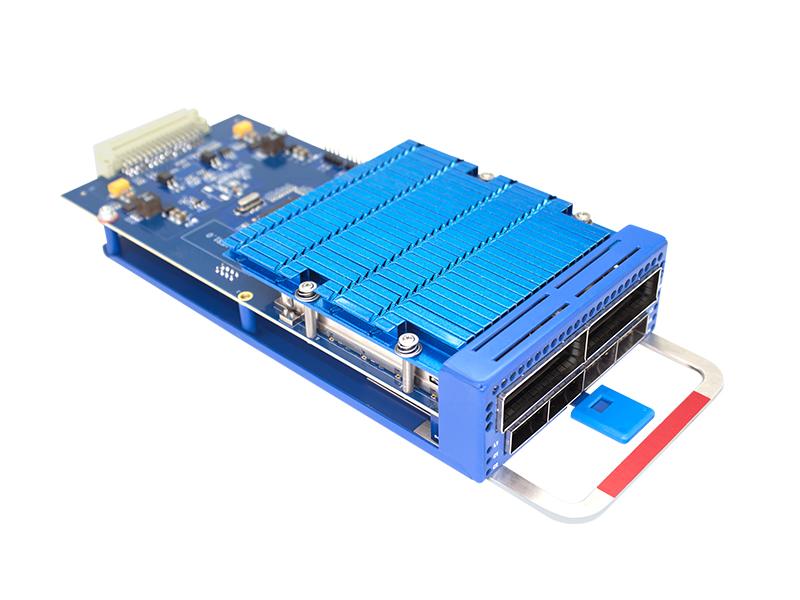

2*100G QSFP28 to 200G CFP2 TMUX board FW842

Product Features:   Max support 16x100G for client side, 8x200G or 4x400G for line side in transmission. Total max is 1.6Tbps(3.2Tbps on bidirectional) in 1U device. Achieve higher transfer capacity through device stacking. Maximum up to 19.2Tbps (200G*96ch@50GHz) or 25.6Tbps (400G*64 75GHz or 400G*48 100GHz) 1U chassis modular design, single board adopts hot-swappable design, supports smooth upgrade, and can flexibly expand or delete services according to needs. Dual power supply, compatible with AC or DC power supply DC-48V. Complete network management protocol: supports WEB, SNMP, CLI, TLI and other network management interfaces. Support dual network management cards, 1+1 network function.

Product Features The single board supports 4*100G to 1*400G coherent transmission, which can realize single-channel 400G line-side transmission. The wavelength is adjustable, supporting up to 400G 75GHz * 64 waves or 400G*100Ghz 48 waves, 200G 50GHz * 96 waves. With flexible coherent modulation technology: DP-16QAM, DP-8QAM, DP-QPSK. Multiple FEC error correction technologies: oFEC, CFEC, SCFEC, SDFEC. Support flexible service access functions: 100GE, 100GE KR4, OTU4 and 100G FlexE. Support perfect performance monitoring and statistical functions. Supports Ethernet RMON performance statistics, LLDP monitoring, constellation diagram monitoring, DM delay and PRBS detection functions, OTN PM and SM performance statistics and other functions. Supports real-time monitoring of high-precision board temperature, voltage, current and power consumption. The client side supports multiple module interface types: 100GSR4/CWDM4/LR4/PSM4. Support unified network management platform, network management methods SNMP, CLI, Web, NMS (graphical interface).

Product Features:   Hot-swap and software and hardware watchdog functions: to ensure the reliability, controllability and credibility of the network management. Support online upgrade: online upgrade can be realized locally or remotely without affecting the functions of service boards. Complete network management platform: supports multiple network management platforms, and the network management methods include SNMP, CLI, Web, NMS (graphical interface) . Abundant network management interfaces: provide 2*SFP and 2*RJ45 management interfaces and a local interface (TYPE-C port). Provide powerful multi-level network topology management functions to realize rapid and automatic discovery of network topology and generate intuitive and vivid display graphics. Following the TMN specification, it realizes functions such as device management, monitoring and deployment, software upgrade management, configuration file management, alarm and performance management, and realizes all-round network management from the device level to the network level.

400G QSFP112 DR4 transceiver modules are designed for use in 400 Gigabit Ethernet links on up to 500m of single mode fiber. They are compliant with the QSFP112 MSA, IEEE 802.3bs and and 100G Lambda MSA.The optical transceiver is RoHS compliant.

IL<4.0dB , 100GHZ DWDM AAWG Technology Fully Compatible with All ITU-T 1G/10G/25G/40G/100G DWDM Optics Passive devices, No Power No Cooling Required Support Metro, Regional and Long Haul DWDM Networks

400G QSFP112 SR4 transceiver modules are designed for use in 400 Gigabit Ethernet links on up to 100m of OM4 multi mode fiber. They are compliant with the QSFP112 MSA and IEEE 802.3db.The optical transceiver is RoHS compliant.

SFP+ MSA, 10G DAC cable; SFP28 MSA, 25G DAC cable High reliability 850nm VCSEL technology Electrically hot-pluggable Low power consumption Low EMI design

150GHz C-band Flat top 32-Channel Athermal AWG, DWDM MUX DEMUX LC/UPC 1U RACK     Introduction   The 150GHz 32ch DWDM MUX DEMUX operate in C-band. And it meet the following specification over the operating temperature.   Definition Note:    All specifications should be guaranteed at the worst-case polarization state and over the entire operating environmental condition and end of life. The Insertion Loss of a device is defined as the maximum loss at a defined wavelength, taking into account the worst-case polarization state over the full operating temperature range. The Insertion Loss Uniformity of a device is the difference between the insertion loss of the best-case and worst-case channels. The Polarization Dependent Loss of a device is the maximum insertion loss difference between all polarization states at the defined wavelength. The Reference Passband is defined as a band of wavelengths around each center wavelength. It is used in the definition of crosstalk. The Adjacent Isolation of channel is the maximum insertion loss difference from the mean transmission at the ITU grid wavelength to the highest power over the all polarization and the ITU band of two adjacent channels. The Non-adjacent Isolation of channel is the maximum insertion loss difference from the mean transmission at the ITU grid wavelength to the highest power over the all polarization and the ITU band of the non-adjacent channels. The Total Crosstalk of channel is the total cumulative insertion loss difference from the mean transmission at the ITU grid wavelength to the highest power over the all polarization and the ITU band of all other channels including adjacent and non-adjacent channels. The Wavelength Accuracy is defined as the maximum difference between the defined wavelength and the center of measured 3dB passband.   Product Penal                           150GHz DWDM MUX DEMUX 32CH 1U Rack Technical Parameter   Parameter Specification Units Notes Min Type Max Channel Spacing 150 GHz   Nos of Channel 32 Ch   Channel Frequencies ITU Grid THz   Available Channel Frequency Range 191.2   196.7 THz   Channel Passband -60   +60 GHz   -0.48   +0.48 nm   Center Wavelength Accuracy -0.05   +0.05 nm   -6.25   +6.25 GHz   Insertion Loss     5.5 dB @Center Wavelength     6.0 dB Full Bandwidth Passband Ripple     0.6 nm Full Bandwidth Bandwidth @1.5dB 135     GHz   Bandwidth @3.0dB 160     GHz   Bandwidth @20dB     310 GHz   Insertion Loss Uniformity at ITU     1.50 dB   Polarization Dependent Loss     0.5 dB   Adjacent Channel Isolation 13 15   dB   Non-Adjacent Channel Isolation 30 35   dB   Total Cross Talk 11 13   dB   Directivity 50     dB   Return Loss with connectors 40 45   dB   Chromatic Dispersion -20   +20 ps/nm   PMD     0.5 ps   Optical Power Handling of Common Port     24 dBm     Operating Conditions   Parameter   Min Max Units Temperature   -5 70 ℃ Humidity Non-condensing 0 90 % R.H.   Storage Conditions   Parameter   Min Max Units Temperature   -40 85 ℃ Humidity Non-condensing 0 90 % R.H.   Channel Plan 32Port AWG - On grid   The AWG operate in C-band. The channels are as follows Table 1   Channel ITU Frequency Wavelength Channel ITU Frequency Wavelength No. Channel THz nm No. Channel THz nm 1   191.4000 1566.314 17   193.8000 1546.917 2   191.5500 1565.087 18   193.9500 1545.720 3   191.7000 1563.863 19   194.1000 1544.526 4   191.8500 1562.640 20   194.2500 1543.333 5   192.0000 1561.419 21   194.4000 1542.142 6   192.1500 1560.200 22   194.5500 1540.953 7   192.3000 1558.983 23   194.7000 1539.766 8   192.4500 1557.768 24   194.8500 1538.581 9   192.6000 1556.555 25   195.0000 1537.397 10   192.7500 1555.343 26   195.1500 1536.216 11   192.9000 1554.134 27   195.3000 1535.036 12   193.0500 1552.926 28   195.4500 1533.858 13   193.2000 1551.721 29   195.6000 1532.681 14   193.3500 1550.517 30   195.7500 1531.507 15   193.5000 1549.315 31   195.9000 1530.334 16   193.6500 1548.115 32   196.0500 1529.163   Table 2   Channel ITU Frequency Wavelength Channel ITU Frequency Wavelength No. Channel THz nm No. Channel THz nm 1   191.3625 1566.621 17   193.7625 1547.216 2   191.5125 1565.394 18   193.9125 1546.019 3   191.6625 1564.169 19   194.0625 1544.824 4   191.8125 1562.945 20   194.2125 1543.631 5   191.9625 1561.724 21   194.3625 1542...
