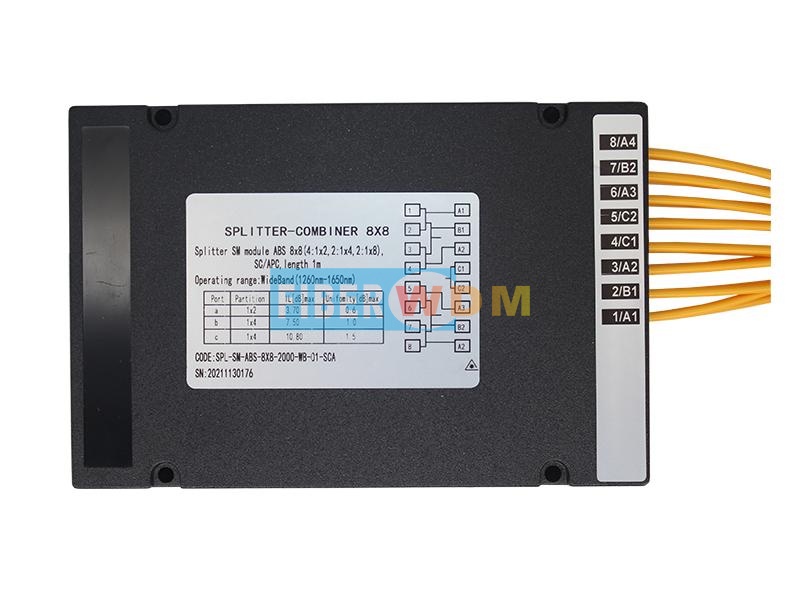

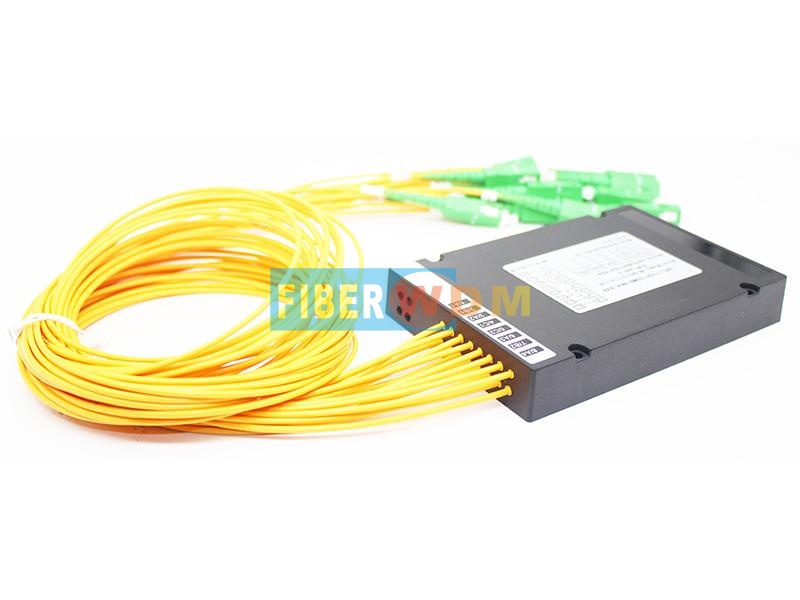

8X8 Star fiber Coupler

  • Low insertion loss
  • High Extinction Ratio
  • High channel isolation
  • High stability and reliability


Inquire now Download
  • Product Detail

8×8 Star fiber Coupler



N×N Star Coupler are quite useful in high-speed, multiple-access optical networks. FIBERWDM can support provide 8X8 star Coupler module, witch having multiple 8 channels input and 8 channels output ports. It is used for uniformly distributing each input signal to the output ports.



Features



  • Low Insertion loss
  • Wide Operating Wavelength
  • Compact Size
  • Excellent Environmental & Mechanical Stability



 Specification



Operating Wavelength

1310&1550nm

Channel Passband

1310&1550±20nm

Channel

8X8

Split ratio

EVEN

Insertion Loss

≤10.8dB

Polarization Dependent Loss（PDL）

≤0.6dB

Loss Uniformity（UF）

＜1.8dB

Directivity（Dir）

≥55dB

Return Loss（RL）

≥50dB

Temperature

Operating:-20  ~  +70℃

Storage:-40  ~  +85℃

FIBER Type

SMF-28e orother

Pigtail Type

2.0mm 1.0M or other

Dimensions (HxWxD)

120*80*18mm

Connector Type

SC/APC or other

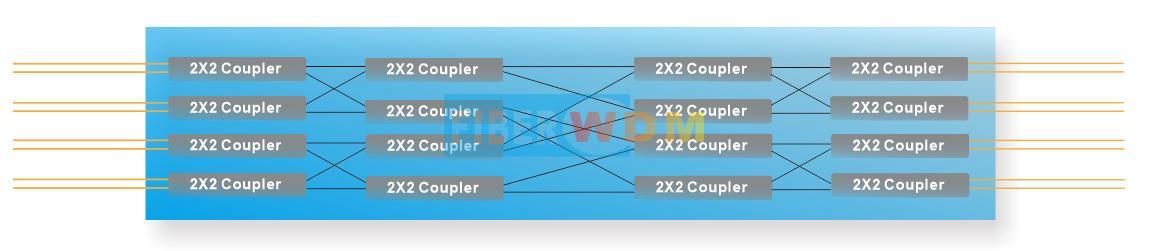

Diagram

 8x8 Star Coupler

8x8 Star Coupler Diagram

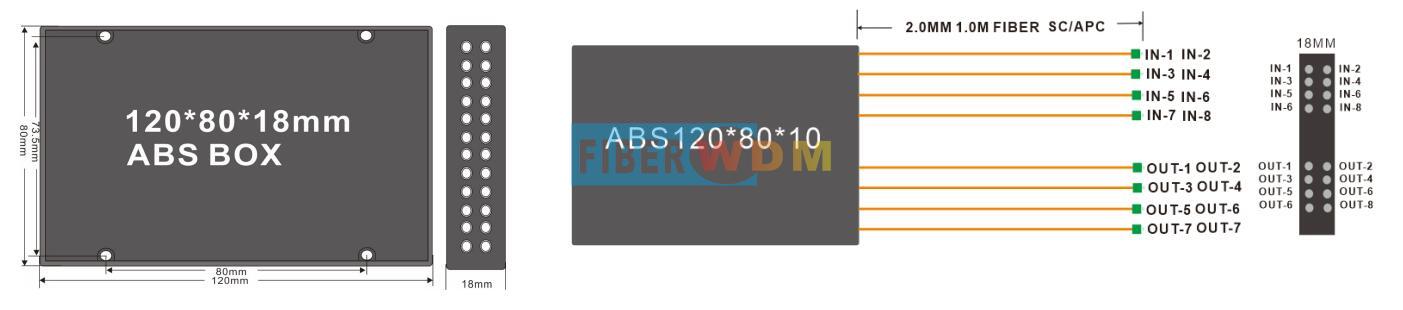

Package Information





120*80*18 ABS BOX
