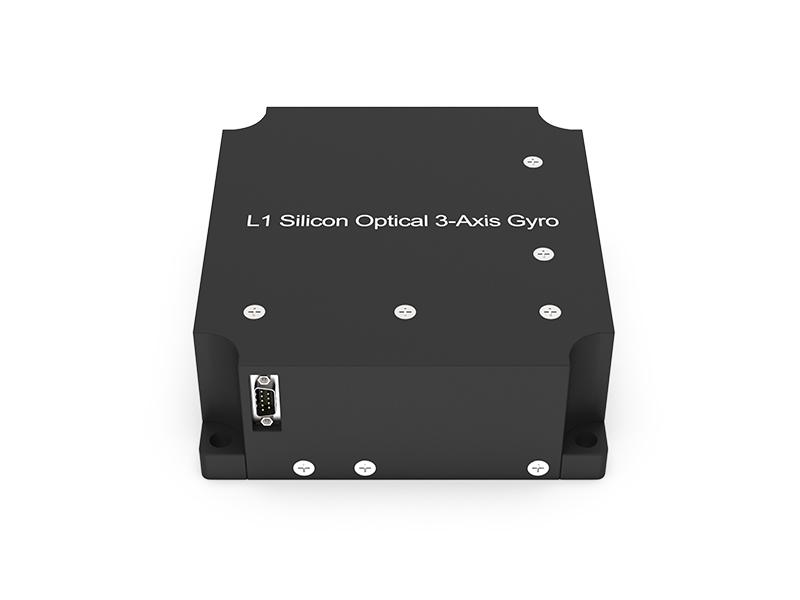

L1 Silicon Optical 3-Axis Gyro
L1 Silicon Optical 3-Axis Gyro L1 Silicon Optical 3-Axis Gyro L1 Silicon Optical 3-Axis Gyro L1 Silicon Optical 3-Axis Gyro L1 Silicon Optical 3-Axis Gyro

L1 Silicon Optical 3-Axis Gyro

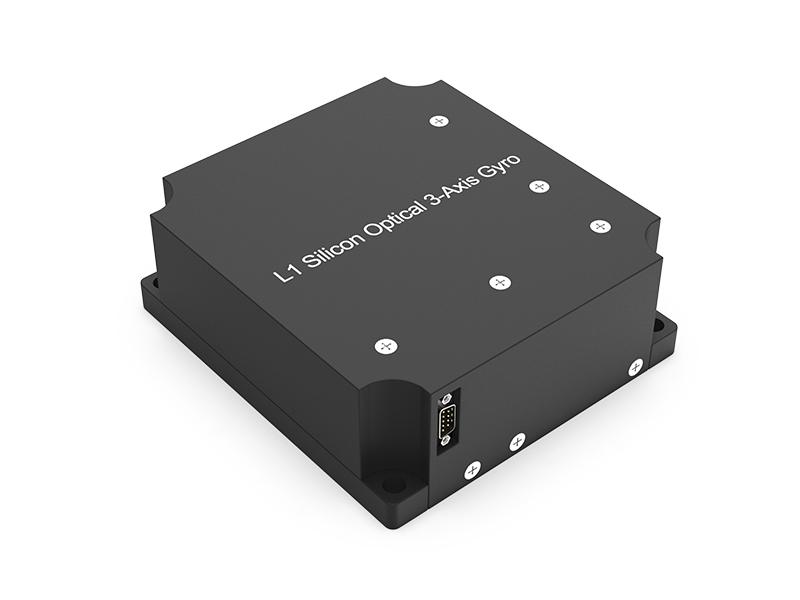

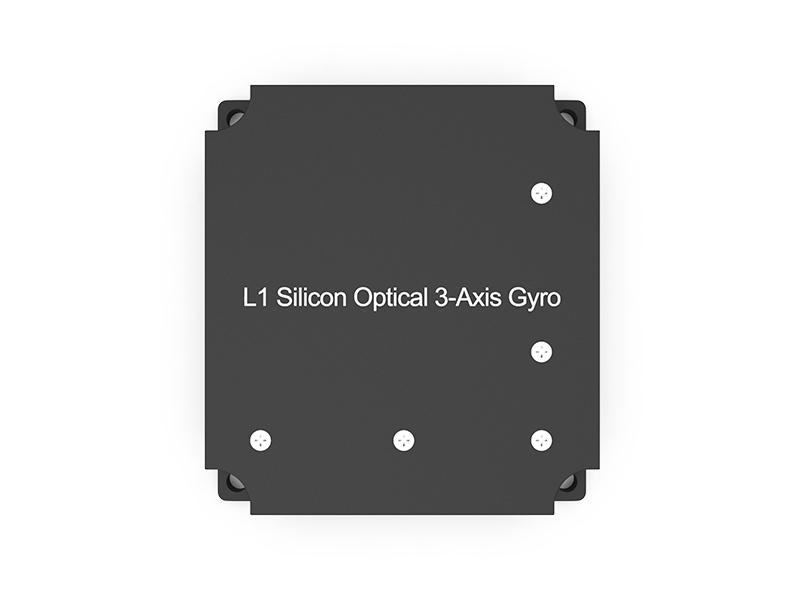

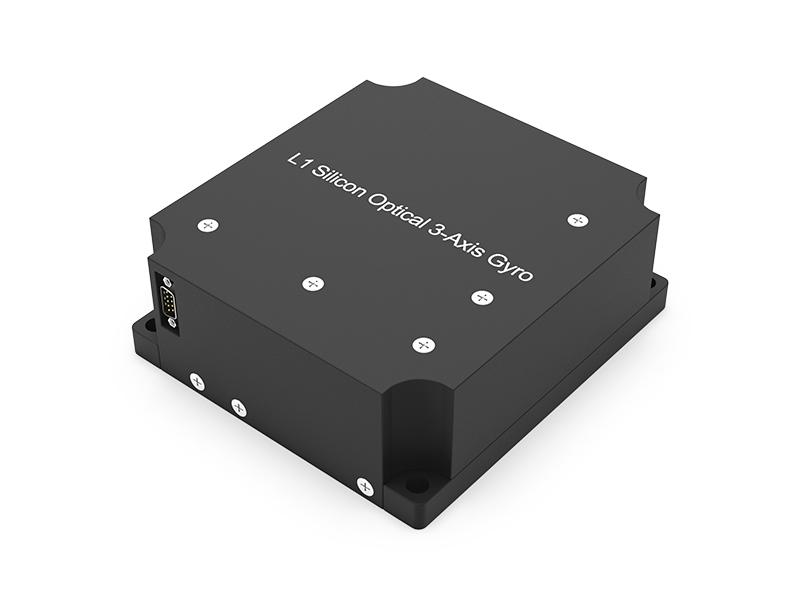

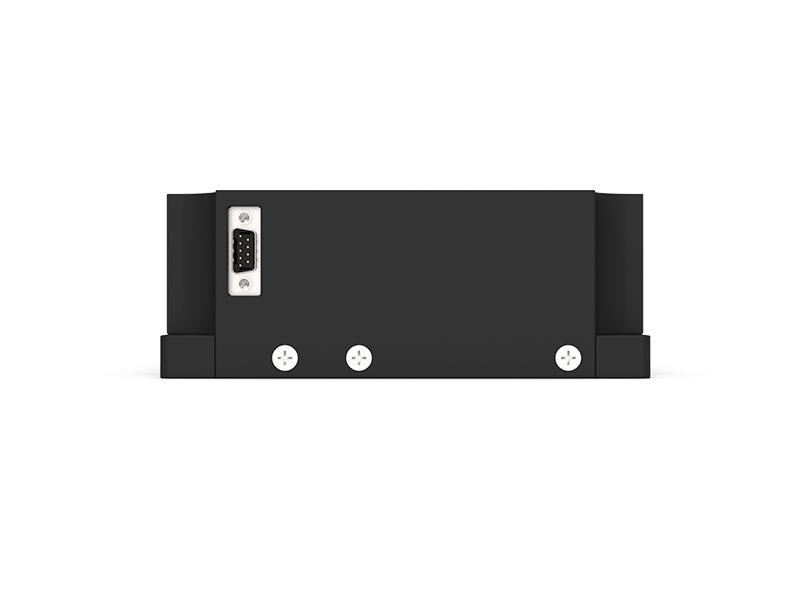

The L1 Silicon Optical 3-Axis Gyro is a miniaturized silicon photonic sensing product, primarily designed for accurate 3-axis angular velocity detection with a measurement range of ±800°/s. It features a temperature zero bias stability of ≤1°/h across the full temperature range of -45℃~+65℃, with all scale factor-related indicators at ≤50ppm and an angular random walk factor of ≤0.1(°)/h¹ᐟ², and a bandwidth of ≥400Hz. The product adopts a customizable RS-422 data output format with an adjustable 400Hz data update rate, powered by +5V with a steady-state power consumption of ＜6W. It has a compact size of 63×63×25mm and a weight of 185±15g, equipped with a standardized electrical interface. Boasting the advantages of small size, light weight and low cost, it can stably output high-precision angular velocity data.

Inquire now Download
  • Product Detail

L1 Silicon Optical 3-Axis Gyro



Description



The L1 Silicon Optical 3-Axis Gyro is a miniaturized silicon photonic sensing product, primarily designed for accurate 3-axis angular velocity detection with a measurement range of ±800°/s. It features a temperature zero bias stability of ≤1°/h across the full temperature range of -45℃~+65℃, with all scale factor-related indicators at ≤50ppm and an angular random walk factor of ≤0.1(°)/h¹ᐟ², and a bandwidth of ≥400Hz. The product adopts a customizable RS-422 data output format with an adjustable 400Hz data update rate, powered by +5V with a steady-state power consumption of ＜6W. It has a compact size of 63×63×25mm and a weight of 185±15g, equipped with a standardized electrical interface. Boasting the advantages of small size, light weight and low cost, it can stably output high-precision angular velocity data.



Feature



  • lSmall Size
  • Light Weight
  • Low Cost
  • Temperature Zero Bias Stability ≤1°/h



Application



  • Unmanned Aerial Vehicle (UAV)
  • Guided Missile, Pod
  • Mobile Satellite Communication

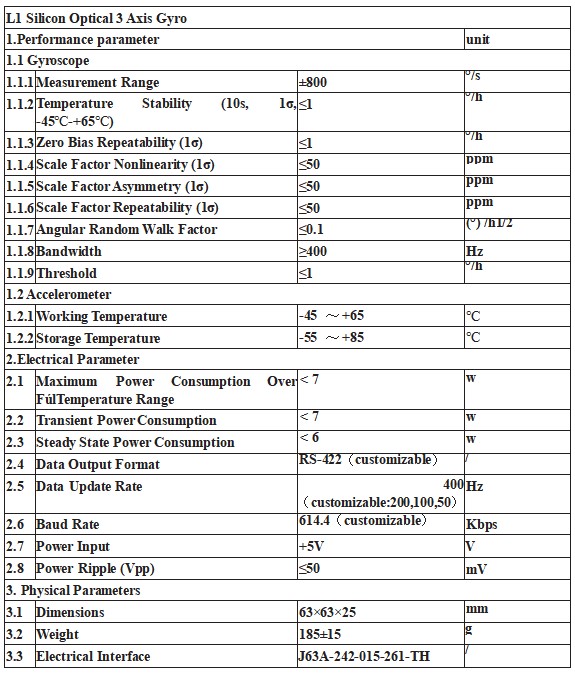

Specifications



L1 Silicon Optical 3-Axis Gyro

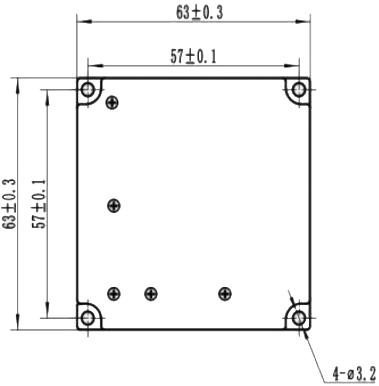

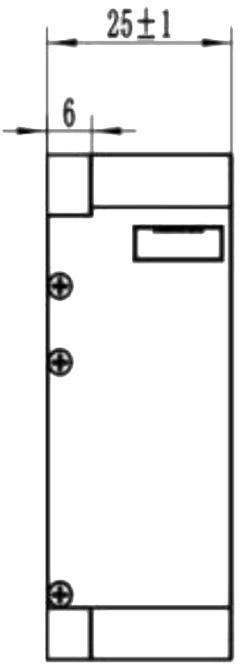

Mechanical Dimension



                                             L1 Silicon Optical 3-Axis Gyro          L1 Silicon Optical 3-Axis Gyro



Want to know about this product?

SEND A MESSAGE
Leave A Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

Related Products
L1+ Silicon Optical Inertial Measurement Unit L1+ Silicon Optical Inertial Measurement Unit
The L1+ Silicon Optical Inertial Measurement Unit is a dual-parameter silicon photonic sensing product integrating angular velocity and acceleration detection, capable of real-time sensing of both 3-axis angular velocity and 3-axis acceleration simultaneously. It has an angular velocity measurement range of ±800°/s with a full-temperature zero bias stability of ≤1°/h, and an acceleration measurement range of ±30g with a normal-temperature zero bias stability of ≤0.5mg. The product features a bandwidth of ≥400Hz and excellent scale factor performance, supporting customizable RS-422 data output with an adjustable 400Hz update rate. Powered by +5V with a steady-state power consumption of ＜6W, it measures 63×63×25mm and weighs 185±15g, with a standardized electrical interface. Combining the merits of small size, light weight and low cost, it can output comprehensive motion inertial parameters.
Read More
L2 Silicon Optical 3-Axis Gyro L2 Silicon Optical 3-Axis Gyro
The L2 Silicon Optical 3-Axis Gyro is a high-performance silicon photonic product for 3-axis angular velocity detection, dedicated to high-precision 3-axis angular velocity sensing. It has a room-temperature zero bias stability of ≤0.2°/h, an angular velocity measurement range of -800~+800°/s, an angular random walk factor of ≤0.02(°)/h¹ᐟ² and a bandwidth of ≥400Hz, with scale factor nonlinearity and repeatability both at ≤100ppm. The product has a start-up time of ≤1 minute, an operating temperature range of -40~+60℃ and a storage temperature range of -55~+85℃, and supports a wide voltage power supply of +12~+24V. It has dimensions of 70±0.3×65±0.3×51.4±1mm and a maximum weight of 500g, adapted to a standardized electrical interface. With high detection accuracy and strong environmental adaptability, it can stably provide highly reliable angular velocity detection data.
Read More

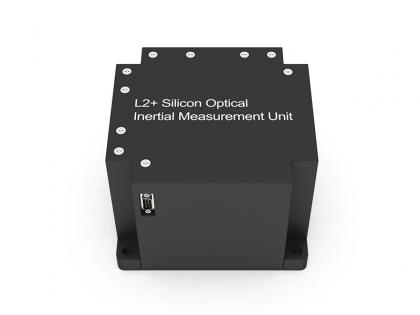

L2+ Silicon Optical Inertial Measurement Unit L2+ Silicon Optical Inertial Measurement Unit
