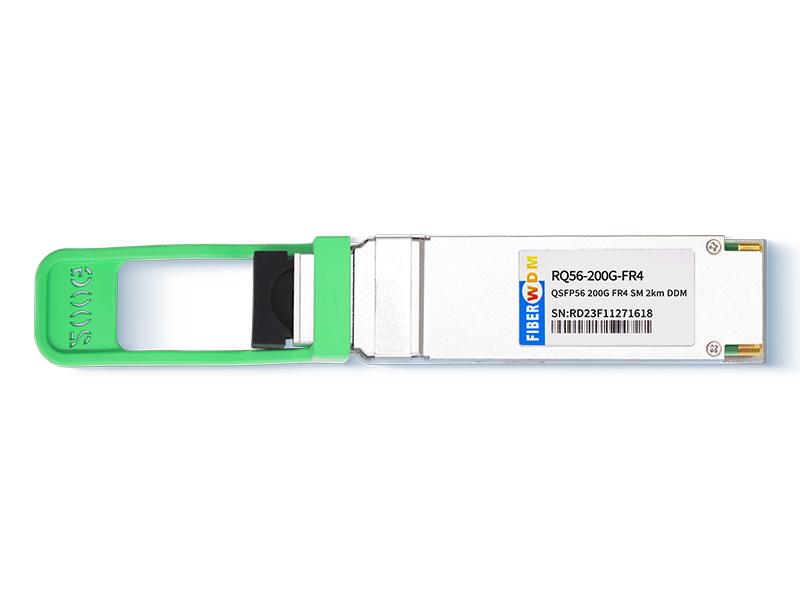

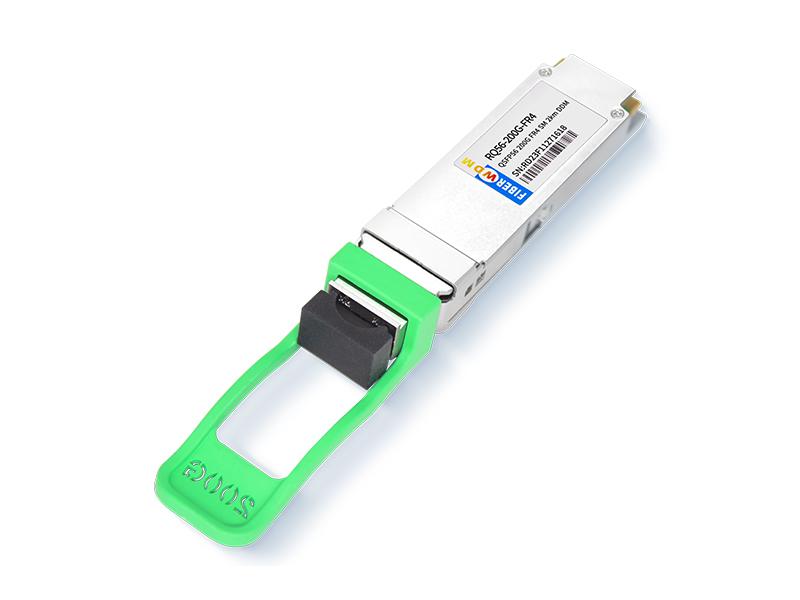

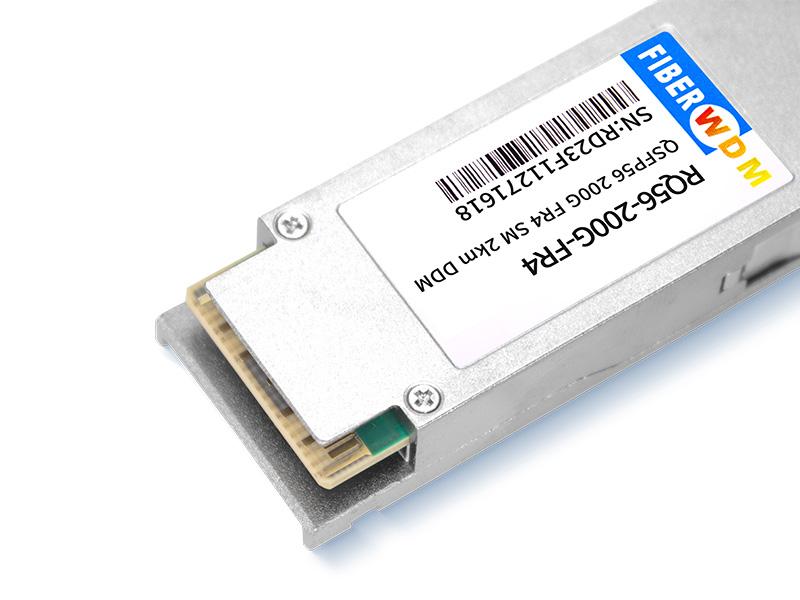

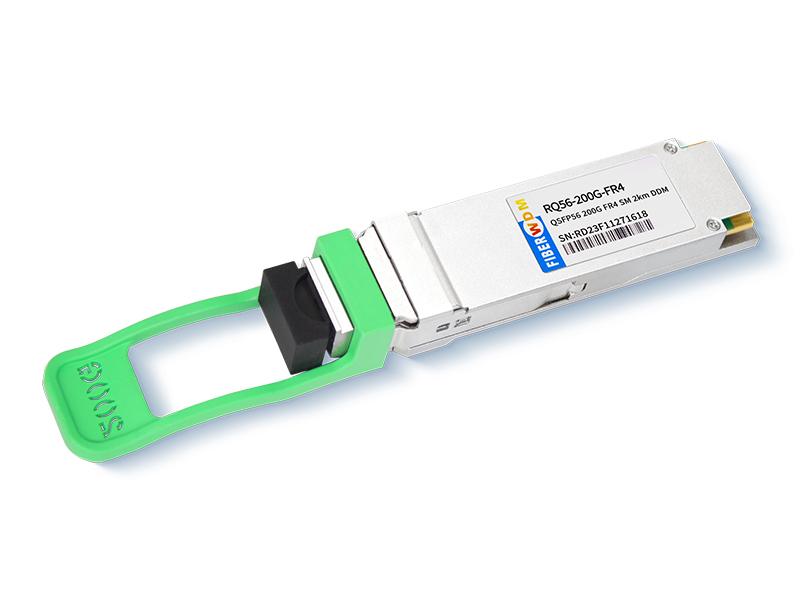

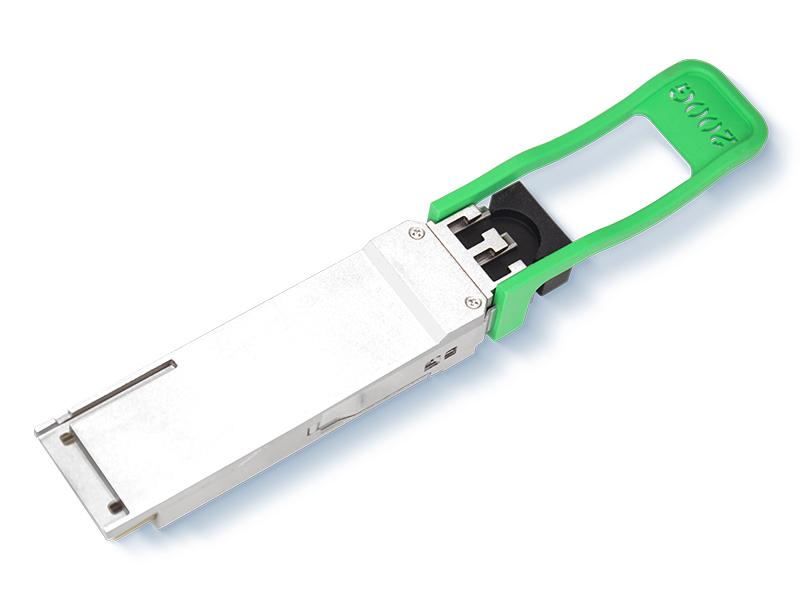

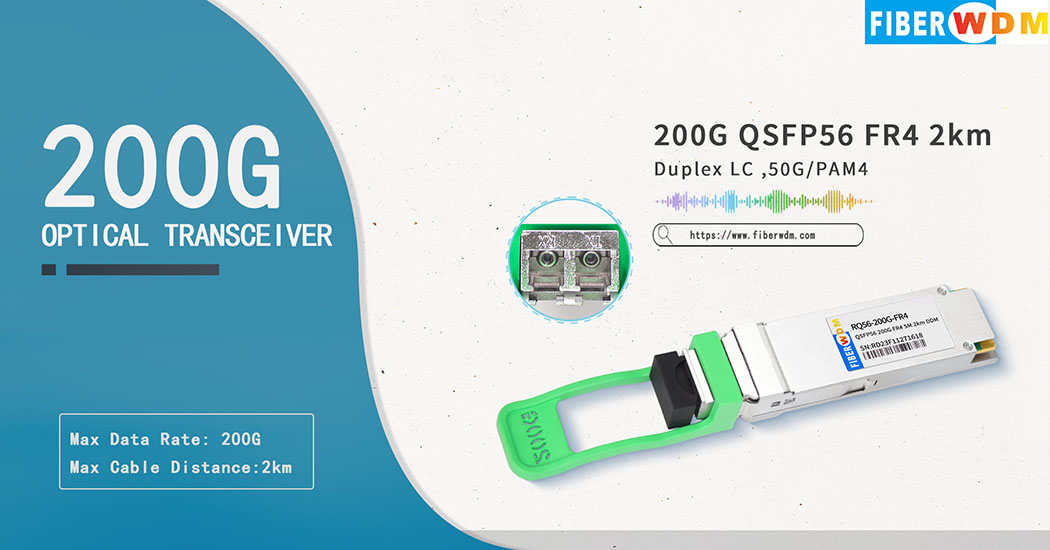

200G QSFP56 FR4 2KM LC PAM4 Optical Transceiver

Features

4 duplex channels transmitters and receivers
Integrated CWDM LD and PD array

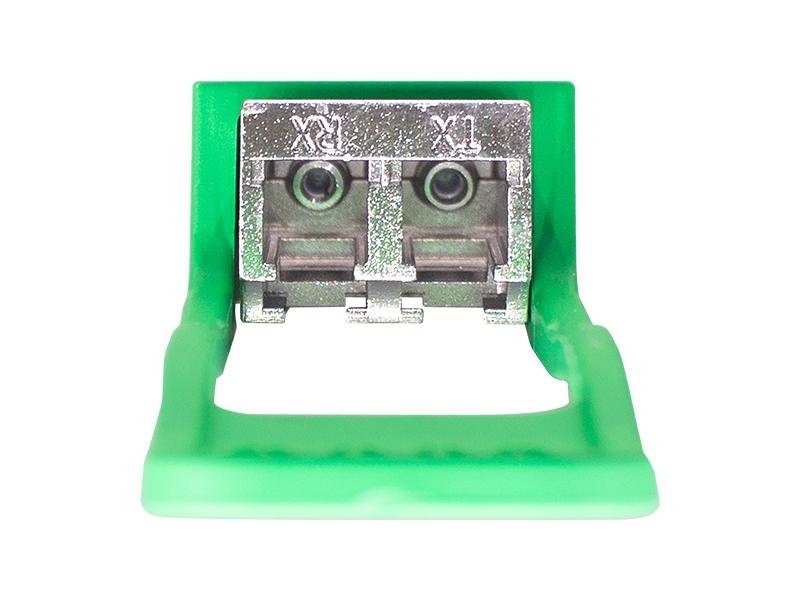

LC/UPC connecting interface compliant
Single +3.3V power supply
DDM function implemented
Hot-pluggable QSFP56 form factor
Transmission length up to 2km
Low power dissipation:<6.5w
International class 1 laser safety certified
Operating temperature range: 0℃ ~ +70 ℃
Compliant with ROHS10

Applications

200GBASE-FR4 Ethernet
Switch & Router Connections
Data Centers
Other 200G Interconnect Requirements.

Standards

IEEE 802.3cd
CMIS Rev 4.0
OIF-CEI-04.0 56G-VSR-PAM4
IEEE 802.3bs Annex120E
SFF-8024 Rev. 4.6
SFF-8679 Rev1.8
SFF-8665 Rev1.9

Inquire now Download

Categories

Hot Products

Product Detail

RQ56-200G-FR4

200G QSFP56 FR4 2KM LC Optical Transceiver

200G QSFP56

The 200G QSFP56 FR4 Transceiver is designed to transmit and receive optical data links 50 Gb/s bit rate per channel with PAM4 modulation format via up to 2km single mode fiber. It is hot pluggable transceiver with QSFP56 package. The module comprises high performance LD PIN DSP etc.

Specifications

(Tested under recommended operating conditions, unless otherwise noted)

Parameter	Symbol	Unit	Min	Typ	Max	Notes
Transmitter (per Lane)
Signaling Speed per Lane		GBd		26.5625
Modulation format				PAM4
Center wavelength	WL	nm	1264.5	1271	1277.5
			1284.5	1291	1297.5
			1304.5	1311	1317.5
			1324.5	1331	1337.5
Side-mode suppression ratio	SMSR	dB	30
Average Launch Power per Lane	TXPx	dBm	-4.2		4.7
Tx OMA per lane	TXOMA	dBm	-1.2		4.5
Optical Extinction Ratio	ER	dB	3.5
Transmitter and dispersion eye closure for PAM4 per Lane	TDECQ	dB			3.3
Optical return loss tolerance	ORL	dB			16.5
Relative Intensity Noise	RIN	dB/Hz			-132
Receiver (per lane)
Signaling Speed per Lane				26.5625
Center wavelength	WL	nm	1264.5	1271	1277.5
			1284.5	1291	1297.5
			1304.5	1311	1317.5
			1324.5	1331	1337.5
Damage Threshold	DT	dBm	5.7
Average Launch Power per Lane	RXP	dBm	-8.2		4.7
Receiver reflectance	Rfl	dB			-26
Difference in receive power between any two lanes		dB			4.1
Receiver sensitivity (OMA outer)		dBm			-6
Stressed receiver sensitivity (OMA outer)		dBm			-3.6

Ordering Information

PN	Package	Data rate	Laser	Detector	Temp	Reach	Others	Application
RQ56-200G-FR4	QSFP56	200G	DFB	PIN	0~70℃	2km	RoHS	200G Base FR4

PN	RQ56-200G-FR4
Description	200G Base FR4 Transceiver -CT
SAP No	-
Customer PN	-

Absolute Maximum Ratings

Parameter	Symbol	Unit	Min	Max
Storage Temperature Range	Ts	℃	-40	+85
Relative Humidity	RH	%	5	85
Power Supply Voltage	Vcc	V	-0.5	+4.0

Recommended Operating Conditions

Parameter	Symbol	Unit	Min	Typ	Max
Operating Case Temperature Range	Tc	oC	0	/	70
Power Supply Voltage	Vcc	V	3.135	3.3	3.465
Baud Rate (Per channel)	BR	GBd		26.5625

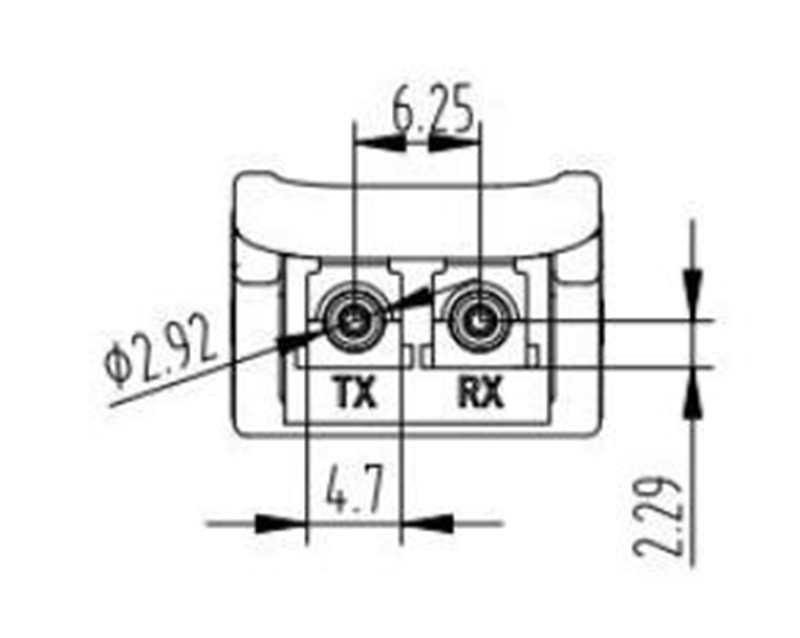

Optical Interface

200G QSFP56

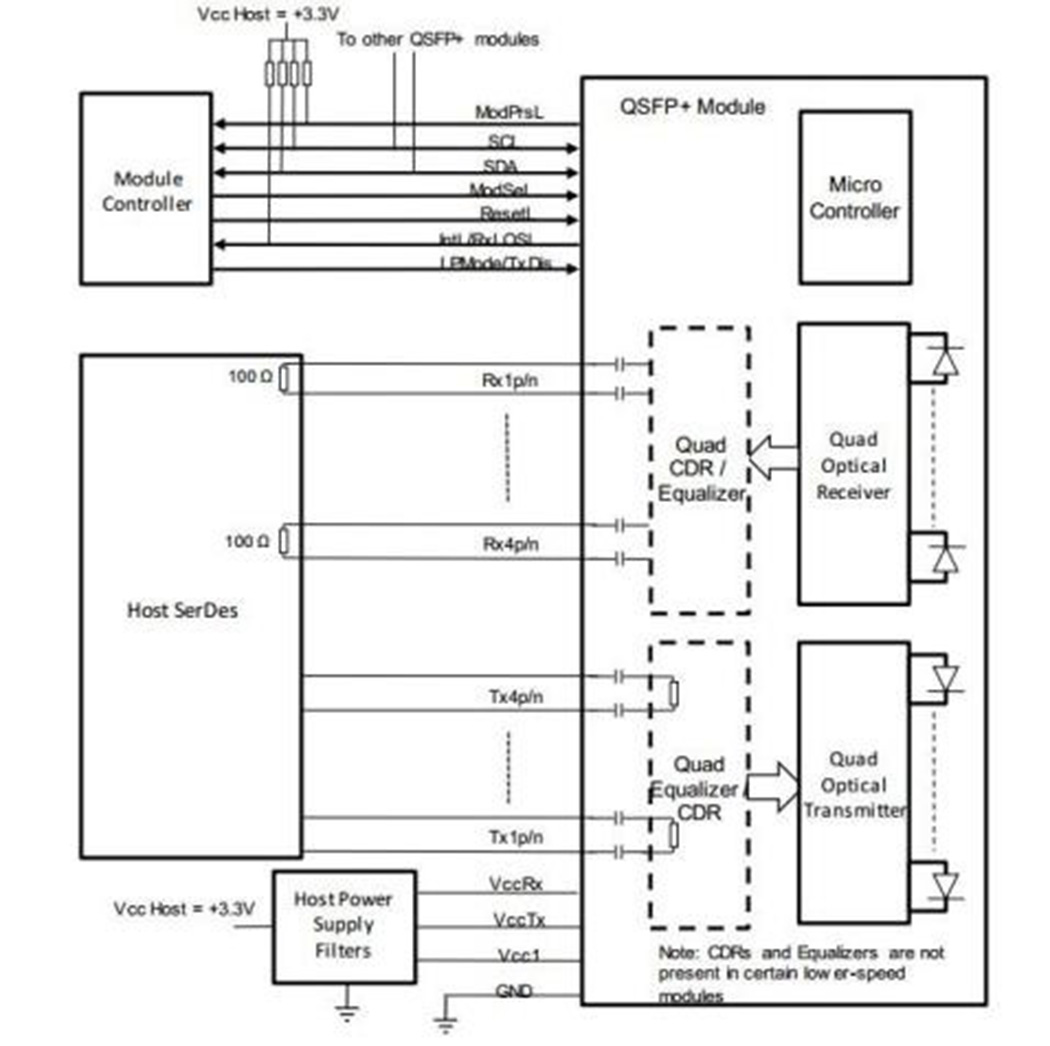

Principle diagram

200G QSFP56

Electric Ports Definition

Parameter	Symbol	Unit	Min	Typ	Max	Notes
Supply Voltage	VCC VCC3.3-Tx VCC3.3-Rx	V	3.135	3.3	3.465
Power Consumption	Pc	W			6.5
Transceiver Power-on Initialize Time		ms			2000
Transmitter
Differential peak-to-peak input voltage tolerance		mV	900
Differential termination mismatch		%			10
Differential input return loss(SDD11)		dB			See CEI-56G -VSR
Common-mode to differential conversion and differential to common-mode conversion (SCD11,SDC11)		dB			See CEI-56G -VSR
Receiver
Differential peak-to-peak output voltage		mV			900
DC Common Mode Voltage	Vcm	mV	-0.35		2.85
AC Common Mode Noise, RMS		mV			17.5
Differential termination mismatch		%			10
Differential output return loss (SDD22)		dB			See CEI-56G -VSR
Common-mode to differential conversion and differential to common-mode conversion (SCD22, SDC22)		dB			See CEI-56G -VSR

IIC communication
IIC Clock frequency	-	KHZ	/	400	1000
clock stretching	-	us	/	/	500
Data hold time	-	ns	/	/	/

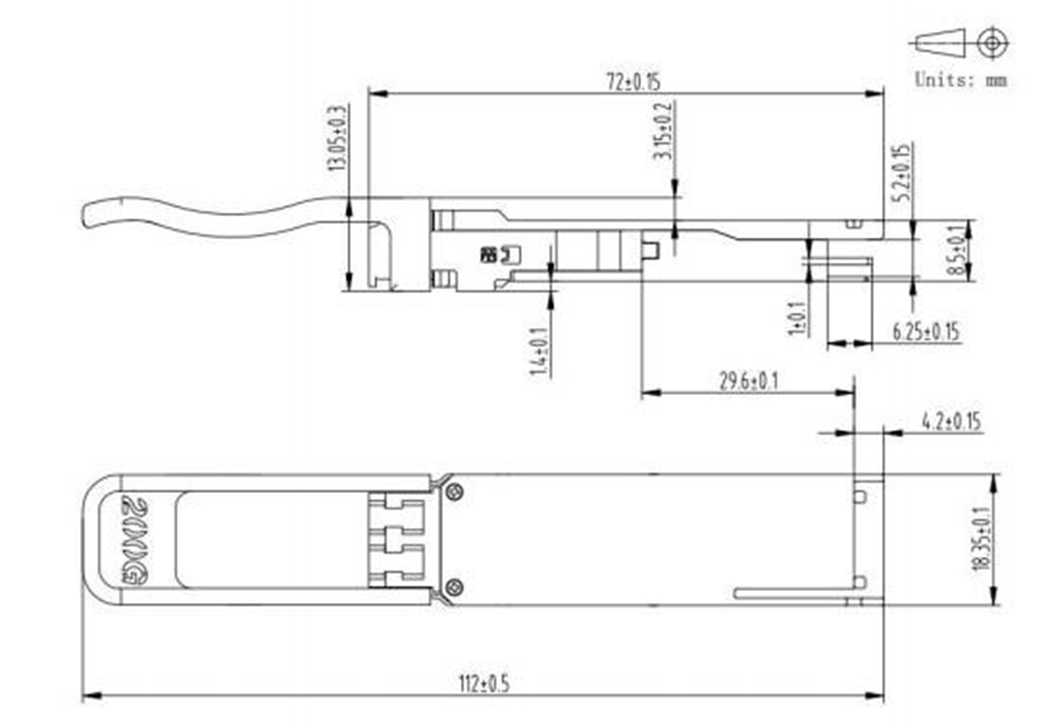

Package Outline

200G QSFP56

Related Tags :

Want to know about this product?

SEND A MESSAGE

Leave A Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

Subject : 200G QSFP56 FR4 2KM LC PAM4 Optical Transceiver
Your Tel/WhatsApp
Your email *
Write your Question :

Related Products

200G QSFP56 SR4 100m 850nm PAM4 Transceiver

Features QSFP56 Serial Optical Interface 4x50G PAM4 retimed 200GAUI-4 C2M electrical interface MPO-12 connector 4 channel VCSEL array and 4 channels PIN photodetector array >Maximum link length of 70m on OM3 or 100m on OM4 QSFP MSA Compliant Hot Pluggable QSFP56 form factor Compliant with SFF8636 Rev 2.10a Support Protocol Compliant with IEEE 802.3cd Low Power Consumption Less than 5W in temperature range of 0 to 70℃ Applications 200GBASE-SR4200G Ethernet Data center

200G QSFP-DD SR8

Features： Up to 28.05 Gbps data rate per channel by NRZ modulation Support 200GAUI-8 electrical interface Integrated 850nm VCSEL array and PD array Hot-pluggable QSFP-DD form factor Supported MPO-16 APC or 2*MPO-12 UPC Compliant to QSFP-DD HW Compliant with CMIS 4.0 Maximum power consumption 3.5W Single 3.3V power supply Case operating temperature 0°C to 70°C Class 1 laser RoHS compliant

4CH WDM GPON XGS-PON NG-PON2 And RF Video Plug-in LGX Box 215*150*20MM

Amid the era of digital transformation, the demand for high-speed, reliable, and flexible communication networks has reached an unprecedented level. Passive Optical Networks (PON) have established themselves as a cornerstone of contemporary communication infrastructure, underpinning a diverse array of applications—ranging from residential home broadband to enterprise-grade networks, and extending even further into broader use cases. To address the ever-increasing bandwidth requirements and secure future-proof network rollouts, the integration of 4CH WDM (Four-Channel Wavelength Division Multiplexing) with key technologies including GPON, XGS-PON, NG-PON2, and RF Video delivers a comprehensive solution. This integration not only maximizes fiber optic utilization but also significantly boosts the capabilities of service delivery.

100G QSFP28 BIDI 1304nm/1309nm 40km Transceiver

Features Supports 100GBASE-ER1-40 BIDI Lane signaling rate 106.25Gb/s with PAM4 Up to 40km transmission on SMF EML laser and APD receiver 4x25.78Gb/s with NRZ electrical interface (CAUI-4) High speed I/O electrical interface I2C interface with integrated Digital Diagnostic monitoring QSFP28 MSA package with simplex LC connector Single +3.3V power supply Maximum power consumption 4.5 W Operating case temperature: 0 to +70 °C Compliant to 802.3cu, SFF-8636&SFF-8679 standard Complies with EU Directive 2015/863/EU Application 100GBASE-ER1-40 BIDI Transceiver Types:

Single Fiber 20CH (40waves) DWDM MUX DEMUX, With R B Filter

IL<3.5dB , 100GHZ DWDM MUX DEMUX, AAWG Technology Multiplexing of 20 Channels over a Single Fiber Bidi Network with Red and blue filter for long distance application Passive devices, No Power No Cooling Required Support Metro, Regional and Long Haul DWDM Networks

Dual Fiber 8CH C40-C47 DWDM OADM, WEST TO EAST

IL<2.4dB , 100GHZ DWDM OADM MUX DEMUX Multiplexing of 8 Channels Drop and Add, over a Dark Fiber Network Fully Compatible with All ITU-T 1G/10G/25G/40G/100G DWDM Optics Passive devices, No Power No Cooling Required Support Metro, Regional and Long Haul DWDM Networks

Dual Fiber 8CH 1470-1610nm CWDM MUX DEMUX With EXP , LC/UPC, Plug-in LGX Box

CWDM MUX DEMUX,Multiplexing up to 8 Channels on Fiber Pair Passive, Protocol Transparent for Ethernet, FC, OTN, SONET/SDH, etc. Fully Compatible with All ITU-T 1G/10G/25G CWDM Optics Applied to Metro, Regional CWDM Networks

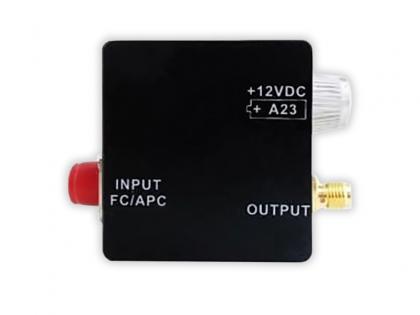

Bias Detector Series PD1500/PD2100
