200G QSFP56 SR4
200G QSFP56 SR4 200G QSFP56 SR4 200G QSFP56 SR4 200G QSFP56 SR4 200G QSFP56 SR4

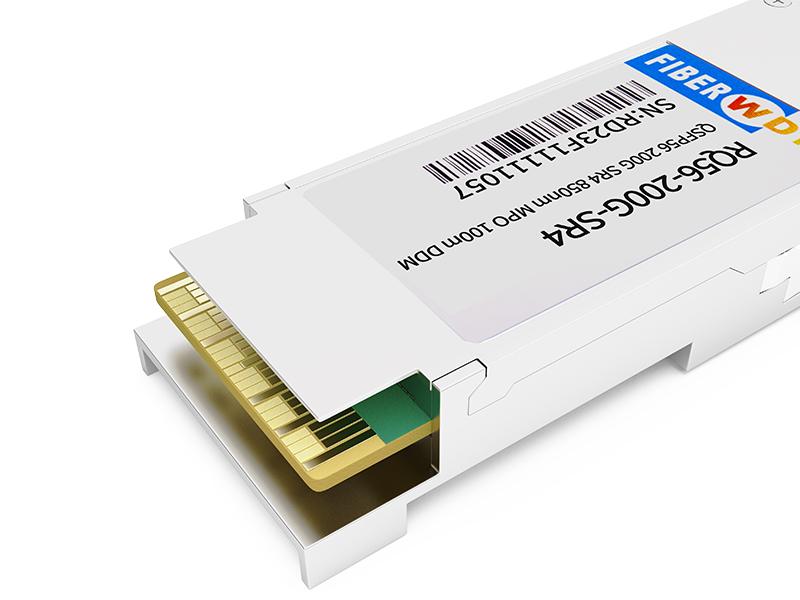

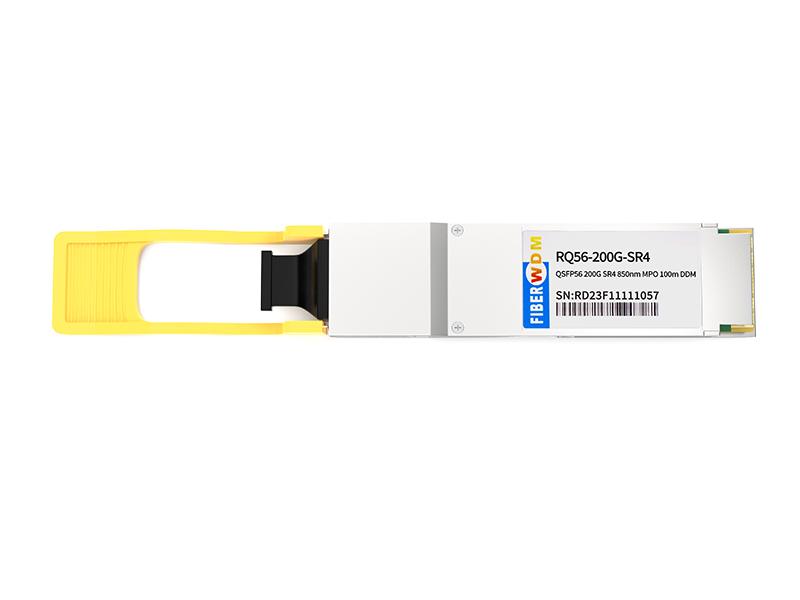

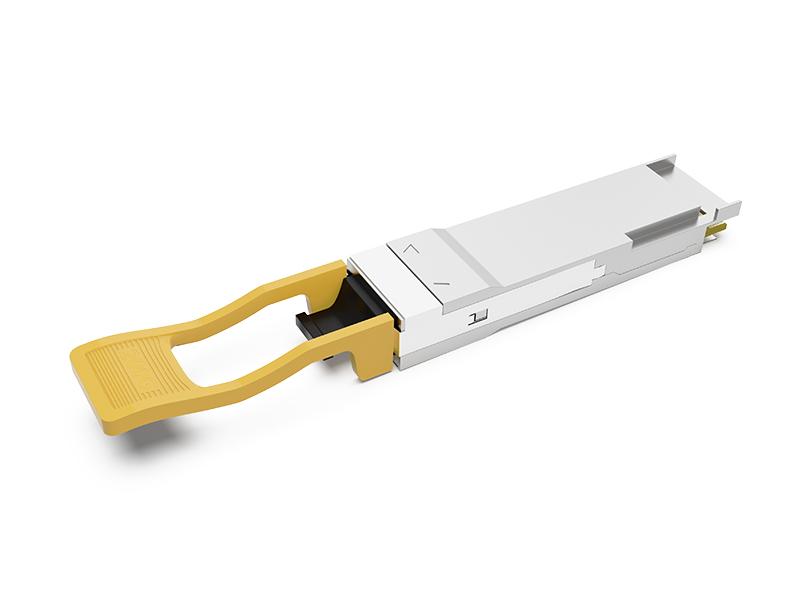

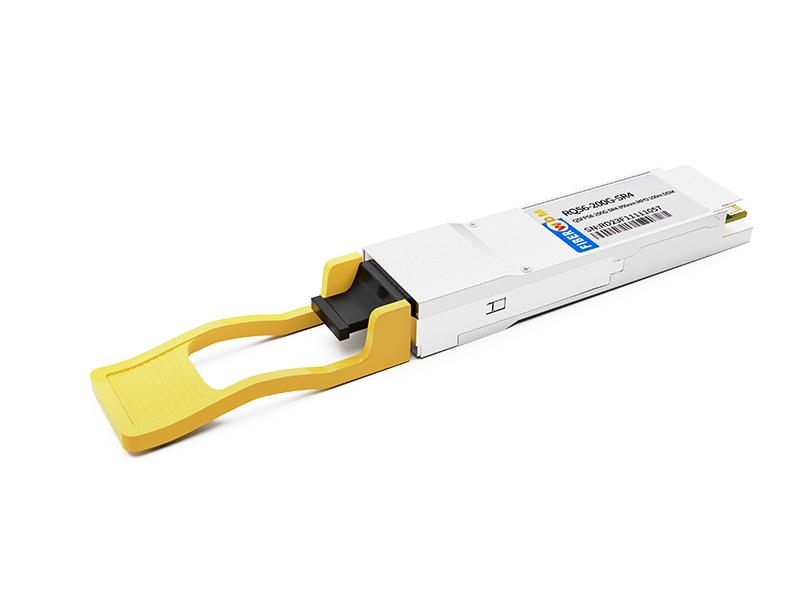

200G QSFP56 SR4 100m 850nm PAM4 Transceiver

Features

QSFP56 Serial Optical Interface

4x50G PAM4 retimed 200GAUI-4 C2M electrical interface

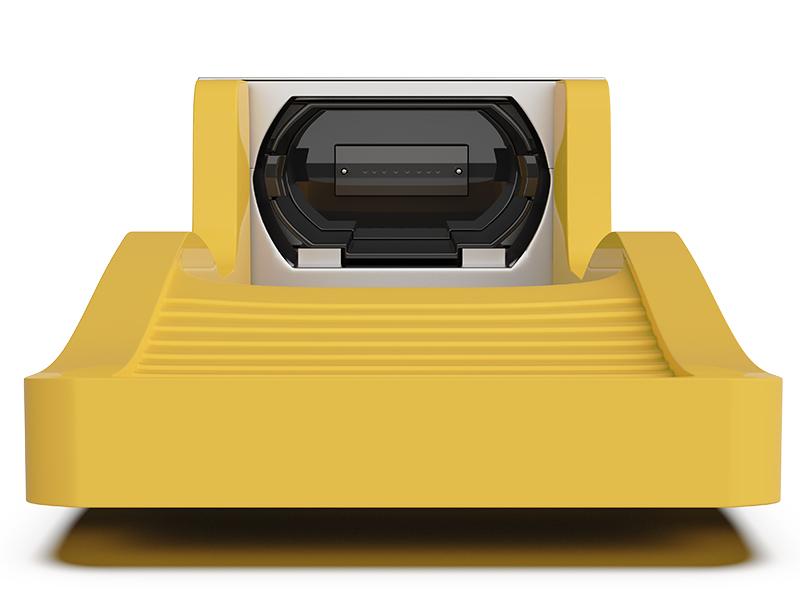

  • MPO-12 connector
  • 4 channel VCSEL array and 4 channels PIN photodetector array >Maximum link length of 70m on OM3 or 100m on OM4



QSFP MSA Compliant

  • Hot Pluggable QSFP56 form factor
  • Compliant with SFF8636 Rev 2.10a



Support Protocol

  • Compliant with IEEE 802.3cd



Low Power Consumption

  • Less than 5W in temperature range of 0 to 70℃



Applications

  • 200GBASE-SR4200G Ethernet
  • Data center



Inquire now Download
  • Product Detail

200G QSFP56 SR4 100m 850nm MPO PM4 Optical Transceiver

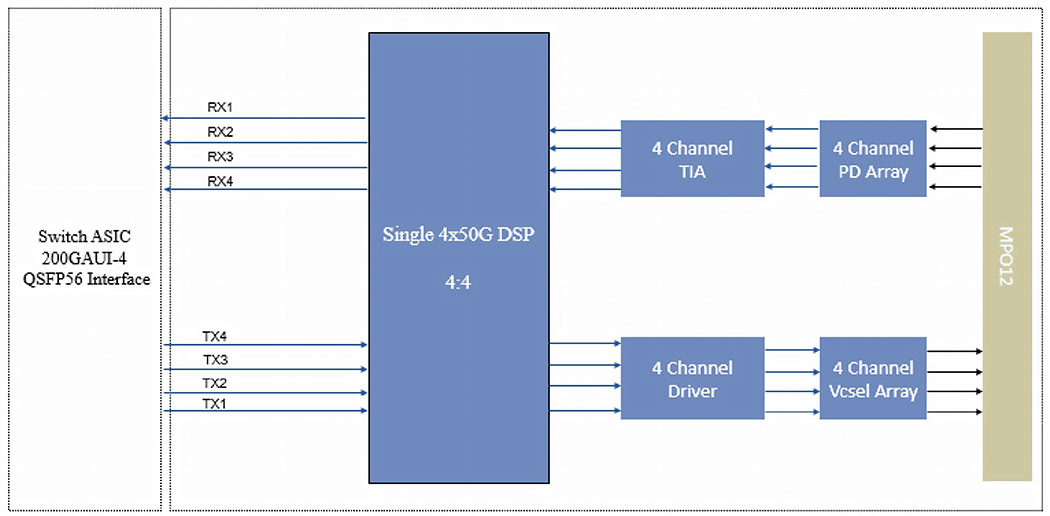

Functional Block Diagram



200G QSFP56 SR4



General Description

200G QSFP56 SR4 Optical Transceiver modules are designed for use in 200Gigabit Ethernet links over OM3/OM4 multimode fiber. They are compliant with the QSFP MSA and with IEEE 802.3cd 200GBASE-SR4 specification. Digital diagnostics functions are available via the I2C interface as specified by SFF-8636.The transceiver is RoHS 2.0 compliant and lead-free per Directive 2011/65/EU.



Absolute Maximum Ratings

Parameter

Symbol

Min

Max

Unit

Storage Temperature

Ts

-40

85

℃

Relative Humidity (non-condensation)

RH



85

%

Supply Voltage

Vcc

-0.5

3.6

V

Receiver Damage Threshold, per Lane

PR dmg

5



dBm



Recommended Operating Conditions

Parameter

Symbol

Min

Max

Unit

Operating Case Temperature

Top

0

70

℃

Power Supply Voltage

Vcc

3.135

3.465

V

Total Power Consumption

Pc



5

W

Bit Rate

BR



212.5

Gbps

Fiber Length on OM3 MMF





70

m

Fiber Length on OM4 MMF





100

m



Transmitter Optical Interface

Parameter

Symbol

Min

Typical

Max

Unit

Data rate per lane

DR



26.5625



Gbd

Modulation format



PAM4



Center Wavelength

λ

840

850

868

nm

RMS spectral width

σ





0.65

nm

Average Launch power, each lane

Pavg

-6.5



4

dBm

Optical Power OMA, each Lane

PoMA

-4.5



3

dBm

Launch power in OMA outer minus TDECQ



-5.9





dBm

Transmitter and dispersion eye closure (TDECQ), each lane

TDECQ





4.5

dB

Extinction ratio

ER

3





dB

Optical Return Loss Tolerance

ORLT





12

dB

Optical Power for TX DISABLE







-30

dBm

Encircled fluxb¹



≥86%at 19 um

≤30%at 4.5 um



Notes:

1.Measured into type A1a.2 or type A1a.3, or A1a.4,50 um fiber, in accordance with IEC 61280-1-4



Receiver Optical Interface

Parameter

Symbol

Min

Typical

Max

Unit

Data rate per lane

BR



26.5625



Gbd

Modulation format



PAM4



Damage threshold



5





dBm

Average receive power, each lane



-8.4



4

dBm

Receiver reflectance

Rr





-12

dB

Receiver sensitivity, each lane¹



RS=max (-6.5, SECQ-7.9)

dBm

Stressed receiver sensitivity, each ane







-3.4

dBm

Rx LOS

Assert



-30





dBm

De-assert







-9

dBm

Hysteresis



0.5





dB

Notes:

1.Receiver sensitivity is informative and is defined for a transmitter with a value of SECQ.  Measured with conformance test signal at TP3 for BER = 2.4E-4 Pre-FEC.



High speed Electrical Specifications

Parameters

Min

Typical

Max

Unit

Supply voltage

3.135



3.465

V

Supply Current





1.59

A

Input differential impedance

90

100

110

Ω

Differential pk-pk input Voltage Tolerance

900





mVpp

Differential data output swing





900

mVpp

Bit Error Rate Pre-FEC





2.4E-4



Input Logic Level High

2



Vcc

V

Input Logic Level Low

0



0.8

V

Output Logic Level High

Vcc-0.5



Vcc

V

Output Logic Level Low

0



0.4

V

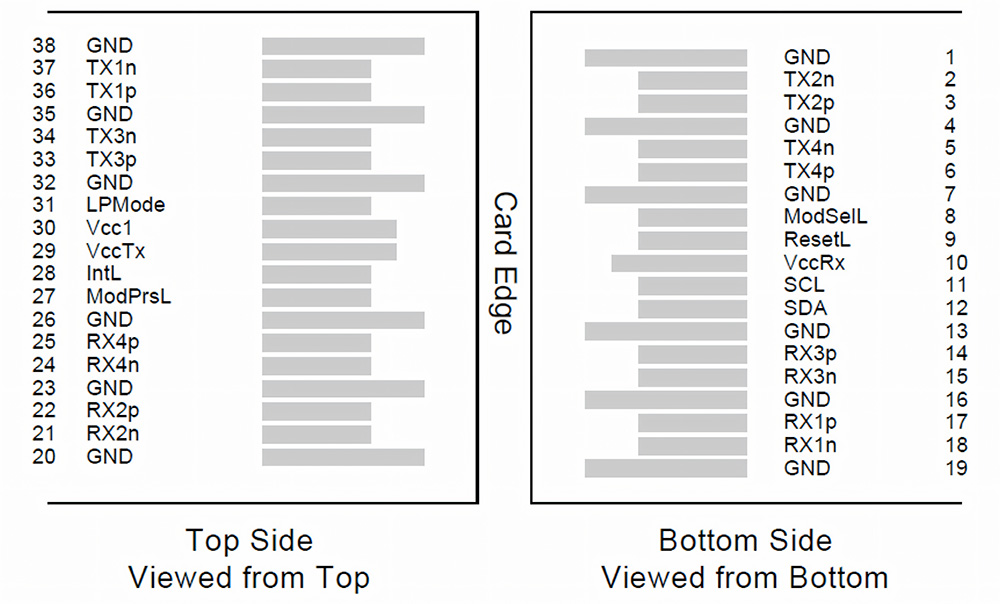

PIN Definitions

QSFP56 pin-out as being defined by QSFP MSA，PIN Descriptions are as follows:

200G QSFP56 SR4

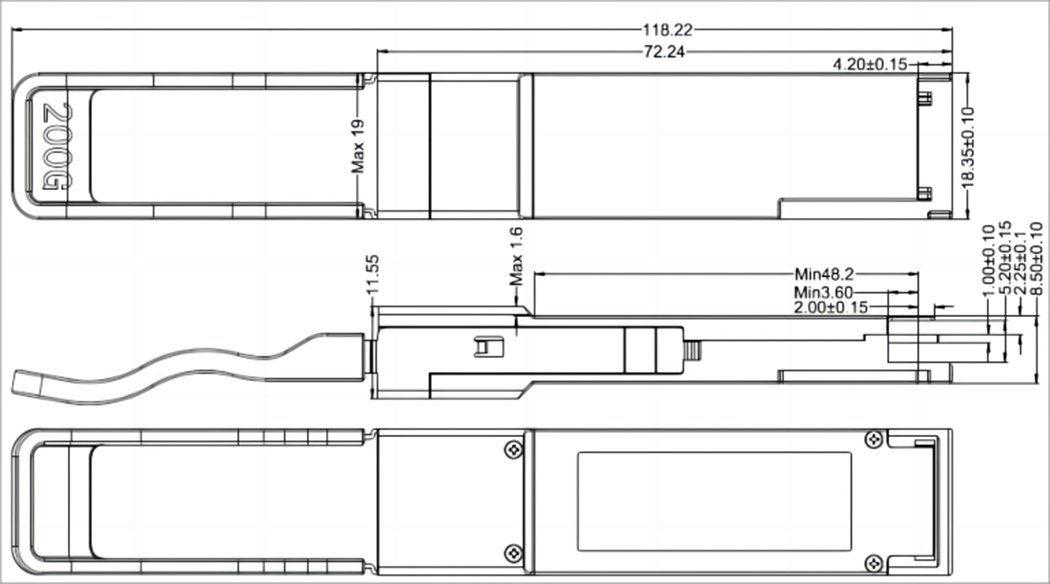

Package dimensions

shows the package dimensions of the module. Package dimensions are specified in QSFP MSA.

200G QSFP56 SR4





Ordering Information

Part Number

Temperature Range

Distance

Fiber Type

E/O

O/E

RQ56-200G-SR4

0 to 70℃

100m

MMF

VCSEL

850nm

PIN

Want to know about this product?

SEND A MESSAGE
Leave A Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

Related Products
200G QSFP56 FR4 2KM 200G QSFP56 FR4 2KM LC PAM4 Optical Transceiver
Features 4 duplex channels transmitters and receivers Integrated CWDM LD and PD array LC/UPC connecting interface compliant Single +3.3V power supply DDM function implemented Hot-pluggable QSFP56 form factor Transmission length up to 2km Low power dissipation:
Read More
200Gb/s QSFP DD PSM8 10km Optical Transceiver 200Gb/s QSFP DD PSM8 10km Optical Transceiver
The FiberWDM RQD-200G10-PSM8 is a Eight-Channel, Pluggable, Parallel, Fiber-Optic QSFP DD PSM8 for 2×100 Gigabit Ethernet , Infiniband DDR/EDR Applications. This transceiver is a high performance module for data communication and interconnect applications. It integrates eight data lanes in each direction with 208 Gbps bandwidth. Each lane can operate at 26Gbps up to 10km over G.652 SMF. These modules are designed to operate over singlemode fiber systems using a nominal wavelength of 1310nm. The electrical interface uses a 76 contact edge type connector. The optical interface uses an 24 fiber MTP (MPO) connector. This module incorporates FiberWDM proven circuit and Optical technology to provide reliable long life, high performance, and consistent service.
Read More

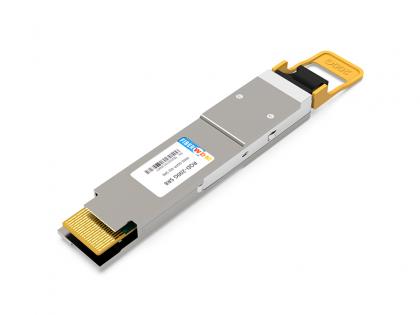

200G QSFP-DD SR8 Transceiver 200G QSFP-DD SR8 100m Optical Transceiver
Features：   Up to 28.05 Gbps data rate per channel by NRZ modulation Support 200GAUI-8 electrical interface Integrated 850nm VCSEL array and PD array Hot-pluggable QSFP-DD form factor Supported MPO-16 APC or 2*MPO-12 UPC Compliant to QSFP-DD HW Compliant with CMIS 4.0 Maximum power consumption 3.5W Single 3.3V power supply Case operating temperature 0°C to 70°C Class 1 laser   RoHS compliant
Read More

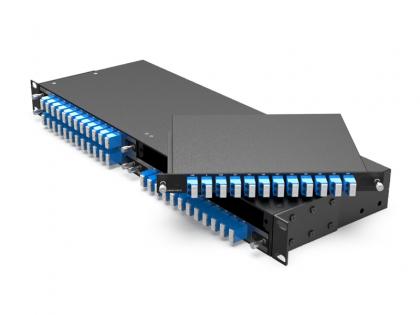

40CH 80Waves DWDM MUX DEMUX With INTL port Single FIBER 40CH 80Waves DWDM MUX DEMUX With INTL port Single FIBER 1U Rack
